M10Q-5883 uses multi-constellation GNSS module powered by u-blox M10 series.

The GNSS module features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. It supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons. u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy in non-line-of-sight scenarios.

The high-gain 15 x 15 mm2 patch antenna provides the best balance between performance and small size. The omnidirectional antenna radiation pattern increases flexibility for device installation.

Package Includes

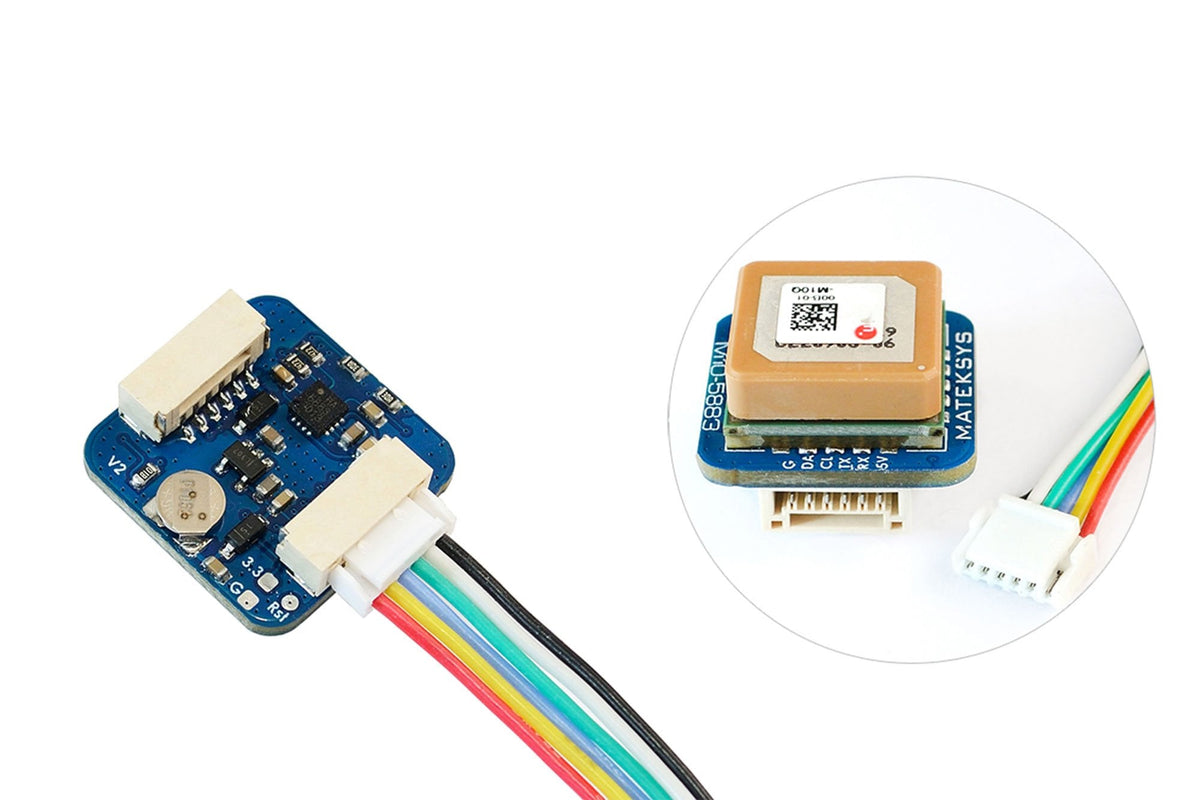

• 1x M10Q-5883
• 1x JST-GH-6P to JST-GH-6P 20cm silicon wire

Specifications

• GNSS u-blox M10 series (GPS, GLONASS, Galileo and BeiDou)
• Magnetic Compass QMC5883L
• Patch antenna 15*15*4mm
• Input voltage range: 4~9V (5V pad/pin)
• Power consumption: 13mA
• UART baudrate: 9600 default
• Operating Temperatures: -20~80 °C
• UART(TX, RX) interface for GNSS
• I2C(DA, CL) interface for Compass QMC5883L
• JST-GH-6P connector (SM06B-GHS-TB). 1.27mm pitch
• GNSS PPS LED, Green. (Solid ON after powering on,  blinking(1Hz) when GNSS get 3D fix)
• Protocol: UBX(u-blox)  5Hz@GPS+GAL+BDS B1C+GLO or NMEA 1Hz

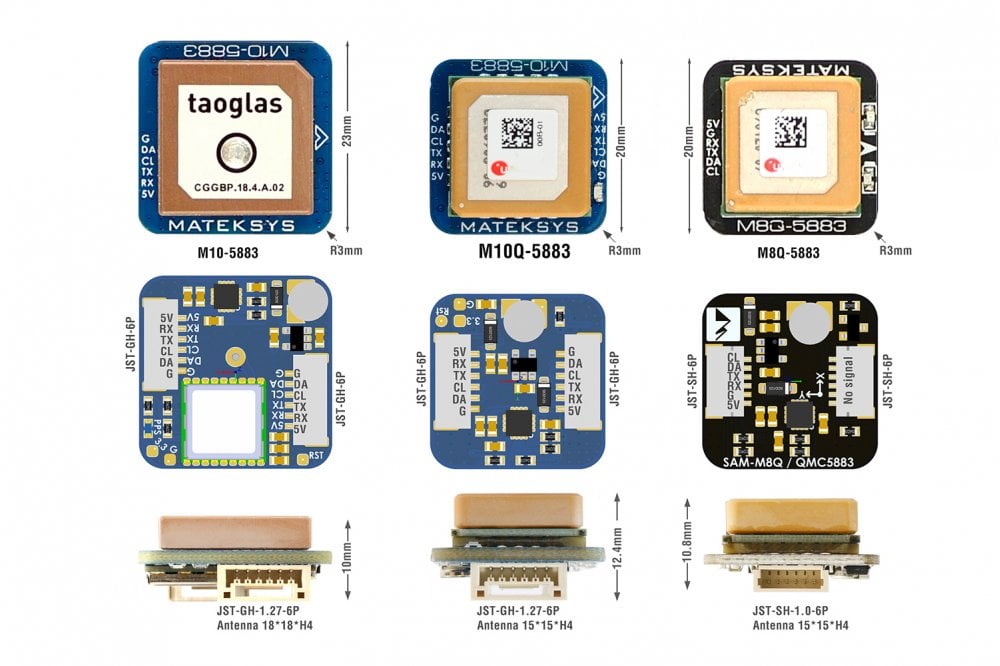

• 20mm*20mm*12.4mm
• 8g
• M10Q-5883_step.zip

 Wiring and settings

• M10Q-5883  5V to Flight controller 4~9V
• M10Q-5883  RX to Flight controller UART_TX
• M10Q-5883  TX to Flight controller UART_RX
• M10Q-5883  CL to Flight controller I2C_SCL
• M10Q-5883  DA to Flight controller I2C_SDA
• M10Q-5883  G  to Flight controller GND

Tips and Notes

• Compass Alignment(flat mounting): Tilting the magnetometer is strongly discouraged !
• INAV/BetaFLight: compass Arrow forward, set CW 270° Flip when flight controller arrow is facing forward.
• INAV/BetaFLight: compass Arrow backward, set CW 90° Flip when flight controller arrow is facing forward.
• Ardupilot/Mission Planner: Rotation None.

 Make sure to have compass/magnetometer 10cm away from power lines/ESC/motors/iron based material
