Name: Holybro - Micro M10 GPS
Brand: Holybro
SKU: HB-06-05-Micro-M10-GPS-12043
Price: 37.29 GBP
Availability: InStock

Product Details

This new design incorporates the Ublox latest 10 Generation GNSS Chip and IST8310 digital compass, providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Features:

Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
IST8310 Compass
Small Form Factor

Specifications

GNSS Receiver	Ublox M10
Number of Concurrent GNSS	Up to 4 GNSS - BeiDou - Galileo - GLONASS - GPS - QZSS
Frequency Band	- GPS L1 - Galileo E1 - GLONASS L1 - BeiDou B1 - SBAS L1 - QZSS L1
Compass	IST8310
Output Protocol	- UBX (U-blox) - NMEA
Accuracy	2.0m CEP
Nav. Update Rate	Up to 25 Hz (single GNSS), Up to 10 Hz (4 concurrent GNSS)
GNSS Augmentation System	EGNOS, GAGAN, MSAS and WAAS QZSS: L1S
Default Baud Rate	115200
Input Voltage	4.7-5.2V

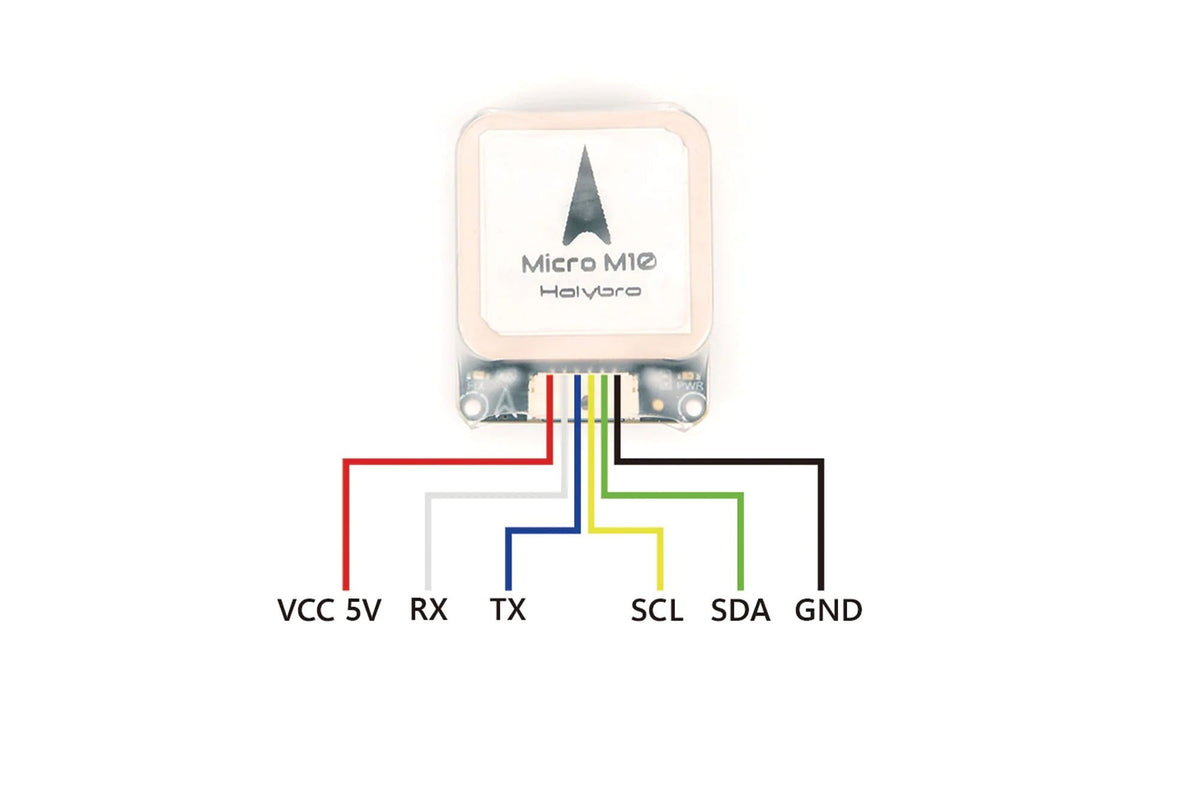

Port Type	JST-GH-6P
Antenna	25 x 25 x 4 mm ceramic patch antenna
Power consumption	Less than 200mA @ 5V
Operating Temperature	-40~80C
Dimension	- 32 x 26 x 9mm (w/o Case) - 34 x 28 x 11mm (With Case)
Weight	- 14g (w/o Case) - 16g (With Case)
Other	- LNA MAX2659ELT+ RF Amplifier - Rechargeable Farah capacitance - Low noise 3.3V regulator

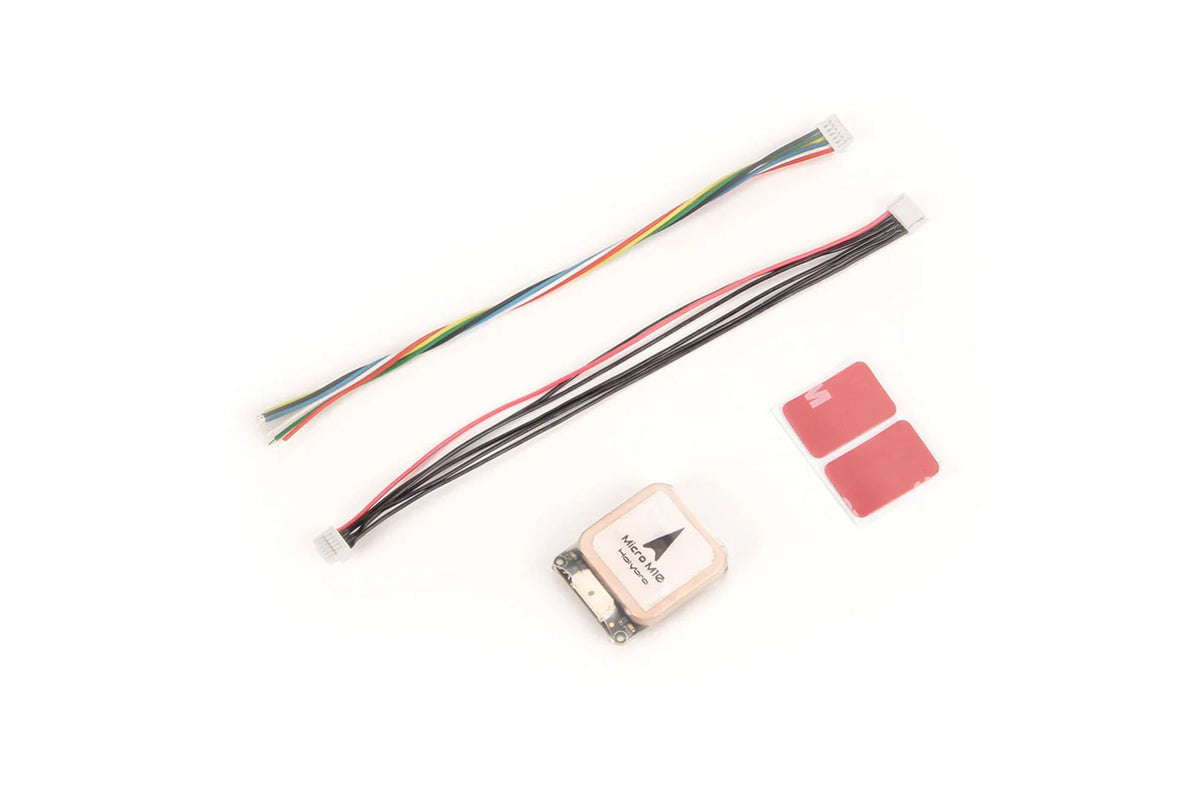

Package contains:

1x Micro GPS module *1
1x JST GH 6 Position Connector 15 cm
1x JST-GH 6pin Coloured Silicon Cable 15 cm

Product Details

This new design incorporates the Ublox latest 10 Generation GNSS Chip and IST8310 digital compass, providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts.

Features:

Newest Ublox 10th Gen GNSS
Fast & Accurate Positioning
IST8310 Compass
Small Form Factor
