3DXR3DXR- KYBOSH 250 2.5m V-Tail VTOL

£7,995.00 (inc. VAT)

£6,662.50 (ex. VAT)

Out of stock

Title: FixedWing Version

Product Specifications

Product Details

3DXR- KYBOSH 250 2.5m V-Tail VTOL

VTOL 2.5m V-Tail Frame- KIT

Package contains: x1 KIT. (Does not include any electronics).

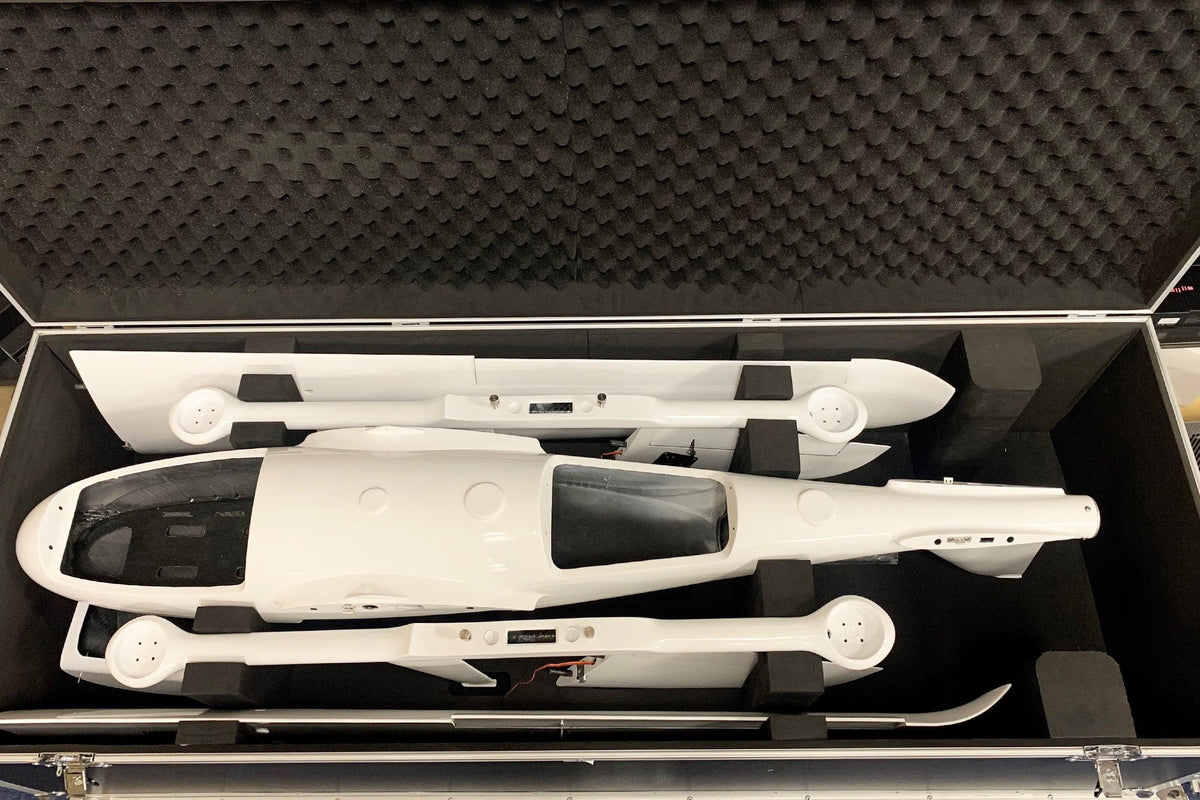

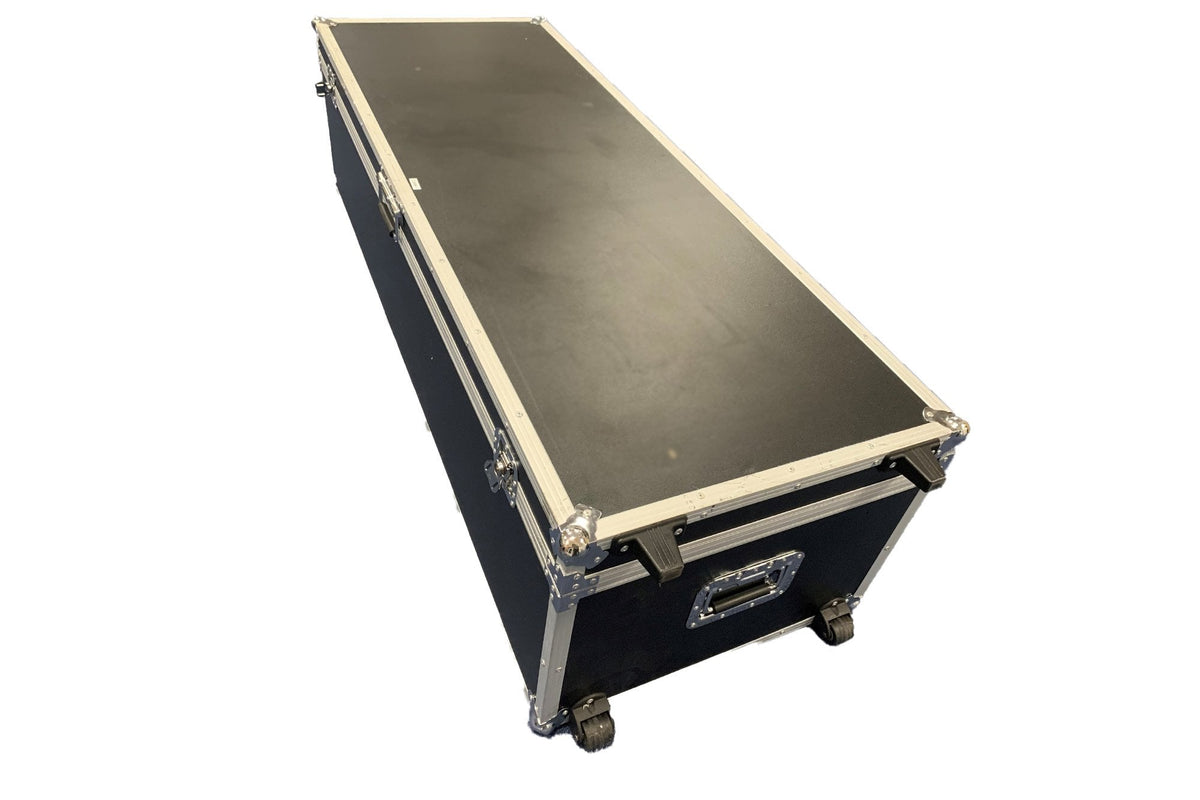

The product comes within an aluminium case, as per the image.
This is a long endurance drone; ideal for mapping surveillance.

VTOL 2.5m V-Tail Frame- PNP (Grey Colour)

Package contains: x1 PNP
Fitted Motors & ESCs (T-Motor))
Fitted Servos & Control Horns
Propeller
Note- Flight electronics are not included. You will be required to fit FC, GPS, Airspeed, Batteries, Control Line, etc... (The PNP makes for quicker assembly)

Recommended Set-up (Sold separately on our Website)

4 x T-motor V505 KV260 (Included in PNP)
4 x T-motor Flame 60A HV ESC (Included in PNP)
2 x P16*5.4 Propeller CW&CCW (Included in PNP)
1 x T-motor AT115A ESC (Included in PNP)
1 x T-motor AT4130 KV230 (Included in PNP)
1 x 17*12 Propeller CW (Included in PNP)
4 x GDW296X servo (Included in PNP)- Note, we do not stock this individually.
1 x Matek ASPD-DLVR Air Speed Sensor
1 x Mauch Power Cube 4 & PL100A
1 x Cube Orange
1 x Herelink
2 x 6S 25000mAh HV Lipo battery

Please Note- This product does not come with a user manual as it is targeted to experienced users.

Manufacturer Description:

Long endurance drone with vertical take-off and landing fixed wing, wingspan 2.5 meters, it is electric version .
This model combines the characteristics of long-endurance, high-speed and long-distance of fixed-wing UAVs and the vertical take-off and landing of rotor-wing drones.
It does not require runway but only small space for take-off and landing, and can be operated smoothly on ship deck, narrow airspace, mountain, complex terrain and densely populated areas such as hills, jungles.
The whole process of autonomous flight can be completed without operator intervention for cruise, flight state transition and vertical take-off and landing.
The equipment compartment is a replaceable hatch cover, and different mounting hole positions can be designed for different load requirements of the user.
The fuselage is designed as quick release structure, with reliable electrical connection, plug and play; unfolding and withdrawal time is less than 10 minutes.
The engine is rear-mounted and the load is placed forward to provide a larger field of view for the photoelectric load without obstruction.

Features

Body material: carbon fibre, glass fibre, Kevlar, pvc interlayer, etc.
Body length: 1.26m
Wingspan: 2.5m
Landing gear height: 19.5cm
Landing gear installation position: below the rotor rod
Task compartment size: 260mm*172mm*90mm
Battery compartment size: 260mm*150mm*85mm
Position of mission compartment: directly below the centre of gravity of the aircraft
Structure weight: about 3.2kg
Maximum take-off weight: 15kg
Maximum payload: 2kg (standard load: 1-1.5kg)
Endurance time: 170min/1.5kg (standard power configuration) (fixed wing power can be equipped with 18650 Batteries to increase endurance time)
Standard cruising speed: 65km/h (about 18m/s)
Maximum cruising speed: 108km/h (30m/s)
Stall speed: 16m/s
Minimum circling radius: 150m
Maximum level flight limit: 4000m above sea level
Wind resistance of fixed-wing mode: no less than 7 wind (17.1m/s)
Maximum wind resistance in rotor take-off and landing mode: no less than class 4 wind (8m/s)
Operating environment: -20℃~45℃; can fly in light rain
Power battery: 2x25000mah
Take-off and landing method: vertical take-off and landing
Vertical power blade size: 16 inches (recommended)
Fixed wing tail thruster blade: 17 inches (recommended)

Shipping- For International Shipping(anywhere outside of the UK), please contact us at info@3DXR.co.uk for asking for a quote and ensure you provide your full billing and shipping address. This is because our website may provide an incorrect shipping fee due to surcharges. (Note- We can only ship to certain locations).
