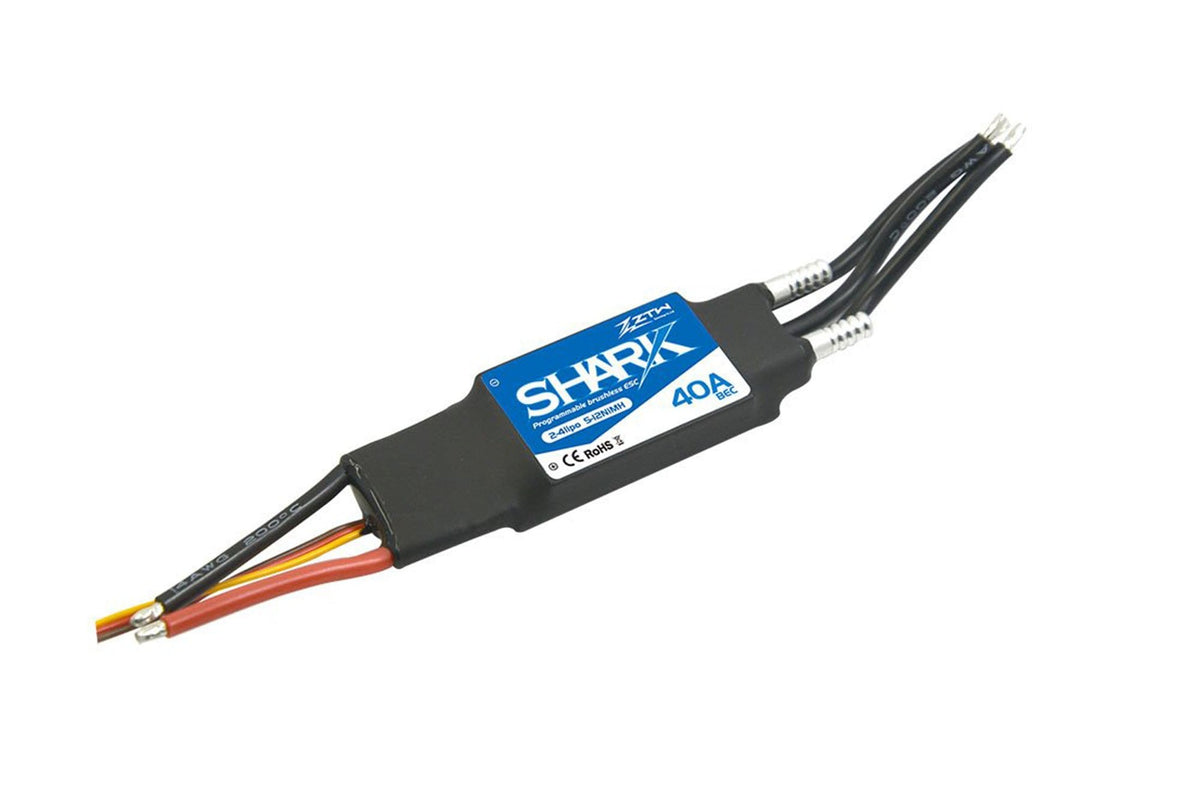

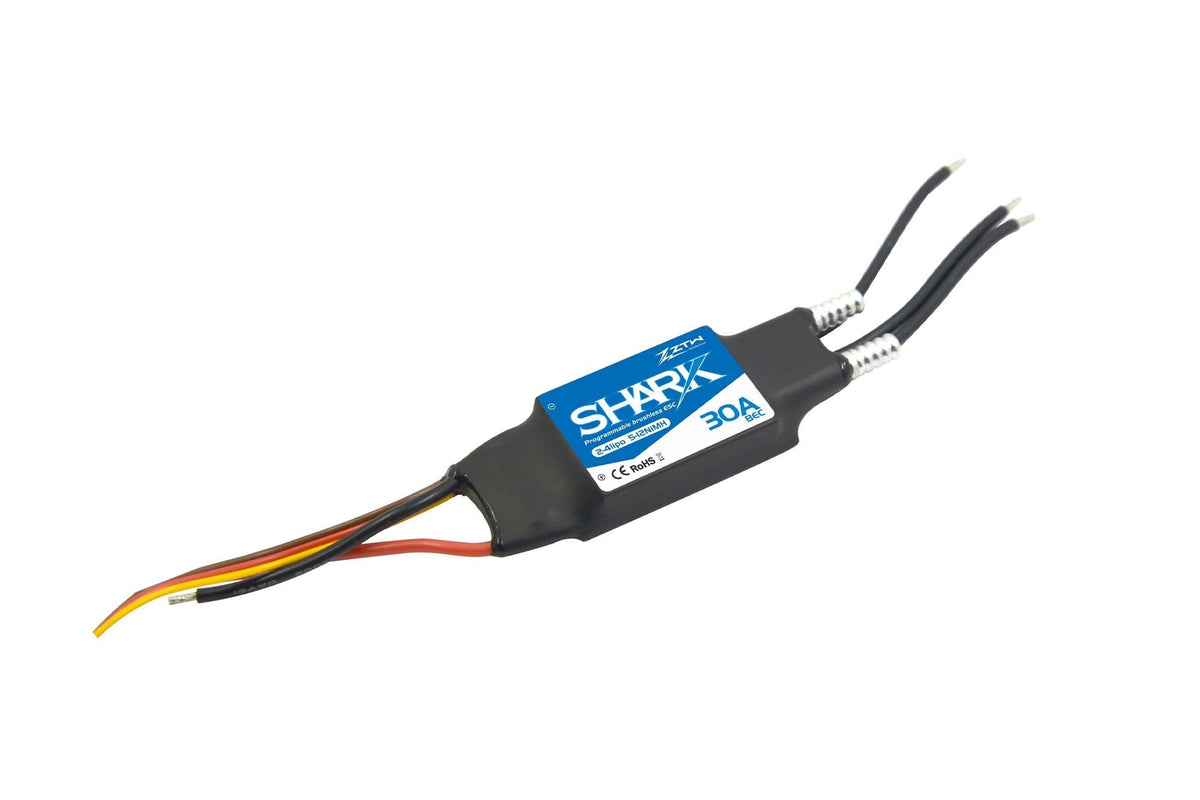

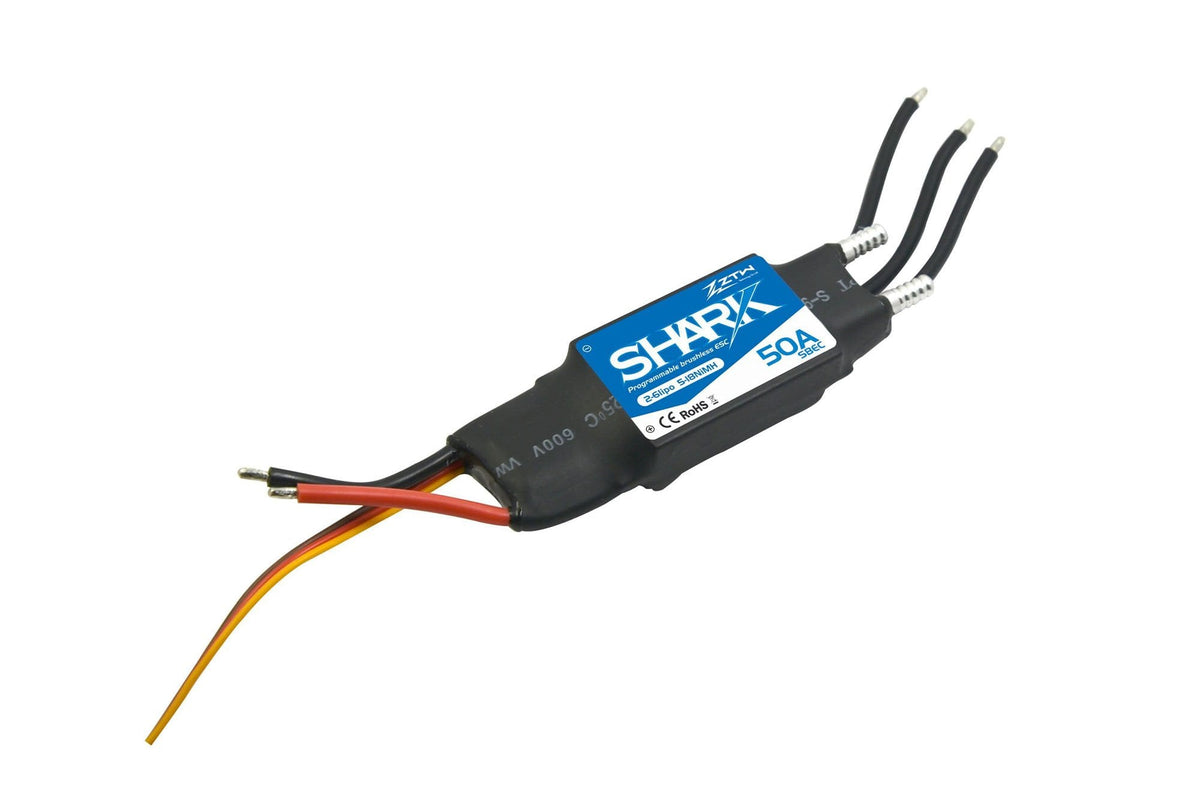

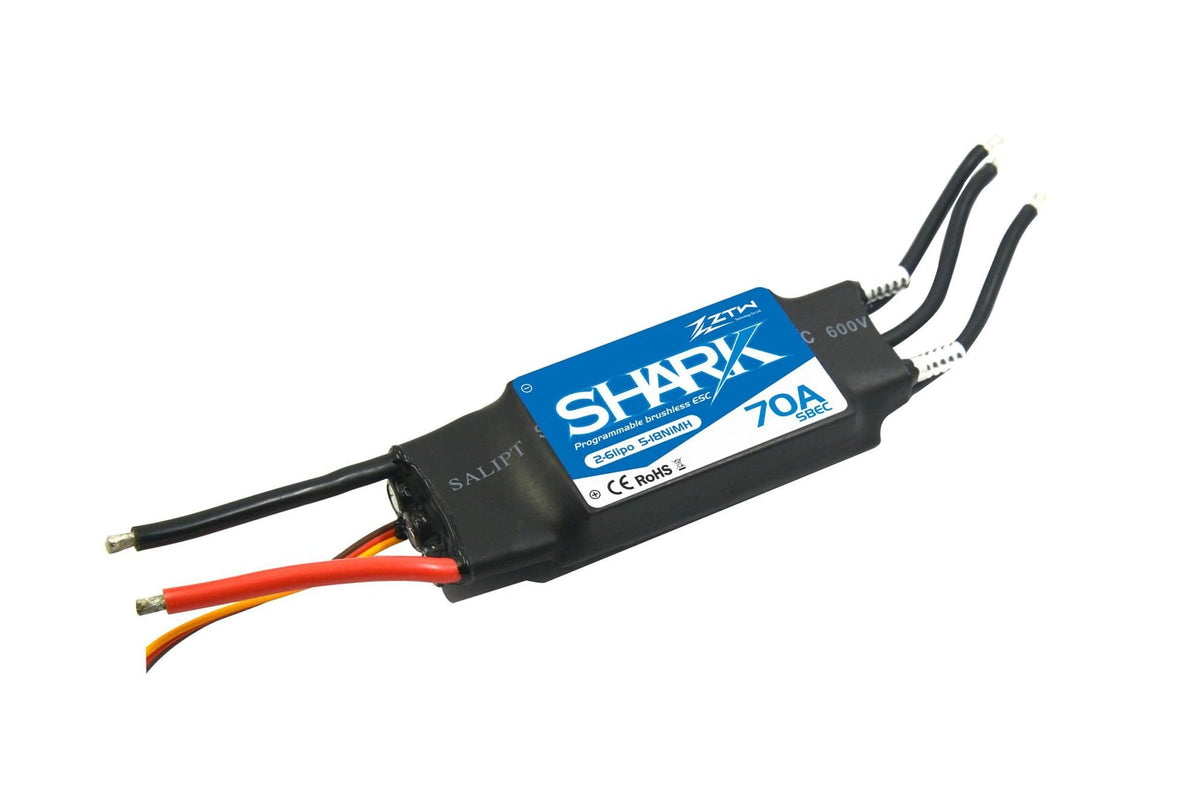

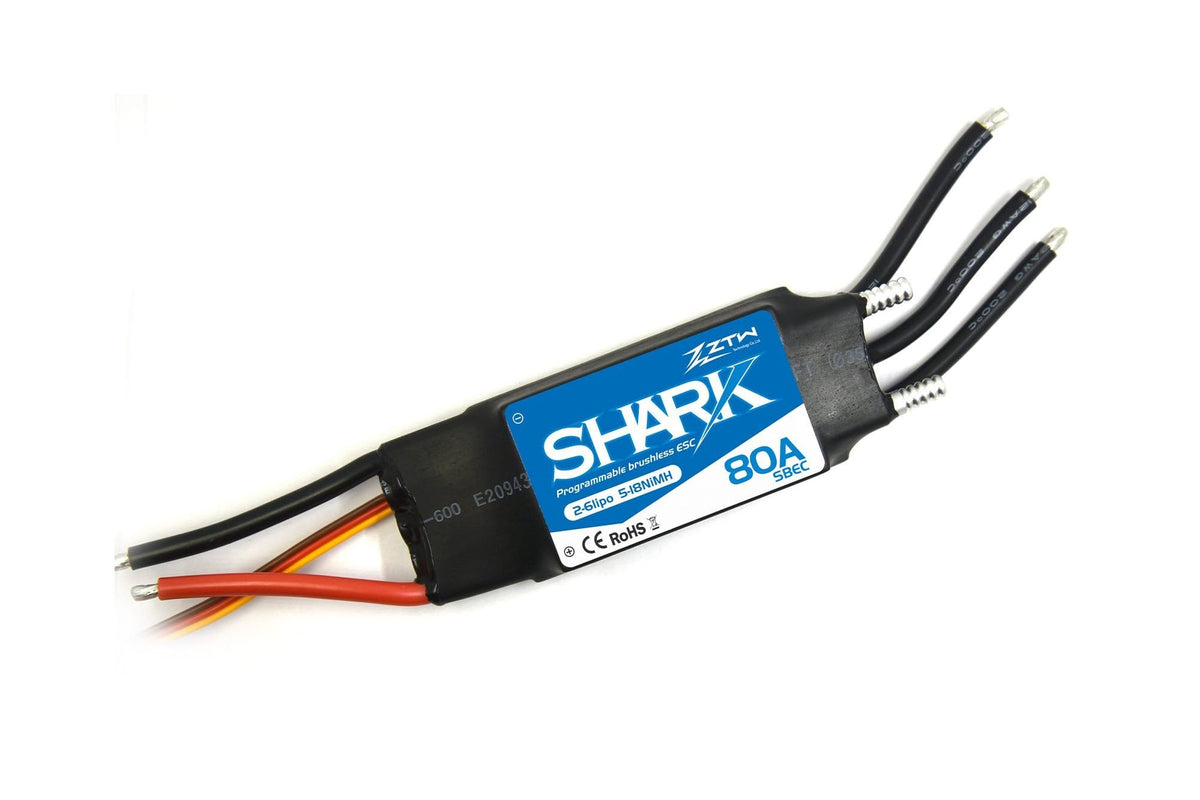

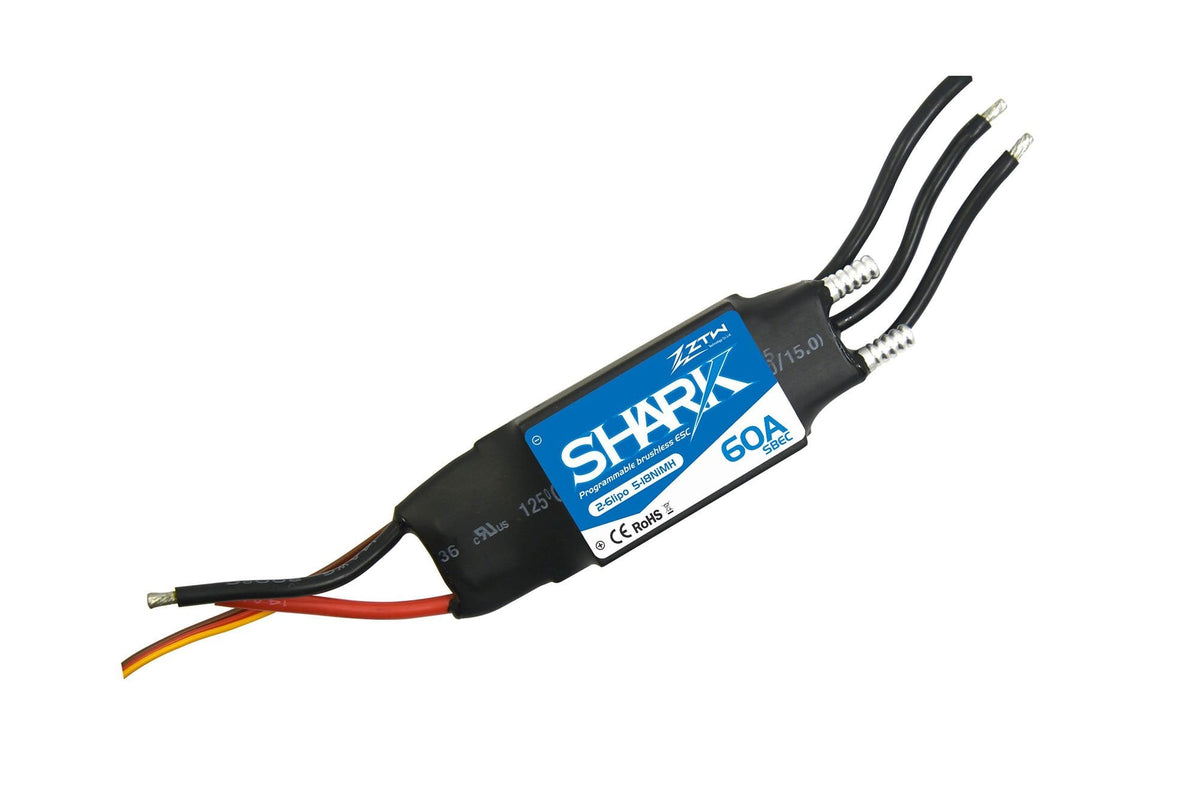

ZTW- Shark Marine Brushless ESC (Water- cooled)
Package contains:
- 1 x Shark Brushless ESC
Key Features
- Light and compact
- Over-heat protection circuitry
- Low voltage protection
- Lost signal protection
- Super smooth linear throttle response
- Waterproof
- Water cooling system
- Forward and reverse with adjustable endpoints
- Suits 5 – 12 cell NiMH packs
Product Description
Designed specifically to provide a solid hassle-free performance, Shark programmable brushless marine ESCs offer high quality components programmed with ZTW’s mature software at a price that’ll have you reaching for your bank card. Water cooled, waterproof and packing a built-in switch-mode BEC – with a maximum current handling capability ranging from 2A (Shark 20 and 30) through 3A (Shark 40) to 5A (Shark 50, 60, 70 & 80) – each speed controller features Over Temperature Protection and includes a high-throttle safety function that prevents the ESC from arming the motor if the throttle stick is not fully closed. Fact is, for those who seek an affordable fit 'n' forget solution, there really isn’t a better alternative.
Specifications
|
|
Shark Brushless ESC |
||||||
|
20A |
30A |
40A |
50A |
60A |
70A |
80A |
|
|
SBEC Voltage Output |
5V/2A |
5V/2A |
5V/3A |
5.5V/5A |
5.5V/5A |
5.5V/5A |
5.5V/5A |
|
Continuous Current |
20A |
30A |
40A |
50A |
60A |
70A |
80A |
|
Burst Current |
30A |
40A |
50A |
60A |
70A |
80A |
90A |
|
Battery Cell |
5-12NC/ 2-4Lipo |
5-12NC/ 2-4Lipo |
5-12NC/ 2-4Lipo |
5-18NC/ 2-6Lipo |
5-18NC/ 2-6Lipo |
5-18NC/ 2-6Lipo |
5-18NC/ 2-6Lipo |
|
Weight |
38g |
40g |
67g |
75g |
81g |
112g |
118.5g |
|
Length |
43mm x25mm x12mm |
43mm x25mm x12mm |
52mm x27mm x16mm |
56mm x30mm x19mm |
56mm x30mm x19mm |
68mm x37mm x18mm |
68mm x37mm x14mm |
