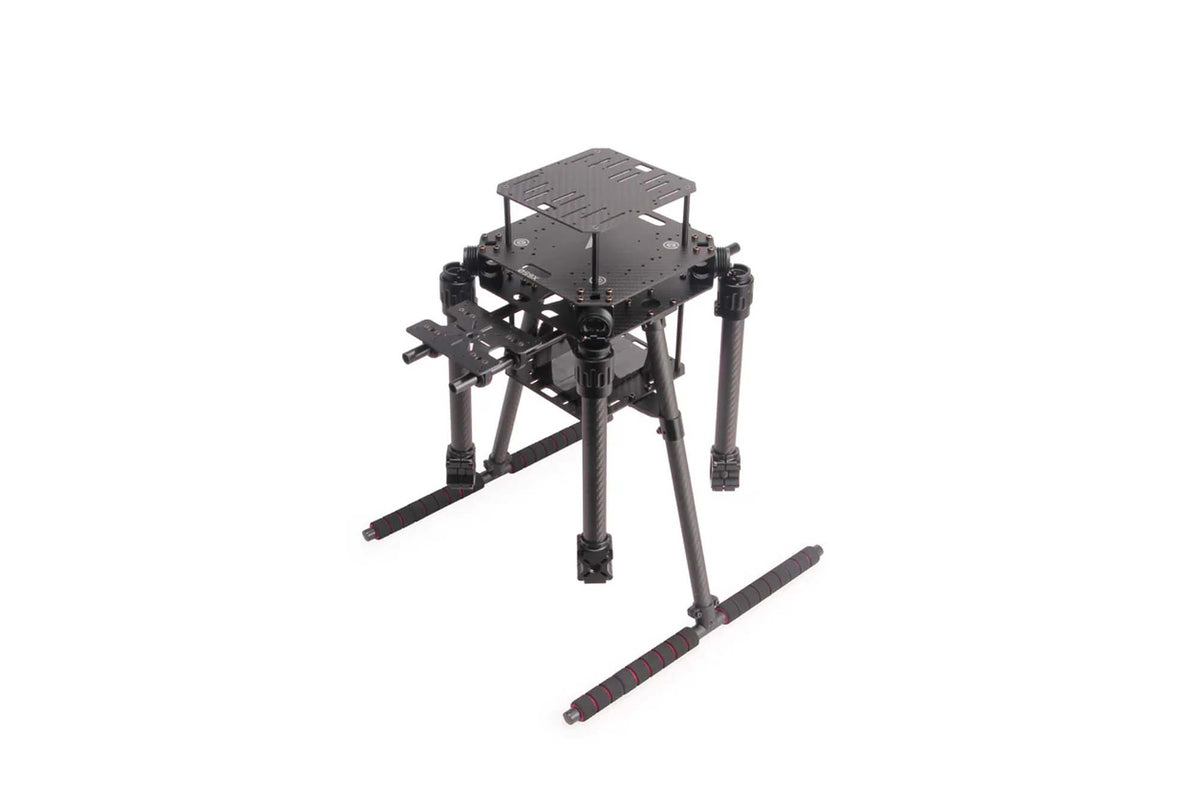

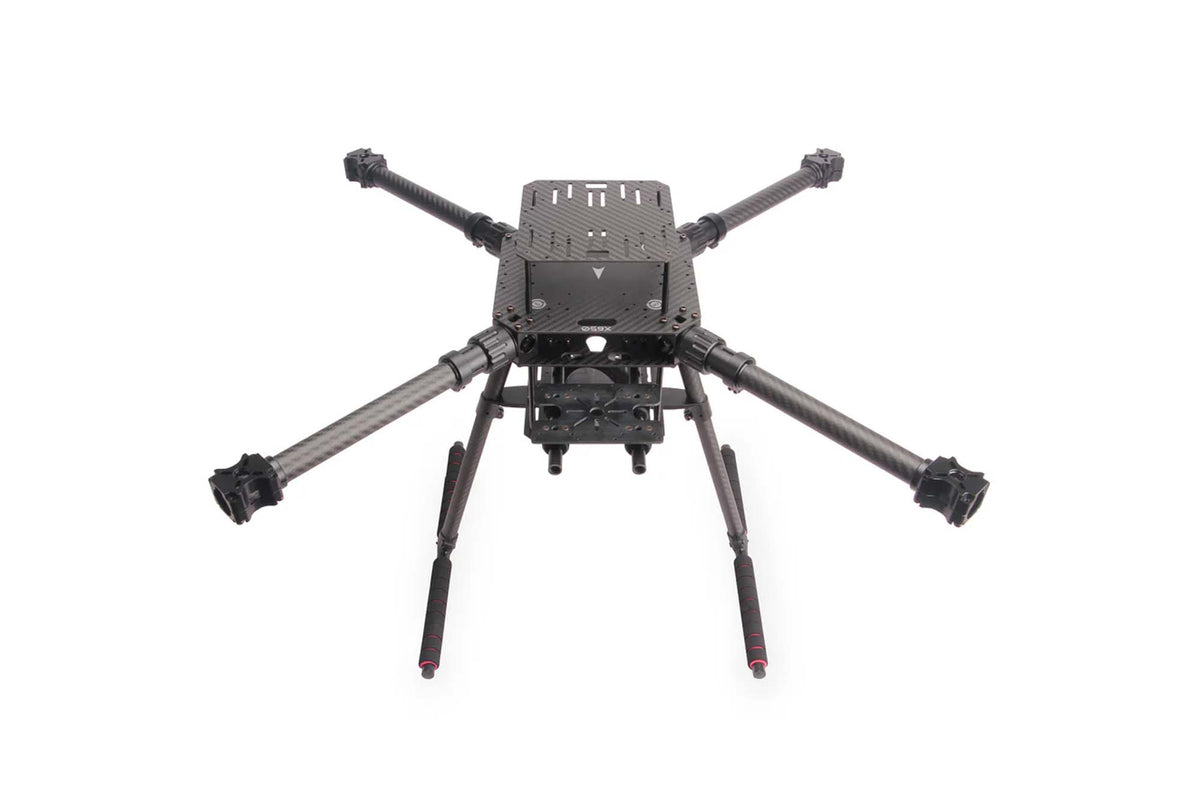

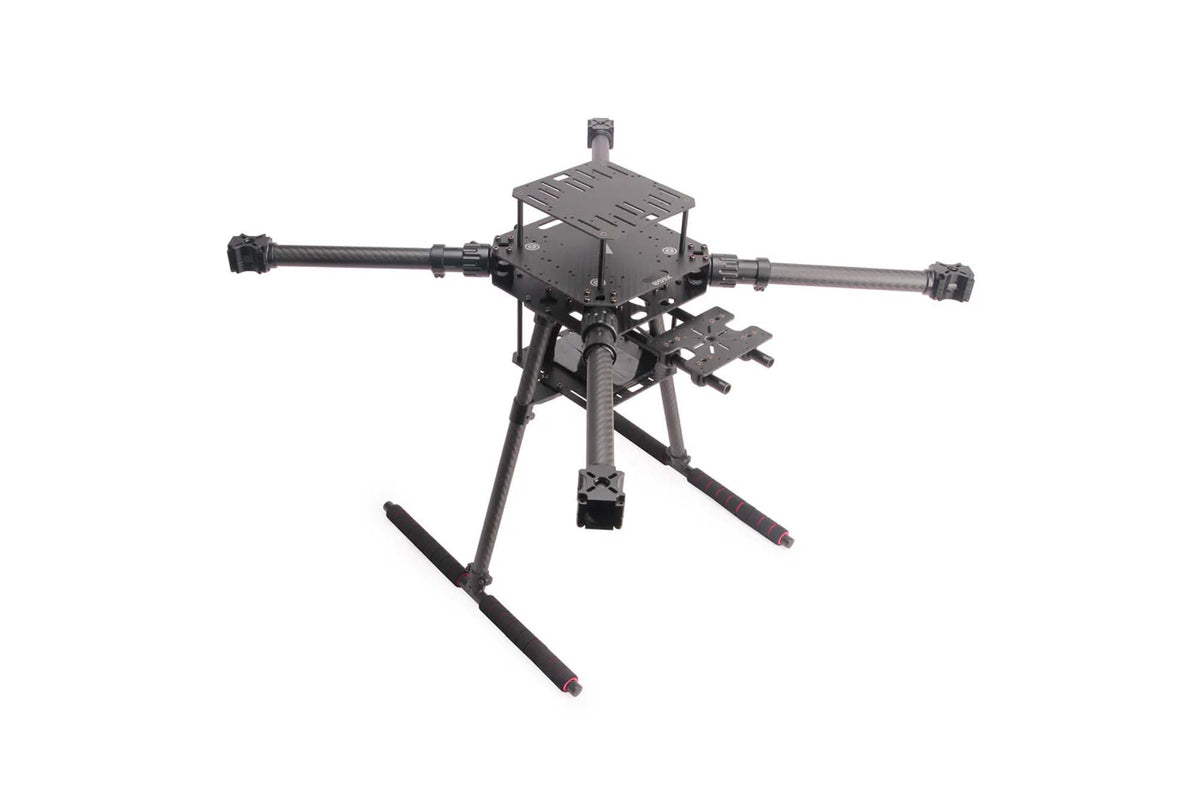

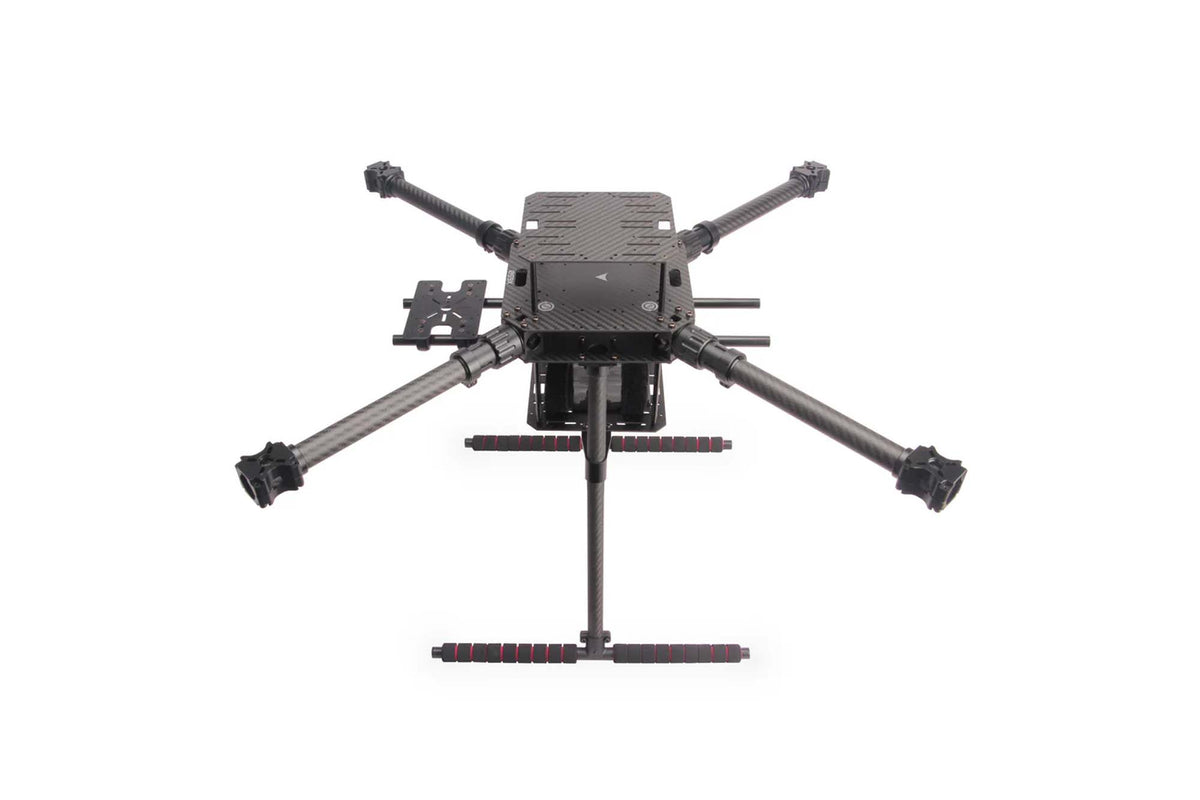

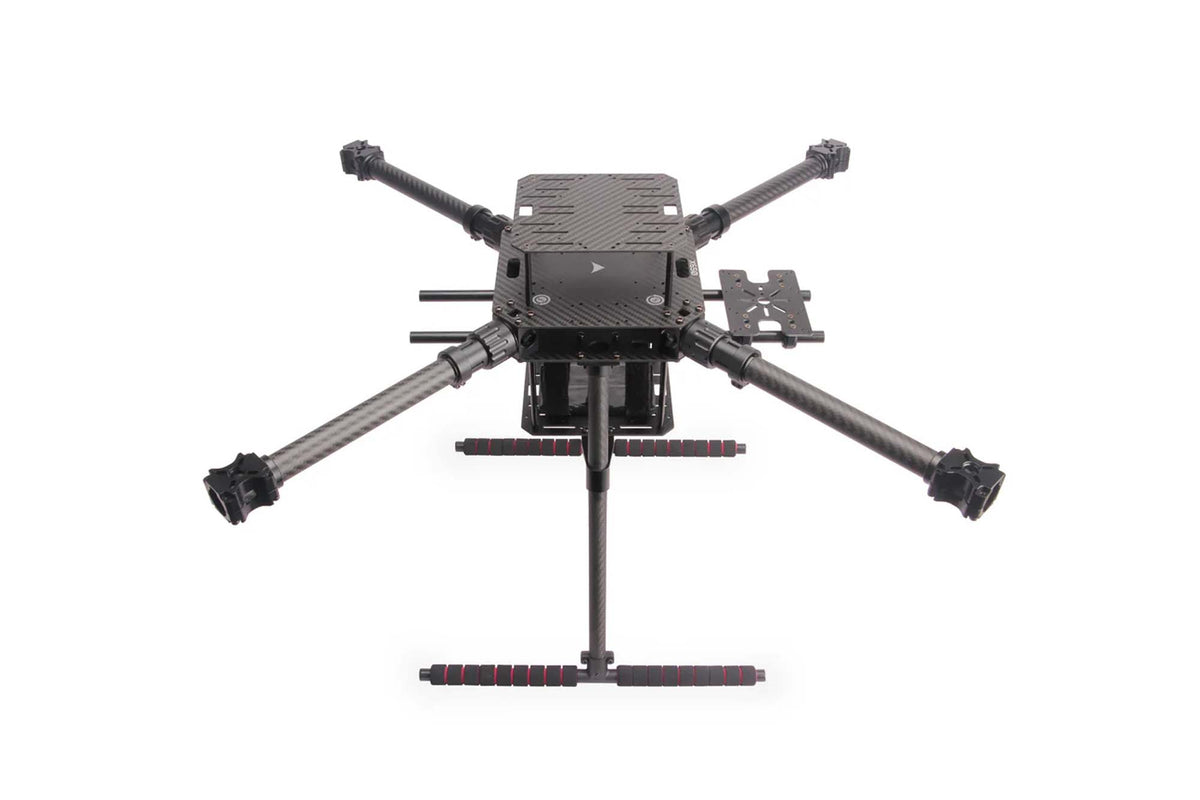

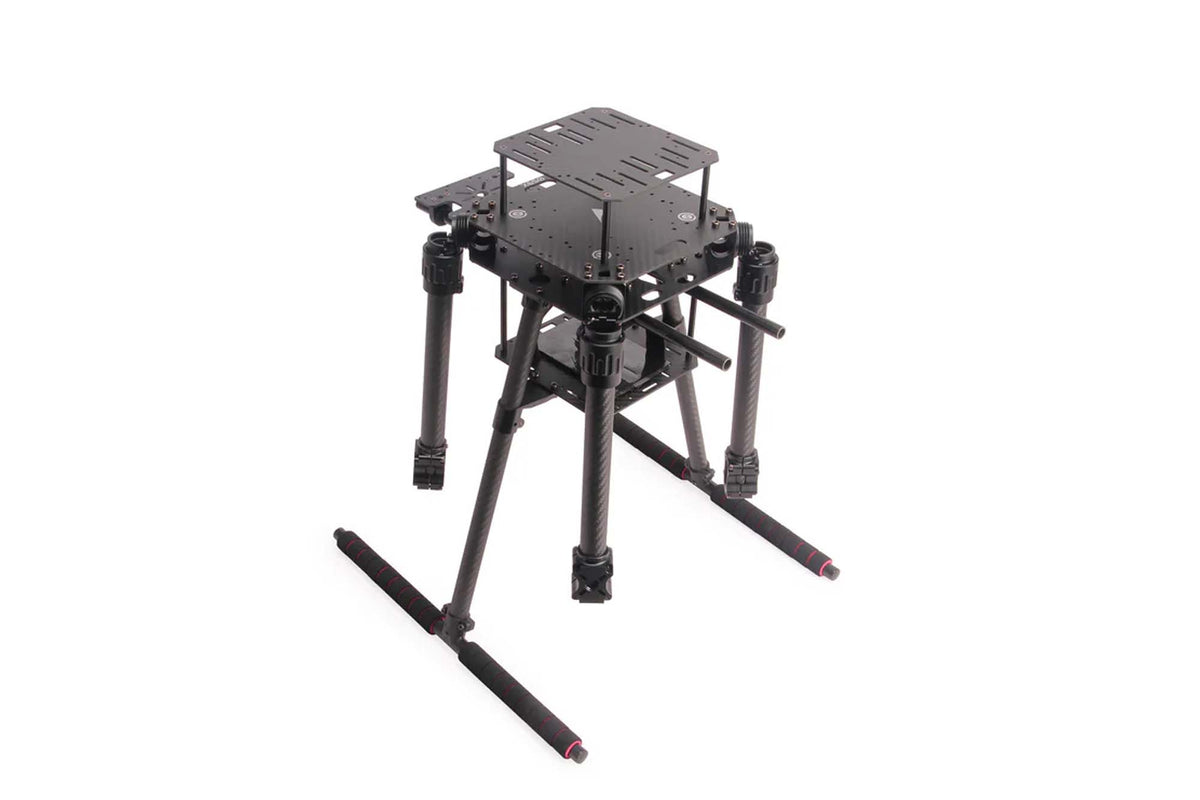

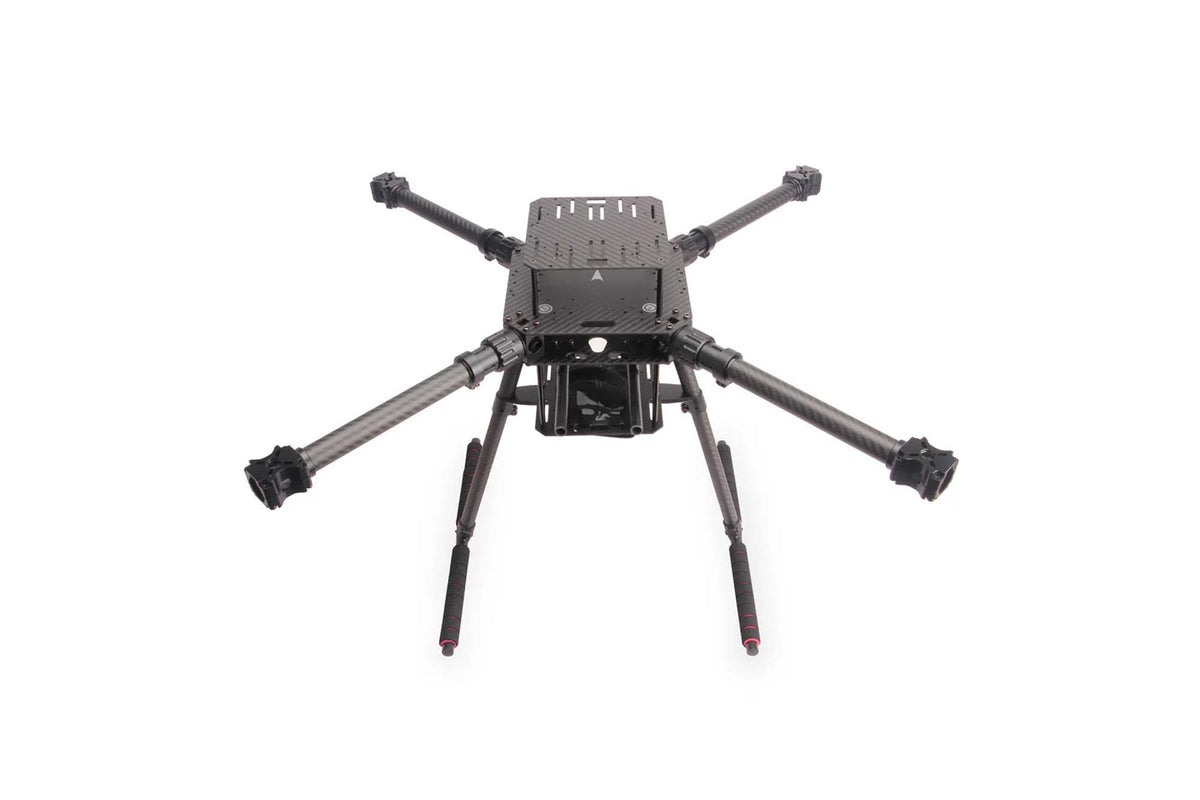

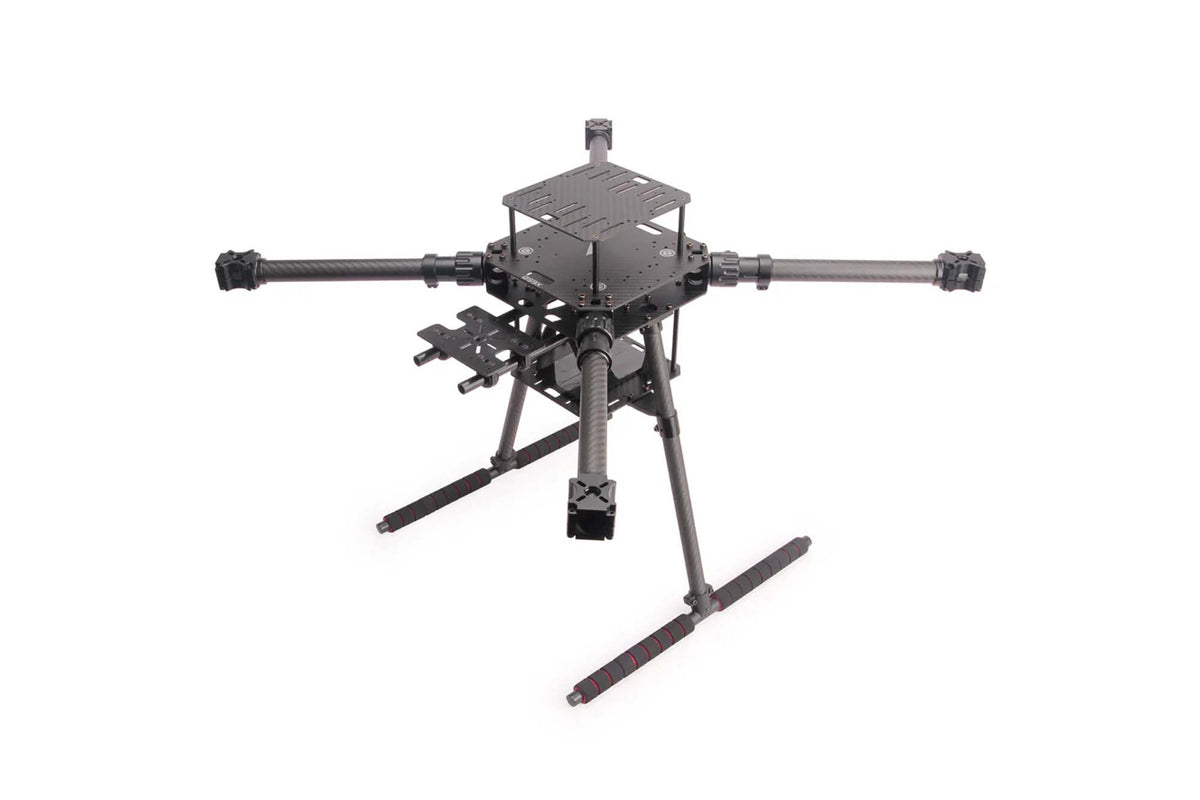

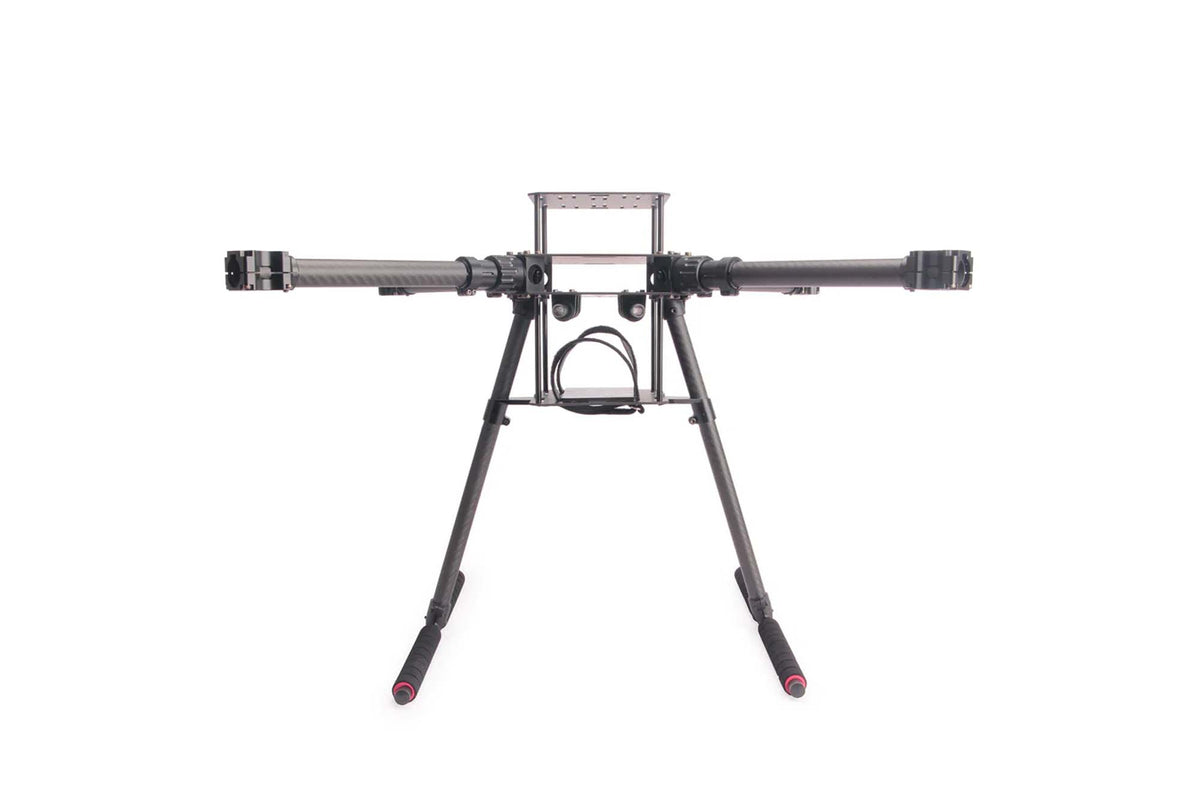

HolybroX650 Frame Kit - 30178

Almost Ready-to-Fly (ARF) Kit Feature:

• Carbon Fiber frame with foldable aluminum arm connector
• New frame design with minimal assembly time, no soldering required
• Easy & straightforward installation
• Spacious platform for easy integration of additional accessories & battery
• Pre-installed motors, ESCs, and LED with simple XT30 power plugs for PDB
• Power distribution board (PDB) with XT60 & XT30 plugs
• Optional depth camera mount for Intel RealSense depth camera
• Mounting holes ready for Pixhawk Jetson baseboard

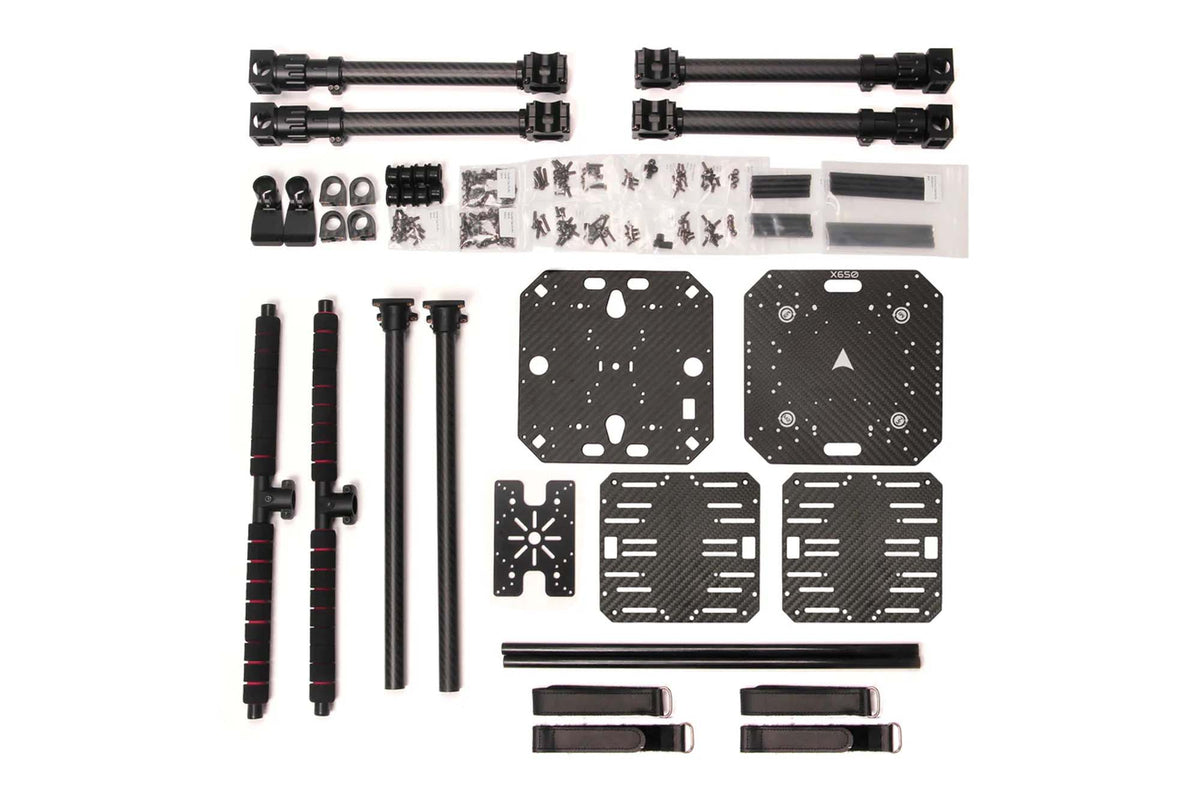

Package contains:

• X650 V2 Frame Only

Frame Details:

• Wheelbase: 650mm
• Motor mount
  • Mount pattern: 16-25mm
• Body - Full Carbon Fiber Top & Bottom plate (160 x 160mm, 2mm thick)

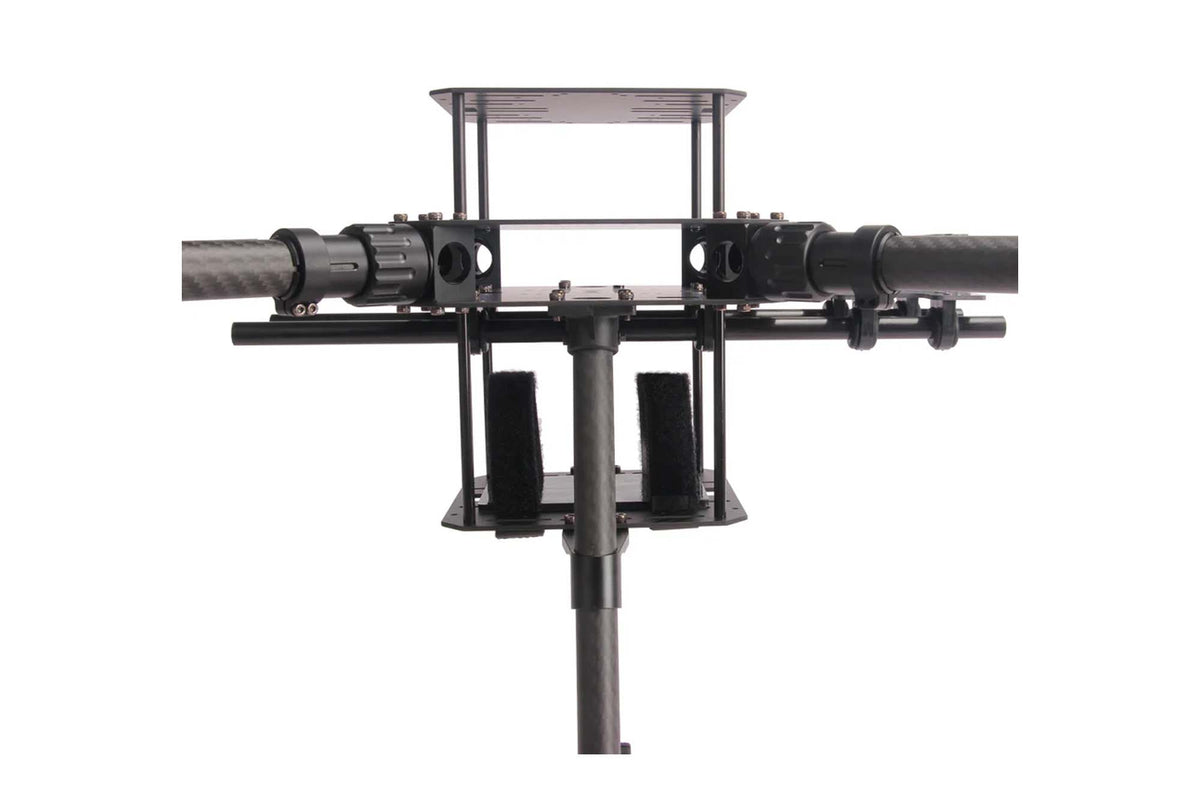

• Arm - High strength & ultra-lightweight 20mm carbon fiber tubes with newly designed aluminum foldable arm mount
• Landing gear - 16mm & 10mm diameter carbon fiber tubes with strengthened & improved plastic tee connectors.
• Upper & Battery Plate - 120mm x 128mm carbon fiber plate for various payload, accessories, or battery.
• Platform board - With mounting holes for GPS & popular companion computer such as the Raspberry Pi 4 & Jetson Nano
• Dual 10mm Ø rod x 320 mm long rail mounting system
• Two battery pads & Straps
• Hand tools for installation

Flight Time and Payload:

• Flight time: 30 min (Hover with 6S 10000 mAh Battery, no additional payload)

• Full Kit Weight: 2000g (without battery)
• Payload:
  • 4.3kg (without battery)
  • 3.5kg (with 5200mAh 750 gram battery)

  • 3.1kg (with 10000mAh 1200 gram battery)
• Takeoff Weight Limit: 6300g (70% throttle)
• Battery Recommendation: 6S 5000-12000mAh Lipo Battery with XT60 (Not Included)
