uAvioniXuAvionix - pingStation 3

A networkable weatherproof 978/1090 ADS-B Receiver

Trusted, private situational awareness of local airspace and airport surfaces with pingStation 3

Package Contains

• pingStation 3
• Mounting hardware
• Weatherproof Ethernet Coupler
• Installation Manual
• ICD

Dual-band ADS-B Reception

pingStation 3 receives both ADS-B frequencies (978MHz UAT and 1090MHz) simultaneously with a single installation when most competitors are single-frequency. Don’t miss half the picture! pingStation 3 allows you to track ADS-B-equipped aircraft as far as 200+ miles away.

Enterprise Data Formats

pingStation 3 now supports ASTERIX CAT 021 message formats, for global compatibility with air traffic management standards. Additional formats support integration with any display system or data logger.

Weather Resistant and Easy to Deploy

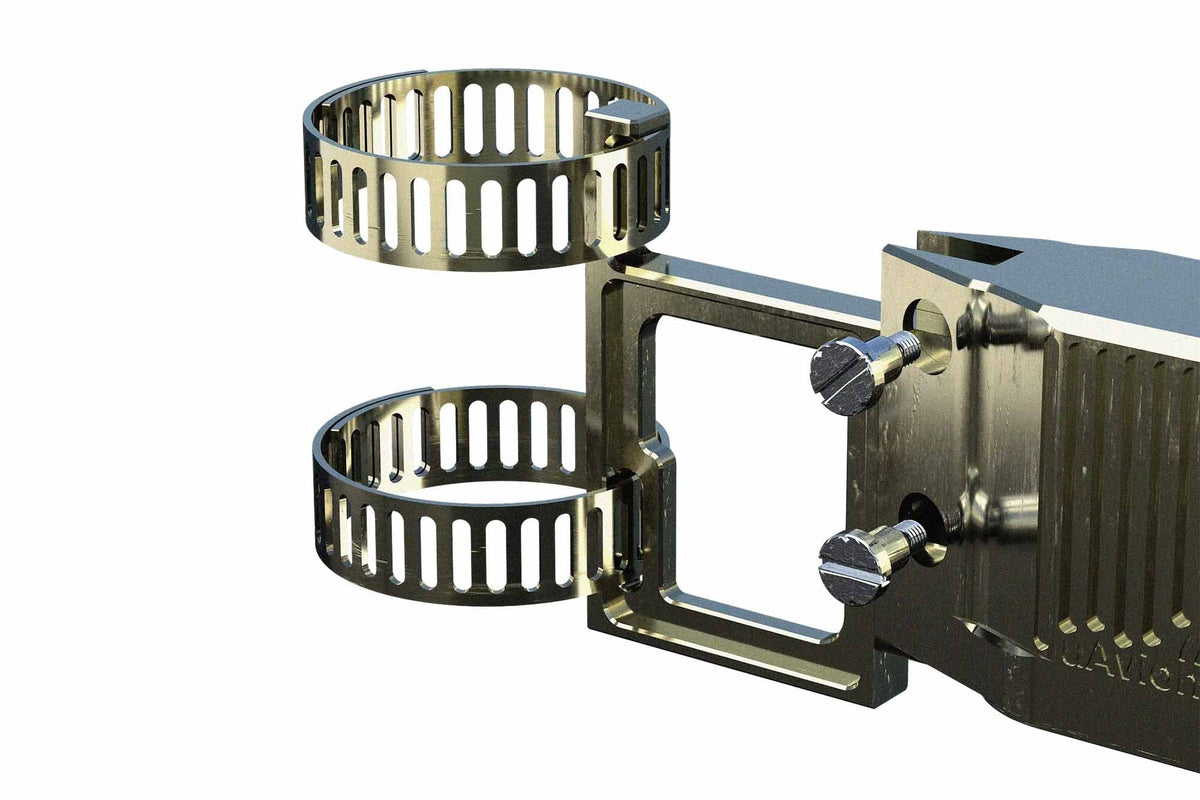

Say goodbye to difficult coax cable runs that reduce your reception performance. The all-in-one pingStation 3 includes the receiver, GPS, and antenna in an IP67 weatherproof enclosure, with power and data provided by a single Power-Over-Ethernet (POE) network cable connected right to your LAN. The quick pole-mount clamp design makes installation a snap.

Your Data, Your Way

pingStation 3 provides data in several formats easily integrated into any display or analytical application, including UAS Ground Control Stations, Unmanned Traffic Management (UTM) Solutions, and Flight Information Displays.

 Airspace Surveillance

See how pingStation is being used in the UK to provide a Flight Information Display (FID) to Class G airports to improve situational awareness and reduce the risk of mid-air collisions.

UAS Detect and Avoid (DAA)

pingStation is a core component of the Vantis UAS Beyond Visual Line of Sight (BVLOS) network, and of the NUAIR 50-mile UAS Corridor between Syracuse and Rome NY.

Airport Surface Monitoring

pingStation helps airports monitor and track operating surface vehicles equipped with VTU-20, reducing risk of runway incursion errors.

 Specification

Input Voltage / Power: 44-57V / 350mA Power over Ethernet

Size:  673.70 x 178.45 x 36 mm

Weight: 545 grams

 Receive

MTL 1090MHz:      -88dBm

Dynamic Range: -79 to 0dBm

MTL 978MHz:     -93dBm

Dynamic Range:   -90 to -3dBm

Interface

• Asterix CAT021
• Ethernet (JSON UDP)
• Compressed VRS (Virtual Radar Server)
