Tarot Power Distribution Module/Power Hub/Purple Copper Gold Plated High Current/Compatible with XT60, TL60-10
Package contains:
- 1 x One-out-ten power distribution modules TL60-10 (42.5g)
- 1 x 90 series sheath(0.8g)
- 2 x Half round head screws(M3*5mm)
Product Description:

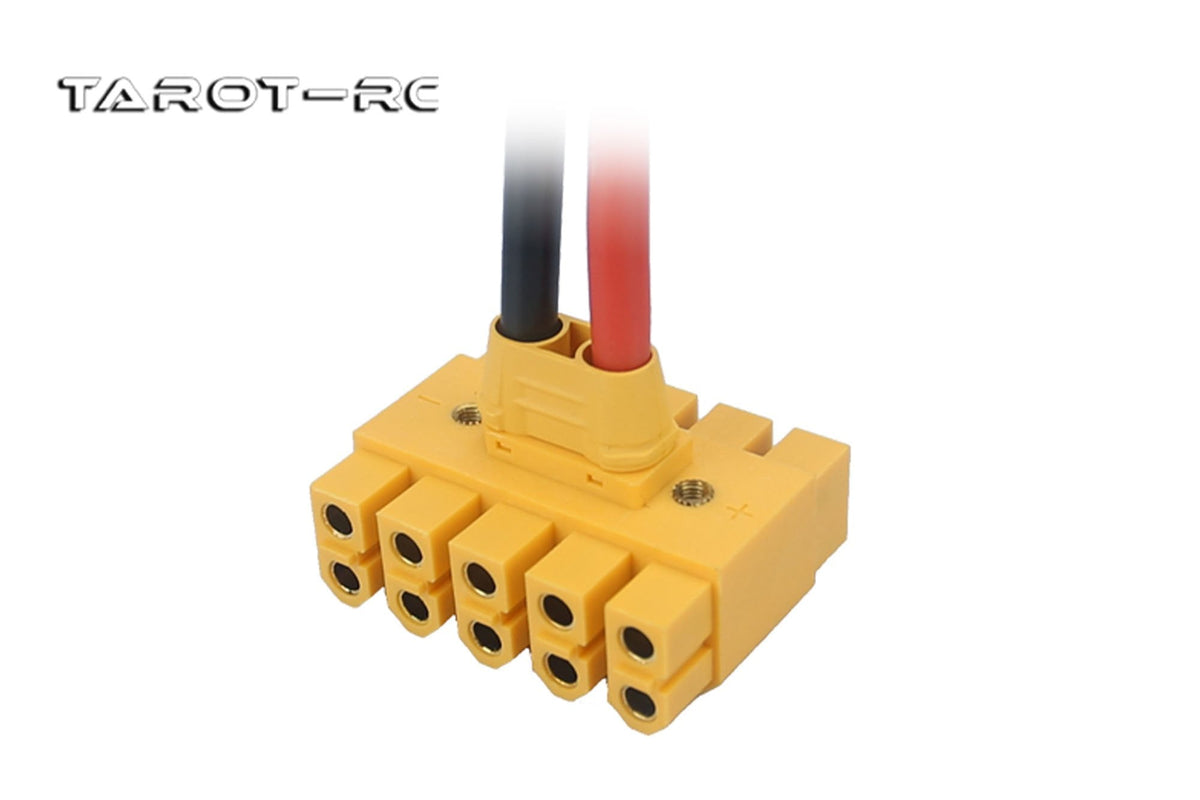

- One-out-ten power distribution modules from Tarot

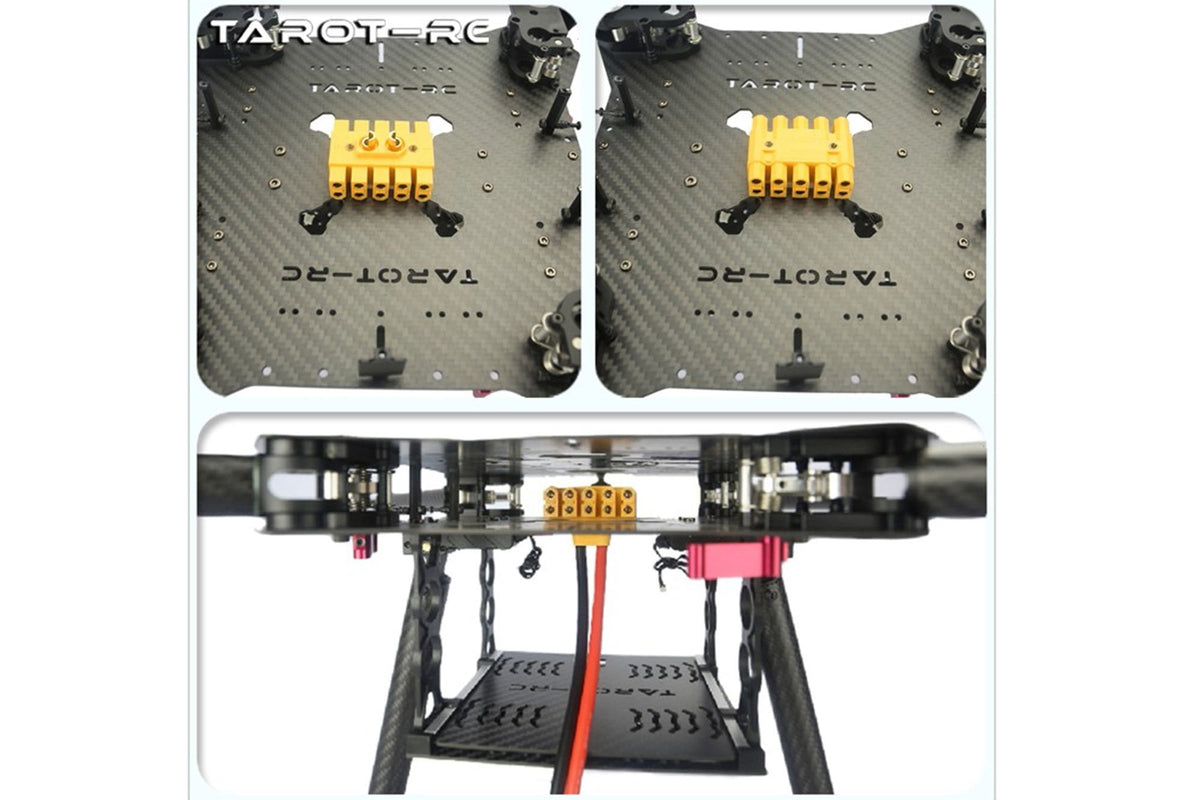

- Specially developed for medium and large drones, supporting any type of drones within 10 channels of line output
- The shell adopts the injection molding integrated design
- The internal wiring is made of solid copper(gold-plated surface)with a one-piece structure, and the current resistance can reach 200A
Note: Due to the internal solid all-copper build,will cause serious heat absorption, it is recommended to use 100W soldering iron soldering main power!
Product Features:

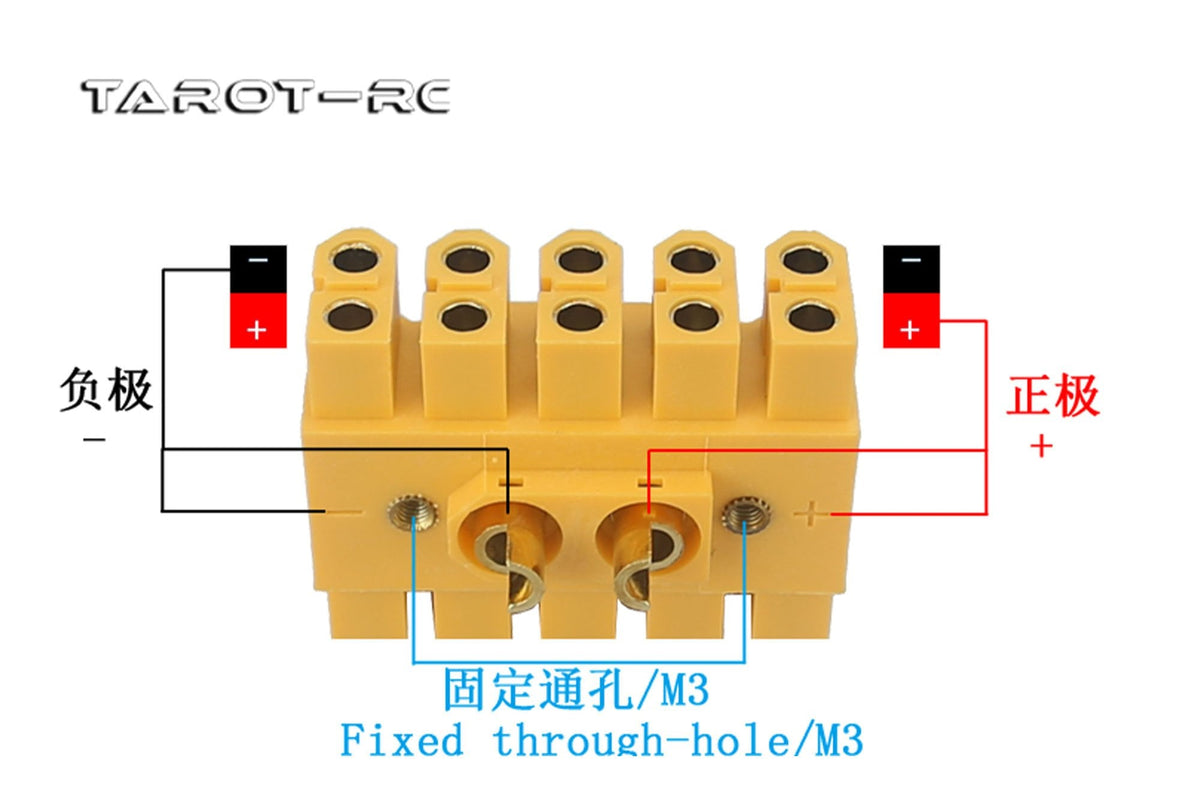

1.Internal wiring(positive/negative)each way using solid copper one-piece structure.
2.Gold-plated plug contact surface design.
3.Shell pressure molding injection molding design,beautiful and upscale.
4.No heat-shrinkable tube,sheath one-step installation in place,saving time and effort.
5.Flat welding port with a sheath with a barrier layer,both to prevent short circuit and facilitate welding.
6.UL94V-0 flame retardant grade,the safety factor is greatly enhanced.
7.Current resistance up to 200A.
8.Seamlessly compatible with XT60 docking male connector.
