T-MotorT-Motor F50

£28.99 (inc. VAT)

£24.16 (ex. VAT)

110 In Stock Now

Title: T-Motor FPV Motor KV

Product Specifications

Product Details

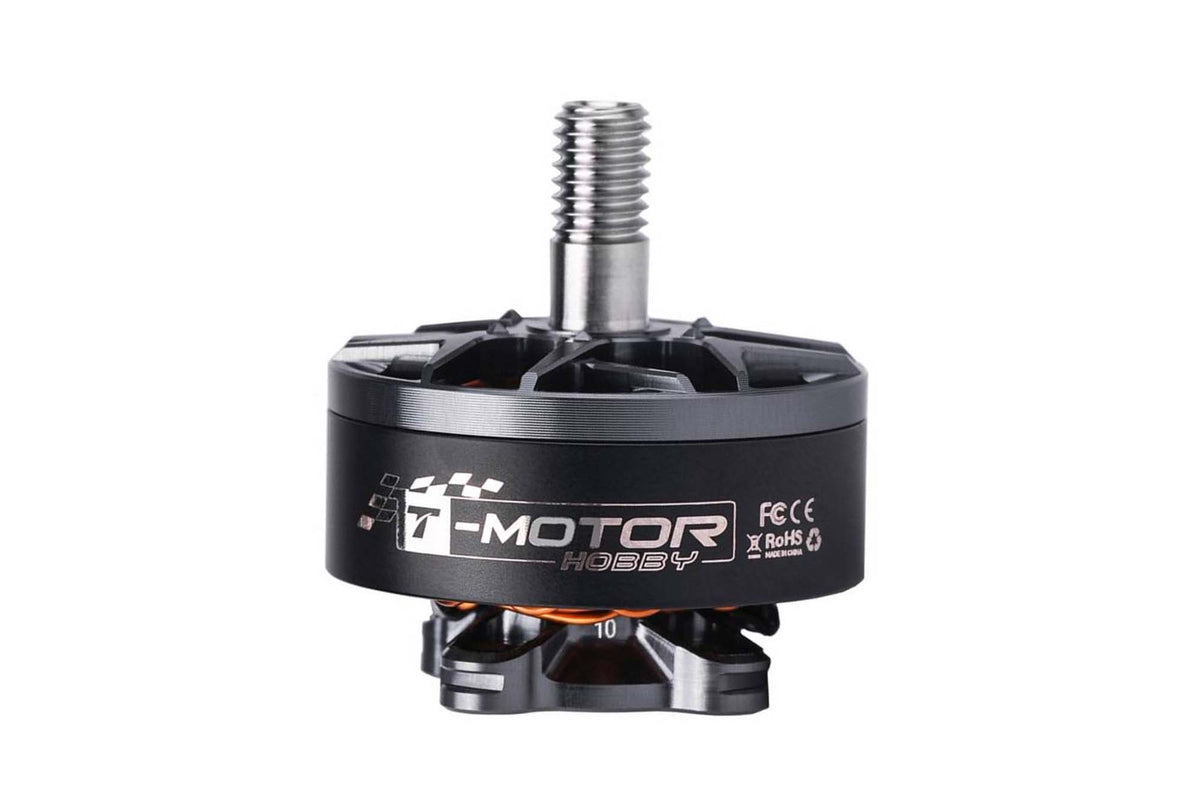

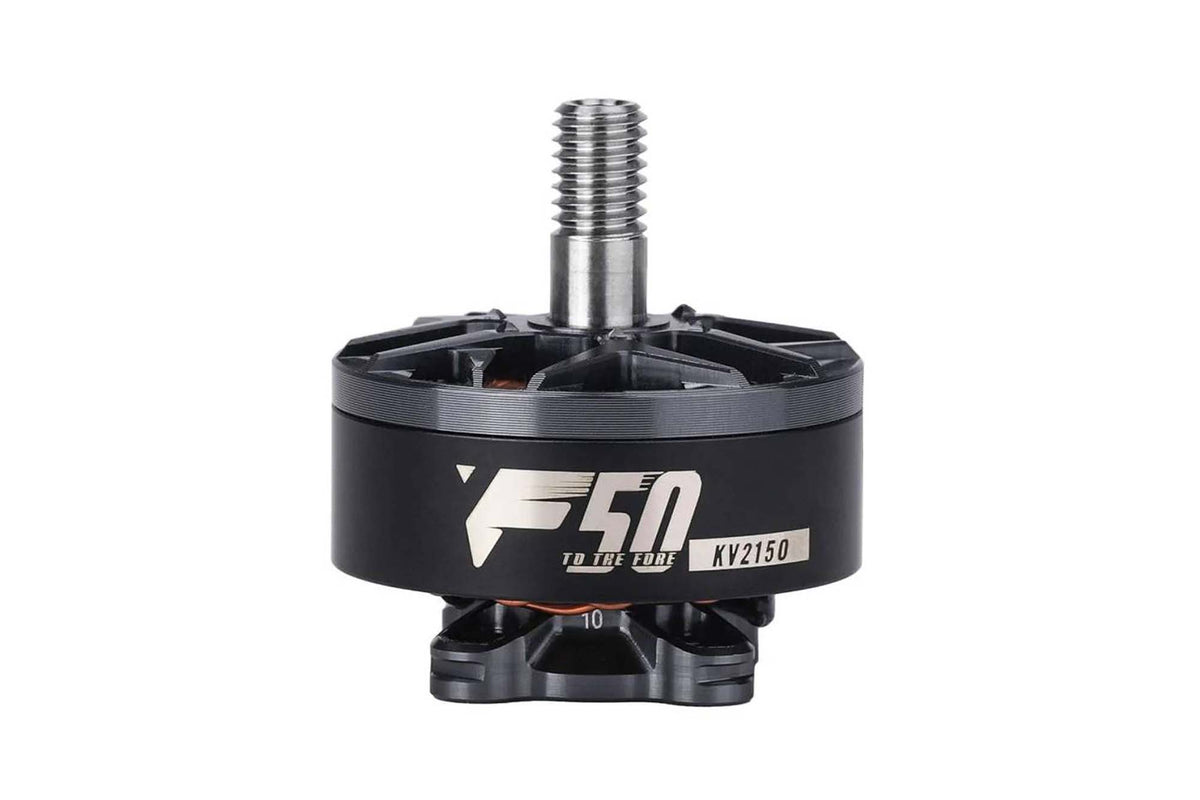

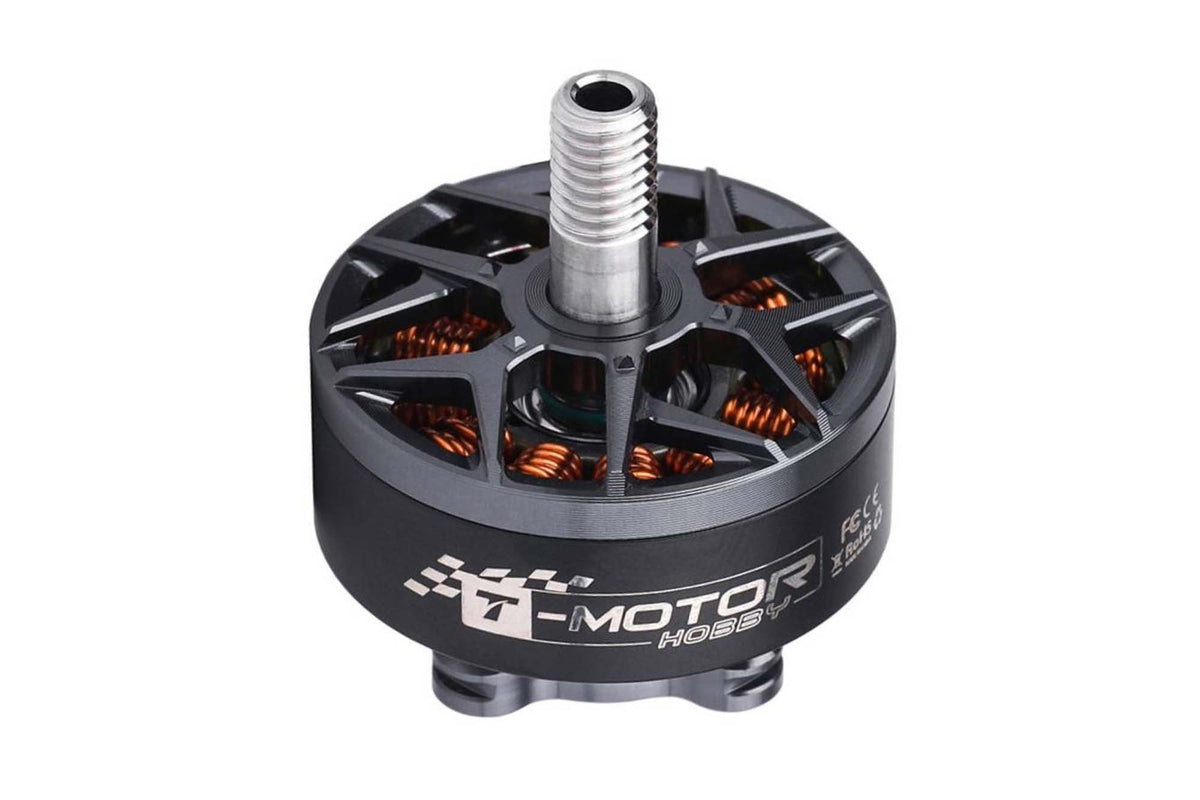

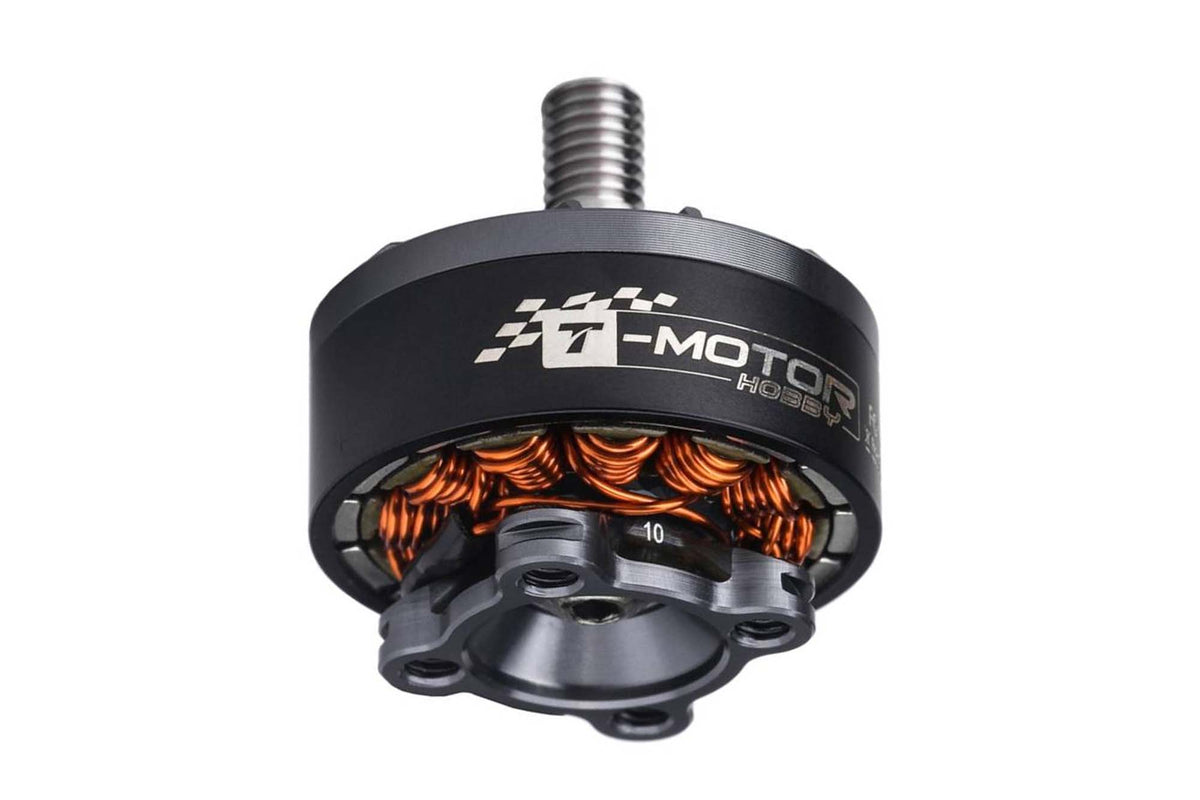

T-Motor F50 Motors - KV2150/KV2200

The T-Motor F50 is a high-performance racing motor tailored for elite 5" FPV drone builds. Offering an exceptional balance of thrust and responsiveness. With a lightweight 27×29.5mm stator size and a durable 5mm shaft, the F50 is engineered for aggressive turns, rapid acceleration and sustained power in competitive or freestyle environments.

Features:

Designed for 5-inch propellers such as the T-Motor F5146 to deliver strong thrust and quick response
Reinforced 5mm shaft with M5 nut for secure prop mounting under high loads
Low internal resistance and high instantaneous torque for efficient acceleration
Optimised for 6S LiPo setups while compatible with high-performance 5-inch racing builds

Specification:

Model: T-Motor F50 Motor
Motor dimensions: 27×29.5mm
Configuration: 12N14P
Weight (excluding cable): 28.36g
Shaft diameter: 5mm
Mounting size: Ø27×29.5mm
Rated voltage: 24V (6S LiPo)
Motor lead length: 150mm

KV2150:

Max Power: 1273W
Rated Voltage (Lipo): 24V
Max Thrust: 2136g
Idle Current (10V): ≤1.6A
Internal Resistance: 50mΩ
Peak Current: 54.8A
Weight (excl. cable): 28.56g

KV2200:

Max Power: 1315W
Rated Voltage (Lipo): 24V
Max Thrust: 2134g
Idle Current (10V): ≤1.6A
Internal Resistance: 47mΩ
Peak Current: 56.63A
Weight (excl. cable): 28.36g

Package contains:

1x T-Motor F50 Motor - Choose from KV2150 / KV2200
