T-DronesT-Drones VA17 - Tilt Rotor VTOL - PNP

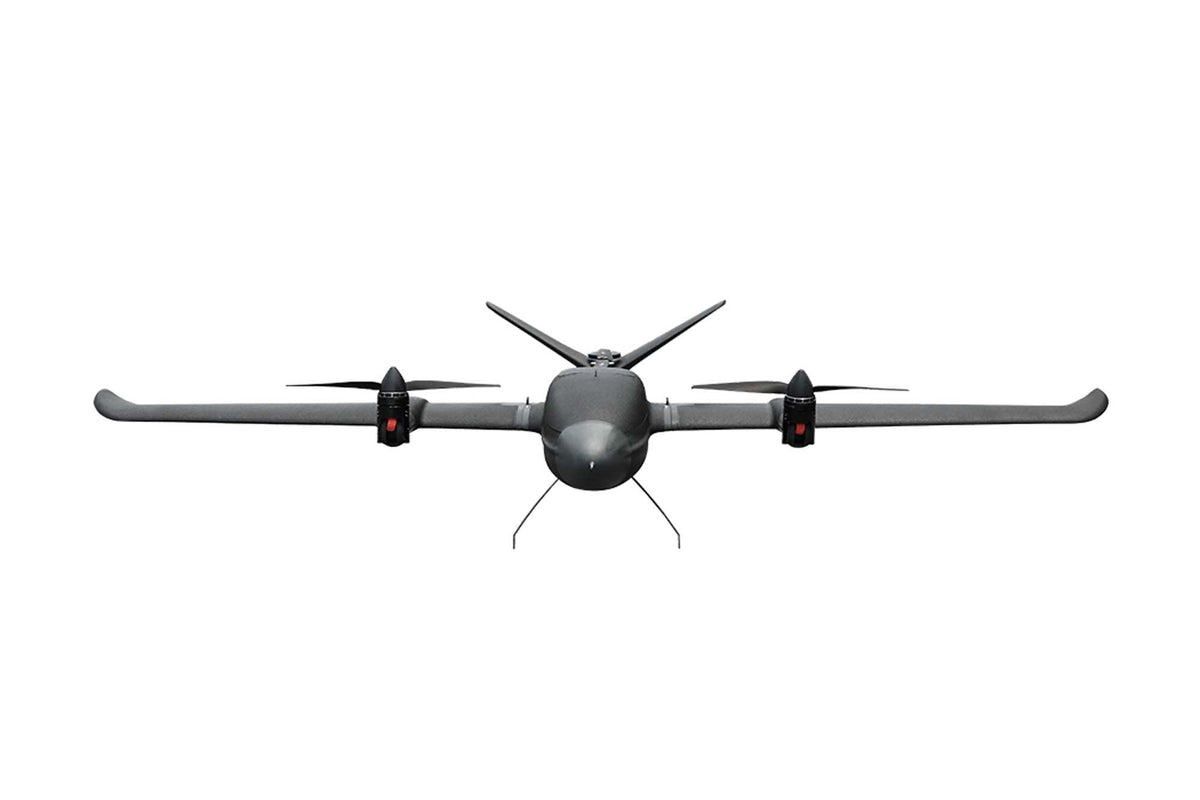

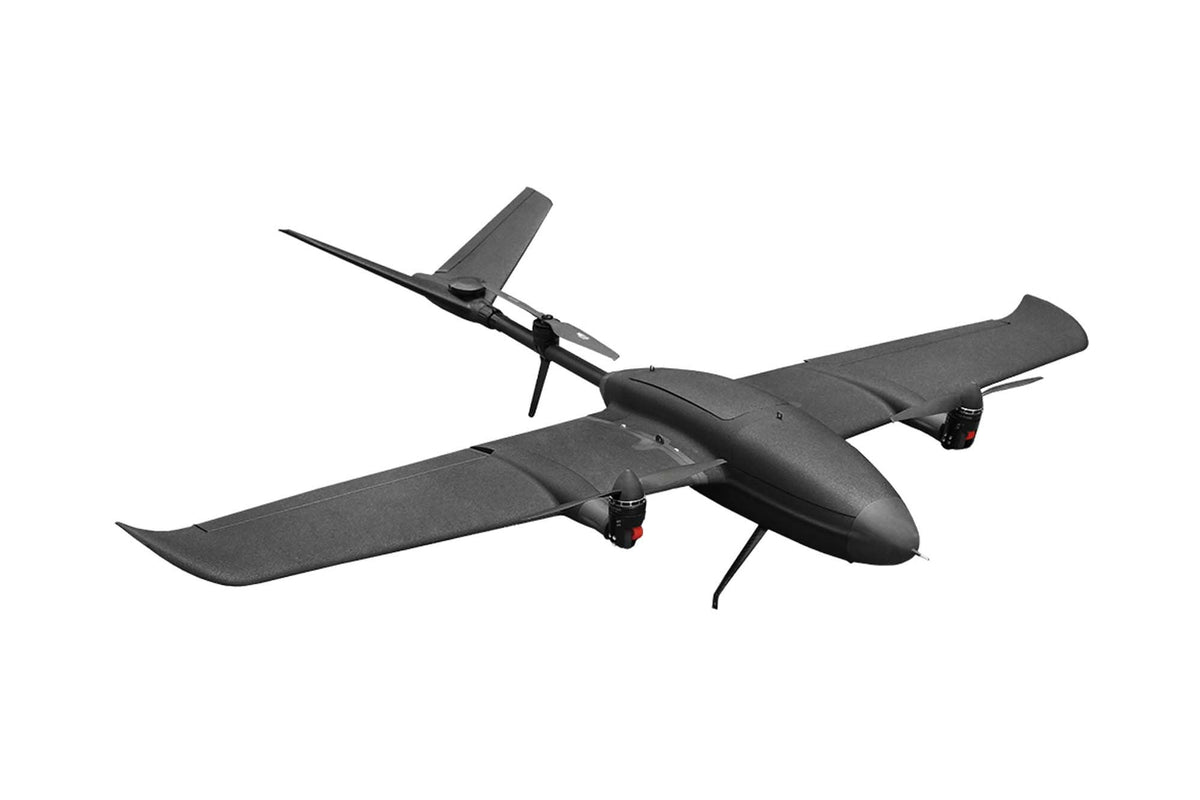

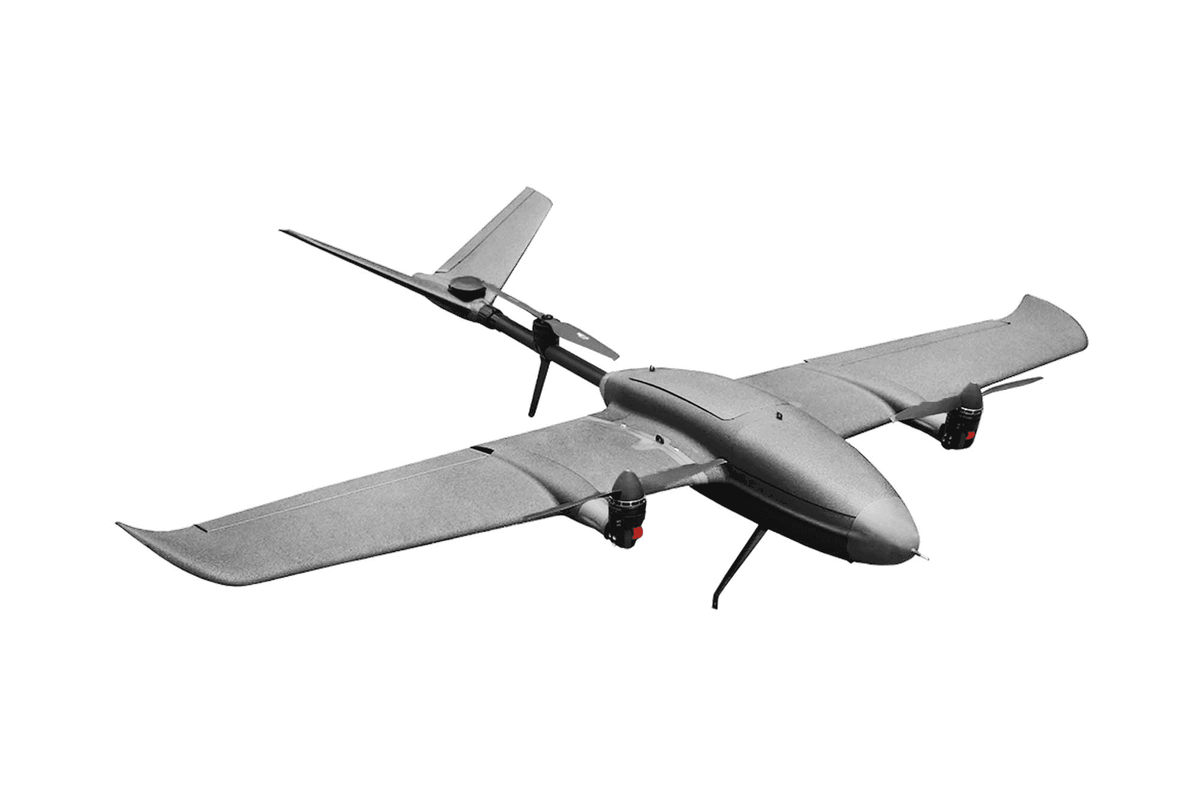

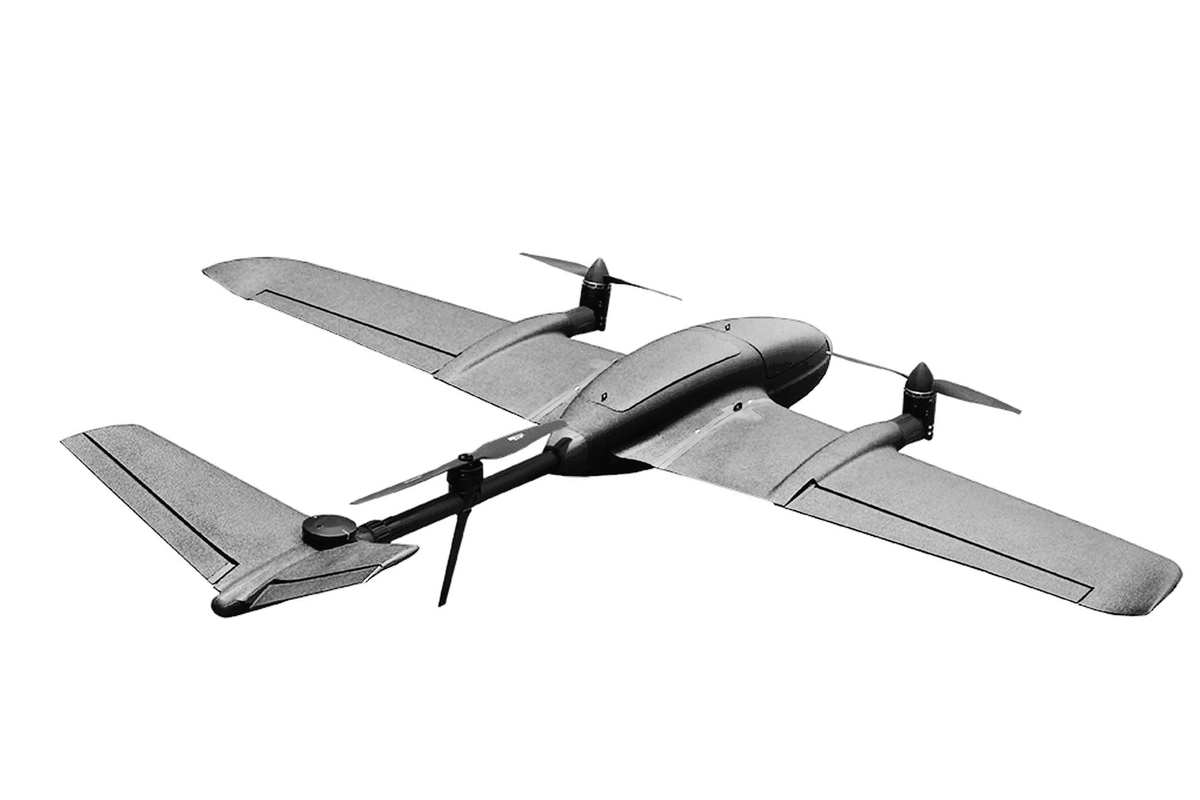

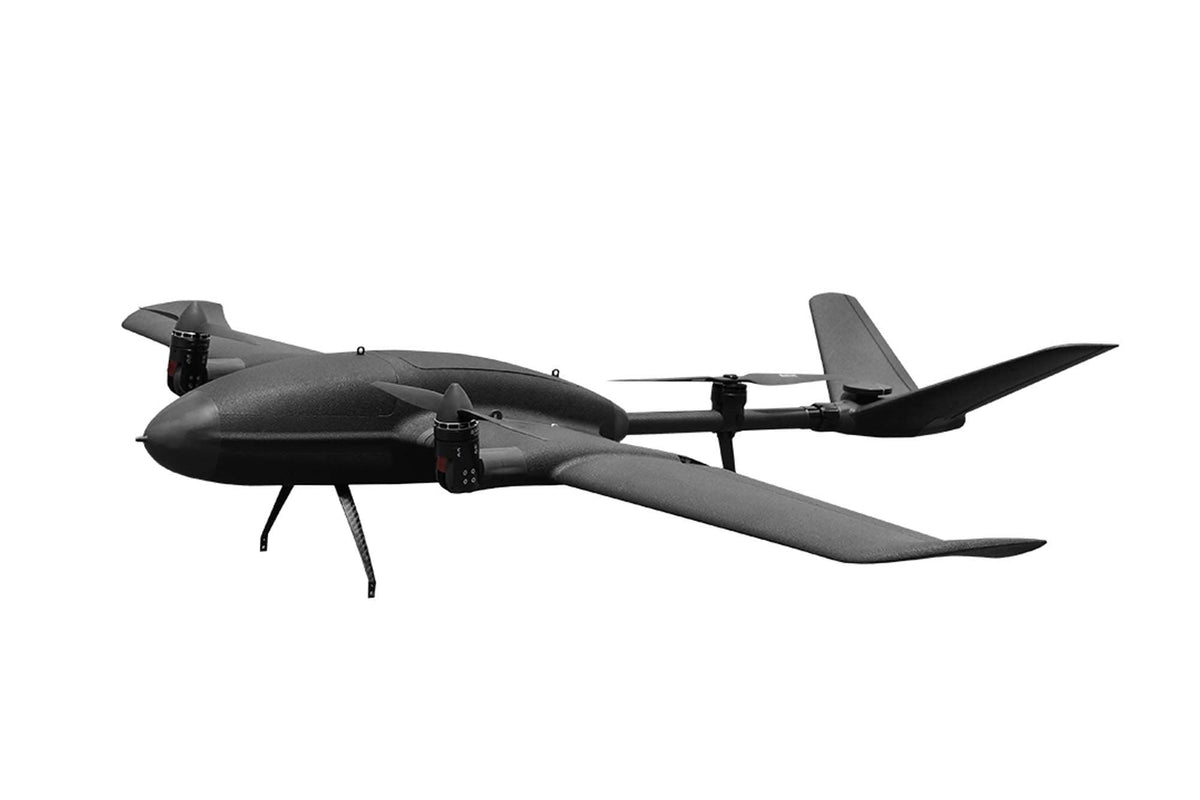

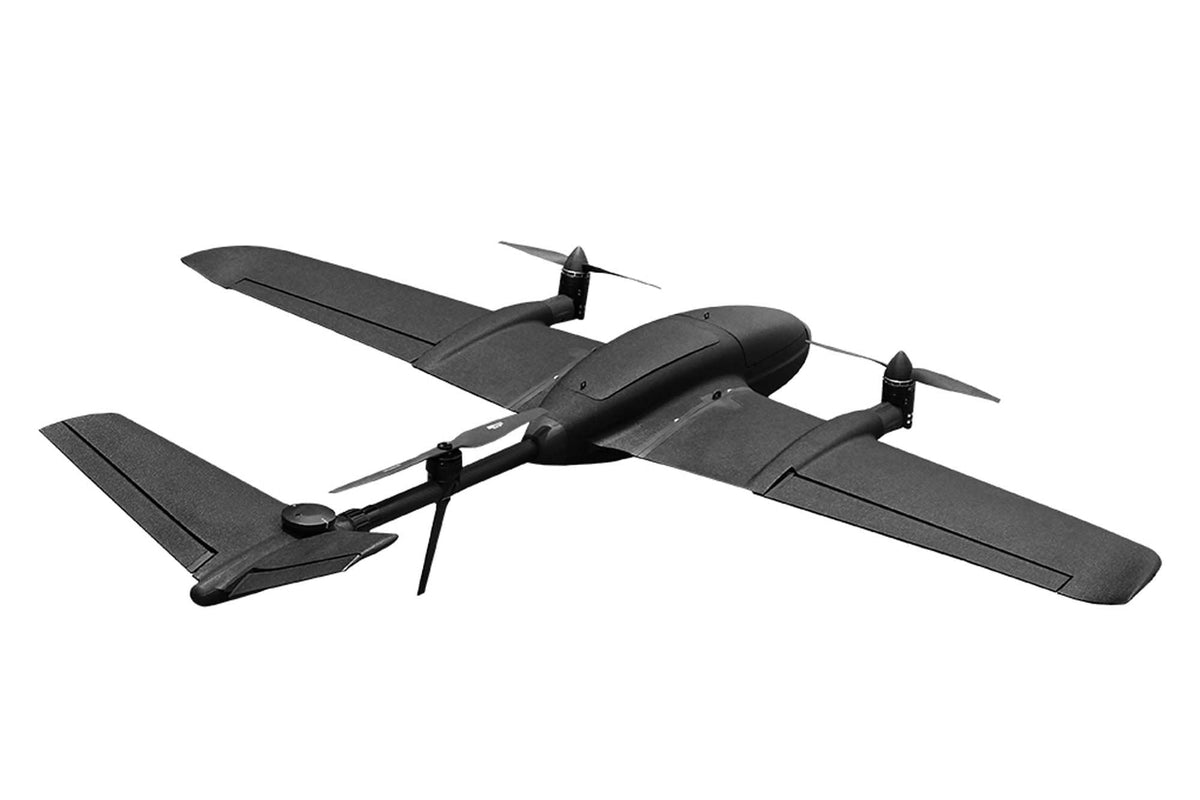

T-Drones VA17 VTOL Drone

Features:

• Long Flight Endurance - The VA17 can achieve up to 120 minutes of flight with an 800g payload, making it perfect for long-range missions such as mapping, surveying, and surveillance. The advanced power management system ensures optimal efficiency for extended flight operations.
• Tilt-Rotor VTOL Design - Featuring a tilt-rotor design, the VA17 combines the benefits of both vertical take-off and landing (VTOL) with efficient fixed-wing cruising, making it adaptable for diverse applications that require both flexibility and endurance.
• Lightweight and Durable Frame - Built from a combination of carbon fiber and EPP foam, the VA17 offers excellent rigidity for reliable performance while maintaining flexibility and reducing weight for longer, more efficient flights.
• High-Performance ESC - The VA17 is equipped with an 80A 3-in-1 high-performance ESC, providing excellent overload resistance and fast response time. This compact design also achieves a 65% weight reduction compared to traditional single ESCs, enhancing the drone’s overall performance.
• Enhanced Safety Features - The VA17 includes an onboard power management module with dual flight control backup power to ensure a safer flight. Its 8V12A-UBEC provides stable power for the servo system, improving overall flight reliability and simplifying installation.
• High Wind Resistance - With a wind resistance level of 5, the VA17 is capable of maintaining stable flight even in challenging weather conditions, ensuring dependable performance in outdoor operations.

The T-Motor VA17 is the ultimate choice for industrial and commercial users seeking a versatile, high-performance fixed-wing VTOL drone that excels in endurance, safety, and adaptability across various mission profiles.

*Required to complete is:

• Flight Avionics such as
• Cube Orange +
• Here 4
• Airspeed Sensor
• RC Equipment
• Battery - 8S - 14500mAh

Specification:

• Model - VA17
• Wingspan - 1680mm
• Frame Length - 1178mm
• Takeoff Weight - 4.3kg
• Payload Capacity - 0900g
• Flight Time - 120min (with 800g payload)
• Maximum Range - 125km
• Flight Altitude - 100-1000m (typical) 4500m (max)
• Wind Resistance - Level 5
• Max Flying Speed - 25m/s
• Cruising Speed - 15-18m/s
• Control Range - 10-30km
• Recommended Battery - 8S 14500mAh
• Cut off voltage - 24V
• Compatible Flight Control - PIX/CUAV

Included:

• The VA17 comes in a part assembled state with the following electronics installed
• Servos for Ailerons and V-Tail
• Tilting mechanism
• rear locking motor
• Front Tilt motors
• PDB with power to servos (8V) additional 5V and 12V
• All ESCs
• Props included but not fitted

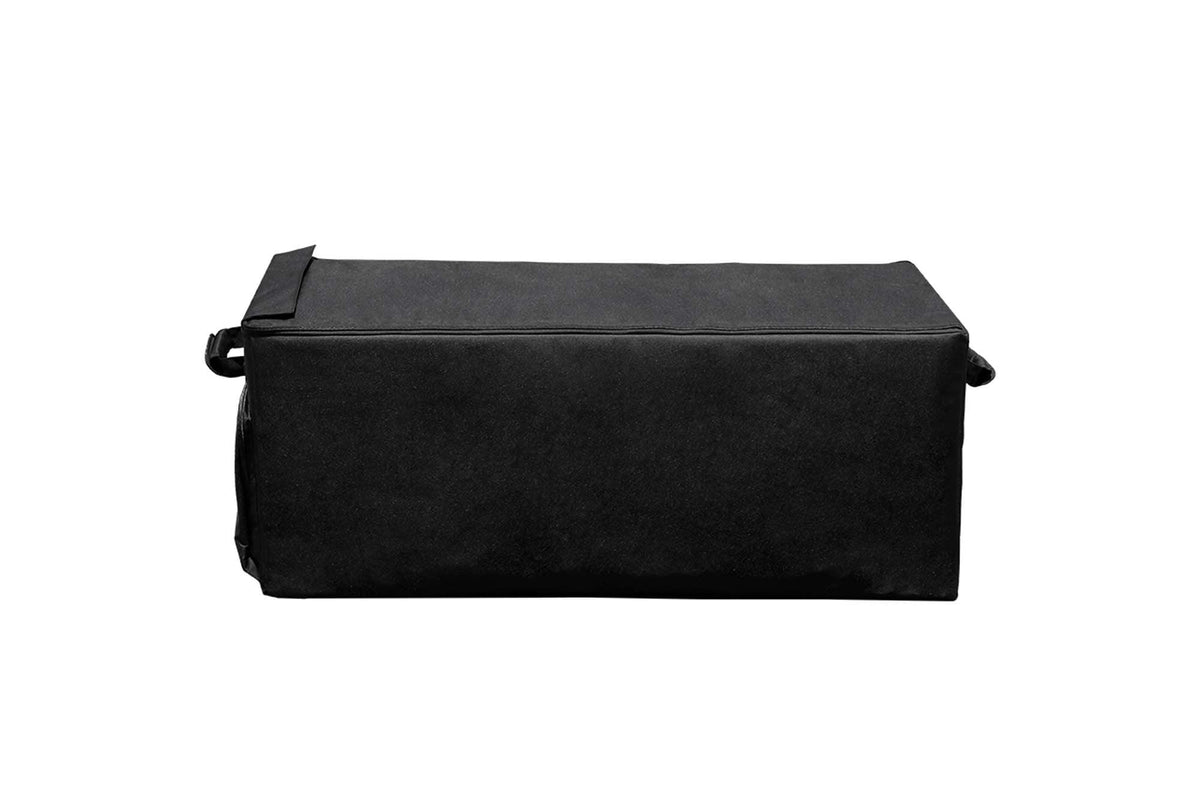

• Fabric and foam carry case

*The build of this Drone is suitable for someone with previous experience*
