Product Specifications
Product Details
**Note: This product is intended for advanced users. **
**Please ensure to refer to the latest manual on manufacturer's website for the latest information on set up and use. **
Specifications
Overall

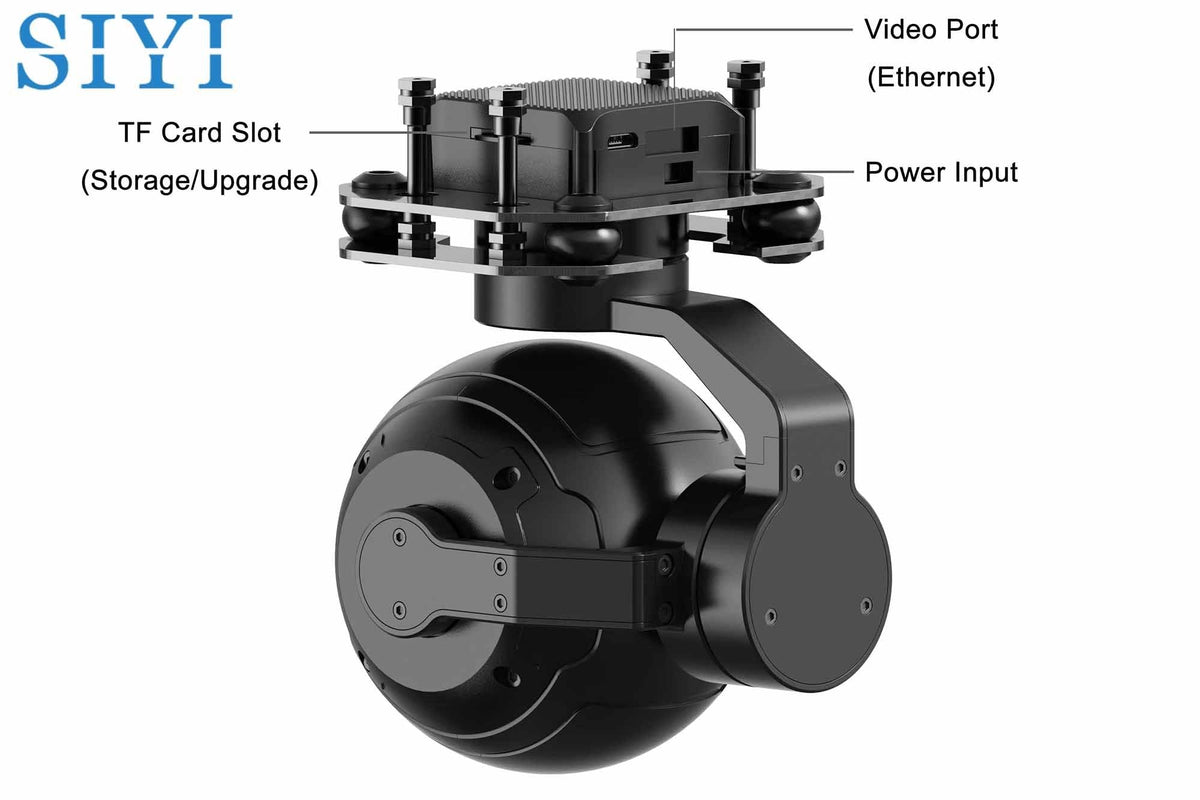

| Video Output Port |
Ethernet |

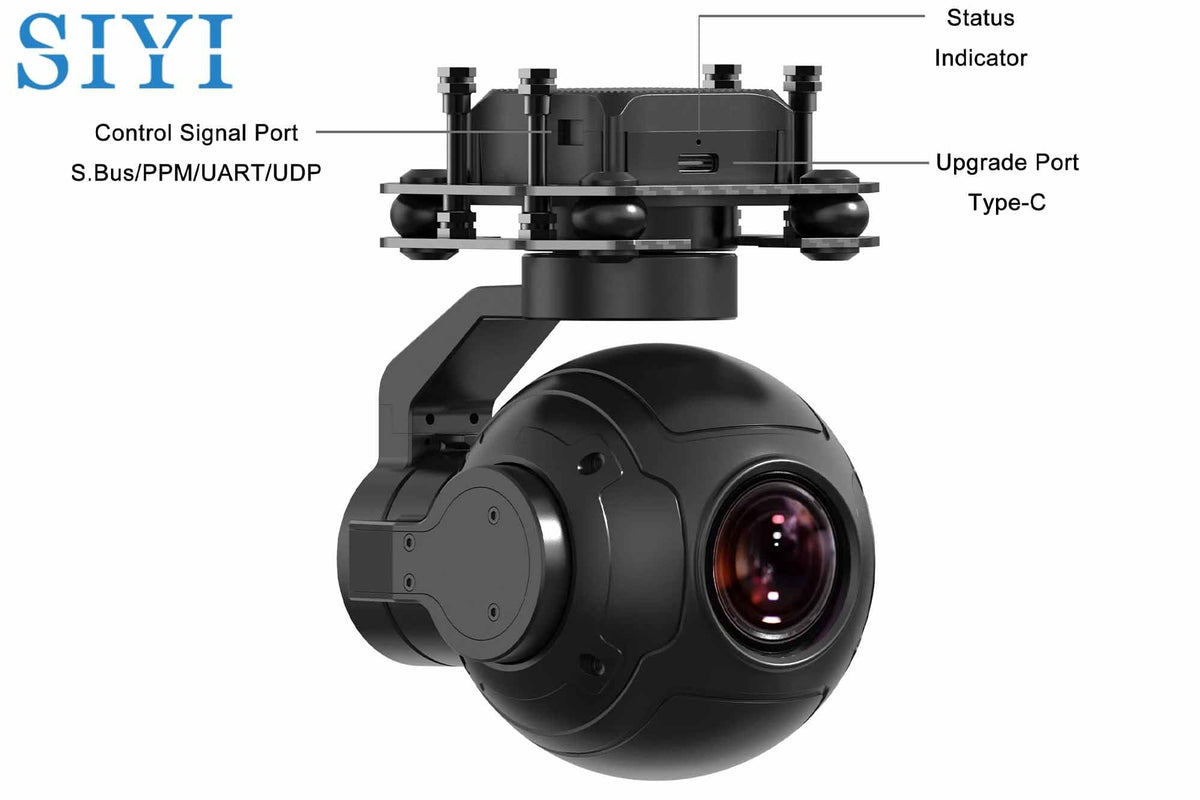

| Control Signal Input Port |
S.Bus, UART, UDP |
| High-Accuracy 3-Axis Stabilization |
Yaw, Pitch, Roll |
| Working Voltage |
11 ~ 25.2 V (Early manufacturing lots before June, 2023 were 11 ~ 16.5 V, please carefully confirm if you need 25.2 V input) |
| Power Consumption |
Average: 4 W Summit: 12 W |
| Working Temperature |
-10 ~ 50℃ |
| Dimension |
121*101*78 mm |
| Weight |
381 g |
Gimbal
| Angular Vibration Range |
± 0.01° |
| Controllable Pitch Angle |
-135° ~ +45° |
| Controllable Yaw Angle |
-160° ~ +160° |
| Roll Angle |
-30° ~ +30° |
Camera
| Lens |
10X Optical Zoom (30X Hybrid Zoom) |
| Focal Length |
5.2 ~ 47.4 mm (±5%) |
| Image Sensor |
1/2.7 Inch, 4 MP effective resoultion |
| Aperture |
F1.8 ~ 2.5 |
| FOV |
Without Zoom: Diagonal 79.5°, Horizontal 71.5° 10X Optical Zoom: Diagonal 7.7°, Horizontal 6.7° |
| Video Recording Resolution |
2K (2560 x 1440) @ 30 fps 1080p (1920 x 1080) @ 30 fps 720p (1280 x 720) @ 30 fps |
| Video Storage Bitrate |
15 Mbps (H.265 codec） |
| File Storage Format |
FAT32 |
| Image Format |
JPG |
| Video Format |
MP4 |
| Supported MicroSD Cards |
MicroSD Class10, Max 128GB |
| Still Photography Mode |
Single |
| Metering Mode |
Evaluative metering |
| White Balance |
Auto |
Package contains
- 1 x SIYI ZR10 Gimbal Camera
