SIYI TechnologySIYI UniPod MT11

**Note: This product is intended for advanced users. **

**Please ensure to refer to the latest manual on manufacturer's website for the latest information on set up and use. **

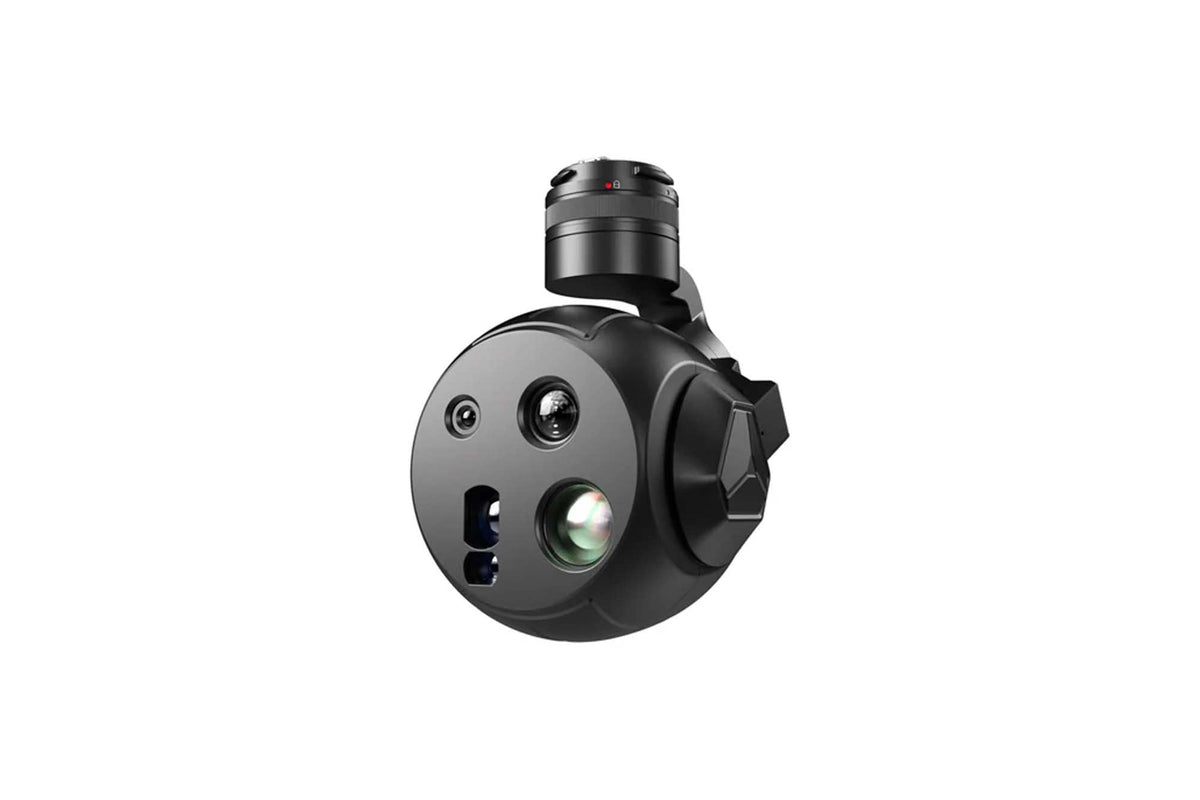

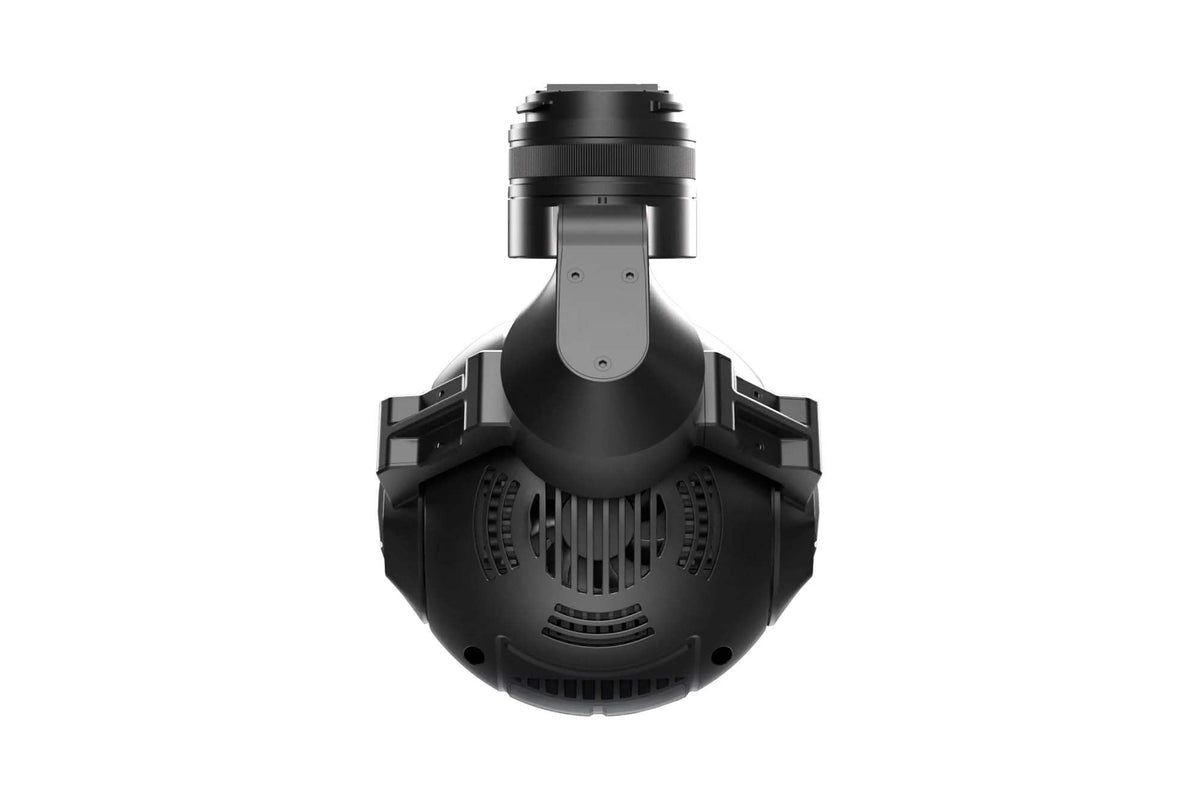

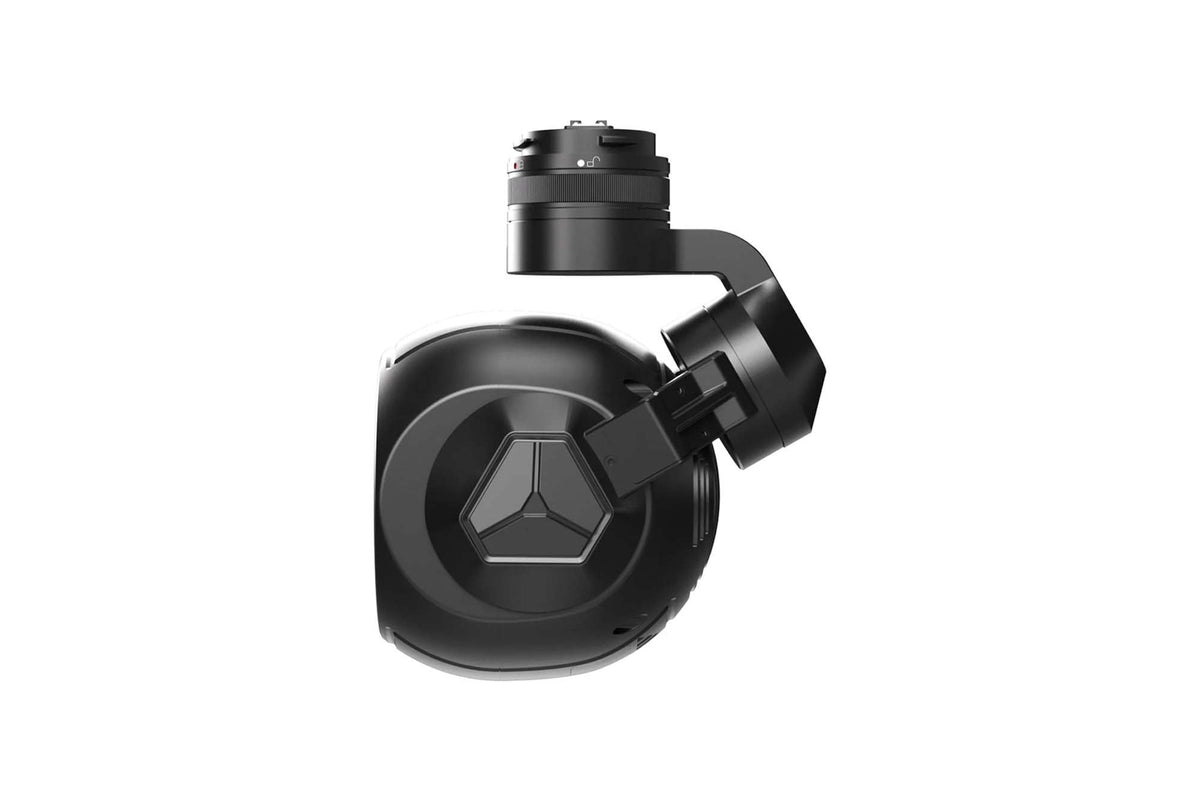

The SIYI UniPod MT11 is an all-in-one AI-powered drone gimbal camera pod designed for demanding industrial and public safety operations. It combines four powerful sensors — an 11× optical zoom 8K camera, a 48MP wide-angle camera, a 640×512 thermal imager (with AI-enhanced resolution up to 2560×2048), and a laser rangefinder with up to 1200-meter detection range. Built with a compact and lightweight spherical design, 360° infinite pan, IP54 protection, and 10T onboard AI computing power, the UniPod MT11 is ideal for power line inspection, firefighting, mapping, emergency rescue, and more.

Features:

• 4-Sensor Integration: Zoom camera, wide-angle camera, thermal imager, and laser rangefinder in one compact unit
• 8K 48MP Optical Zoom Camera: 11× optical zoom, 165× hybrid zoom, 8000×6000 still image resolution
• 48MP Wide-Angle Camera: 84° field of view, supports full-color day and night vision with ISP enhancement
• Thermal Imaging: 640×512 base resolution, AI super-resolution up to 2560×2048, 8× digital zoom, ±2°C thermal accuracy
• Laser Rangefinder: Range of 5–1200 m, ±1 m accuracy, 0.1 m recognition accuracy, GPS location tagging supported
• 360° Continuous Pan Gimbal: 3-axis stabilization with -90°~+20°pitch and -60°~+60°roll
• Ultra-Compact Build: 63% smaller and 45% lighter than traditional 4-sensor pods (only 405 g without mount)
• AI Object Recognition: Built-in 10 TOPS AI processor supports license plate, powerline, thermal target, and custom object detection
• IP54 Protection: Reliable for all-weather outdoor missions
• Multiple Installation Modes: Supports bottom-mount, top-mount, and robotic arm integrations

Specification:

• Size (No Mount) - 90x102.5x128mm
• Weight (No Monunt / With Mount) - 405g / 533.5g
• Operating Temperature - -20°C ~ +50°C
• Input Voltage - 10-26 V
• Protection Level - IP54

 Zoom Camera:

• Sensor - 1/2" CMOS
• Effective Pixels - 48 MP
• Focal Length - 15 ~ 50 mm (Equivalent: 81 ~ 270 mm)
• Aperture - f/3.8 ~ f/4.4
• FOV - 28.98° (D), 23.48° (H), 17.81° (V)
• Video Resolution - 3840×2160, 2560×1440, 1920×1080, 1280×720
• Photo Resolution - 8000×6000

Wide-Angle Camera:

• Sensor - 1/2" CMOS
• Effective Pixels - 48 MP
• Focal Length - 4.5 mm (Equivalent: 24 mm)
• Aperture - f/3.8
• FOV - 84°
• Video Resolution - Same as Zoom Camera
• Photo Resolution - 8000×6000

Thermal Camera:

• Sensor Resolution - 640×512 (AI-enhanced up to 2560×2048)
• Digital Zoom - 8×
• Temperature Range (High) - -20°C ~ +150°C (±2°C)
• Temperature Range (Low) - 0°C ~ +550°C (±3°C)
• Lens - 18 mm, f/1.1
• DFOV - 31°
• IR Band - 8 ~ 14 μm
• Temperature Modes - Full-frame, Spot, Area, Tracking

Laser Rangefinder:

• Measurement Range - 5 ~ 1200 m
• Accuracy - ±1 m
• Recognition Accuracy - 0.1 m
• GPS Tagging - Supported

Gimbal:

• Stabilisation - 3-Axis (Yaw, Pitch, Roll)
• Pitch Range - -90° ~ +20°
• Roll Range - -60° ~ +60°
• Yaw Range - 360° Infinite
• Mechanical Pitch - -120° ~ +60°
• Angular Vibration - 0.01°
• Modes - FPV, Stabilized, Locked

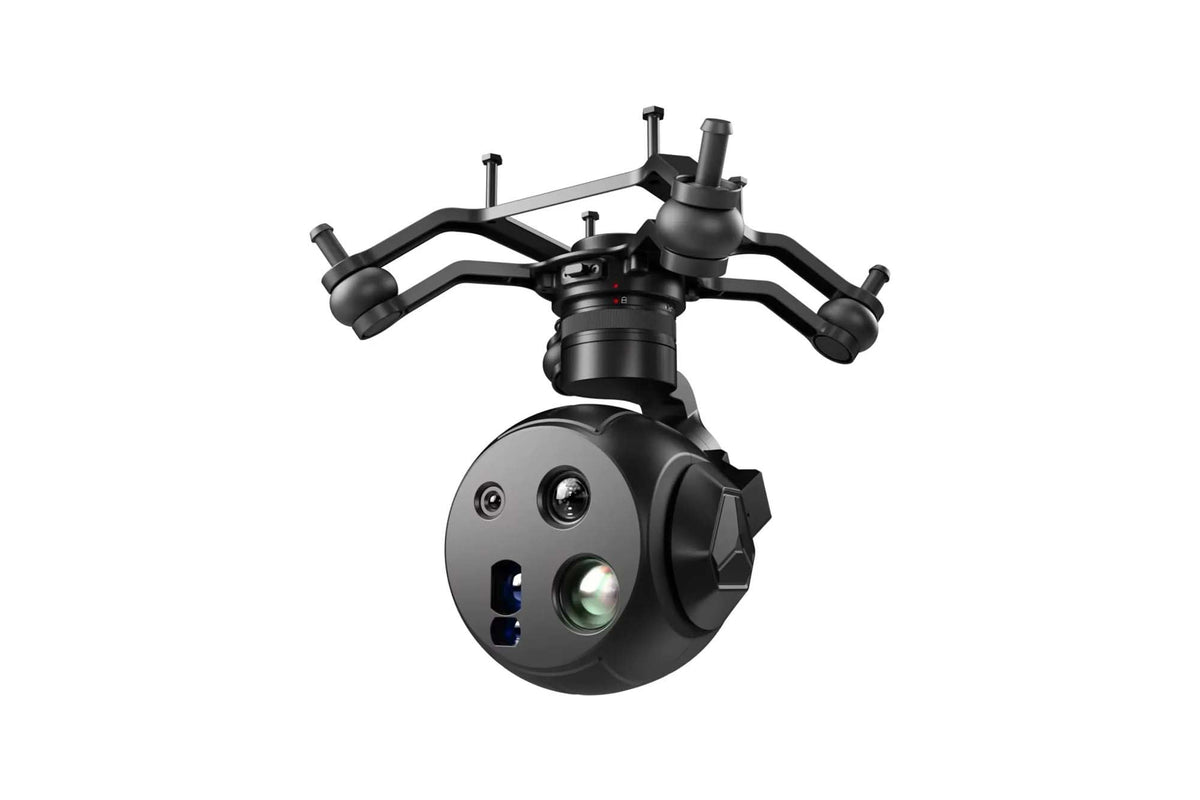

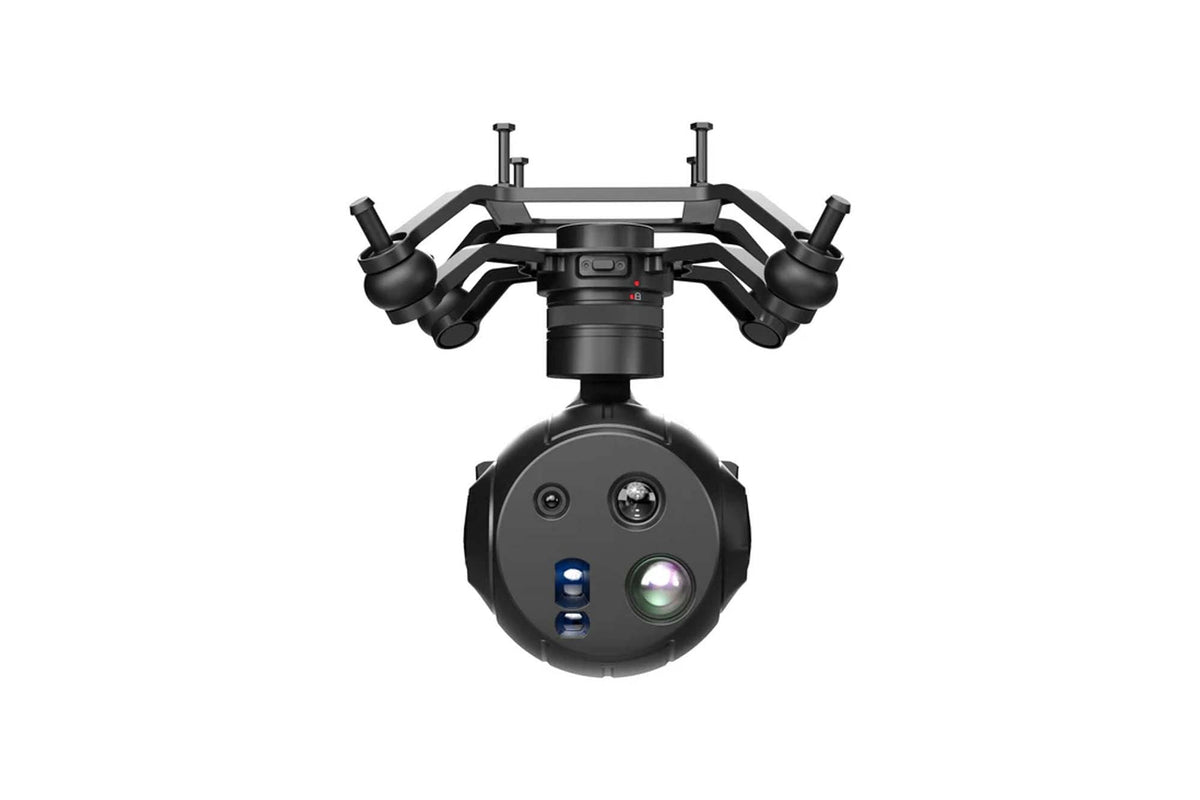

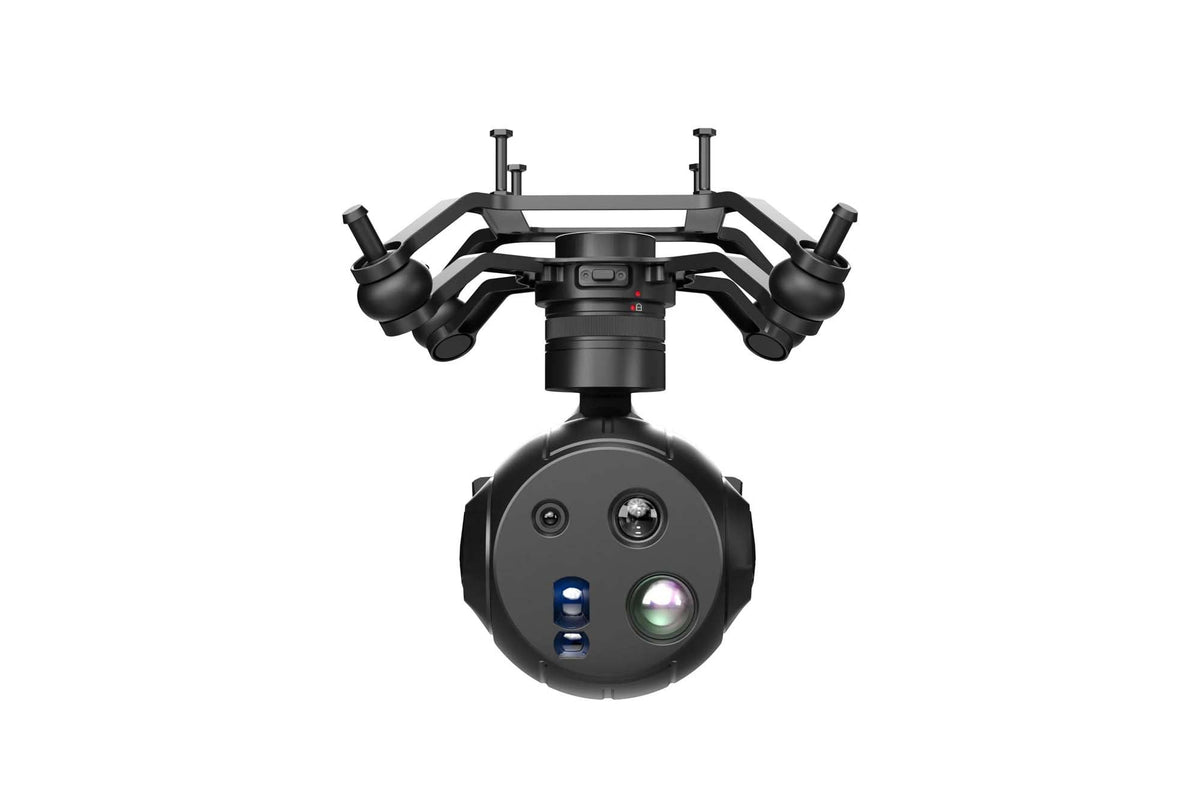

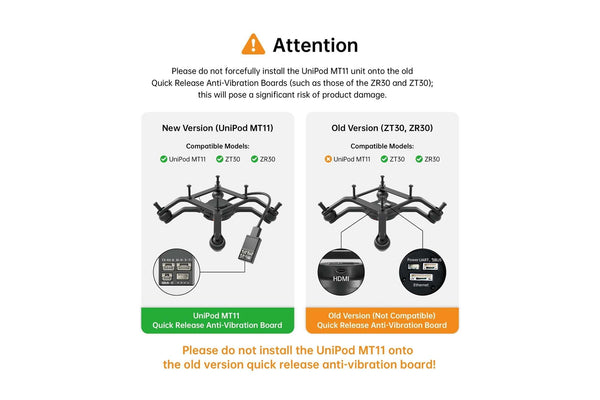

• Mount Type - Quick-release / Damping Mount

Other Parameters:

• Max Cruise Speed - 120km/h
• Max Airspeed - 140km/h
• AI Computing Power - 10 TOPS

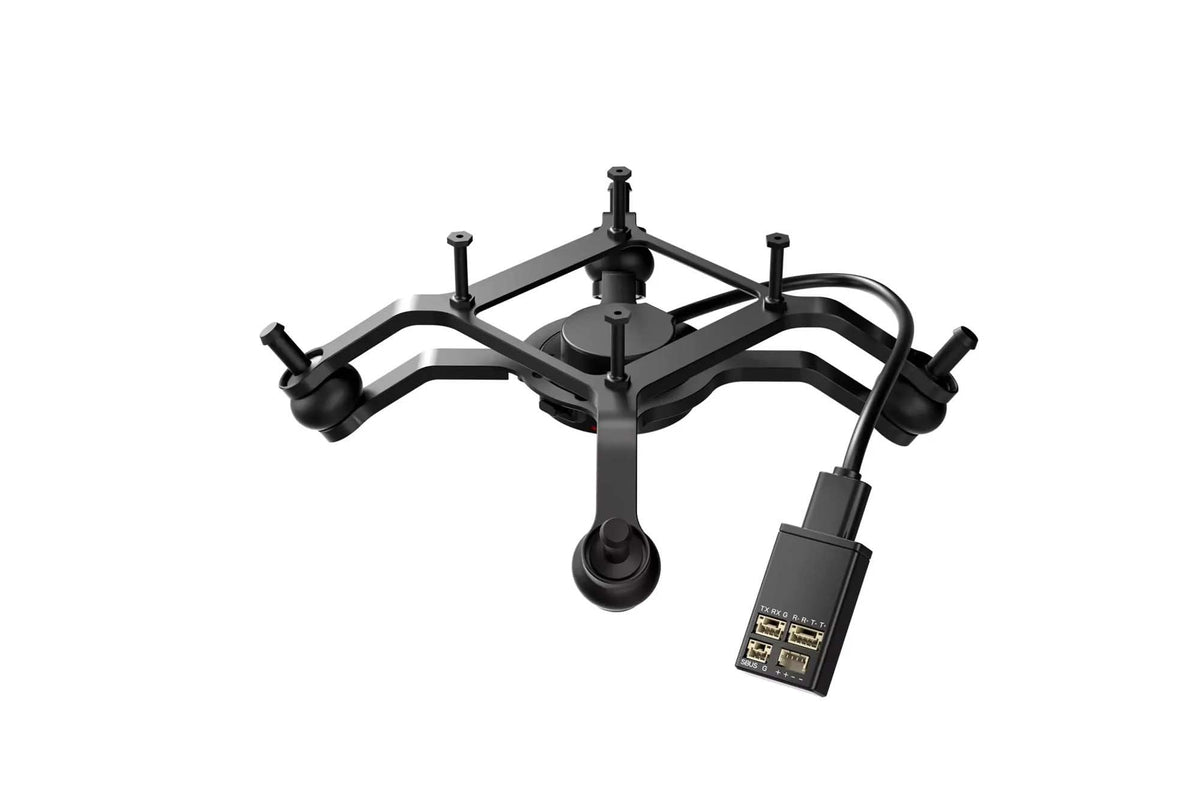

• Mount Dimensions - 141.5x141.5x63mm, 123g

AI Recognition & Software:

• AI Capability: Built-in 10T AI computing power
• Recongnition Types - License plate, powerline insulators, infrared targets, region of interest
• Platform Integration - Supports UniAI Studio for model training and import

Mounting Modes

• Underslung UAV (bottom-mounted)
• Inverted UAV (top-mounted)
• Robot head/arm integration

Package Contains:

• 1 X SIYI MT11 Gimbal Camera
