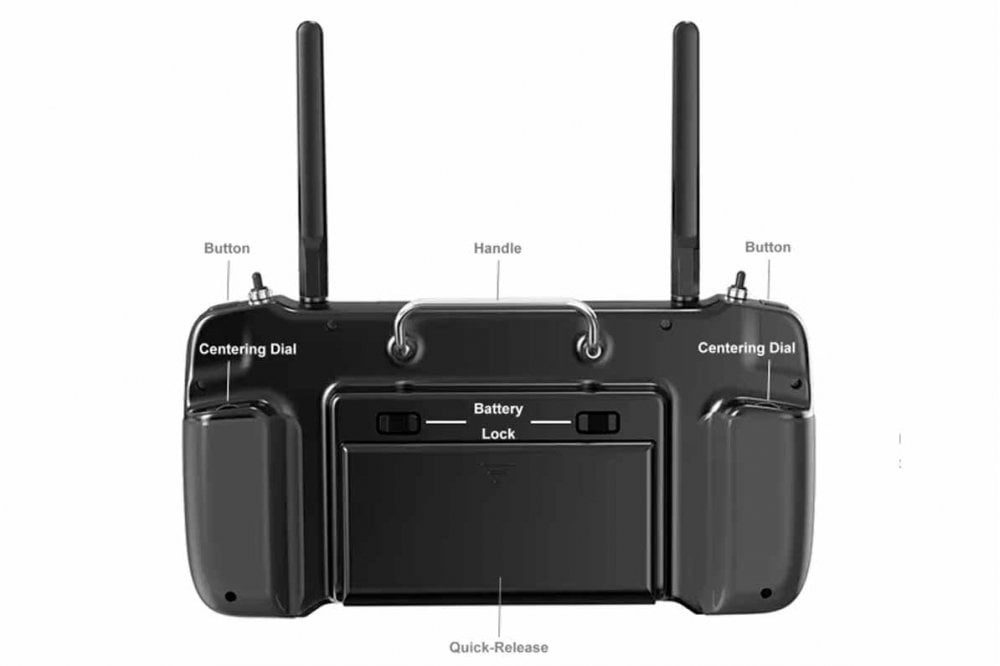

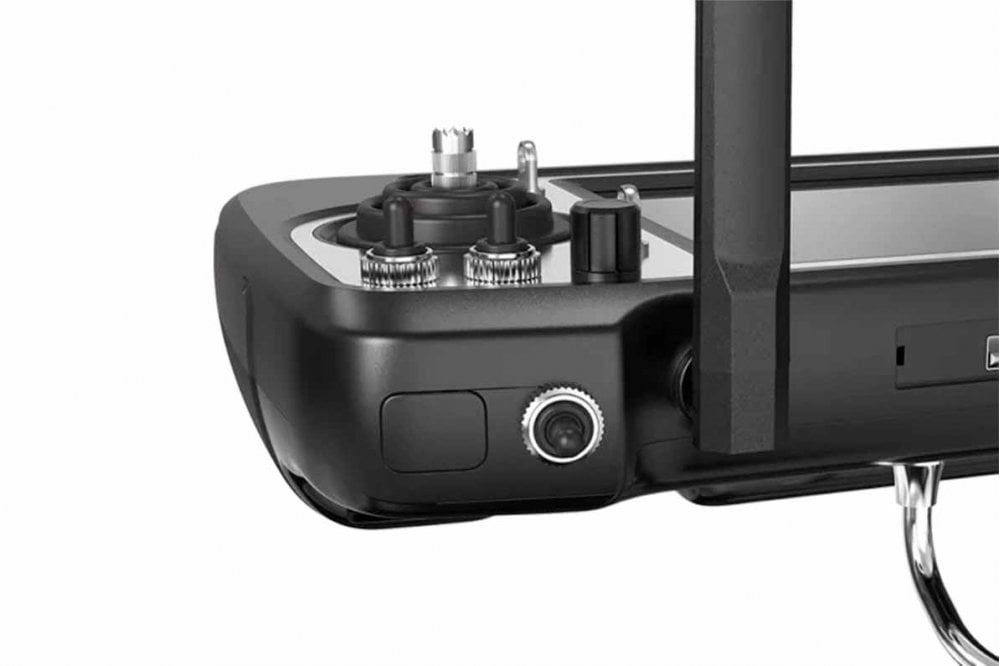

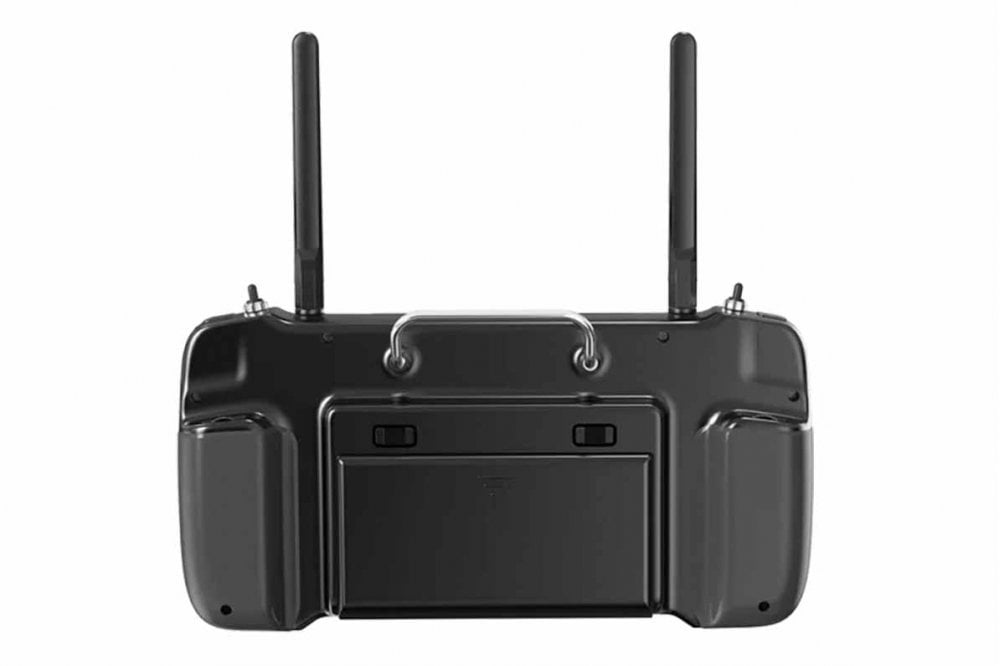

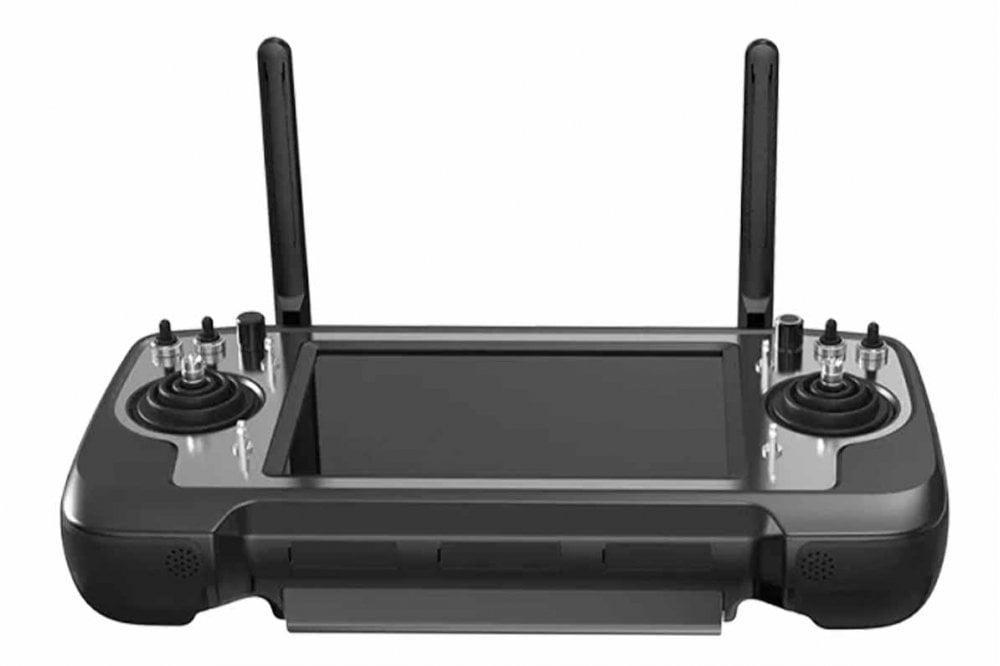

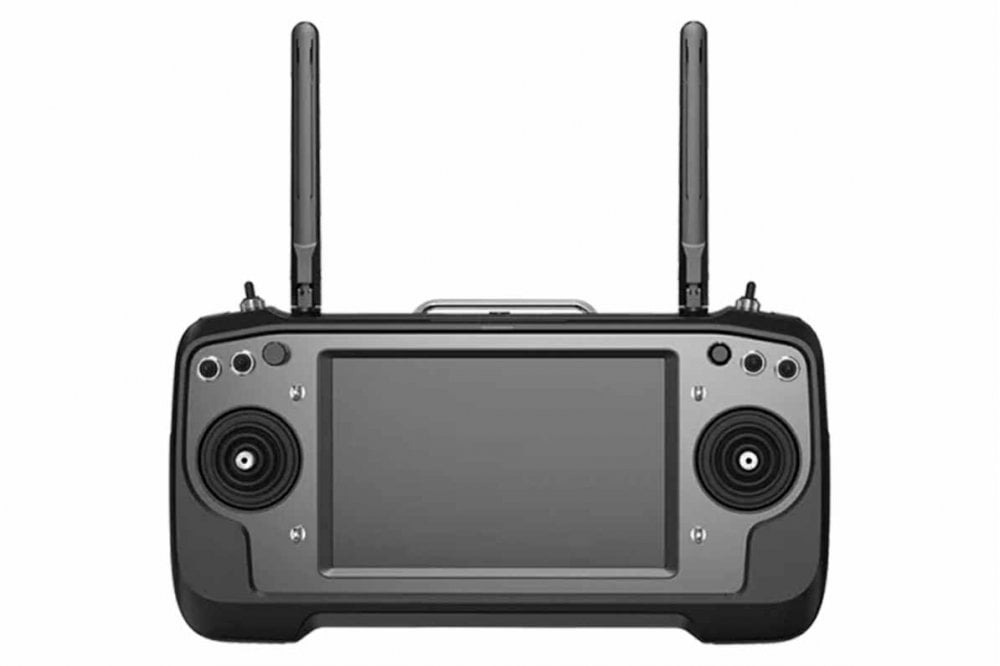

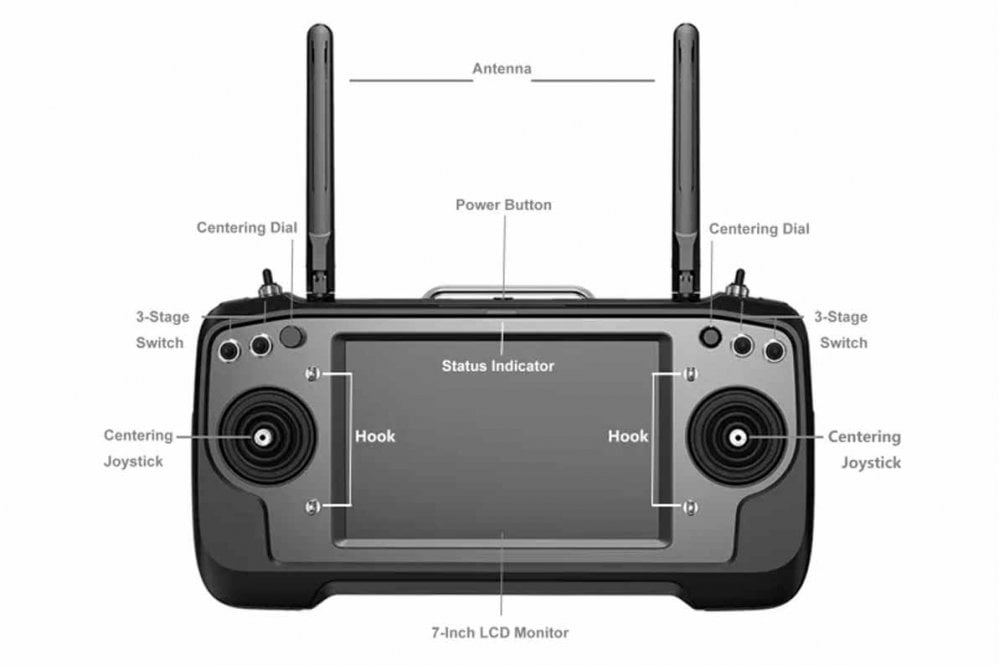

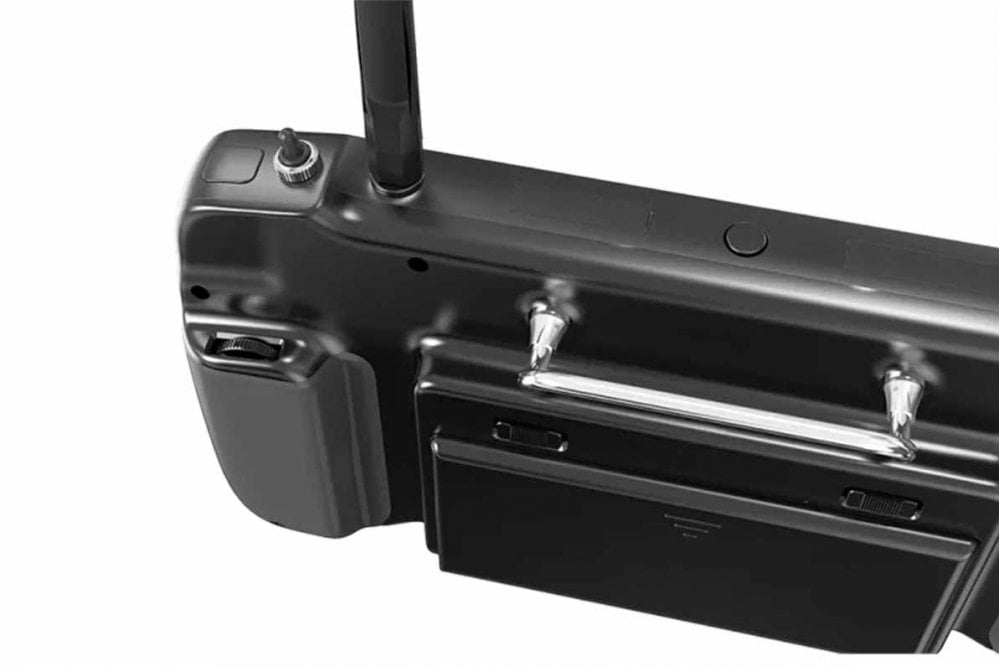

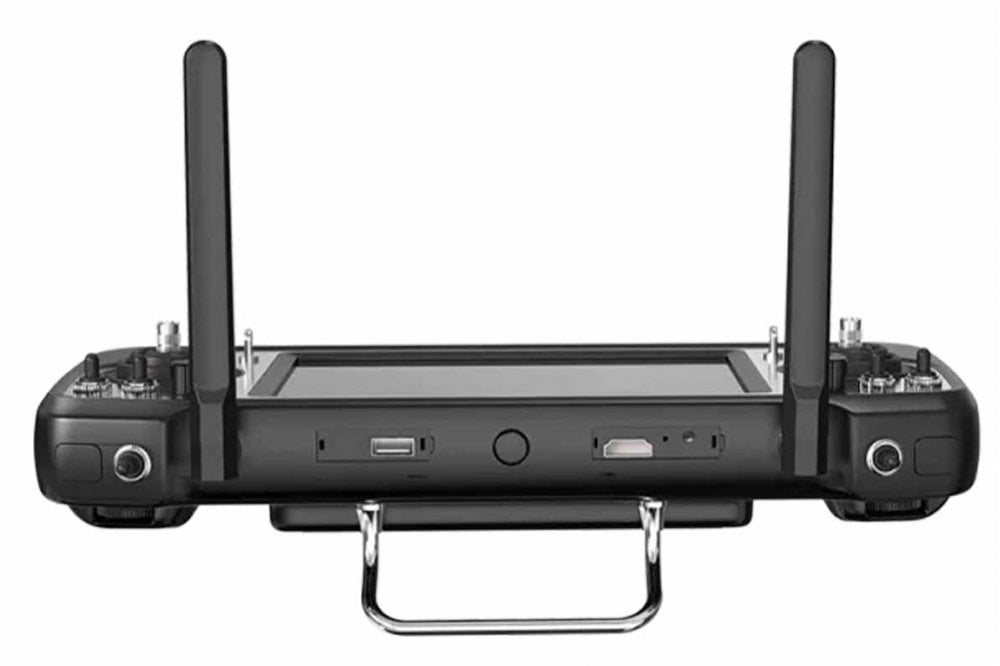

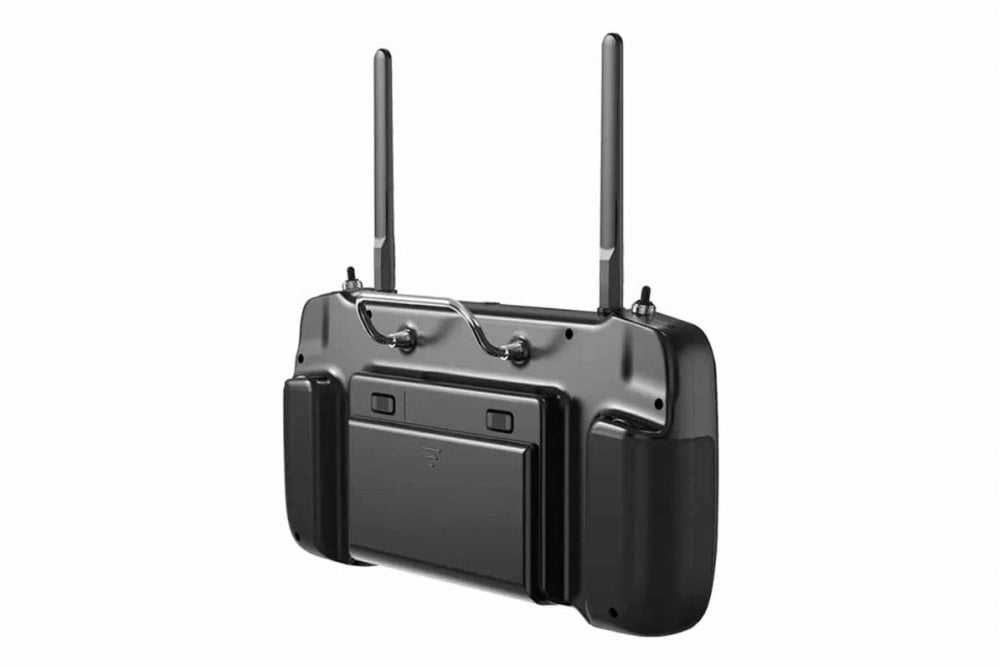

SIYI TechnologySIYI- MK32 Handheld Ground Station

Specification

Overall

Model: MK32
Max Transmission Range: 15 kilometers (unobstructed, free of interference)
Channels: 16 physical channels, 16 communication channels
Datalink Compatible Flight Controllers: Pixhawk / APM based flight controllers or any flight controllers with UART datalink output
Image Transmission Compatible Android GCS:
- QGroundControl
- SIYI FPV
Image Transmission Compatible Windows GCS:
- QGroundControl
- Mission Planner (H264 only)

Ground Station

Monitor: 7-Inch High Definition and High Brightness LCD Touchscreen
System: Android 9.0 OS, 4G RAM & 64G ROM
Dimension (antenna overlapped): 308 x 148 x 72 mm
Weight: 1440 g
Battery Capacity & Type: 10200 mAh 7.4 V 2S Li-ion, 75.48 Wh
Fast Charging Protocol: PD 30W
Charging Time: 3.5 Hours (30W PD Charging)
Battery Life: 10 hours

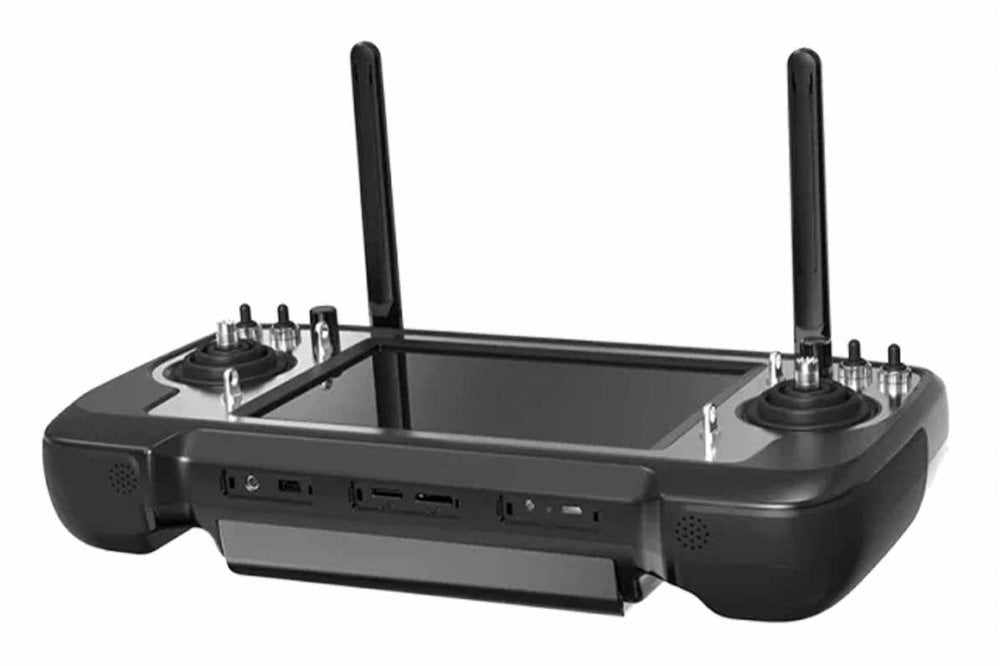

Interface & Ports:
- Video Output: Standard HDMI
- External Device: USB-A
- MIC Input: Top Audio Port
- Charging: Type-C
- Firmware Upgrade: Type-C
- File Transfer: Type-C / USB-A
- Mobile Network: SIM Card Slot
- External Storage: TF Card Slot / USB-A
- Communication: LAN (Ethernet)
- RC Input / Output: Bottom Audio Port
Waterproof Level: IP4X
Working Temperature: -10 to 50℃

Air Unit
Signal Output: 16 channels of S.BUS, 5 channels of PWM
Interface & Ports:
- Remote Control: SBUS (GH1.25 3-Pin)
- Datalink (to FC): UART (GH1.25 4-Pin)
- PWM Channel 1 to 5: GH1.25 6-Pin
- Video Input / Network Communication: Ethernet (GH1.25 8-Pin)
- Firmware Upgrade: Type-C
Dimensions (antenna excluded, fan included): 70 x 55 x 16 mm
Weight (antenna excluded): 74 g
Antenna Gain: 5 dBi
Power Input: 12.6 to 25.2 V (expandable to up to 75.6V with BEC)
Working Temperature: -10 to 50℃

Air Unit HDMI Input Converter
(Optional or Packed with HDMI Combo)

Video Input Port: Mini HDMI
Video Output Port: Ethernet
Working Voltage: 12 V
Power Consumption: 3 W

TF Card Recording Resolution: 1080P (1920*1080) @ 30 fps, 720p (1280 x 720) @ 30 fps

Video Storage Bitrate: 12 Mbps

File Storage Format: FAT32
Video Format: H.265
Supported MicroSD Cards: MicroSD Class10, Max 32GB
Working Temperature: -10 to 50℃

Dimensions: 42 x 41 x 11 mm
Weight: 26 g

Package Contains

Standard Combo

• 1 x MK32 Ground Unit
• 2 x Standard Omni Antenna
• 2 x Long Range Antenna
• 1 x HM30 Air Unit
• 2 x Standard Omni Antenna
• 1 x 4S-18S BEC
• 1 x Telemetry Cable
• 1 x S.Bus Cable (Male)
• 1 x PWM Cable
• 1 x Ethernet Cable
• 1 x 30W PD Fast Charger (Type-C, US Plug)
• 1 x PD Fast Charging Cable (Type-C to Type-C)
• 1 x Type-C to USB-A Converter
• 1 x Carrying Case

HDMI Combo

• 1 x MK32 Ground Unit
• 2 x Standard Omni Antenna
• 2 x Long Range Antenna
• 1 x HM30 Air Unit
• 2 x Standard Omni Antenna
• 1 x Air Unit HDMI Input Converter
• 1 x 4S-18S BEC
• 1 x Telemetry Cable
• 1 x S.Bus Cable (Male)
• 1 x PWM Cable
• 1 x Ethernet Cable
• 1 x 30W PD Fast Charger (Type-C, US Plug)
• 1 x PD Fast Charging Cable (Type-C to Type-C)
• 1 x Type-C to USB-A Converter
• 1 x Carrying Case
