SIYI TechnologySIYI- MK15 Enterprise

**Note: This product is intended for advanced users. **

Please refer to manufacturer's website for the latest specifications here.

Overall

Max Transmission Range

15 km

(Unobstructed, free of interference)

Channels

13 physical channels

16 communication channels

Datalink Compatible Flight Controllers

PX4 / Ardupilot Open-source Flight Controllers:

SIYI N7, etc.

Video Stream Compatible Android App

SIYI Original App:

SIYI FPV

Open-source GCS:

QGroundControl

Mission Planner

Video Stream Compatible Windows GCS

Open-source GCS:

QGroundControl

Mission Planner (H264 only)

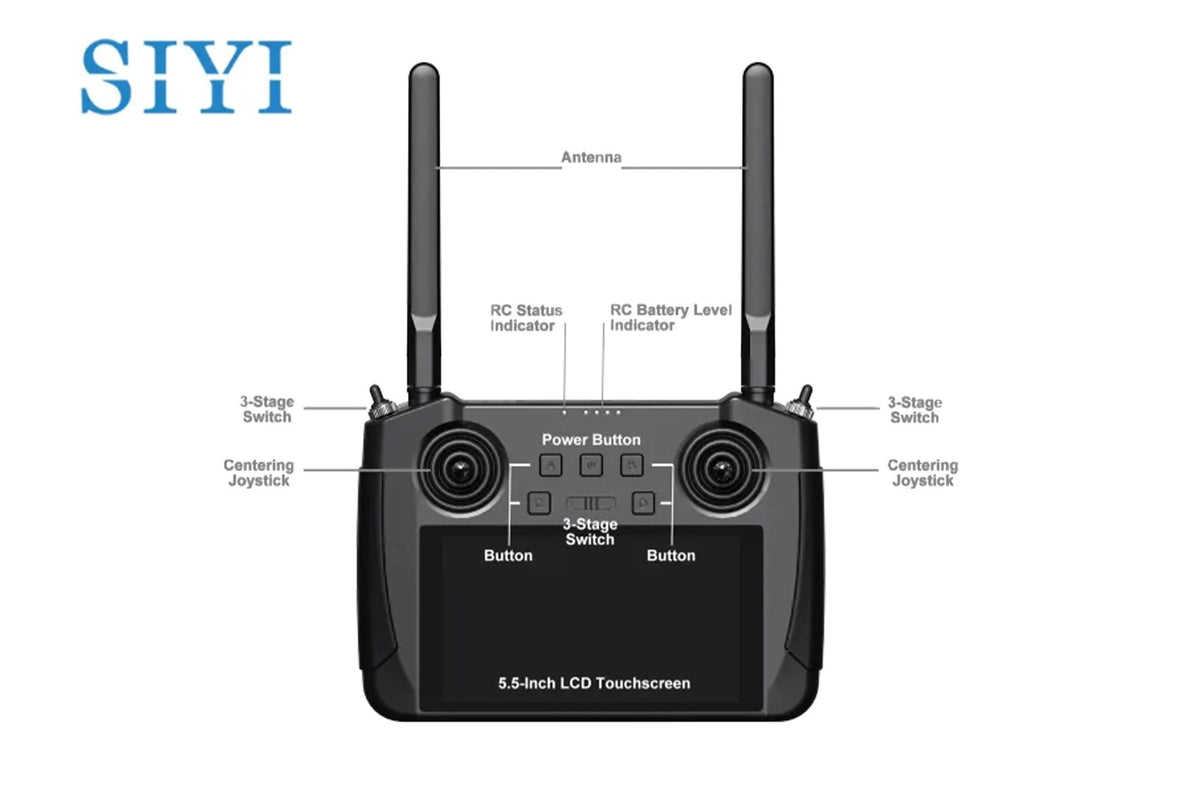

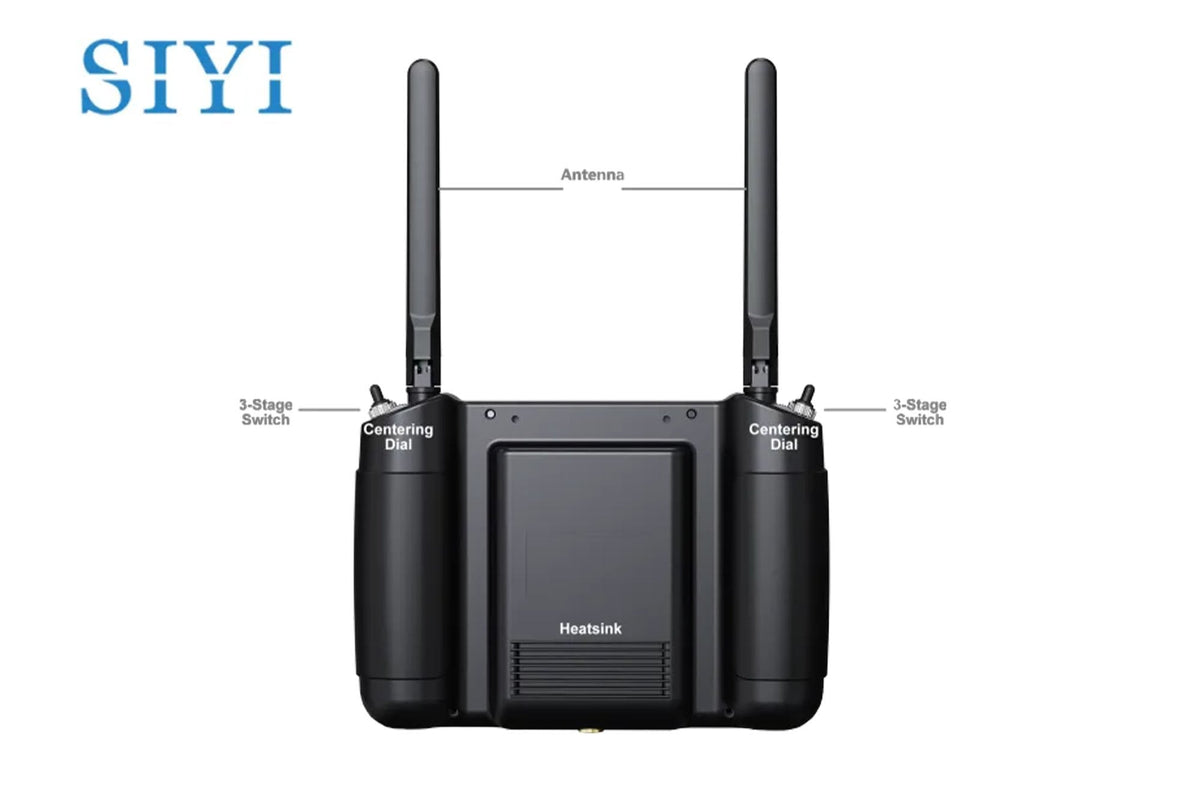

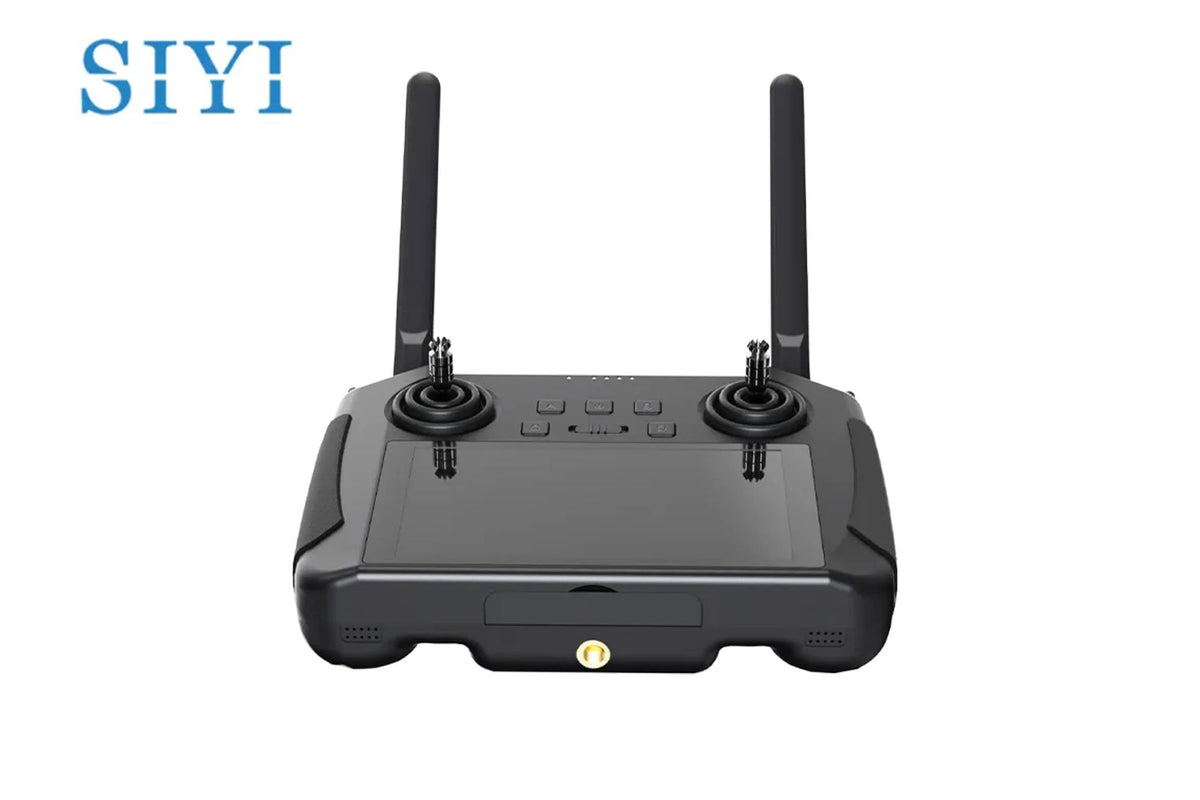

Ground Unit (Remote Controller)

Monitor

5.5-inch High Definition and High Brightness LCD Touchscreen

System

Android 9.0 OS

2G RAM, 16G ROM

Battery Capacity & Type

10200 mAh 7.4V 2S Li-ion, 75.48 Wh

Fast Charging Protocol

PD 20W

Charging Tme

5 hours (PD 20W)

Battery Life

13 hours

Antenna Gain

Omni Antenna: 5 dBi

Long Range Antenna: 11 dBi (included in enterprise edition)

Lollipop Antenna: 5 dBi (optional)

Interface & Ports

Video Output: Standard HDMI *Enterprise edition only

External Device (Mouse, USB Disk): USB-A

Charging: Type-C Firmware

Upgrade: Upgrade Port (Bottom GH1.25 4Pin)

File Transfer: Type-C / USB-A

Mobile Network: SIM Card Slot

External Storage: TF Card Slot

Tripod Mount: 1/4-inch Standard Screw Hole

Dimensions (Antenna Overlapped)

189 x 138 x 41 mm

Weight (Antenna Overlapped)

850 g

Waterproof Level

IP53

Working Temperature

-10℃ ~ 50℃

Air Unit

Signal Output

16 channels of SBUS

5 channels of PWM

Interface & Ports

S.Bus RC Signal Output: RC (GH1.25 3-Pin)

Datalink (to FC): UART (GH1.25 4-Pin)

PWM Channel 1 to 5: PWM (GH1.25 6-Pin)

Video Input / Network Communication: LAN (GH1.25 8-Pin)

Firmware Upgrade: Type-C

Antenna Gain

Omni Antenna: 5 dBi

Lollipop Antenna: 5 dBi (optional)

Working Voltage

MK15 Air Unit (included in MK15 agriculture edition):

4S ~ 18S / 16.8 ~ 75.6 V

(Early manufacturing lots support only 6S to 14S, please carefully confirm)

HM30 Air Unit (included in MK15 enterprise edition and MK32):

3S ~ 6S / 12.6 ~ 25.2 V

(Early manufacturing lots of MK15 enterprise edition came with MK15 air unit)

(Early manufacturing lots of HM30 air unit support only 3S to 4S, please carefully confirm)

 4S to 18S Power Module (included in MK15 enterprise edition and MK32):

16.8 ~ 75.6 V

Power Consumption

MK15 Air Unit (included in agriculture edition):

- Average: 3.2 W

- Summit: 12 W

HM30 Air Unit:

- Average: 2.8 W

- Summit: 12 W

HM30 Air Unit + 4S to 18S Power Module:

- Average: 3.2 W

- Summit: 12 W

Dimensions (Antenna excluded)

70 x 55 x 16 mm (fan included)

Weight (Antenna excluded)

MK15 Air Unit (included in agriculture edition):

100 g

HM30 Air Unit:

74 g

HM30 Air Unit + 4S to 18S Power Module:

109 g

Working Temperature

-10℃ ~ 50℃

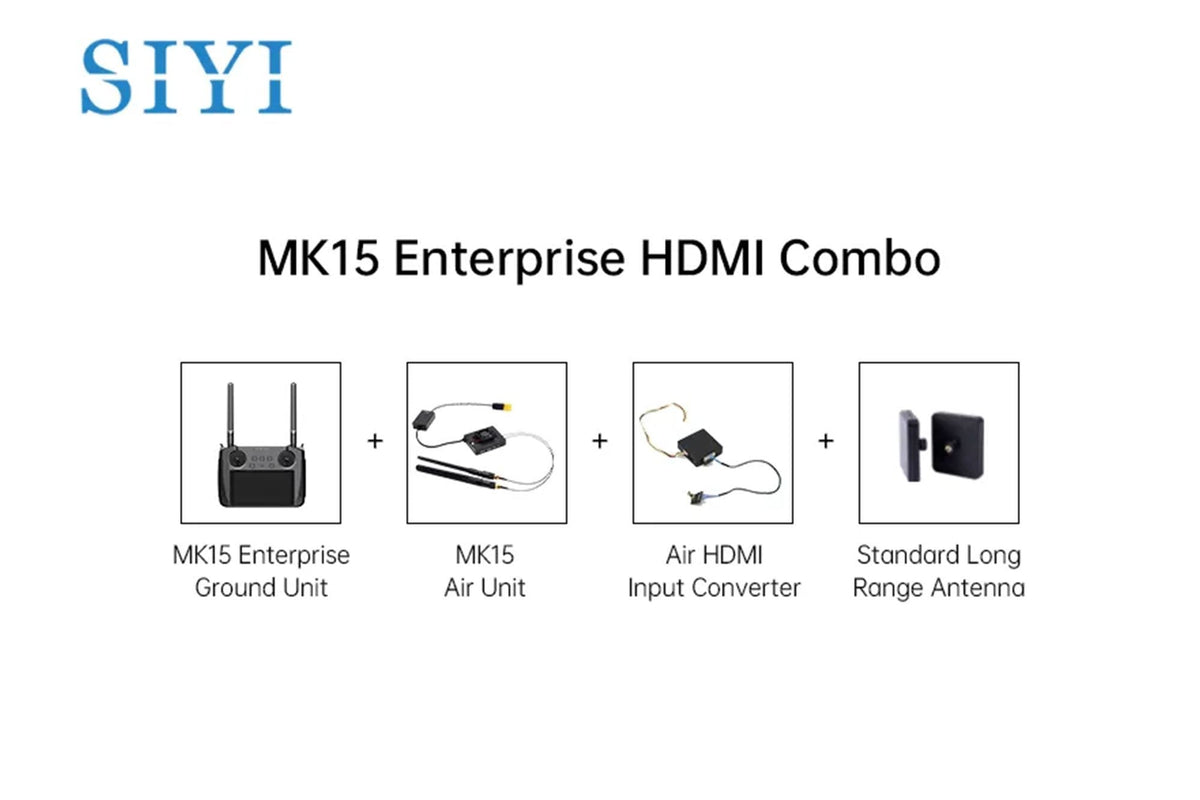

Air Unit HDMI Input Converter (HDMI Combo only)

Video Input

Micro HDMI

Video Output

Ethernet

Working Voltage

12 V

Power Consumption

3 W

Video Recording Resolution

1080p (1920 × 1080) @ 30 fps

720p (1080 × 720) @ 30 fps

Video Storage Birate

12 Mbps (H265 codec)

File Storage Format

FAT32

Video Recording Format

H265

Supported TF / SD Card Type

MicroSD Class10, Less than 32GB

Dimensions

42*41*11 mm

Weight

26 g

Working Temperature

-10℃ ~ 50℃
