Product Specifications
Product Details
**Note: This product is intended for advanced users. **
Please refer to manufacturer's website for the latest specifications here.
Overall
|
Max Transmission Range |
15 km (Unobstructed, free of interference) |
|
Channels |
13 physical channels 16 communication channels |
|
Datalink Compatible Flight Controllers |
PX4 / Ardupilot Open-source Flight Controllers: SIYI N7, etc. |
|
Video Stream Compatible Android App |
SIYI Original App: SIYI FPV
Open-source GCS: QGroundControl Mission Planner |
|
Video Stream Compatible Windows GCS |
Open-source GCS: QGroundControl Mission Planner (H264 only) |

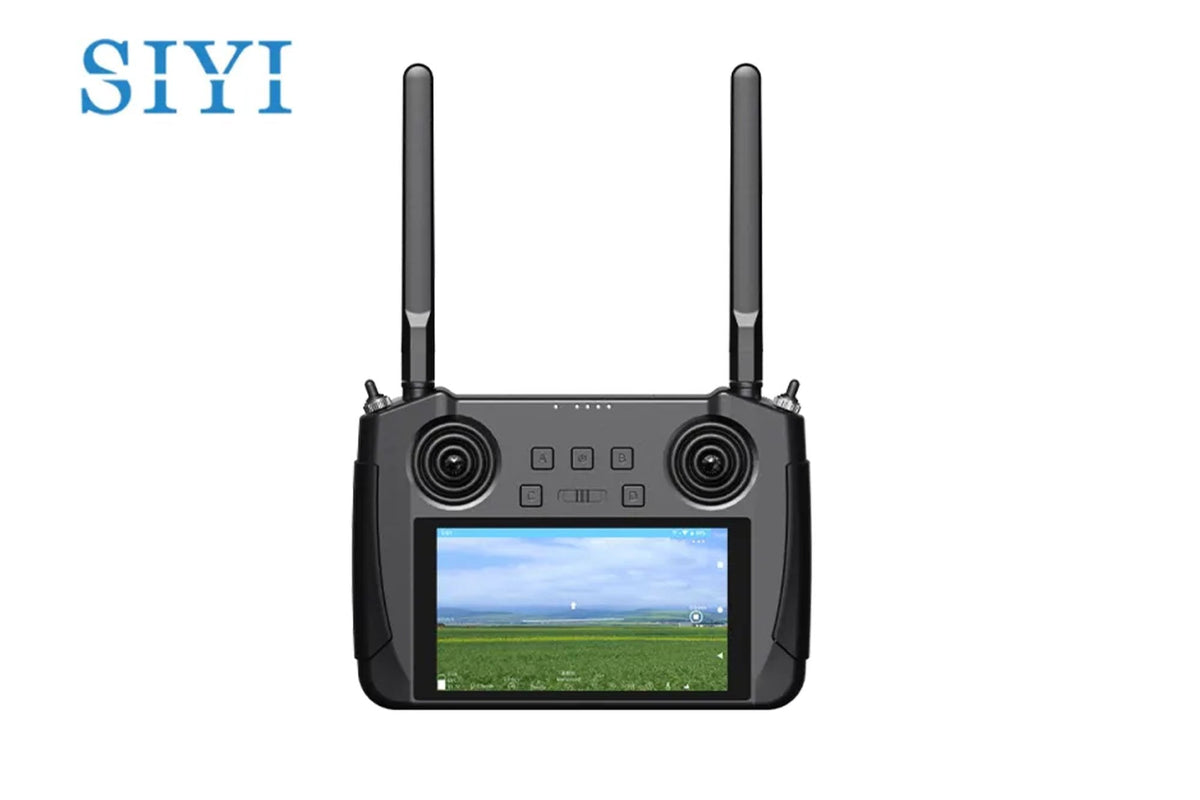

Ground Unit (Remote Controller)
|
Monitor |
5.5-inch High Definition and High Brightness LCD Touchscreen |
|
System |
Android 9.0 OS 2G RAM, 16G ROM |
|
Battery Capacity & Type |
10200 mAh 7.4V 2S Li-ion, 75.48 Wh |
|
Fast Charging Protocol |
PD 20W |
|
Charging Tme |
5 hours (PD 20W) |
|
Battery Life |
13 hours |
|
Antenna Gain |
Omni Antenna: 5 dBi Long Range Antenna: 11 dBi (included in enterprise edition) Lollipop Antenna: 5 dBi (optional) |
|
Interface & Ports |
Video Output: Standard HDMI *Enterprise edition only External Device (Mouse, USB Disk): USB-A Charging: Type-C Firmware Upgrade: Upgrade Port (Bottom GH1.25 4Pin) File Transfer: Type-C / USB-A Mobile Network: SIM Card Slot External Storage: TF Card Slot Tripod Mount: 1/4-inch Standard Screw Hole |
|
Dimensions (Antenna Overlapped) |
189 x 138 x 41 mm |
|
Weight (Antenna Overlapped) |
850 g |
|
Waterproof Level |
IP53 |
|
Working Temperature |
-10℃ ~ 50℃ |

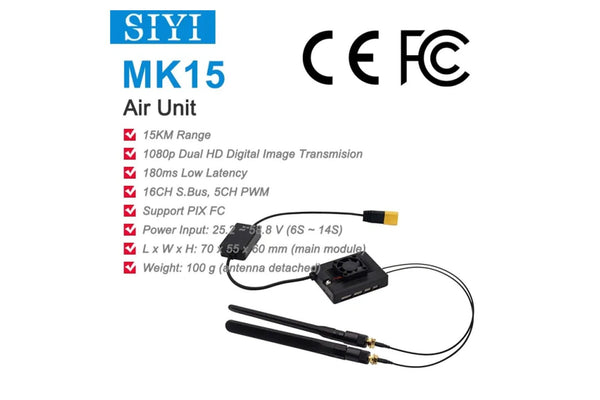

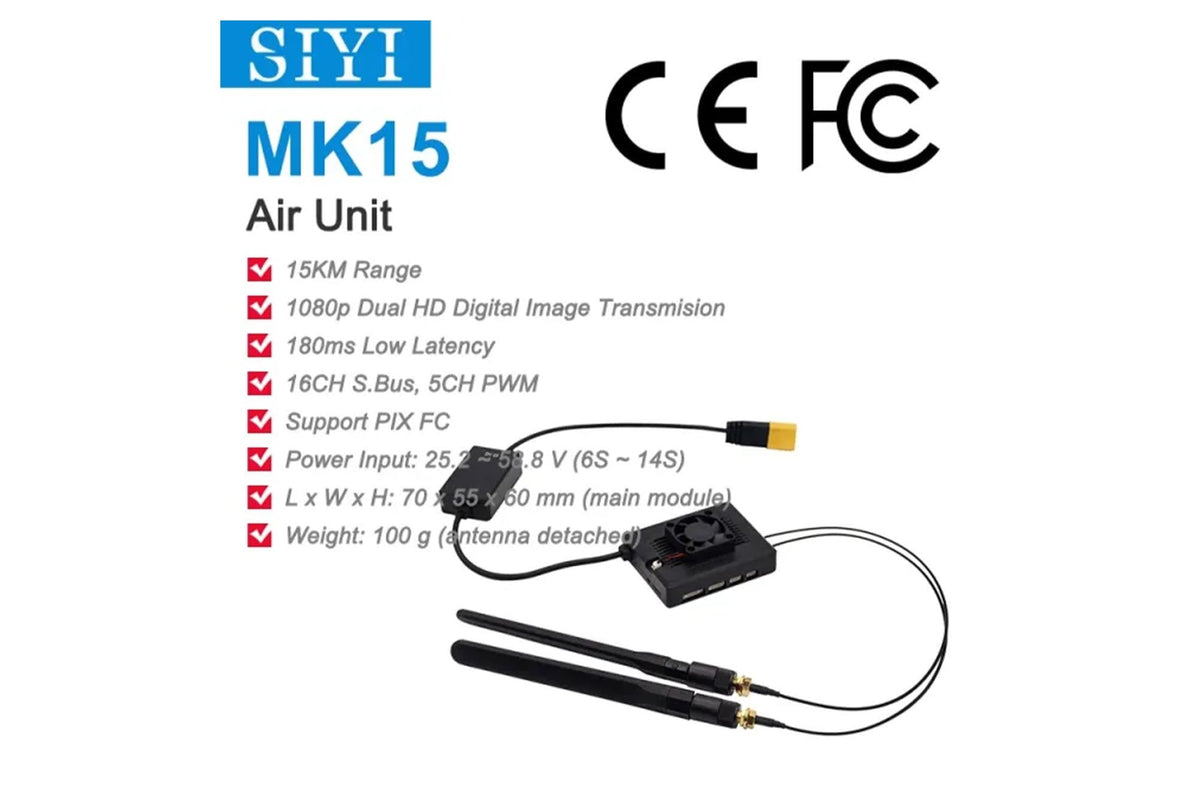

Air Unit
|
Signal Output |
16 channels of SBUS 5 channels of PWM |
|
Interface & Ports |
S.Bus RC Signal Output: RC (GH1.25 3-Pin) Datalink (to FC): UART (GH1.25 4-Pin) PWM Channel 1 to 5: PWM (GH1.25 6-Pin) Video Input / Network Communication: LAN (GH1.25 8-Pin) Firmware Upgrade: Type-C |
|
Antenna Gain |
Omni Antenna: 5 dBi Lollipop Antenna: 5 dBi (optional) |
|
Working Voltage |
MK15 Air Unit (included in MK15 agriculture edition): 4S ~ 18S / 16.8 ~ 75.6 V (Early manufacturing lots support only 6S to 14S, please carefully confirm)
HM30 Air Unit (included in MK15 enterprise edition and MK32): 3S ~ 6S / 12.6 ~ 25.2 V (Early manufacturing lots of MK15 enterprise edition came with MK15 air unit) (Early manufacturing lots of HM30 air unit support only 3S to 4S, please carefully confirm)
4S to 18S Power Module (included in MK15 enterprise edition and MK32): 16.8 ~ 75.6 V |
|
Power Consumption |
MK15 Air Unit (included in agriculture edition): - Average: 3.2 W - Summit: 12 W
HM30 Air Unit: - Average: 2.8 W - Summit: 12 W
HM30 Air Unit + 4S to 18S Power Module: - Average: 3.2 W - Summit: 12 W |
|
Dimensions (Antenna excluded) |
70 x 55 x 16 mm (fan included) |
|
Weight (Antenna excluded) |
MK15 Air Unit (included in agriculture edition): 100 g
HM30 Air Unit: 74 g
HM30 Air Unit + 4S to 18S Power Module: 109 g |
|
Working Temperature |
-10℃ ~ 50℃ |
