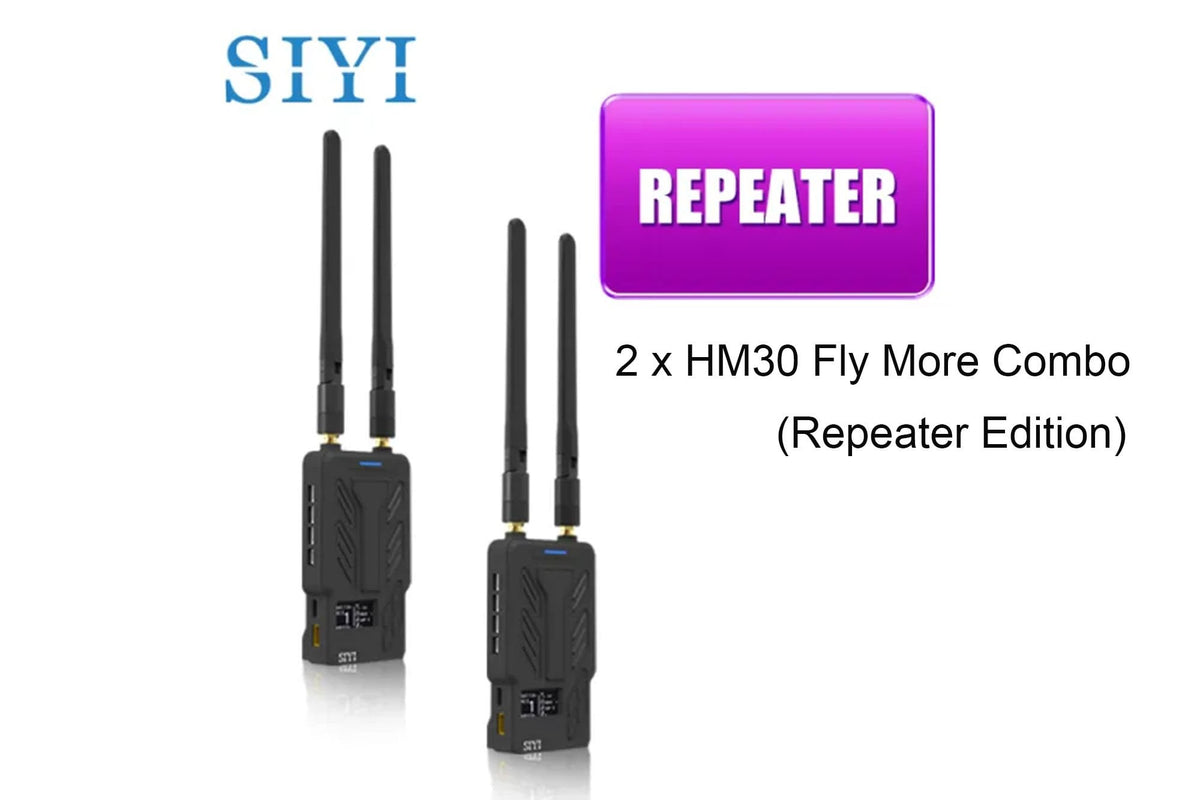

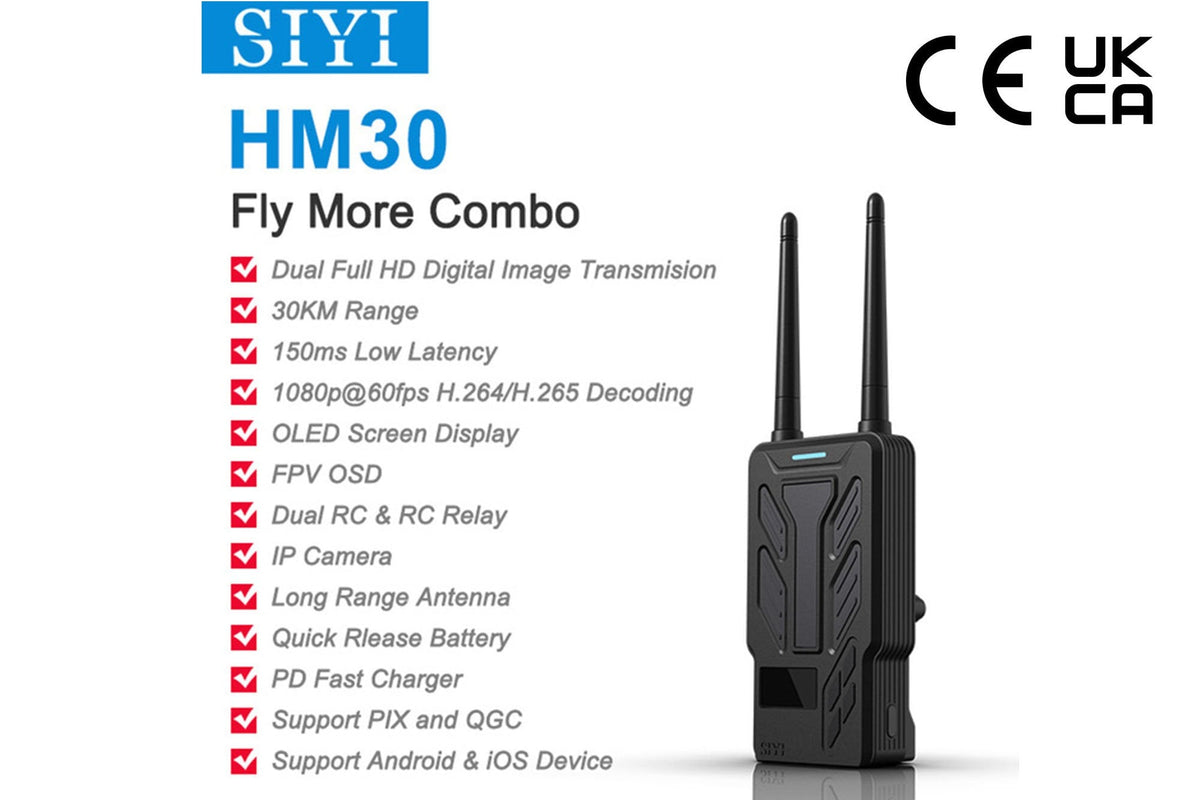

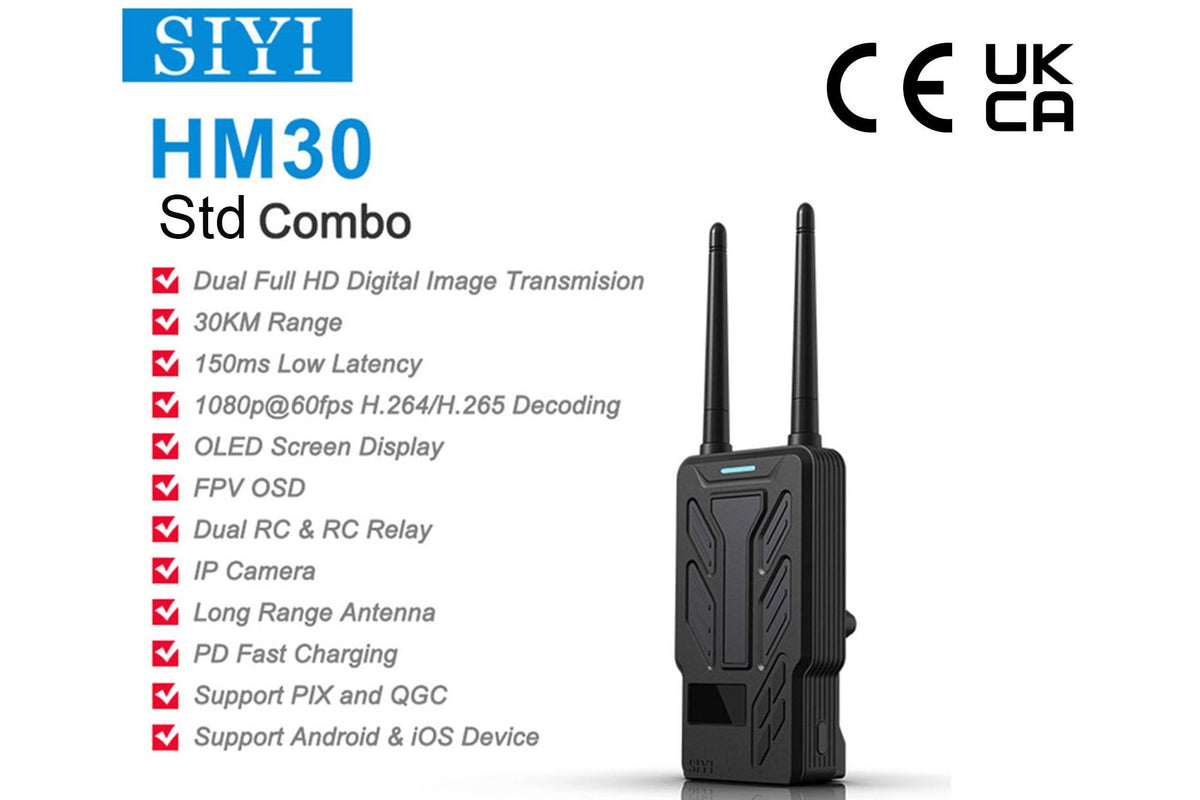

SIYI - HM30 Long Range Full HD Transmission System

Overall

Max Transmission Range

30 km

(Unobstructed, free of interference)

Channels

16 communication channels

Datalink Compatible Flight Controllers

PX4 / ArduPilot Open-Source Flight Controllers:

SIYI N7, etc.

INAV Open-Source Flight Controllers

Video Stream Compatible GCS (Android)

SIYI Factory Apps:

SIYI FPV

Open-Source GCS:

QgroundControl

Mission Planner

Video Stream Compatible GCS (Windows)

Open-Source GCS:

QGroundControl

Mission Planner (H264 only)

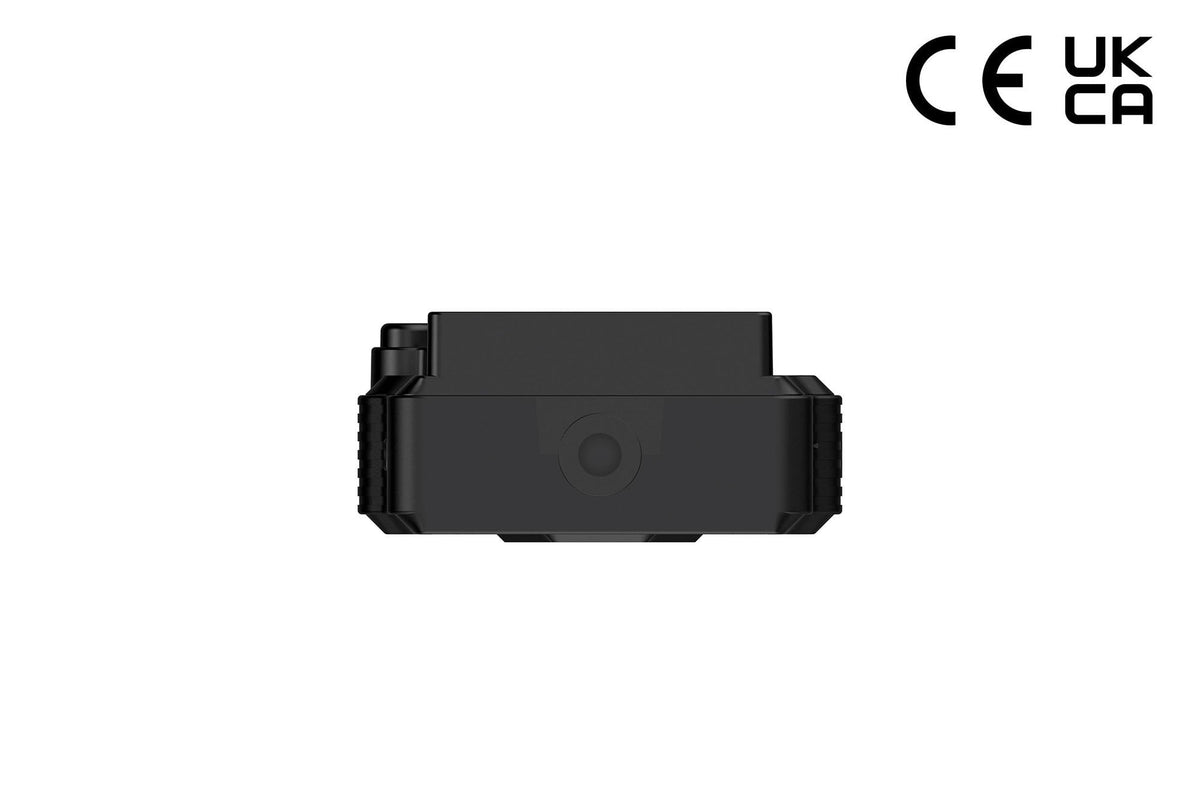

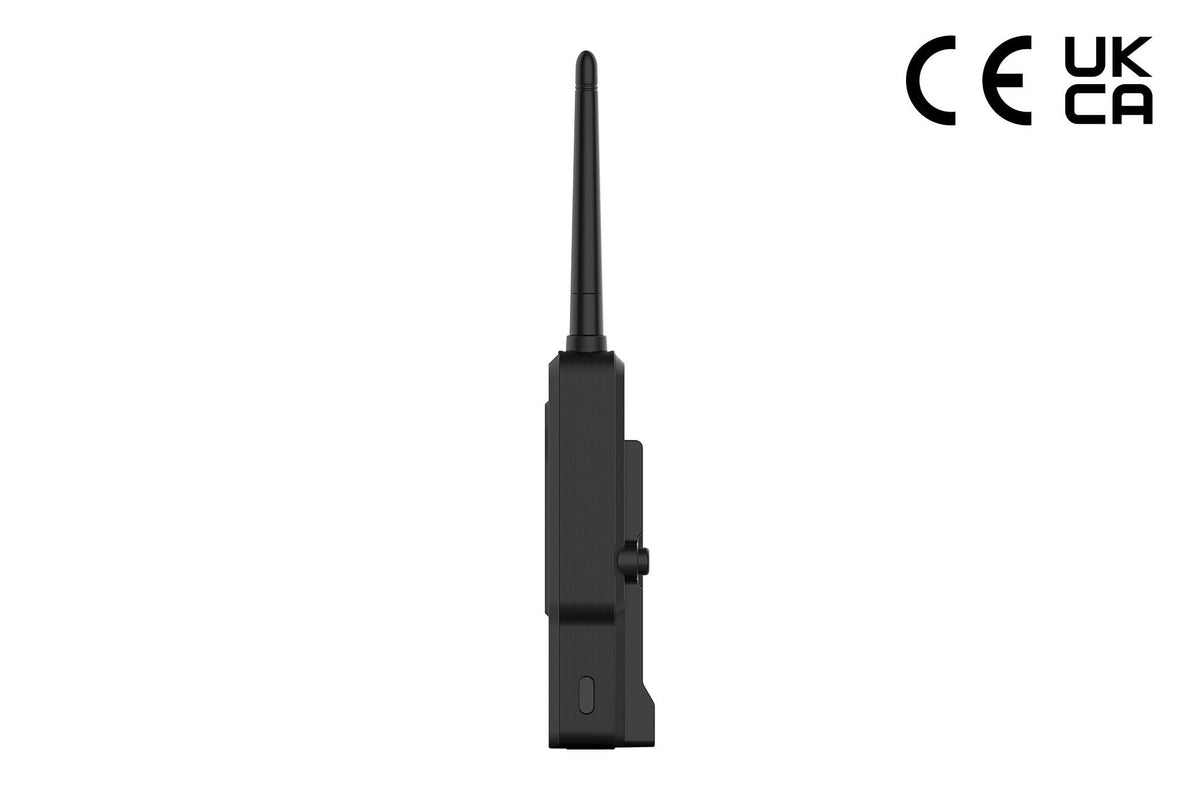

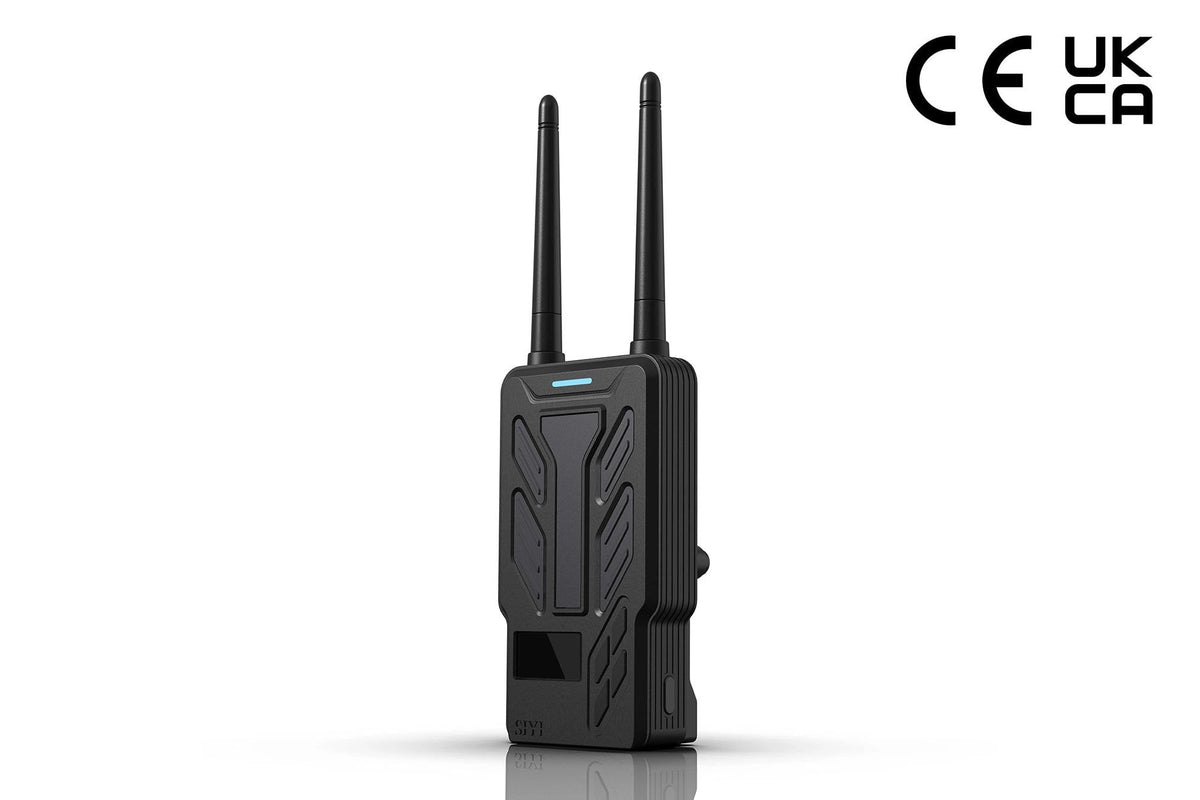

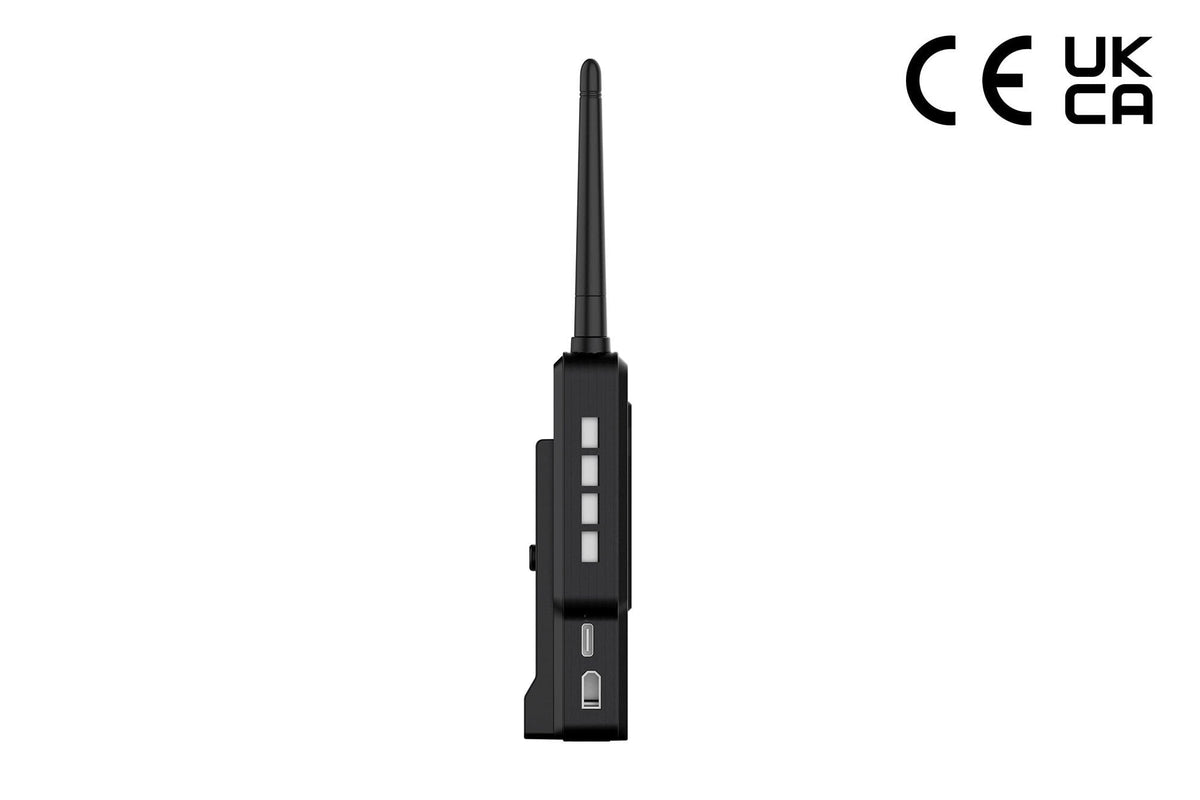

Ground Unit

Monitor

0.96-inch OLED Display

Compatible Battery Type

NP-F550 / F750 / F950 Series Quick Release Batteries

(HM30 fly more combo comes with NP-750 quick release battery)

Fast Charging Protocol

PD 30W

Antenna Gain

Standard Omni Antenna: 5 dBi

Standard Long Range Antenna: 11 dBi

(Optional) Lollipop Antenna: 5 dBi

Interface & Ports

S.Bus / PPM RC Signal Input: RC (GH1.25 4-pin)

Datalink Output: UART (GH1.25 4-pin)

Ethernet Port: LAN (GH1.25 4-pin)

Power Output: VCC (GH1.25 4-pin, without bucket)

GCS Datalink Communication: Type-C

Firmware Upgrade: Type-C

Charge: Type-C

Power Input: PWR (XT30)

Tripod Connector: 1/4-inch Screw Hole

Product Dimensions (Battery and antennas excluded)

109 x 61 x 28 mm

Product Dimensions (Battery and antennas excluded)

132 g

Waterproof Level

IP53

Working Temperature

-10 ~ 50℃

Air Unit

Signal Output

16 channels of S.Bus

5 channels of PWM

Interface & Ports

S.Bus RC Signal Output: S.Bus Out (GH1.25 3-Pin)

Datalink (to FC): UART (GH1.25 4-Pin)

PWM Channel 1 to 5: PWM (GH1.25 6-Pin)

Video Input / Network Communication: LAN (GH1.25 8-Pin)

Firmware Upgrade: Type-C

Antenna Gain

Omni Antenna: 5 dBi (Standard)

Lollipop Antenna: 5 dBi (Optional)

Working Voltage

HM30 Air Unit:

3S ~ 6S / 12.6 ~ 25.2 V

4S to 18S Power Module (Optional):

16.8 ~ 75.6 V

Power Consumption

HM30 Air Unit:

- Average: 2.8 W

- Summit: 12 W

 HM30 Air Unit + 4S to 18S Power Module:

- Average: 3.2 W

- Summit: 12 W

Dimensions (Antenna Excluded)

70 x 55 x 16 mm (fan included)

Weight (Antenna Excluded)

HM30 Air Unit:

74 g

HM30 Air Unit + 4S to 18S Power Module:

109 g

Working Temperature

-10 ~ 50℃

R1M Recording FPV Camera (Optional, packed with both HM30 combos)

Video Output Port

Ethernet

Image Sensor

1/2.9 Inch, 2 MP

FOV

Diagonal: 90°

Horizontal: 80°

Working Voltage

12 V

Power Consumption

2.5 W

Video Recording Resolution

1080p (1920*1080) @ 30 fps

720p (1280*720) @ 30 fps

Recording Bitrate

12 Mbps

Video Recording Format

MP4

Supported TF / SD Card Type

MicroSD Class10

Less than 32GB

File Storage Format

FAT32

Dimensions

42 x 42 x 25 mm

Weight

23 g

Working Temperature

-10℃ ~ 50℃
