SeptentrioSeptentrio - Mosaic-Go X5 Module Receiver Evaluation Kit

Discover the many advantages of high-precision GPS/GNSS with the Septentrio mosaic-go X5 module receiver evaluation kit.

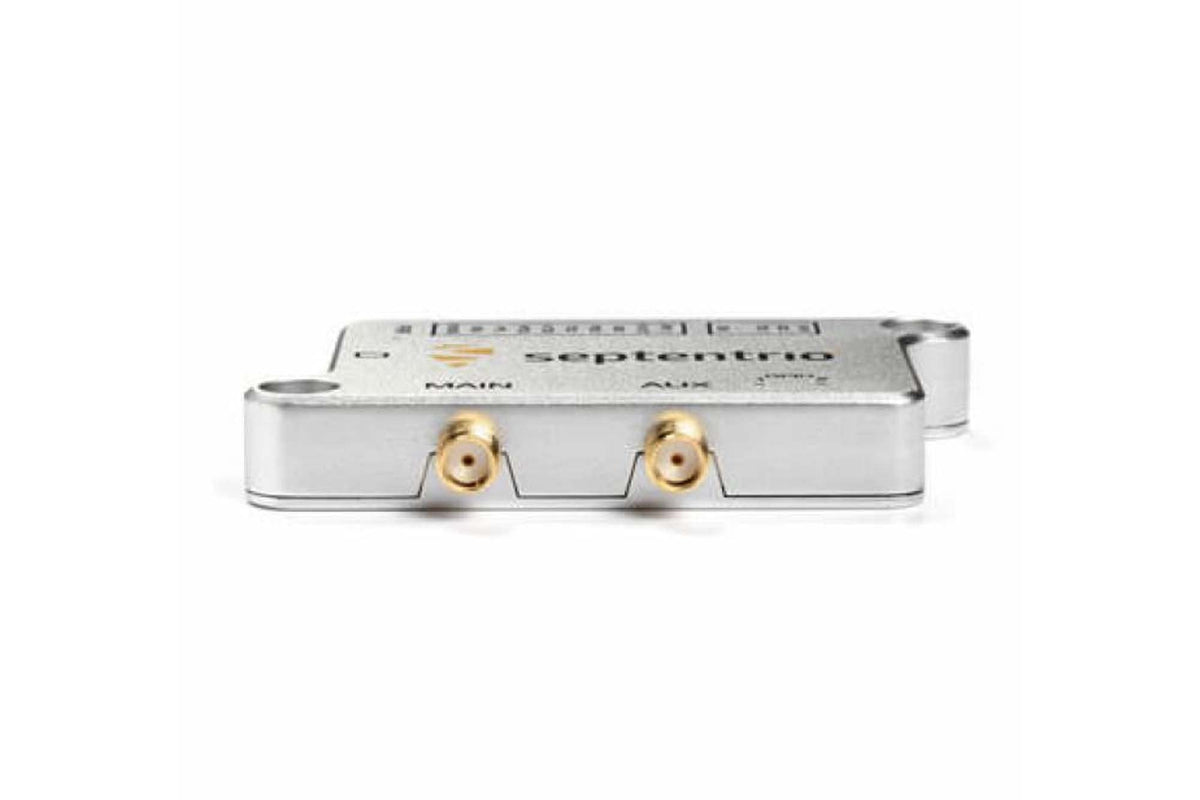

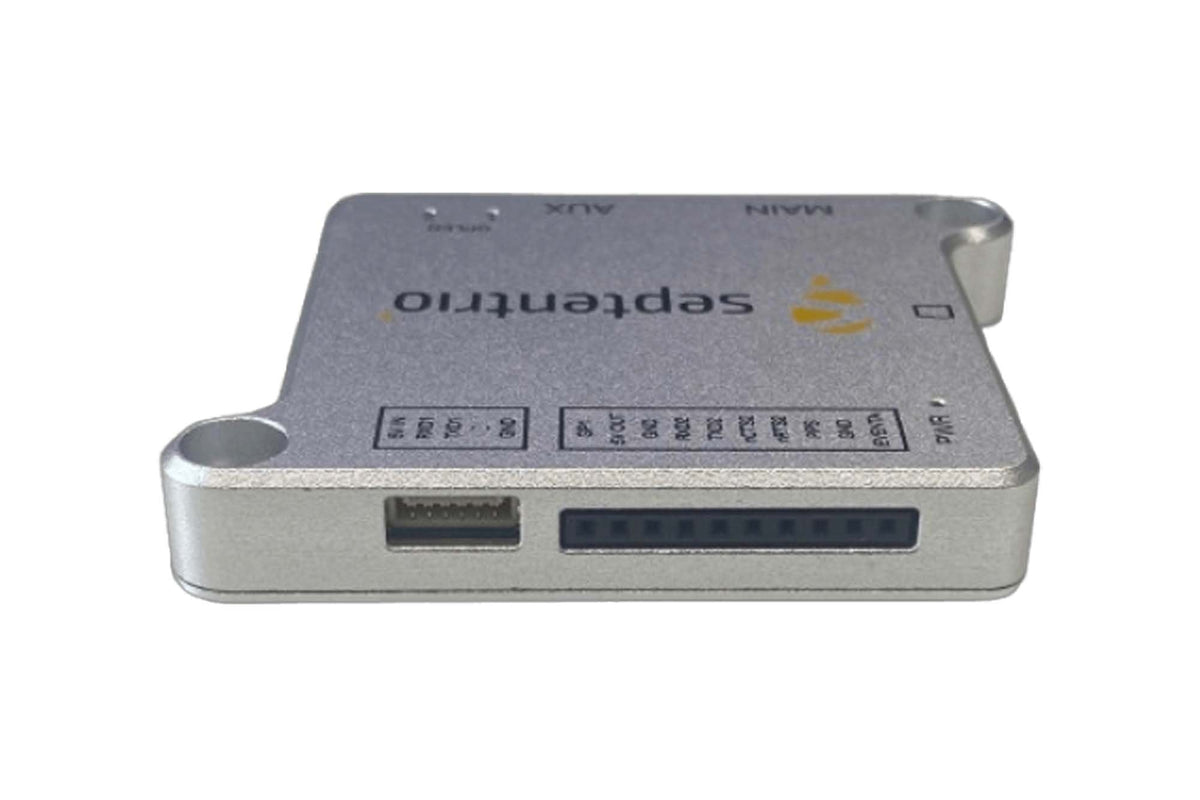

The mosaic-go X5 is Septentrio's most compact high-precision GPS/GNSS evaluation kit, delivering best-in-class centimeter-level positioning performance especially in challenging environments. It's a multi-band, multi-constellation GPS/GNSS receiver mosaic-X5 integrated inside a small metallic housing. It is designed for easy evaluation of mosaic-X5 for applications like UAV, robotics, autonomous systems, construction and agriculture. This unique high-performance module supports all current GNSS satellite signals and is future-proof for upcoming signals and services. Unique built-in AIM+ Premium technology for interference monitoring and mitigation and anti-spoofing, ensures the best availability, reliability and precision.

The evaluation kit offers the possibility to discover and test the mosaic-go X5. Create a prototype by integrating the mosaic-go evaluation kit into your system using any of the of following connections: COM ports, USB 2.0, SD memory card.

Features:

• Complete multi-frequency, multi-constellation GNSS receiver: GPS, GLONASS, Galileo, BeiDou, QZSS
• Ultra small evaluation kit: 74 x 59 x 11,5 mm (± 1 mm)
• Weight: 62 g (± 1 g)
• Ready to use interface  with USB, serial ports, PPS and events
• Best-in-class anti-interference, anti-jamming, anti-spoofing technology: Advanced Interference Monitoring and Mitigation (AIM+)
• Industry leading ultra-low power consumption
• High update rate: up to 100 Hz for measurements and 50 Hz for RTK
• Comes with set of cables and intuitive web user interface for easy operation and monitoring from any mobile device or computer

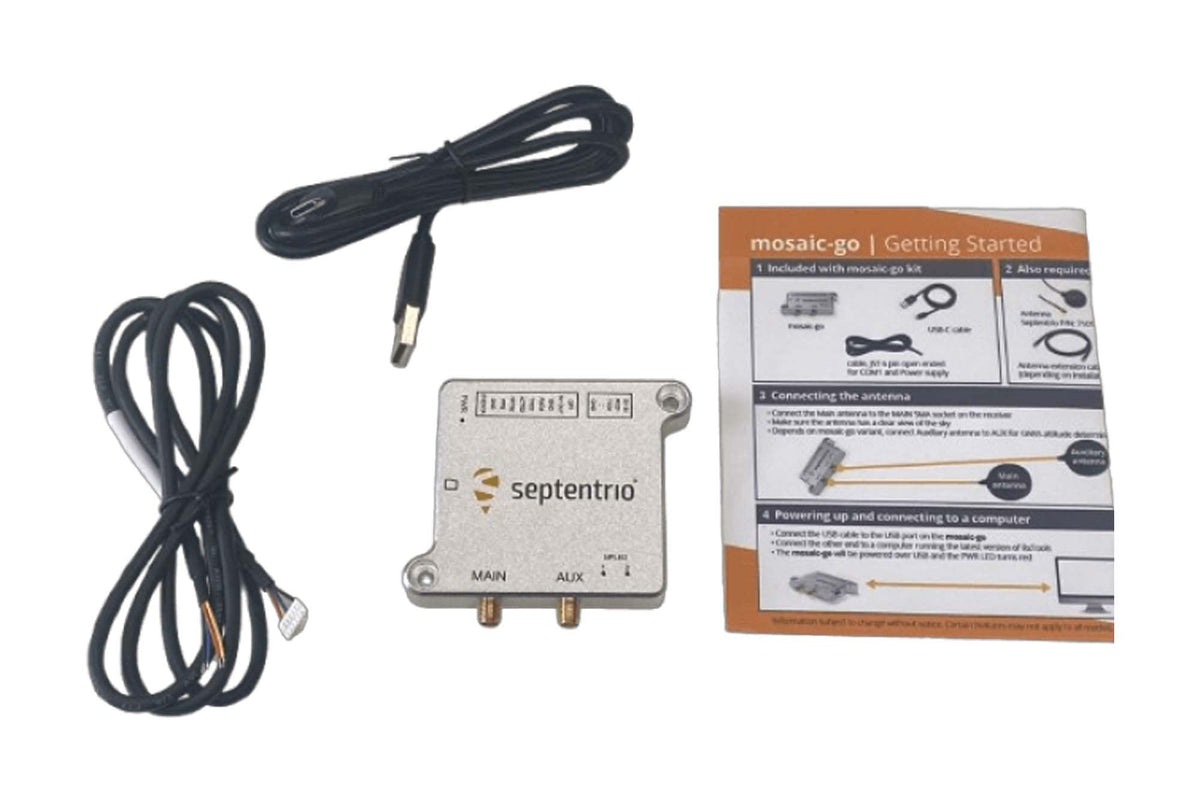

Package contains:

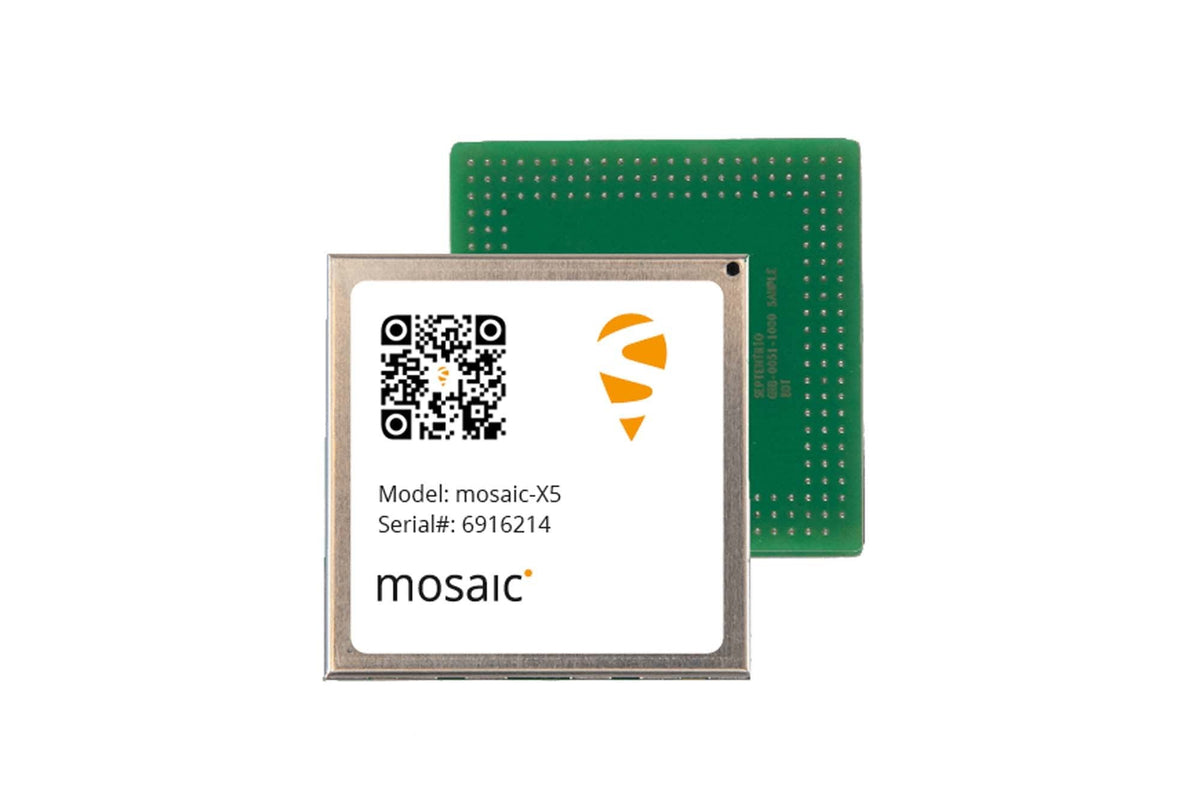

• 1 mosaic-X5 module soldered on an interface board inside a metallic housing.
• 1 USB-C cable
• 6-pin COM1 open-ended cable
• Quick start guide
