Product Specifications
Product Details
Package contains:
- 1 x Seagull #MAP2
- 2 x Servo cables (30cm length)

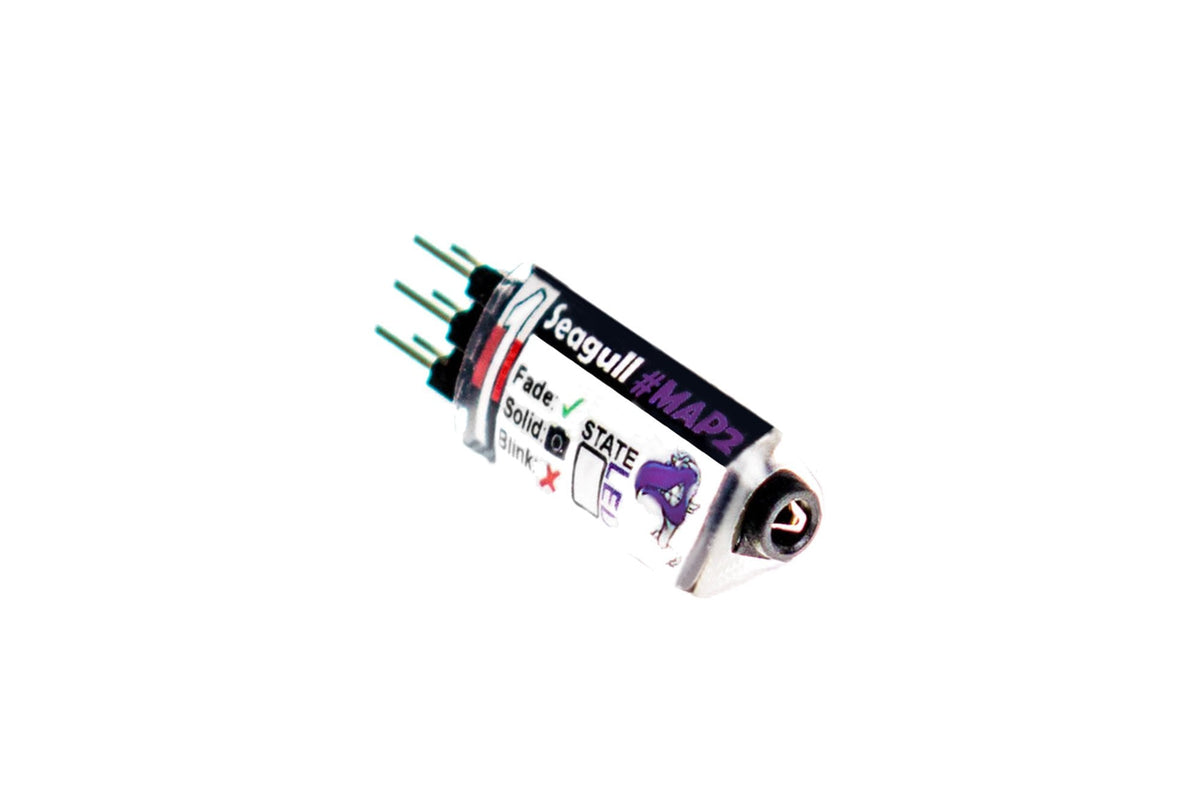

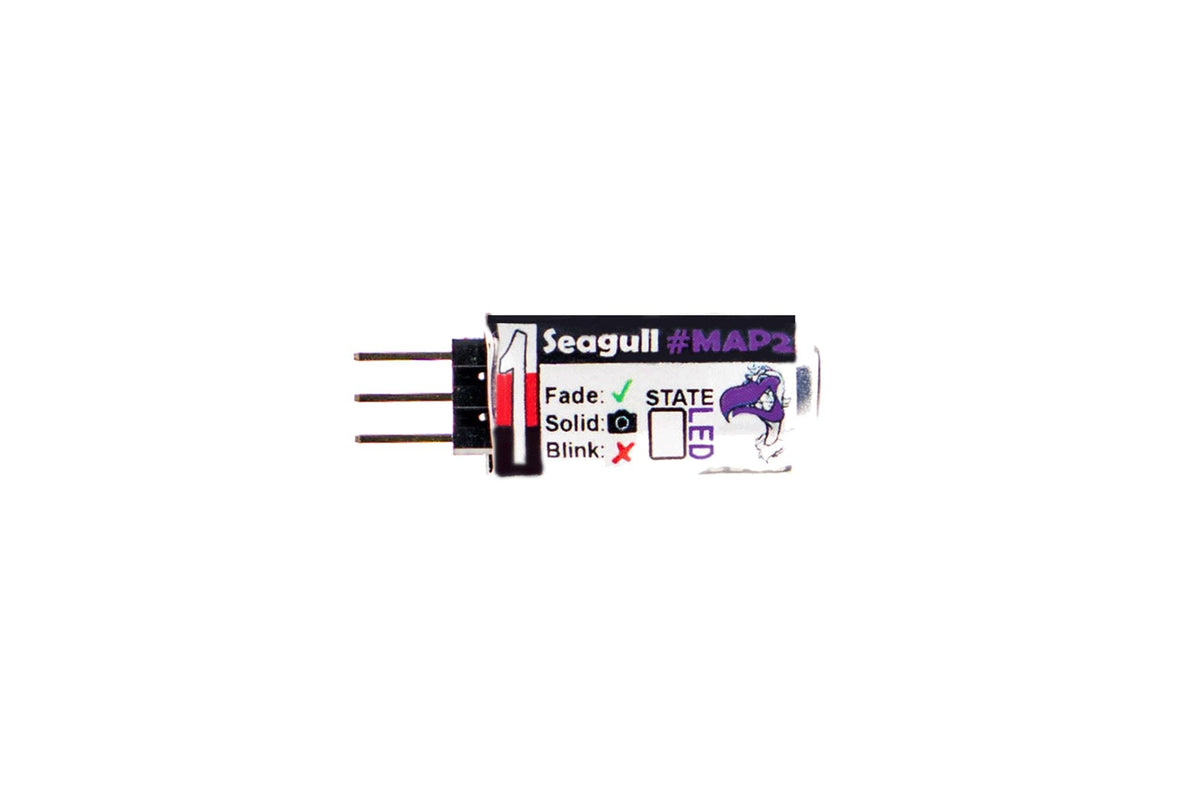

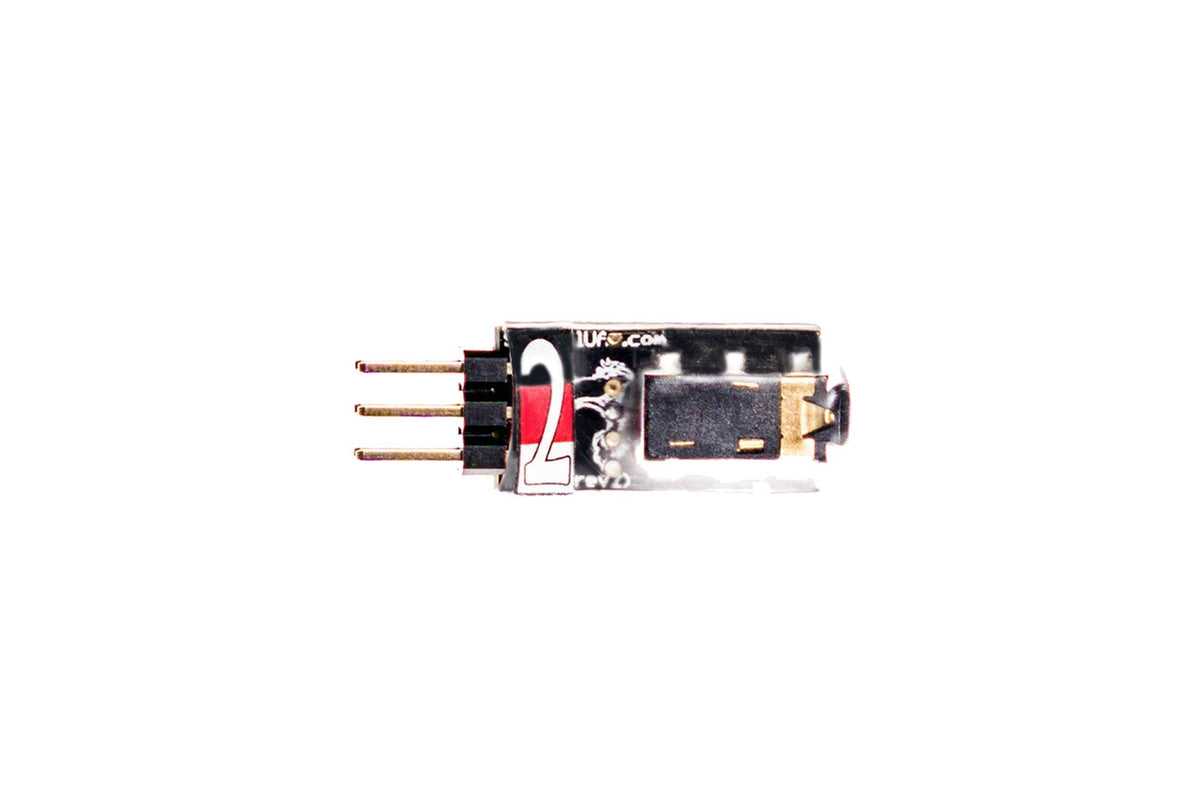

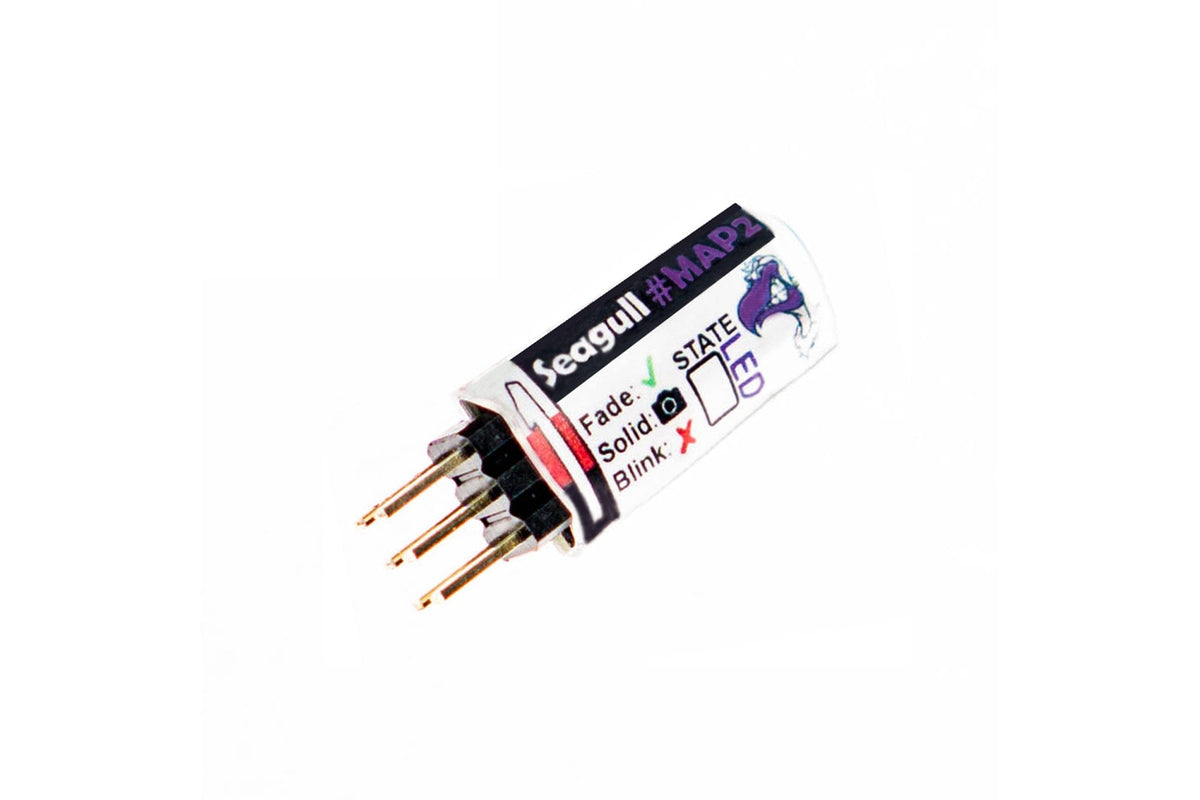

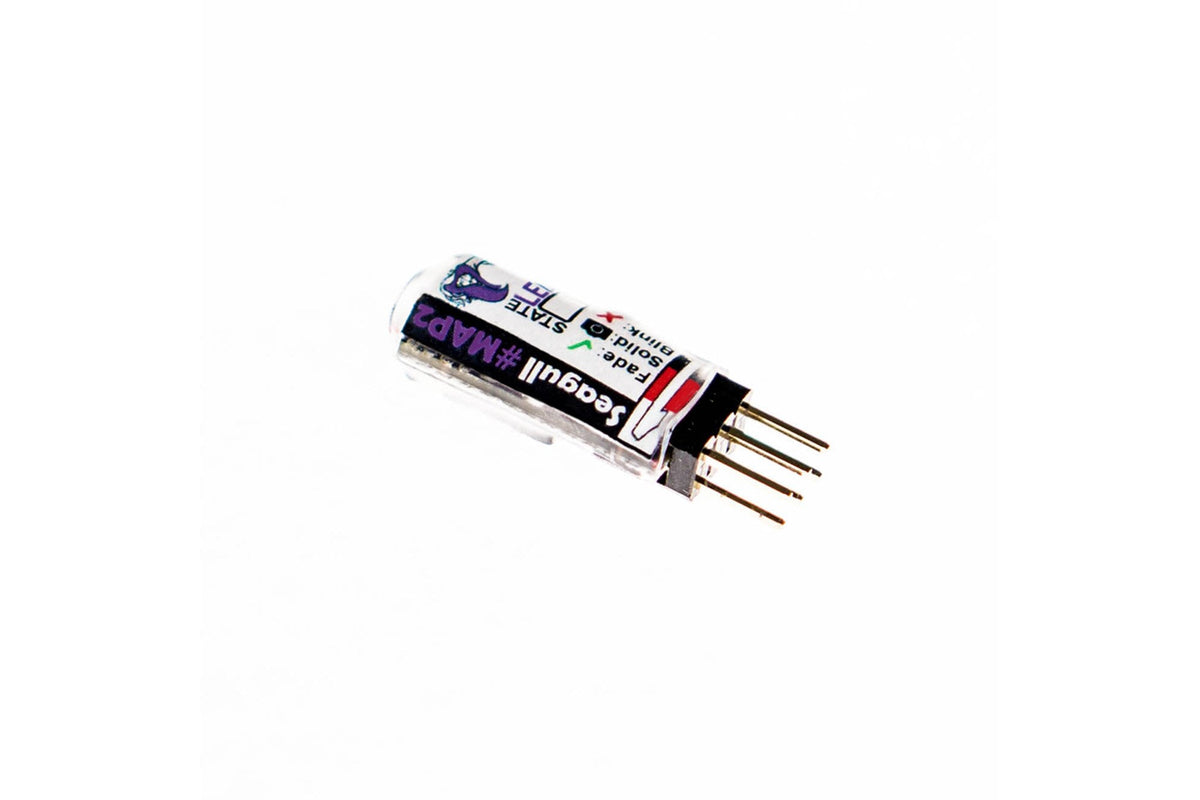

Seagull #MAP2 is well known as the most reliable and most feature rich camera trigger device within UAV industry. It’s a great tool for those who are working within mapping, surveillance and other related fields where reliability, precision and optimization plays a big role!
#MAP2 is extremely easy to setup and can be controlled via – R/C transmitter or Flight Controller for autonomous flights. Huge variety of camera brands and models supported – such as Sony, Nikon, Olympus, Canon and many more!
What it does
Seagull #MAP2 supports the following modes:
- AF-T (1 sec pre-autofocus – then trigger)
- IS-T (Instant trigger – as soon as camera locks focus)
- Camera On/Off (Only with Sony “MULTI” interfaced cameras!)
- Timelapse (Shutter release with variable time interval)
- Keep-alive (Sony QX1 keep-alive mode, prevents camera from auto power off)
What it supports
Flight Controllers:
- Pixhawk 1
- Pixhawk 2.1
- Pixracer
- APM 2.6
- APM 2.5
- DJI Wookong
- DJI A2
- DJI A3
- and many others with camera support
R/C radio systems:
That interfaces with standard PWM signal (almost any radio system)
Specifications
- Voltage: 3.5 – 5.5 volts ( 5 volts recommended, do NOT exceed 5.5V! )
- Current draw: 21.75mA MAX
- Input signal: Standard R/C PWM servo signal ( between 1000 – 2000uS )
- Dimensions: 28.6mm x 10.3mm x 7.7mm
- Weight: 1.6g ( ~12g with cables – varies by cable type )
