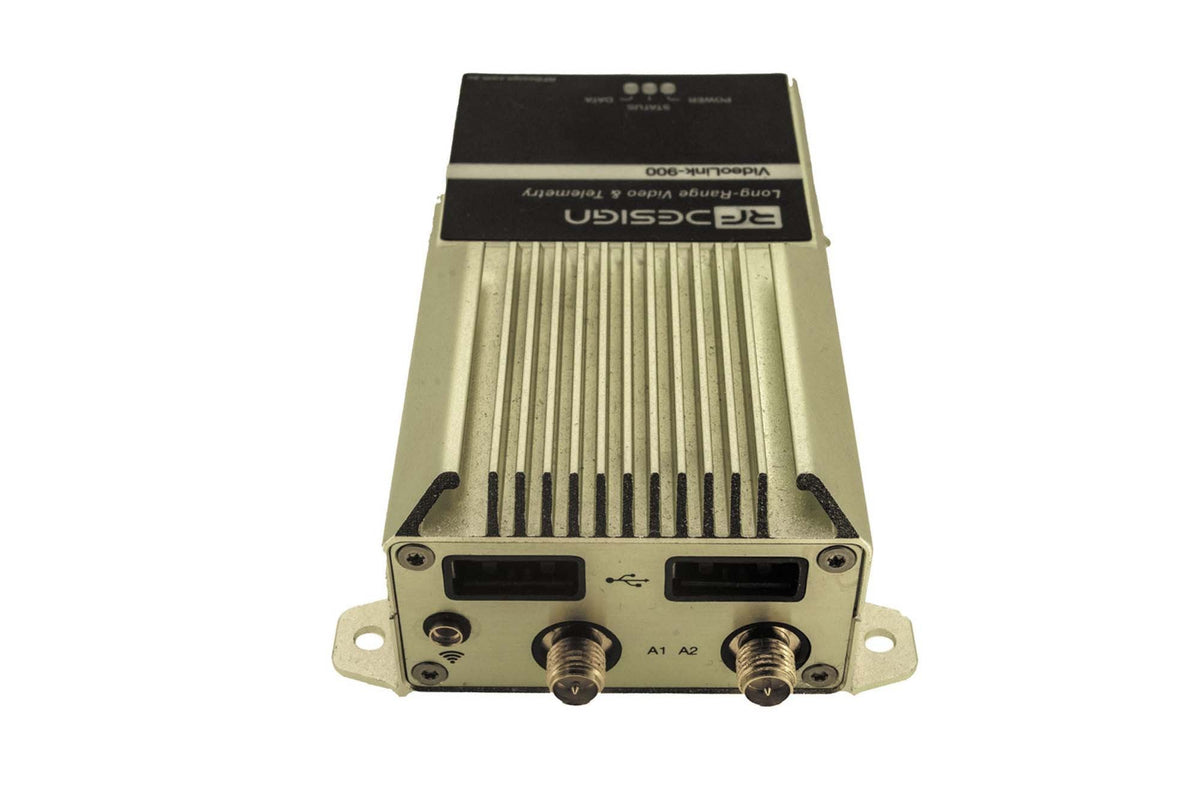

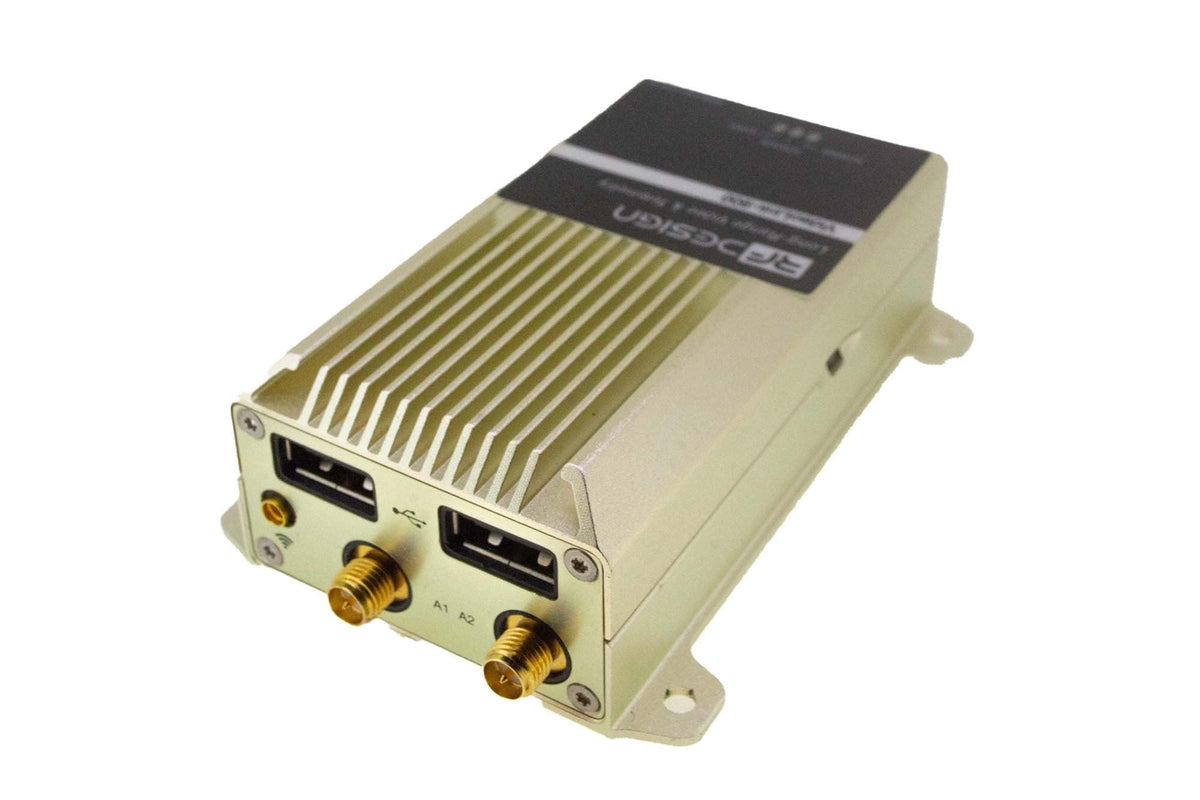

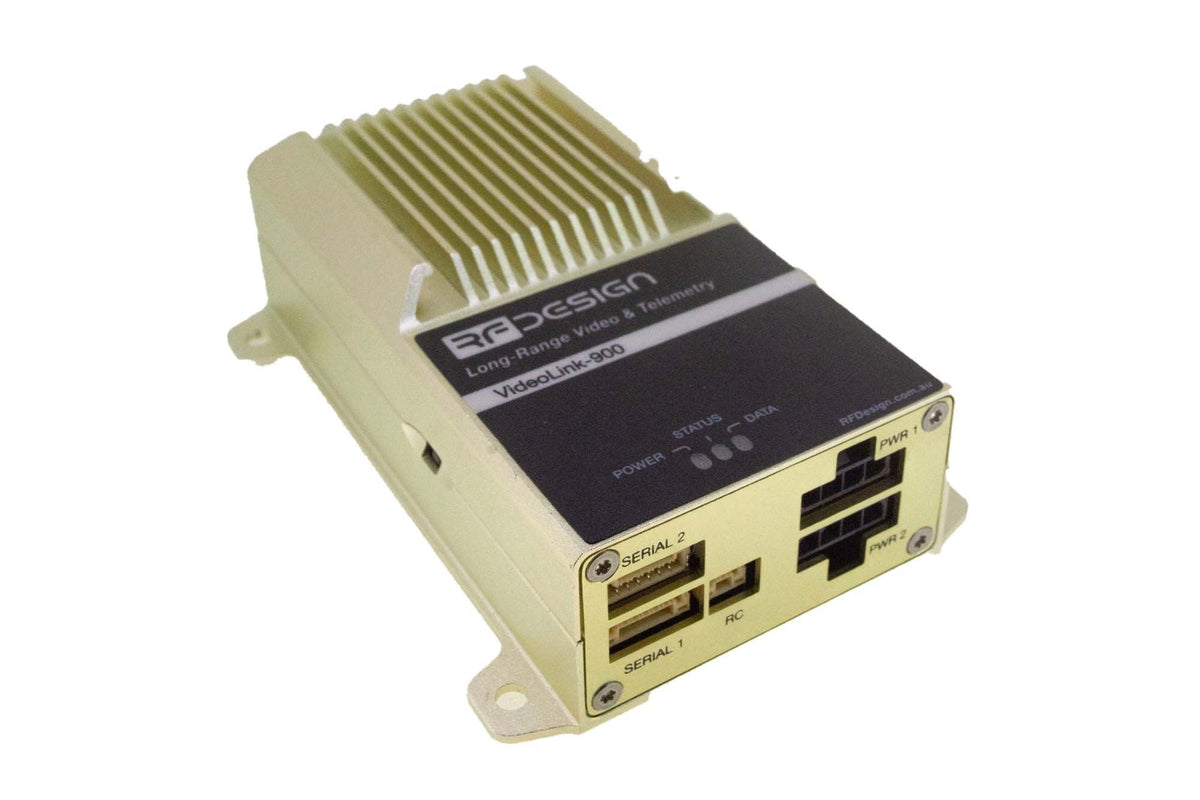

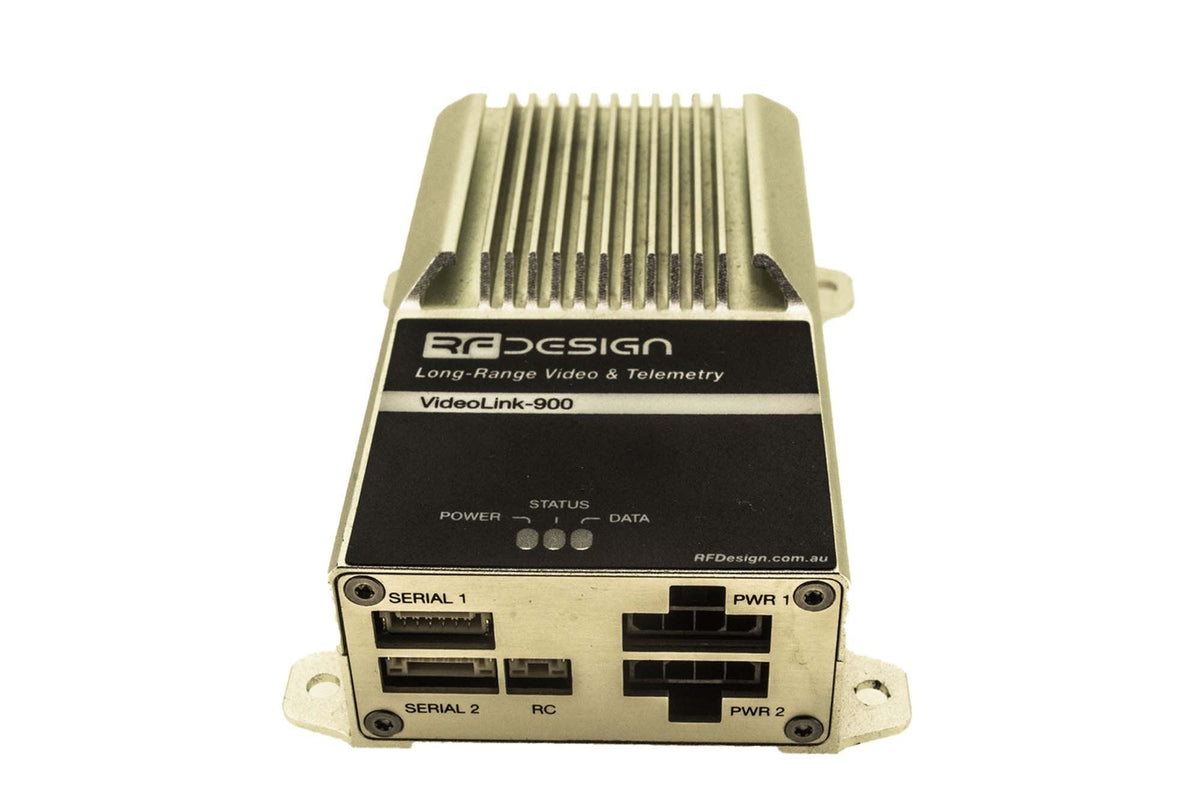

Name: RF Design - RFD900 Video Link Modem
Brand: RF Design
SKU: RFD-03-14-RFD900-Video-Link-Modem
Price: 808.99 GBP
Availability: InStock

Product Details

Long-Range Video + Telemetry Modem for UAVs and Remote Systems

The VideoLink Module is RFDesign’s latest innovation, combining our industry-proven long-range telemetry technology with low-latency video streaming in a compact, rugged, and integration-ready package. Designed specifically for UAVs, remote surveillance, and robotic applications, VideoLink enables operators to maintain visual situational awareness far beyond standard Wi-Fi or short-range links.

Tested under demanding conditions, VideoLink reliably transmits video and telemetry at ranges exceeding 5 km, depending on settings and antenna configuration. (Range tested using standard 3 dBi monopole antennas on both ground and air units. Higher ranges may be achievable with directional antennas or optimized configurations.)

Quickstart Guide, Data Files and Documents for the VideoLink can be found at:

https://rfdx.atlassian.net/wiki/spaces/TS/pages/689831937/RFD+VideoLink

Features:

5+ km Range (Line of Sight, settings, and antenna dependent)
Real-Time Video Streaming:Integrated Telemetry + Video Link over MAVLink
- 264 video compression
- Video resolutions up to 720p
UVC Camera Support: USB Video Class compatible
Redundant Power Input: Wide input range 6–55V
1W RF Output Power, 902–928 MHz, user configurable
Web-Based Configuration via 2.4GHz Wi-Fi
PPM / SBUS Passthrough for control signals
AES Encryption: Hardware-accelerated, up to 256-bit
Thermal & Overcurrent Protection built-in
Designed, tested, and built in Australia — NDAA compliant

Package contains:

1x VideoLink module
1x MicroSD card plugged into VideoLink microSD card slot with latest VideoLink firmware
1x VL RFD900X2 modem and RFD enclosure assembly.
1x DFRobot USB Camera FIT0892
4x Antennas, 900MHz 3dBi Dipole (RPSMA)
1x Antenna 868-900MHz Right Angle Quarter Wave 2dBi Monopole (RPSMA)
1x Antenna 868-900MHz Quarter Wave 2dBi Monopole (RPSMA)
1x Antenna, 2.4GHz RP-SMA 2dBi Dipole (RPSMA)
1x FTDI 3.3v Cable (fitted to modem enclosure)
2x VideoLink Power Cables 500mm
1x PPM/SBUS Cable 500mm
2x RP-SMA Extension cable 300mm
1x Serial Cable Straight Through 500mm
1x MMCX to Bulkhead RP-SMA RG316 cable 300mm

Product Details

Long-Range Video + Telemetry Modem for UAVs and Remote Systems

The VideoLink Module is RFDesign’s latest innovation, combining our industry-proven long-range telemetry technology with low-latency video streaming in a compact, rugged, and integration-ready package. Designed specifically for UAVs, remote surveillance, and robotic applications, VideoLink enables operators to maintain visual situational awareness far beyond standard Wi-Fi or short-range links.

Tested under demanding conditions, VideoLink reliably transmits video and telemetry at ranges exceeding 5 km, depending on settings and antenna configuration. (Range tested using standard 3 dBi monopole antennas on both ground and air units. Higher ranges may be achievable with directional antennas or optimized configurations.)

Quickstart Guide, Data Files and Documents for the VideoLink can be found at:

https://rfdx.atlassian.net/wiki/spaces/TS/pages/689831937/RFD+VideoLink
