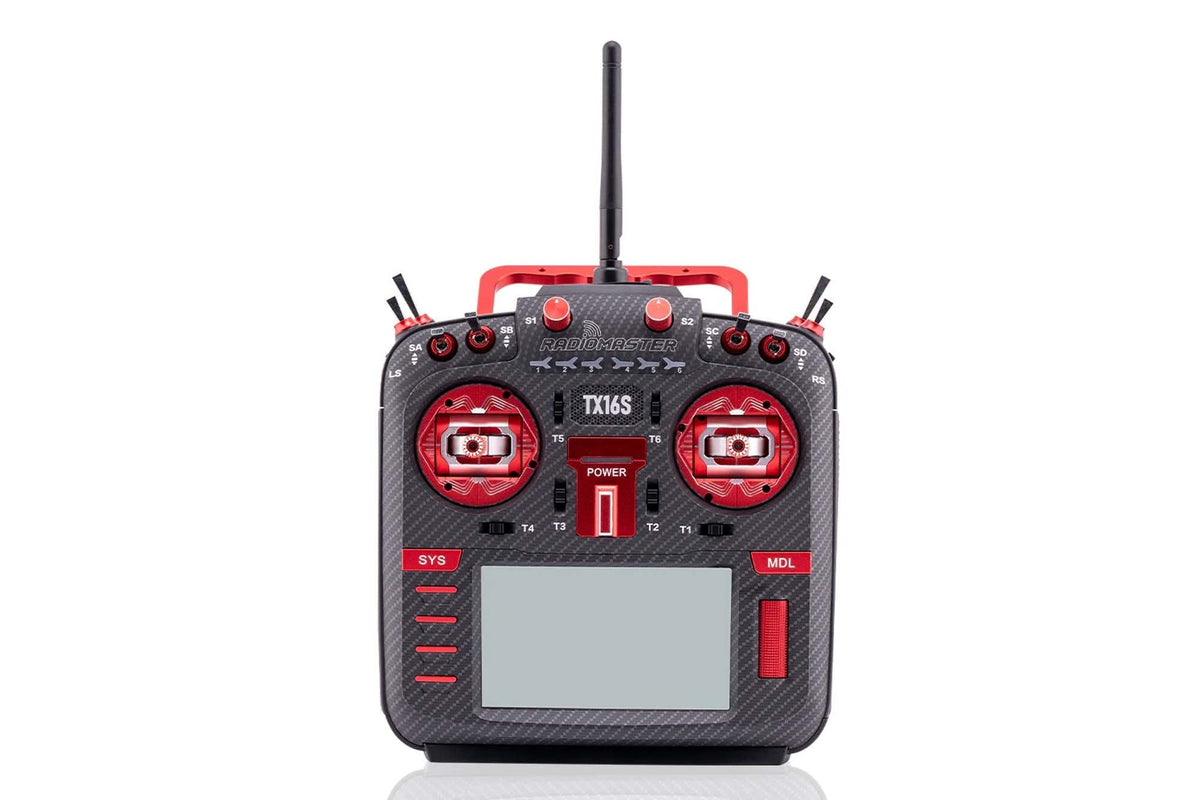

RadioMasterRadioMaster- TX16s MKII MAX ELRS with AG01 Gimbal

TX16s MKII MAX- Radio Controller System ExpressLRS with AG01 Gimbal (M2)

• ExpressLRS (LBT)
• with AG01 Hall Gimbal

Comparison table for TX16S Mark II vs TX16SMark II MAX is here

The Radiomaster TX16S MKII MAX edition is the second version of the TX16S MAX. The Max editions feature CNC Upgrade parts and a folding handle. The TX16S was created to address the need for a high-performance open source transmitter. The Radiomaster features ultra-smooth precision hall sensor gimbals with Aluminum facia and a large 4.3” display. The TX16S has a built in ELRS module and a JR expansion module bay supporting TBS Crossfire modules amongst others. The Radiomaster runs on the Open Source EdgeTX software.

Features:

• Improved internal circuitry and optimized power supply.
• New charge circuitry with integrated reverse-polarity protection.
• Optimized charge IC now allows up to 2.2A internal USB-C charge current.
• Rear-mounted audio jack provided headphone output.
• V4.0 Gimbal improved centering and temperature stability (Same circuitry as AG01).
• Optional high/low rear grips are included for improved ergonomics.
• Improved S1/S2 knobs with clear center detents.
• Improved LS/RS Sliders with smoother feel and better center detents.
• Redesigned battery cover for improved battery access.
• Retooled body shell with improved fit and finish.
• Trainer socket changed to standard TRS 3.5mm socket.
• Rear DIY Socket added for personalized mods.
• Improved internal plastics for better longevity.
• Built-in ExpressLRS Backpack and 4in1 versions.

Specification:

• Items: TX16S Mark II Max
• Size: 287x129x184mm
• Weight: 750g (without battery)
• Transmission frequency: 2.400GHz-2.480GHz
• Transmitter module:  Internal ELRS (SX1280)
• SD card: 256MB by default, 8GB maximum
• Antenna gain: 2db (transmit power adjustable)
• Working current: 400mA
• Working voltage: 6.6-8.4v DC
• Radio firmware: EdgeTX
• Module Firmware: Multiprotocol- Module (4IN1) -OR- ExpressLRS (ELRS)
• Channels: Up to 16 channels (depending on the receiver)
• Display: 4.3-inch TFT full-colour touch display with a resolution of 480 * 272
• Gimbal: Option 1: V4.0 Hall sensor with Aluminium fascia;  Option 2: AG01 CNC Hall sensor
• Module Bay: JR compatible module bay
• Upgrade method: Supports USB-C online / SD card offline upgrade

Package contains:

• 1x TX16S Mark II Max Radio Controller
• 1x 18650 Tray
• 1x USB-C Cable
• 1x Screen Protector
• 1x pair of flat grips
• 1x pair of raised grips  (installed on radio by default)
• 1x TX16S Key Chain
