Product Specifications
Product Details

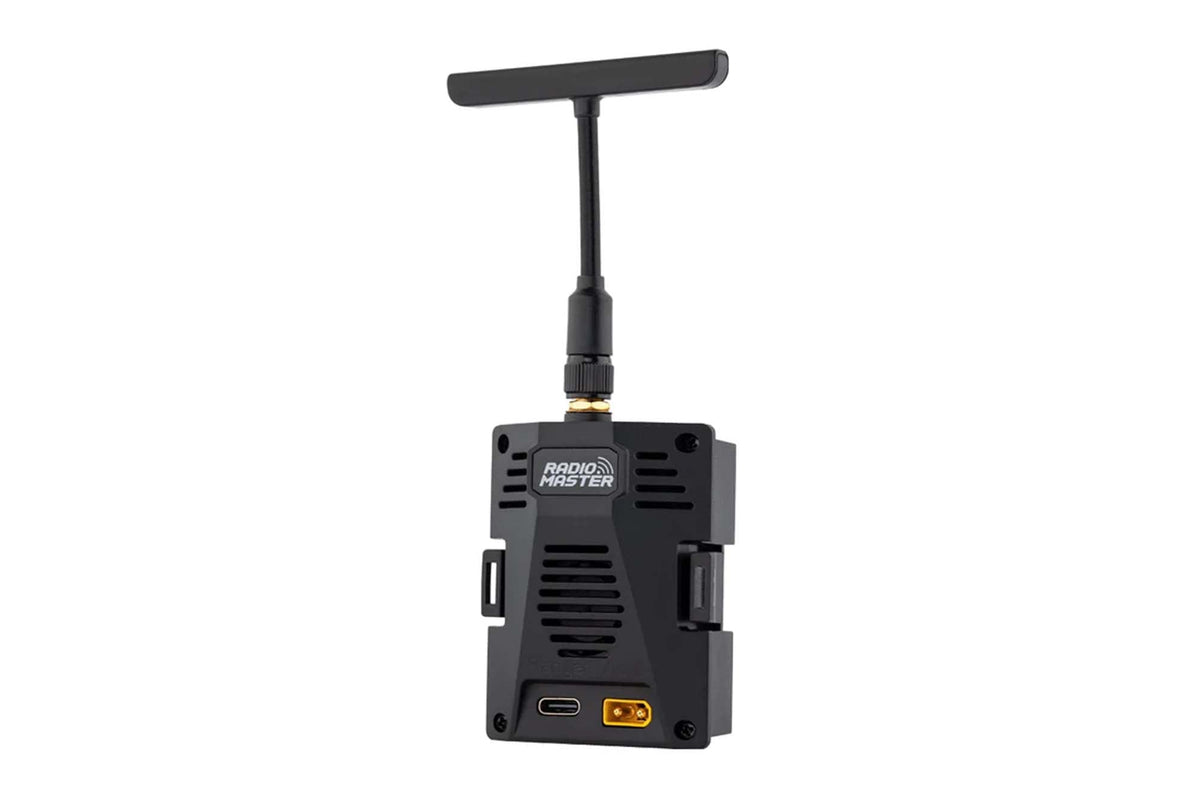

Featuring F-1000Hz refresh rates and a high-efficiency cooling system, the Ranger Micro 2.4GHz ELRS Module represents the cutting edge in ELRS technology. Attach the module to a compatible radio (TX16S, TX16S MkII, TX12, TX12 MkII and more) to enjoy all that ELRS has to offer.
The included T-shape antenna is designed for maximum signal coverage. An optional MOXON antenna is available for directional applications.
Features:
- Built-in ExpressLRS Backpack
- High-efficiency cooling system
- Wifi and Bluetooth support
- Packet rates up to F-1000Hz
- T-antenna included
- With the Micro connector, support TX16S MKII and TX12 MKII radio
Specification:
- Item: Ranger Micro Module
- Regulatory Domain: ISM2400
- MCU: ESP32(main), ESP8285(aux, as ESP backpack)
- RF chip: SX1281IMLTRT
- Frequency Range: 2400 MHz - 2480 MHz
- Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later)
- Minimum receiver refresh rate: 25Hz
- RF Output Power: Default 100mW
- Wifi Support: Yes
- Bluetooth support: Yes
- XT30 Power supply voltage: DC 6V - 16.8V
- Weight: 50g (with antenna) / 40.5g (without antenna)
- Dimension: 136*49*33mm (with T antenna) / 74*49*33mm (without antenna)

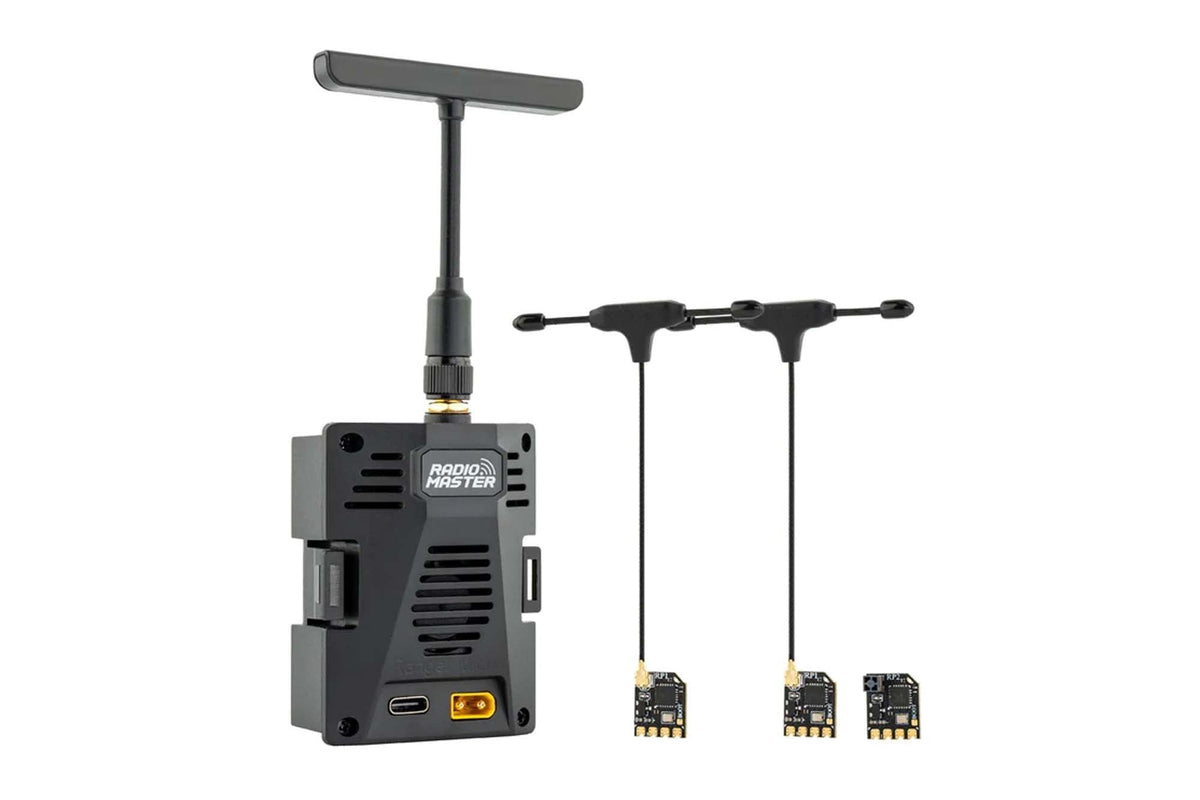

Package Contains:
- 1x Ranger Micro Module
- 1x T Antenna
- 2 x RP1 ExpressLRS 2.4ghz Nano Receiver
- 1 x RP2 ExpressLRS 2.4ghz Nano Receiver
