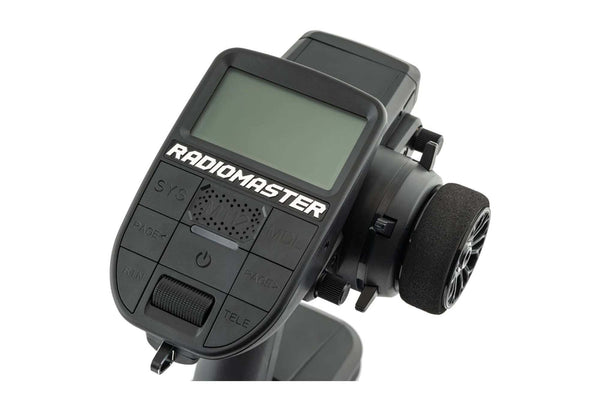

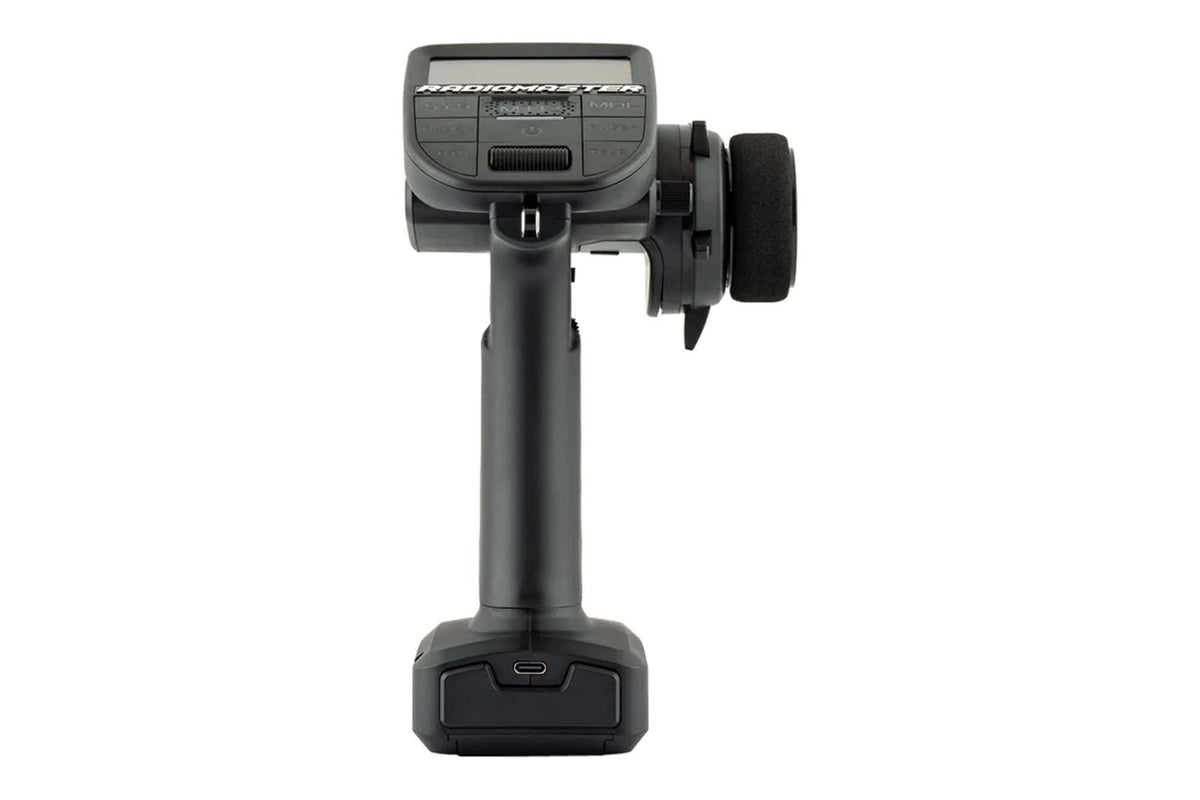

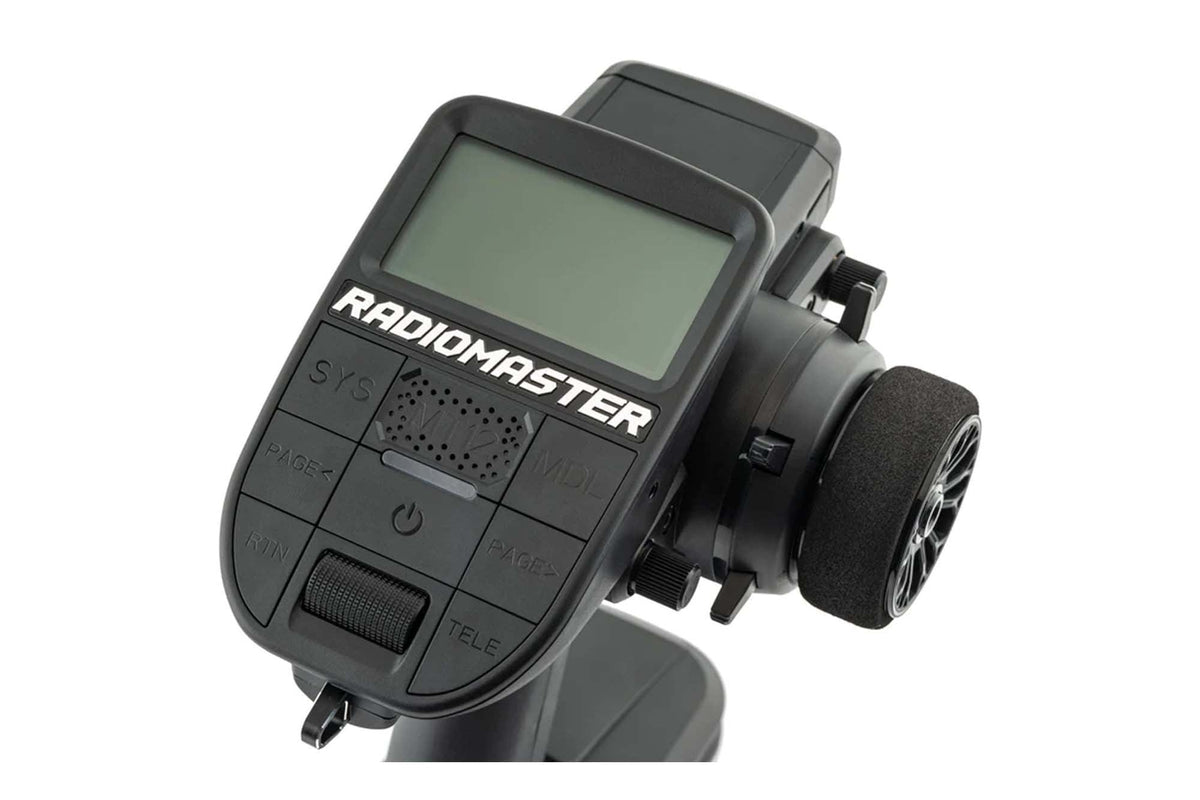

RadioMasterRadioMaster - MT12 4in1 LBT

RadioMaster - MT12 4in1 + R85C Receiver

The RadioMaster MT12 is a pioneering open-source surface radio, and the first surface radio officially supported by EdgeTX, ExpressLRS, and the Multi-module project. Boasting 10 physical inputs and the capability to handle either 16 or 32 channels*, the MT12 is primed for a wide array of surface models, from cars and trucks to boats and beyond. Featuring extensive customizability and a versatile operating system, the MT12 stands out as a highly configurable surface radio, prepared to excel in virtually any scenario.

Features:

• Available with Built-in ExpressLRS Backpack or 4in1 MPM RF modules
• Featuring a powerful STM32F407VGT6 with 1MB Flash
• Preinstalled EdgeTX firmware
• QC3.0 fast charging supporting 2.0A MAX
• Compact design with excellent ergonomics
• Oversized battery compartment - 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
• Standard Nano module compartment
• RadioMaster standardized button layout
• Rotatable antenna
• Customizable base switches or 4 way joystick included

Specification MT12:

• Item: MT12 Surface Radio
• Physical dimensions: 177.8*118.4*207.8mm
• Weight: 480 grams
• Operating frequency: 2.400GHz-2.480GHz
• Internal RF Options: 4-in-1 multi-protocol / ELRS 2.4GHz
• Supported protocols: Module dependent
• Operational current: 160mA for 4in1 / 320mA for ELRS
• Operational voltage: DC 6.6-8.4V
• Operating system: EdgeTX
• Control channels: 16 as standard, ability for expansion 32 Channels (4in1 only)
• Display: 128*64 Monochrome LCD
• Battery: 2 x 18650 cells or a 2s 7.4v 5000mah battery pack (Batteries not included)
• Charging: Built in USB-C Charging
• Firmware Upgrade method: Via USB or SD card
• Wheel and Trigger sensor: Hall-effect
• Module bay: Nano size (RadioMaster Ranger Nano Module / RadioMaster RM 4in1 module / TBS Crossfire Nano module)

Specification R85C (Included with 4in1 version):

• Item: R85C Receiver
• Power supply: DC 4.5 - 8.4V
• Frequency range: 2400-2483.5Mhz
• Support protocol: D8/D16/SFHSS
• Output channel: 5CH PWM
• Antenna type: high-sensitivity 2.4G antenna
• Telemetry power: 100mw / 20dbm
• Weight: 5.7 grams
• Dimensions: 31.0*18.5*13.0 mm

Package contains:

• 1x MT12 Surface Radio 4in1 Version
• 1x R85C Receiver
• 1x Dual Switch Expansion module
• 1x 4 Way Joystick Expansion module
• 1x Nano Adapter
• 1x USB-C Cable
• 1x Leather Lanyard
• 1x Custom RadioMaster signature carry case
• 1x 18650 Battery Tray
• 1x Screen Protector
• 1x Stickers
• 1x Manual
