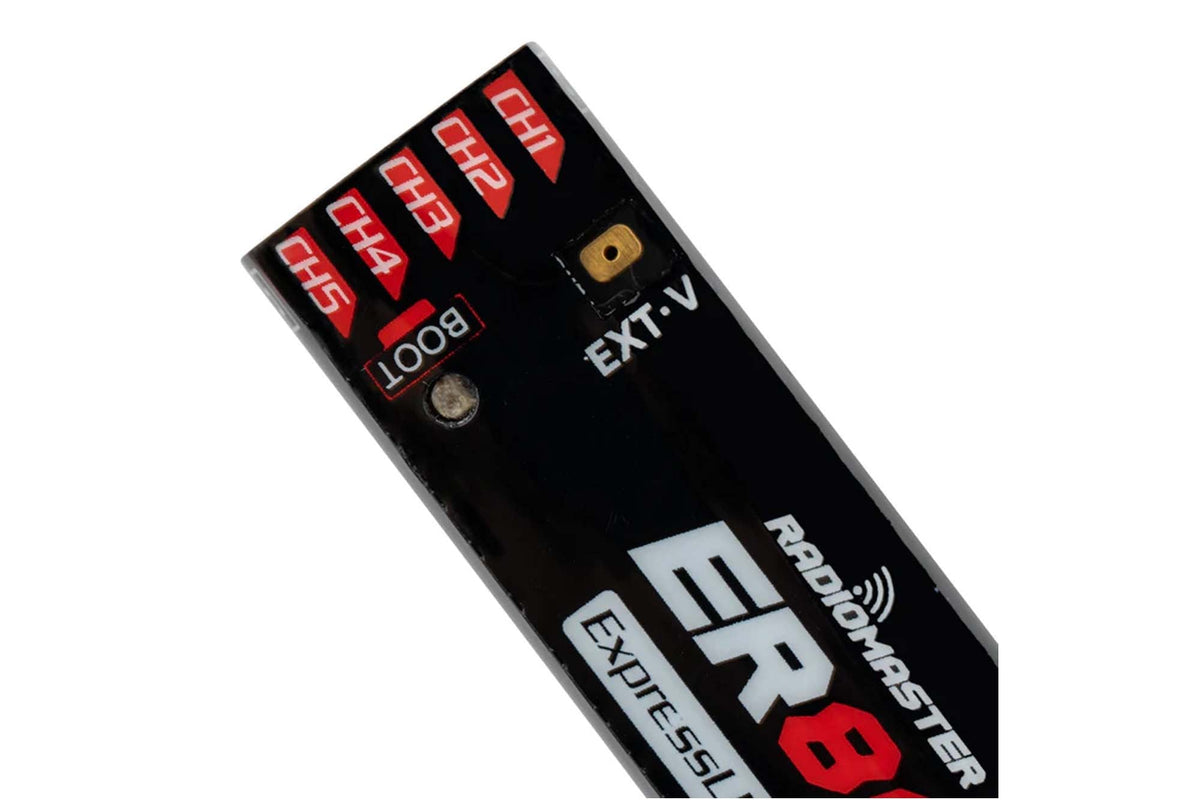

RadioMasterRadioMaster - ER8G Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER8G receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use (only one voltage input can be used at the any given time). ER8G feature a dual-antenna with telemetry power up to 100mw and can be used with a 1S Lipo receiver battery.

Features:

·         Based on the Revolutionary ExpressLRS System

·         High performance, high reliability, flexible configuration, fast response speed and ultra-long range

·         Support 8 PWM Channels

·         Optimized ground up PCB design

·         Automatically voltage telemetry of external battery voltage or built-in receiver voltage

·         Supports Wi-Fi updates and WEBUI configuration

·         Reserve 4pin CRSF input port

·         High quality 2.54 mm connector

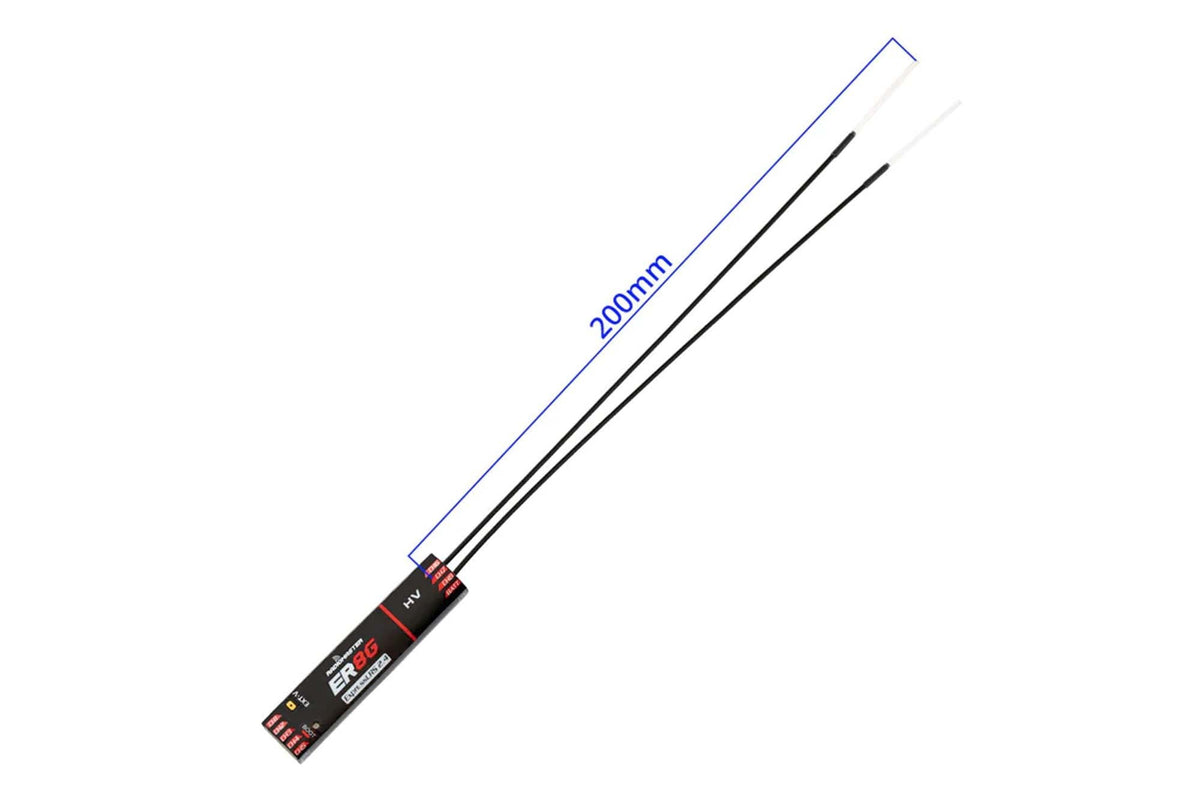

·         Standard 20 cm High Sensitivity Antenna

·         For fixed-wing aircraft and gliders

·         Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification (ER8G):

·         Item: ER8G 2.4GHz ELRS PWM Receiver

·         Power supply: DC 3.5 - 8.4V

·         Antenna type: 20cm high sensitivity antenna

·         Wireless protocol: ExpressLRS 3.3.0 pre-installed

·         Output channel: 8CH PWM

·         Serial Output: CRSF / Sbus

·         Telemetry power: maximum 100mw (LUA can be set)

·         Battery voltage detection range: DC 4.0 - 35V

·         Weight: 12 grams

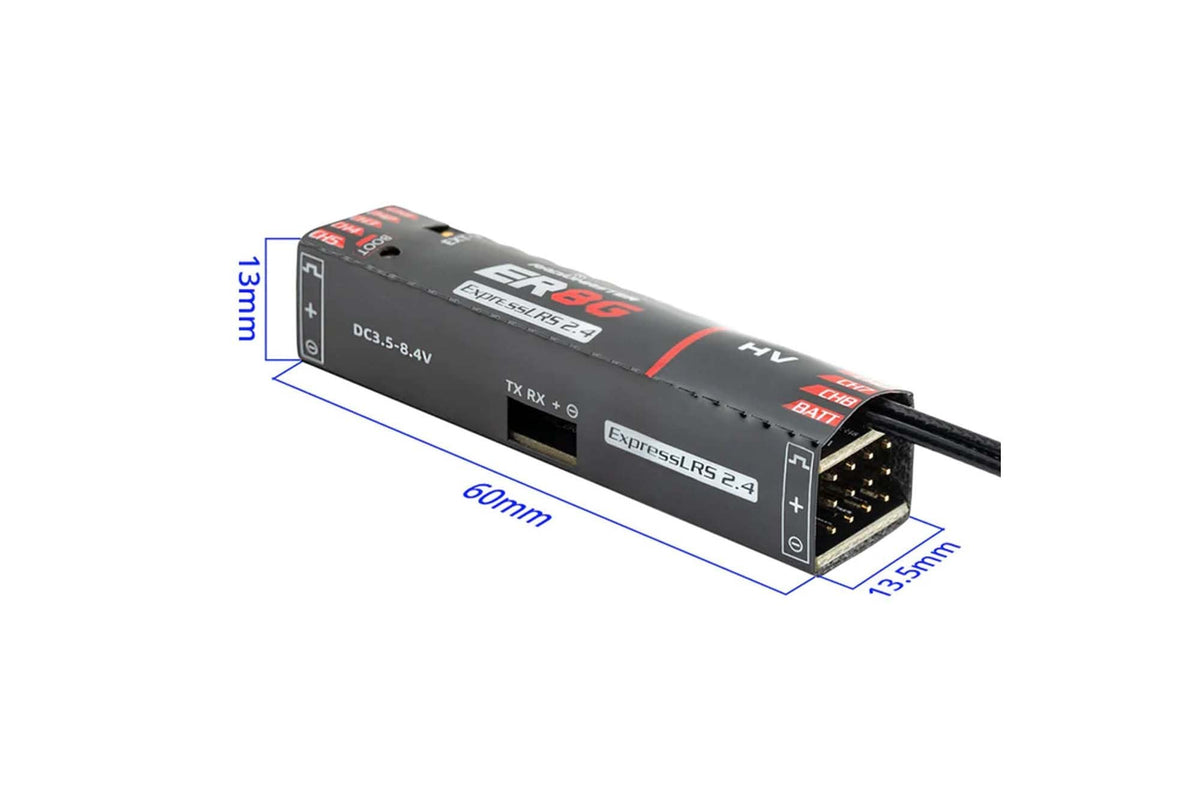

·         Dimensions: 60*13.5*13mm

·         Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER8-G 2.4GHz Diversity+8xPWM RX

Package Contains:

·         1x ER8G 2.4GHz ELRS PWM Receiver

·         2x Heat-shrink tube

·         1x Voltage telemetry wire (Type-A)

·         1x CRSF wire

·         1x ELRS- RX- SBUS wire
