RadioMasterRadioMaster - ER6GV Receiver

The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.

The ER6GV receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. ER6GV feature a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.

Features:

·         Based on the Revolutionary ExpressLRS System

·         High performance, high reliability, flexible configuration, fast response speed and ultra-long range

·         Support 6 PWM Channels

·         Optimized ground up PCB design

·         Automatically voltage telemetry of external battery voltage or built-in receiver voltage

·         ER6GV Receiver is built-in high-precision air pressure sensor (Vario)

·         Supports Wi-Fi updates and WEBUI configuration

·         High quality 2.54 mm connector

·         Standard 15 cm High Sensitivity Antenna

·         For fixed-wing aircraft and gliders

·         Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specification (ER6GV):

·         Item: ER6GV 2.4GHz ELRS PWM Receiver

·         Power supply: DC 3.5 - 8.4V

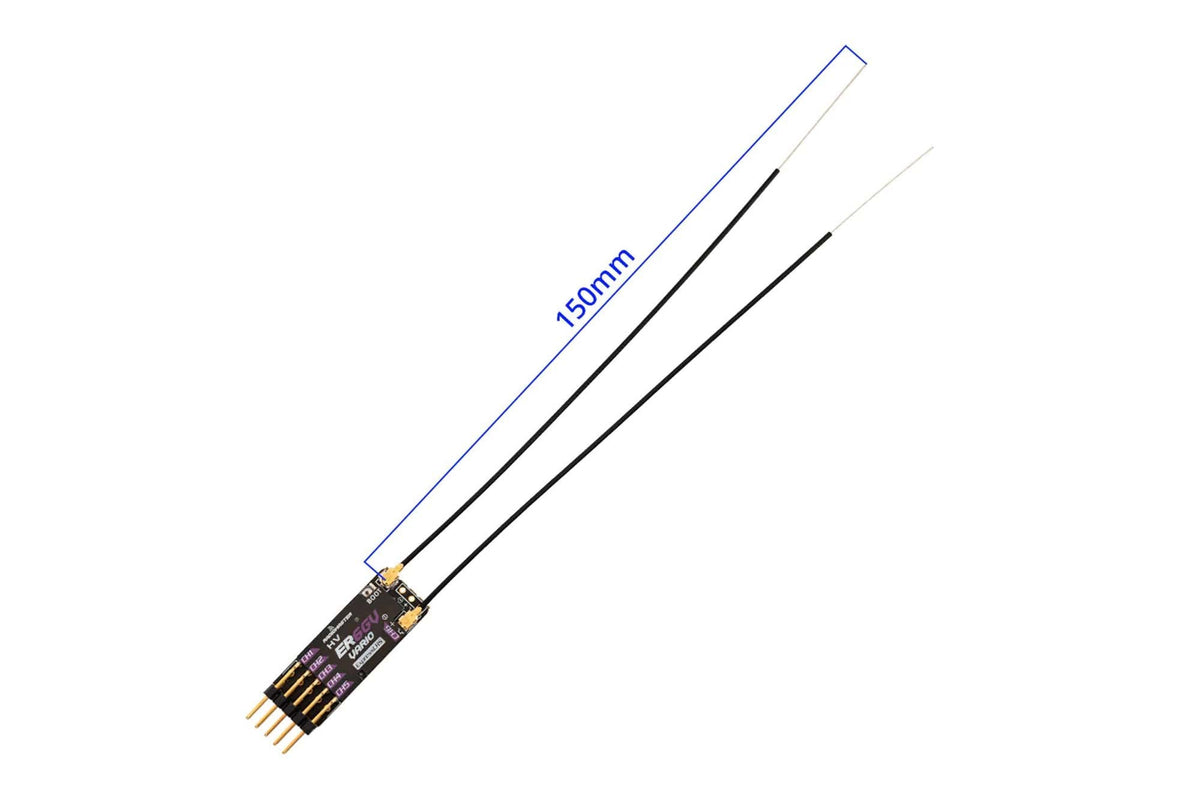

·         Antenna type: 15cm high sensitivity antenna

·         Wireless protocol: ExpressLRS 3.2 pre-installed

·         Output channel: 6CH PWM

·         Serial Output: CRSF / Sbus

·         Return power: maximum 50mw (LUA Adjustable)

·         Built-in high-precision air pressure sensor (Vario)

·         Battery voltage detection range: DC 3.0 - 26V

·         Weight: 5.0 grams

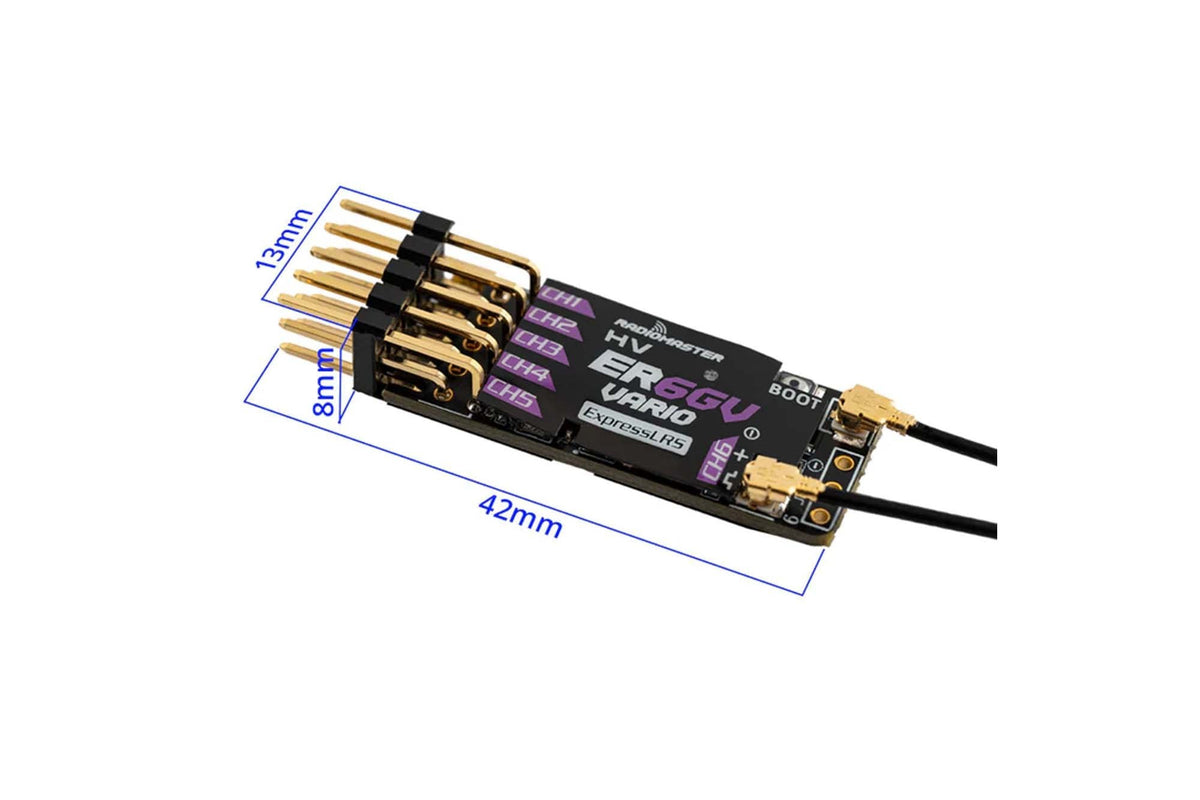

·         Dimensions: 42*13*8mm

·         Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER6-GV 2.4GHz Diversity+6xPWM+Vario RX

Package Contains:

·         1x ER6GV 2.4GHz ELRS PWM Receiver

·         1x Voltage telemetry wire (Type-A)

·         2x Heat-shrink tube
