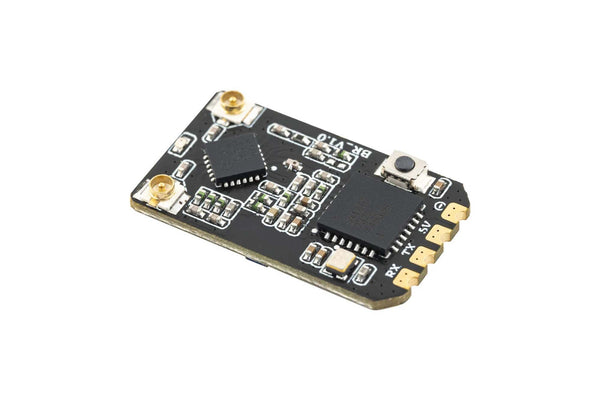

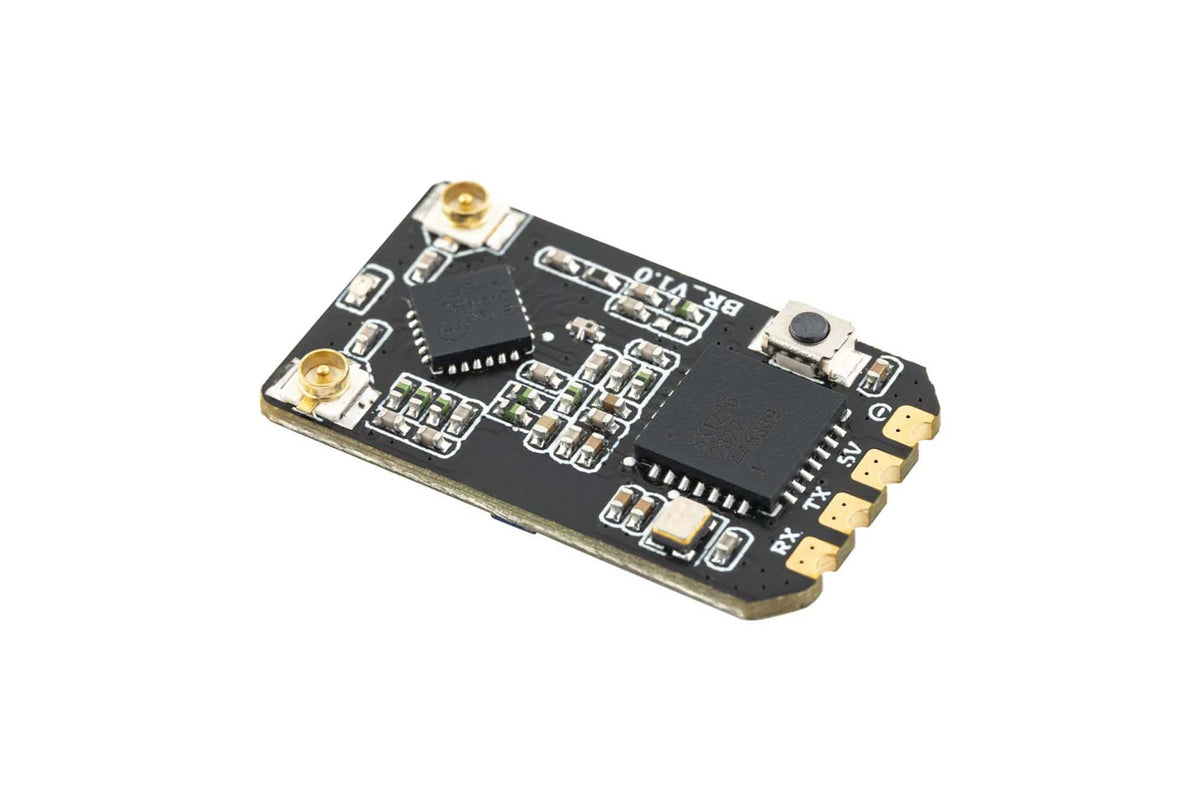

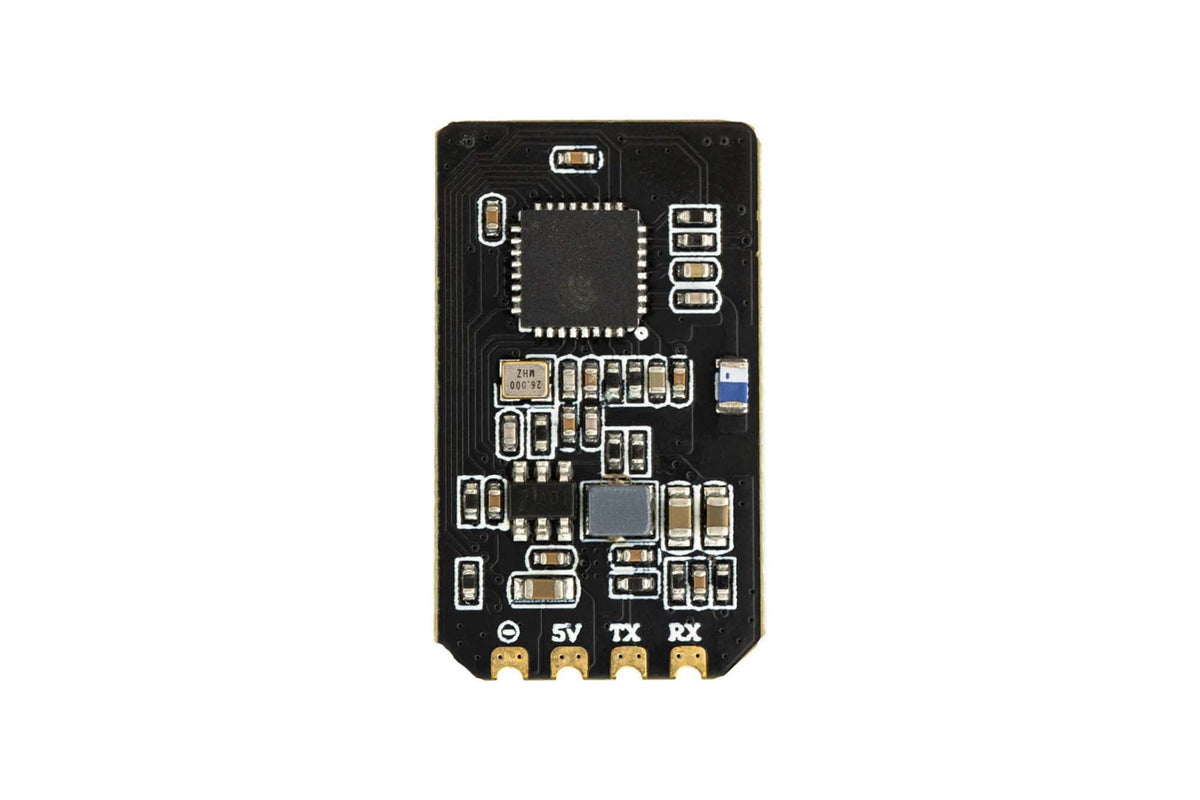

Name: RadioMaster - BR3 - Receiver
Brand: RadioMaster
SKU: RM-05-08-BR3-Receiver
Price: 24.99 GBP
Availability: OutOfStock

Out of Stock

Product Specifications

Product Details

The RadioMaster Bandit BR3 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR3 ExpressLRS receiver also features superior resistance to vibration.

Bandit BR3 Expresslrs Receiver features a huge 500mw of telemetry output making it ideal for long range applications. The ESP8285 MCU and SX1276 RF chip are renowned for low latency, high sensitivity and exceptional long-range performance. The included T Antenna is optimized for long range performance.

Due to the low-latency and high-refresh-rate RF module, the Bandit BR3 Expresslrs Receiver is ideal for FPV freestyle or Long Range.

Features:

Maximum 500mW telemetry RF power
Built-in TCXO oscillator
Utilizing 0402 components, superior resistance to vibration
Dual 915/868MHz T Antenna for improved signal stability and range

Specifications:

Item: Bandit BR3 ExpressLRS Receiver
Regulatory Domain: FCC915
MCU: ESP8285
RF Chip: SEMTECH SX1276
Telemetry RF power: 100mW - 500mW LUA Adjustable
Antenna: 915/868MHz T Antenna
Antenna Interface: IPEX1
Bus Interface: CRSF
Working Voltage: DC 4.5-8.4V
Dimension: 24*14.2mm
Weight: 5.5g (with antennas)

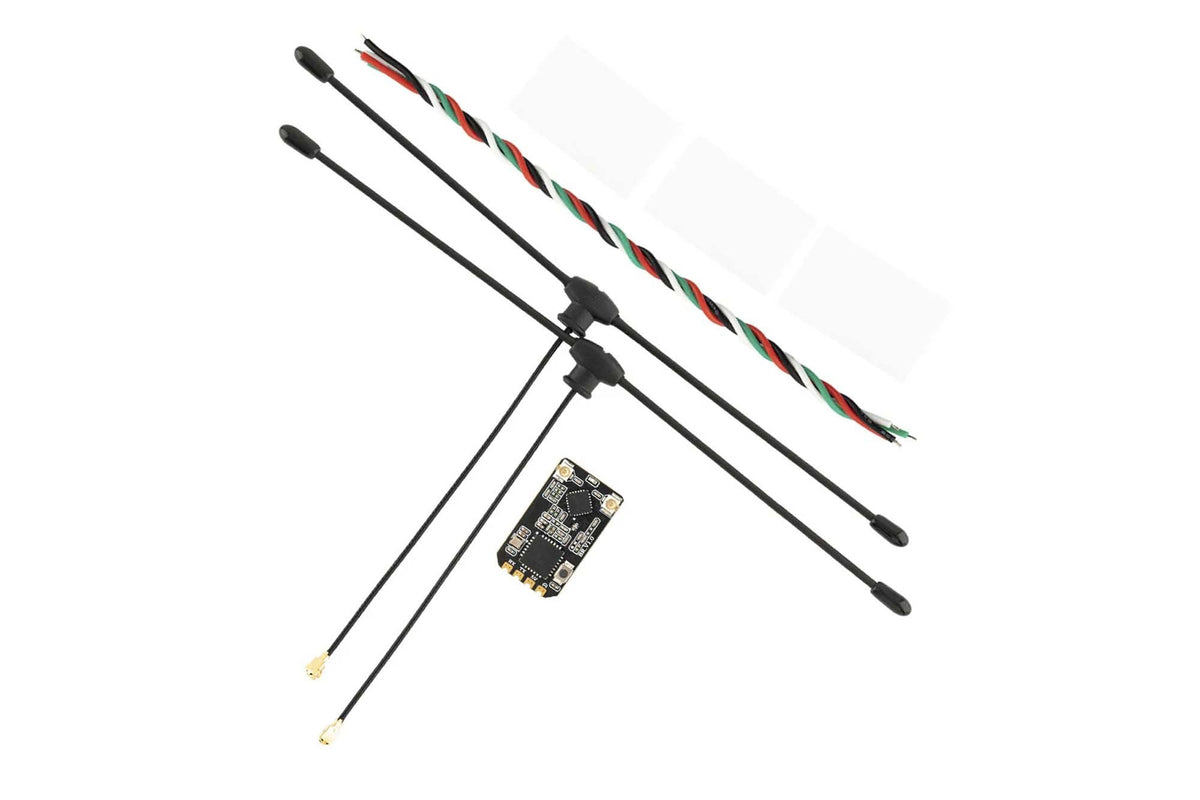

Package contains:

1x Bandit BR3 Expresslrs Receiver
2x T Antenna (Installed on Receiver)
3x Receiver Shrink Tube Sleeves
1x CRSF Wire
1x Manual

Product Details

The RadioMaster Bandit BR3 Expresslrs Receiver features a built-in TCXO (temperature-compensated crystal oscillator) which ensures reliable, stable, and accurate signal reception for superior performance in demanding environments. Utilizing 0402 components, the BR3 ExpressLRS receiver also features superior resistance to vibration.

Bandit BR3 Expresslrs Receiver features a huge 500mw of telemetry output making it ideal for long range applications. The ESP8285 MCU and SX1276 RF chip are renowned for low latency, high sensitivity and exceptional long-range performance. The included T Antenna is optimized for long range performance.

Due to the low-latency and high-refresh-rate RF module, the Bandit BR3 Expresslrs Receiver is ideal for FPV freestyle or Long Range.

Features:

Maximum 500mW telemetry RF power
Built-in TCXO oscillator
Utilizing 0402 components, superior resistance to vibration
Dual 915/868MHz T Antenna for improved signal stability and range

Specifications:

Item: Bandit BR3 ExpressLRS Receiver
Regulatory Domain: FCC915
MCU: ESP8285
RF Chip: SEMTECH SX1276
Telemetry RF power: 100mW - 500mW LUA Adjustable
Antenna: 915/868MHz T Antenna
Antenna Interface: IPEX1
Bus Interface: CRSF
Working Voltage: DC 4.5-8.4V
Dimension: 24*14.2mm
Weight: 5.5g (with antennas)

Package contains:

1x Bandit BR3 Expresslrs Receiver
2x T Antenna (Installed on Receiver)
3x Receiver Shrink Tube Sleeves
1x CRSF Wire
1x Manual
