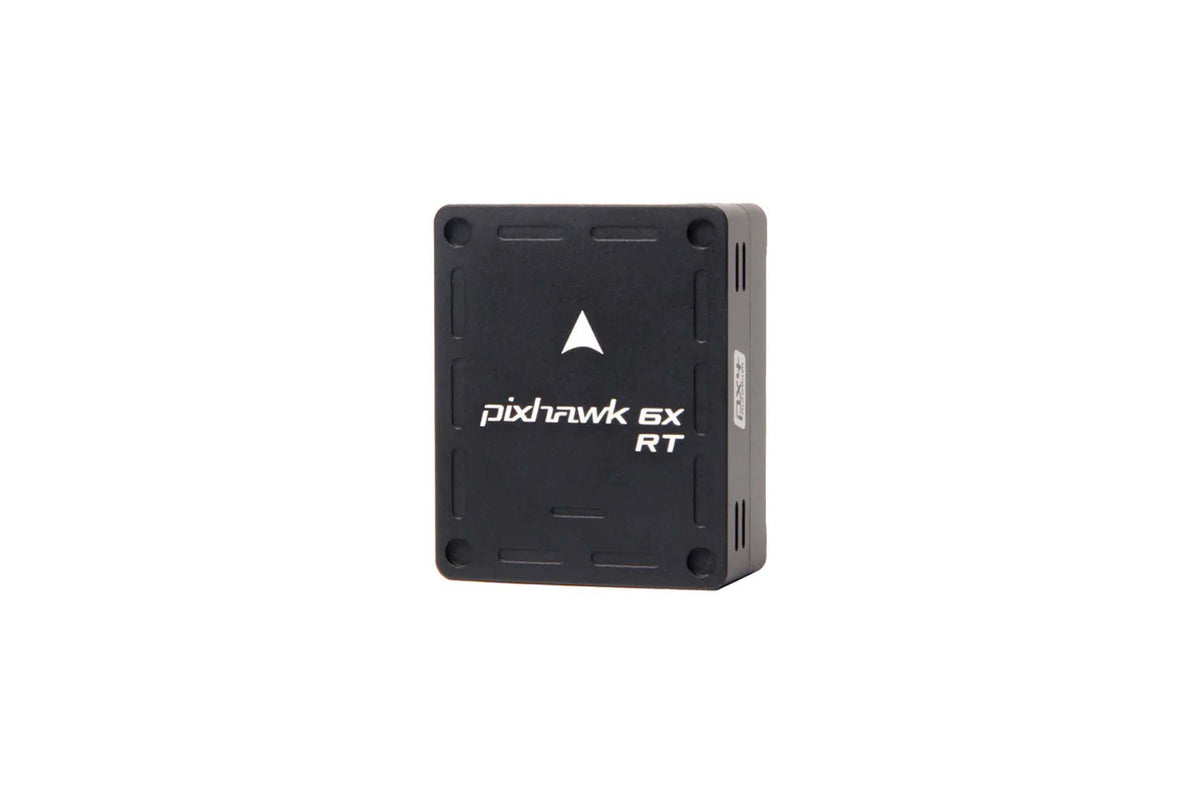

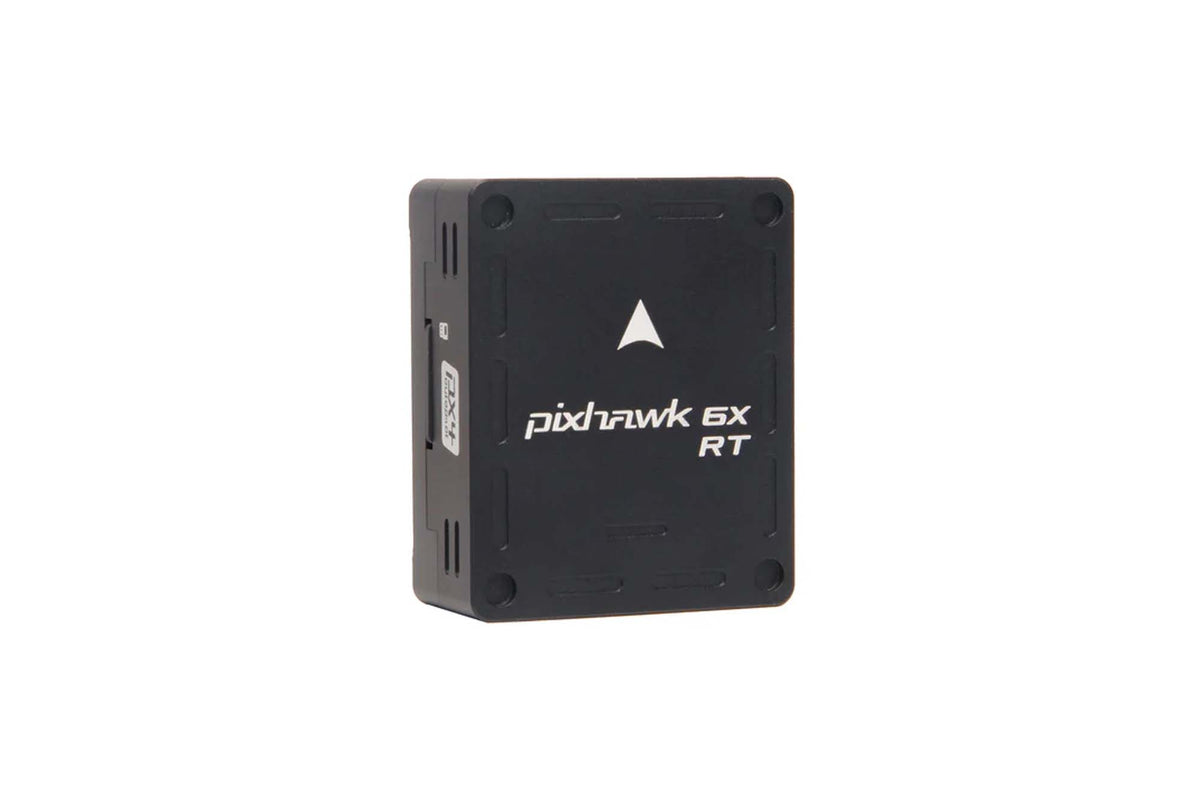

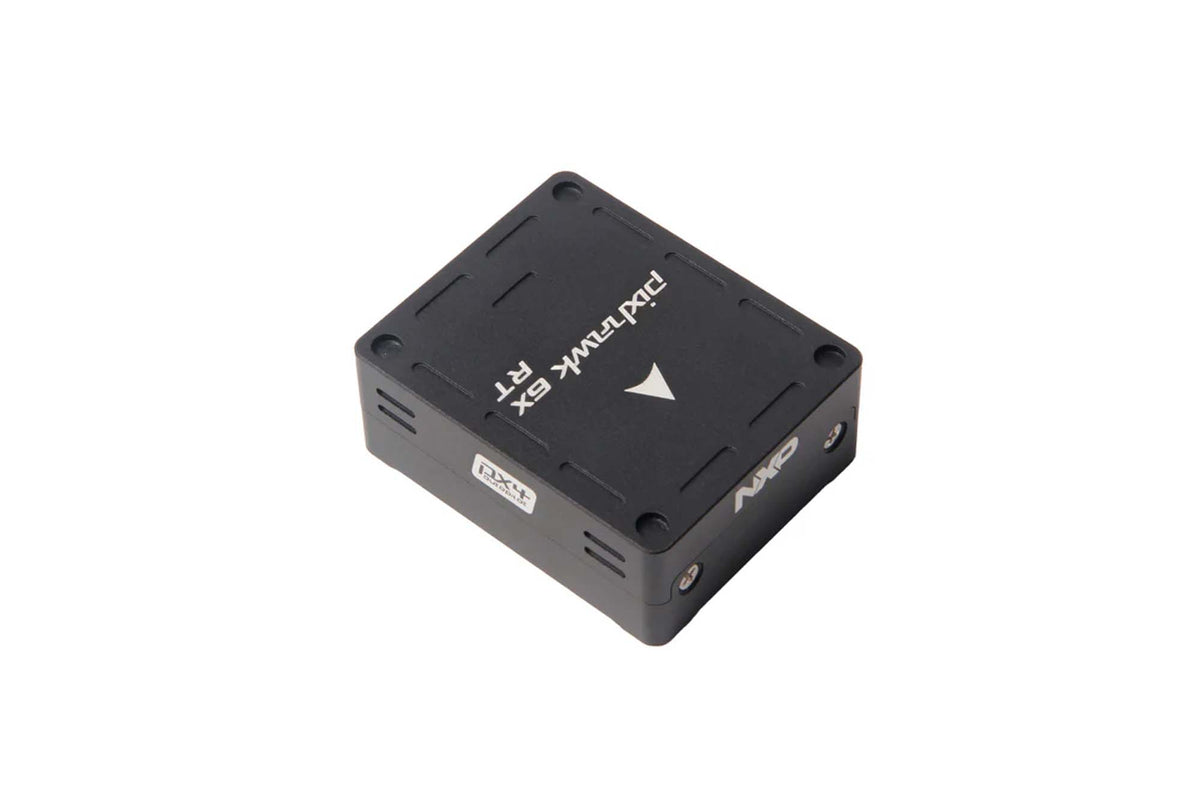

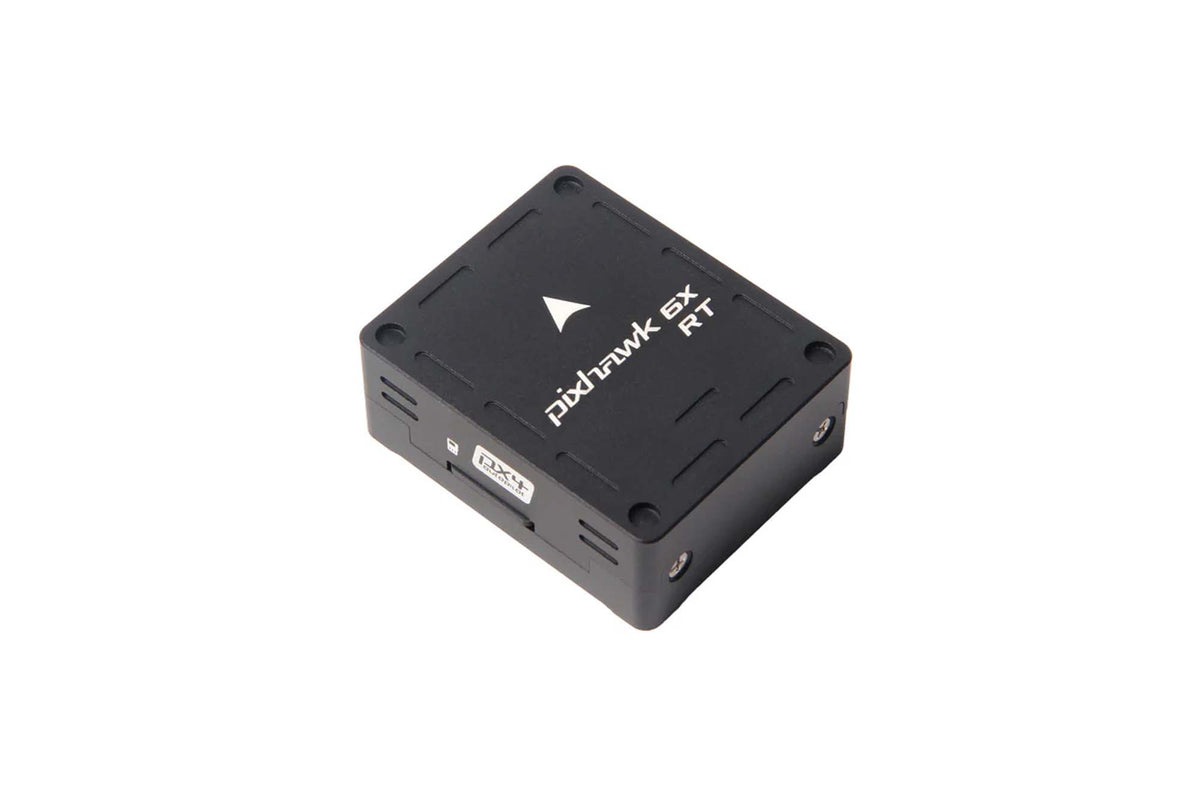

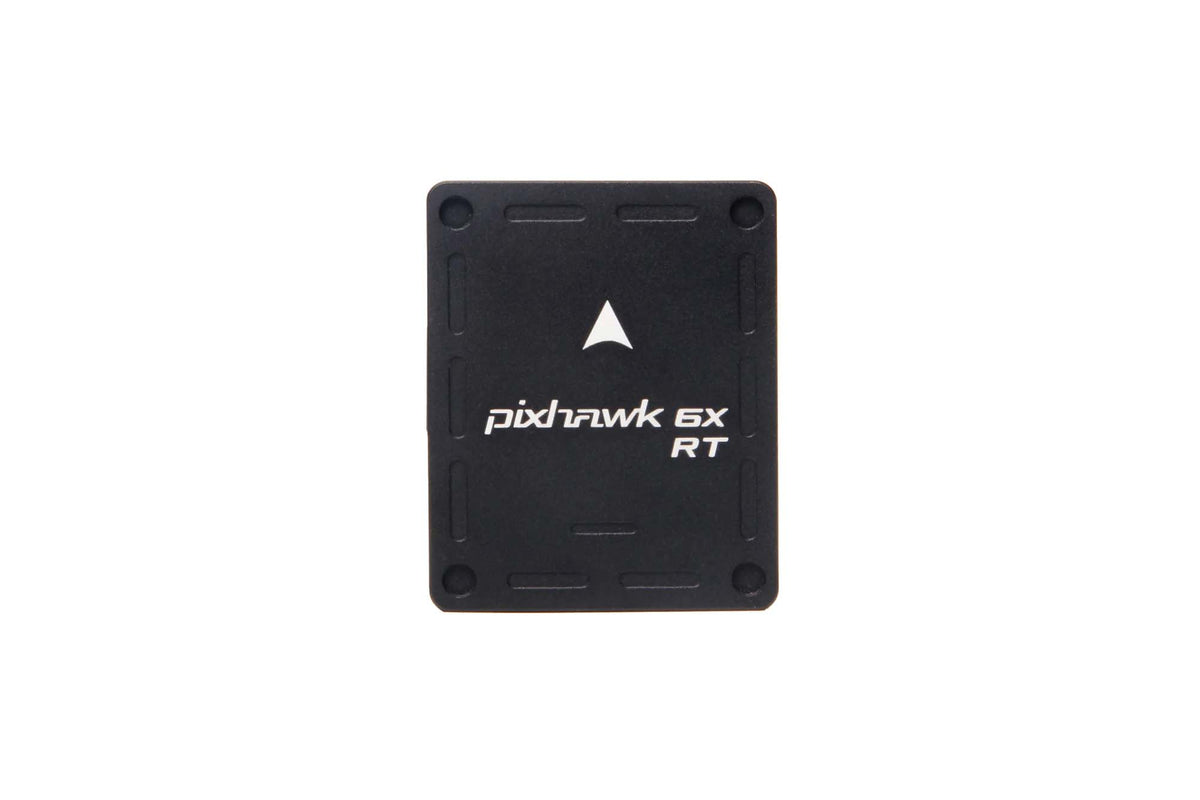

HolybroPixhawk 6X-RT FC Module Only - 11064

The Pixhawk 6X-RT is based on the Pixhawk® FMUv6X-RT Open Standard and the Pixhawk® Bus Standard. It comes with PX4® firmware pre-installed. Inside the Pixhawk 6X-RT flight controller, you can find an NXP-based i.MXRT1176 MCU, paired with sensor technology from Bosch® and InvenSense®, giving you flexibility and reliability for controlling any autonomous vehicle.

The i.MXRT1176 microcontroller contains an Arm® Cortex-M7 at 1 GHz and a Cortex-M4 at 400 MHz. It has 2MB SRAM and 64MB Octal SPI Flash. Thanks to the updated processing power, developers can be more productive and efficient with their development work, allowing for complex algorithms and models.

It includes high-performance, low-noise IMUs designed for better stabilization, and has triple redundant IMUs & double redundant barometers on separate buses. When the firmware detects a sensor failure, the system seamlessly switches to another to maintain flight control reliability. An independent LDO powers every sensor set with independent power control. A vibration isolation system to filter out high-frequency vibration and reduce noise to ensure accurate readings, allowing vehicles to reach better overall flight performances. An integrated Microchip Ethernet PHY, high-speed communication with mission computers via Ethernet is now possible.

Features:

• High performance dual core  i.MXRT1176 Processor with Cortex-M7 @ 1GHz – Cortex-M4 @ 400MHz

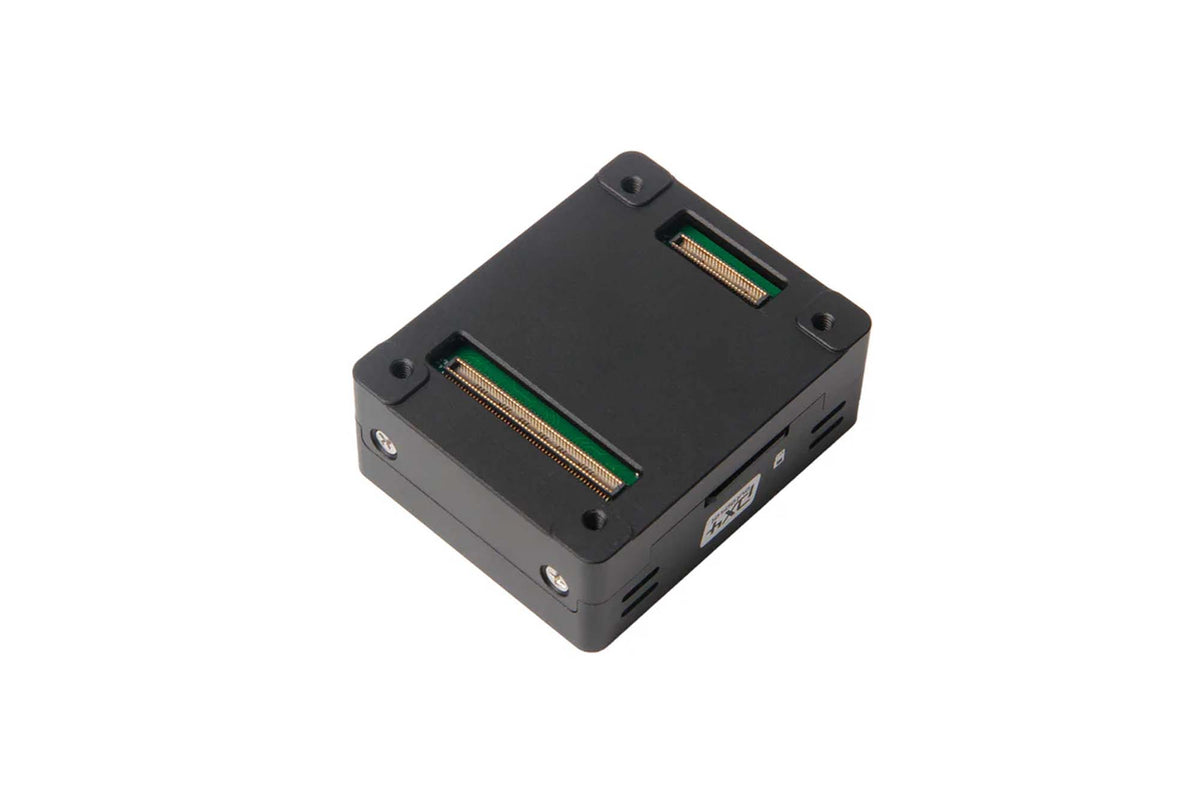

• Modular flight controller: separated IMU, FMU, and Base system connected by a 100-pin & a 50-pin Pixhawk® Bus connector.
• Redundancy: 3x IMU sensors & 2x Barometer sensors on separate buses
• Triple redundancy domains: Completely isolated sensor domains with separate buses and separate power control
• Vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
• Ethernet interface for high-speed mission computer integration
• IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs


Specification:

Package contains:

• Pixhawk 6X-RT Flight Controller Module
