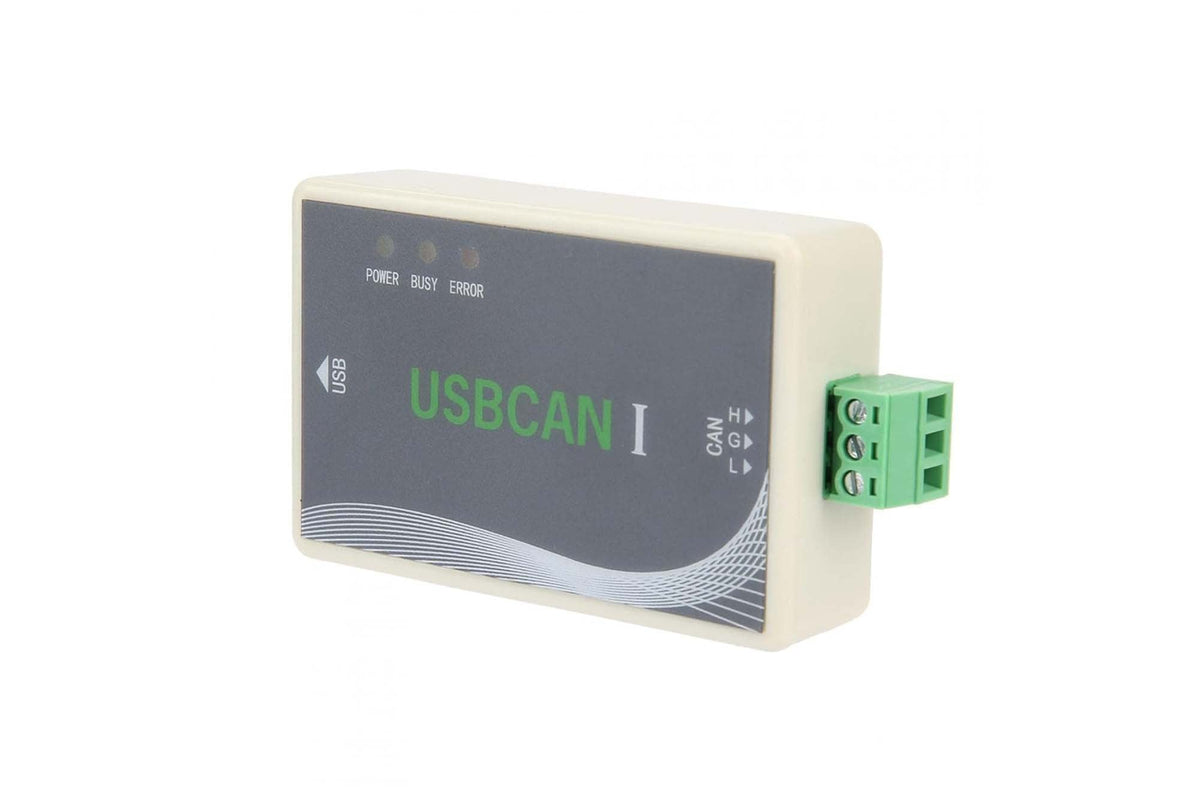

NanoradarNanoradar USB to CAN I Adapter

USBCAN I Portable Debugger Adapter

Features:

• ZLG Software Setting: This USB to Can debugger system is Compatible with ZLG software and support secondary development
• Strong Anti-interfere Capability: USB to Can debugger Adopt independent DC-DC power supply module for optoelectronic isolation, so that the product has strong anti-interfere capability, greatly improve the reliability of the system used in harsh environment
• CAN Node Tool: This USB to Can debugger can be used as a standard CAN node, which is a powerful tools integrated with CAN bus product development, CAN bus device testing, data analysis
• Wide Applications: PC can use this USBCAN debugger to connect with a standard CAN network via USB bus, so as to build CAN core control unit in fieldbus test lab, industrial control, intelligent building, automotive electronics to achieve data processing, data collection, data communication
• Portable USBCAN Debugger: This is USBCAN Debugger is small size, easy installation, it is a ideal choice for portable system applications

Specifications:

• USB and CAN bus protocol conversion;
• USB interface supports USB2.0, compatible with USB1.1;
• Support CAN2.0A and CAN2.0B protocol, support standard frame and extended frame;
• Support two-way transmission, CAN transmission, CAN reception;
• Support data frame, remote frame format;
• CAN controller baud rate between 10Kbps-1Mbps optional, can be configured by software;
• CAN transceiver uses magnetic isolation, with 2500V isolation voltage;
• CAN controller has 3 transmit buffer and 8 hardware FIFO receive buffer, the max receiving capacity is up to 7000fps;
• Directly powered by USB bus;
• Isolation module insulation voltage: 1000Vrms;
• Operating temperature: 0~70 ℃;
• Shell size: 70*45*18mm / 2.75*1.77*0.71in
• Weight: Approx. 108g / 3.8oz

Typical Application:

• Achieve transmission and reception of the CAN bus network via USB interface of the PC or laptop
• Fast CAN network data acquisition, data analysis
• USB interface to CAN network interface
• CAN network data monitoring in industrial field

Package contains:

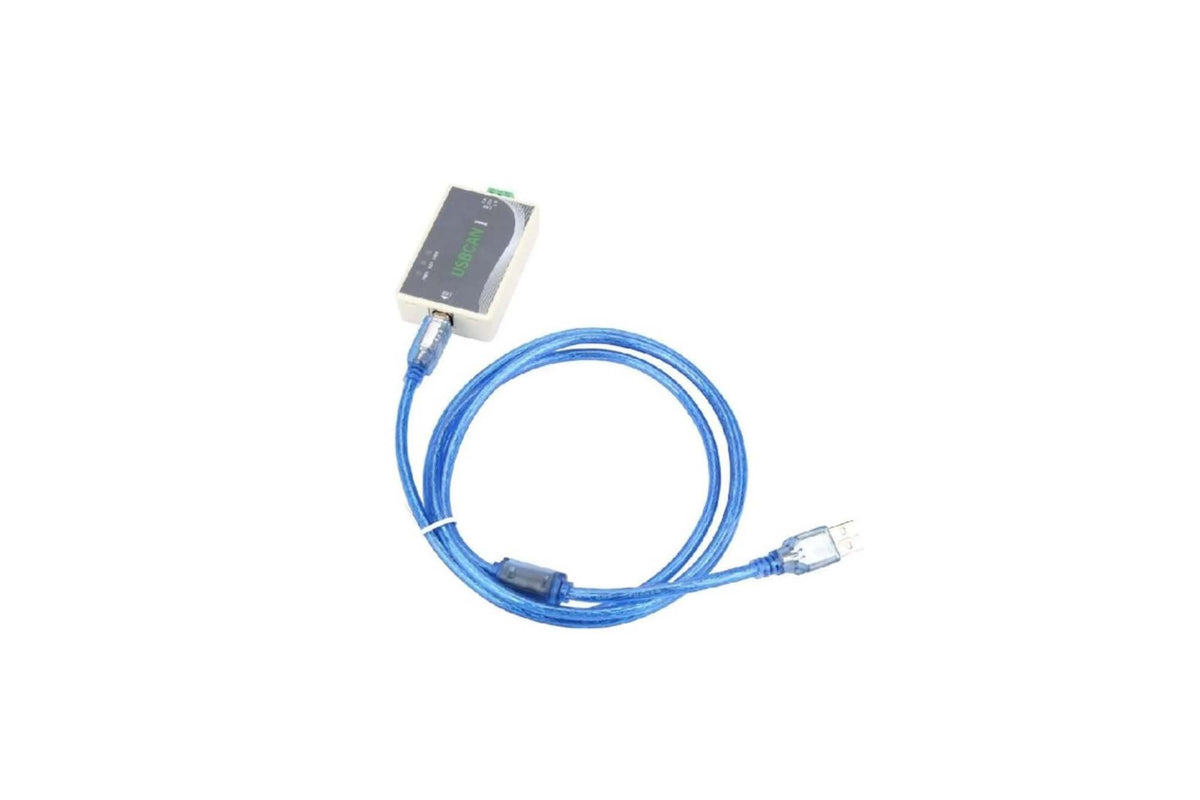

• 1x USBCAN I Portable Debugger Adapter + USB Cable
