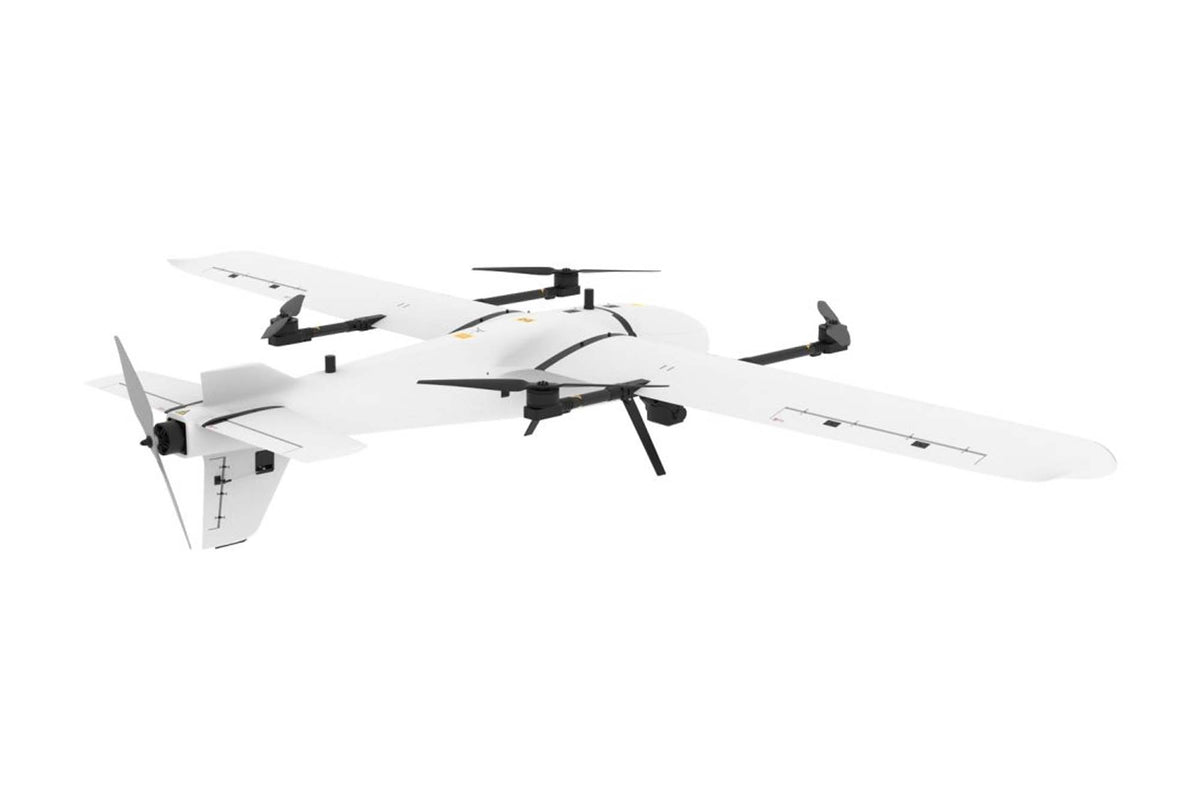

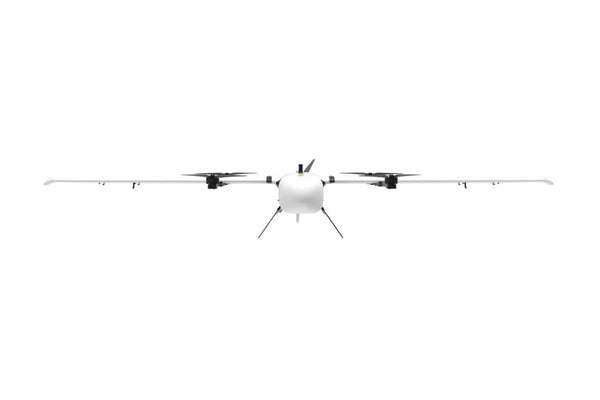

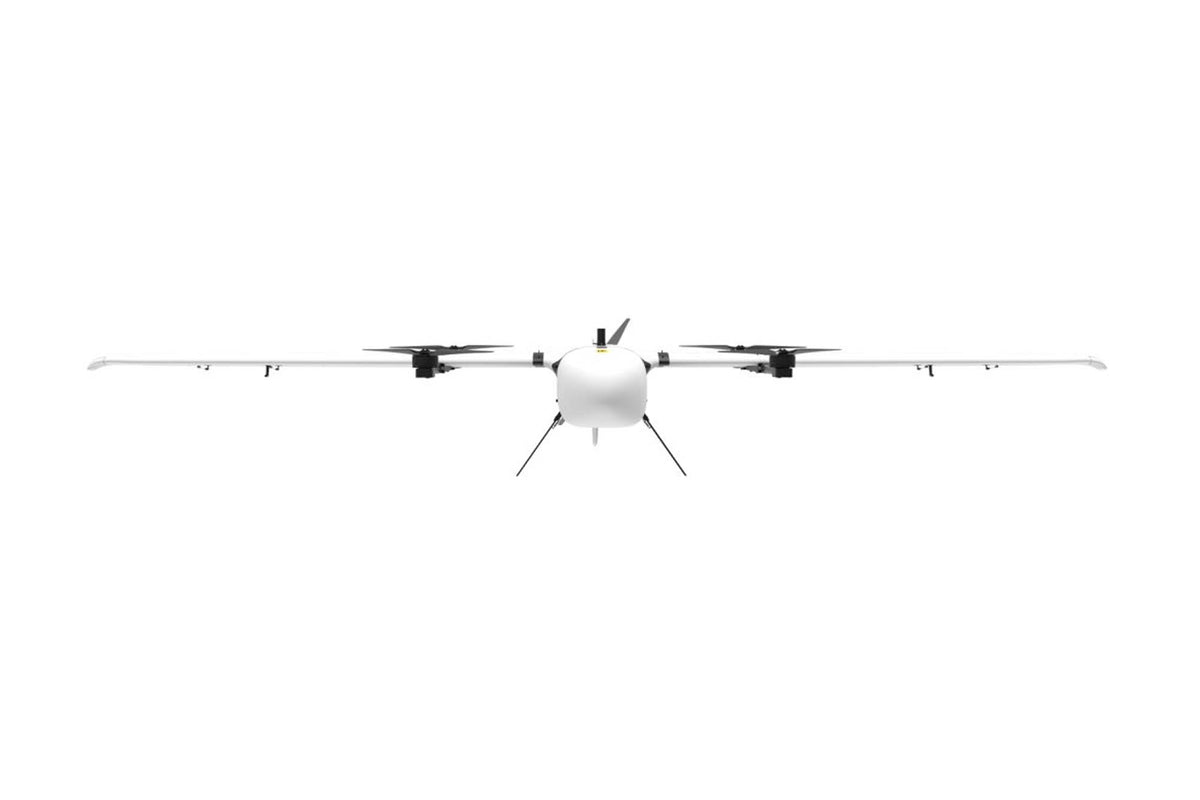

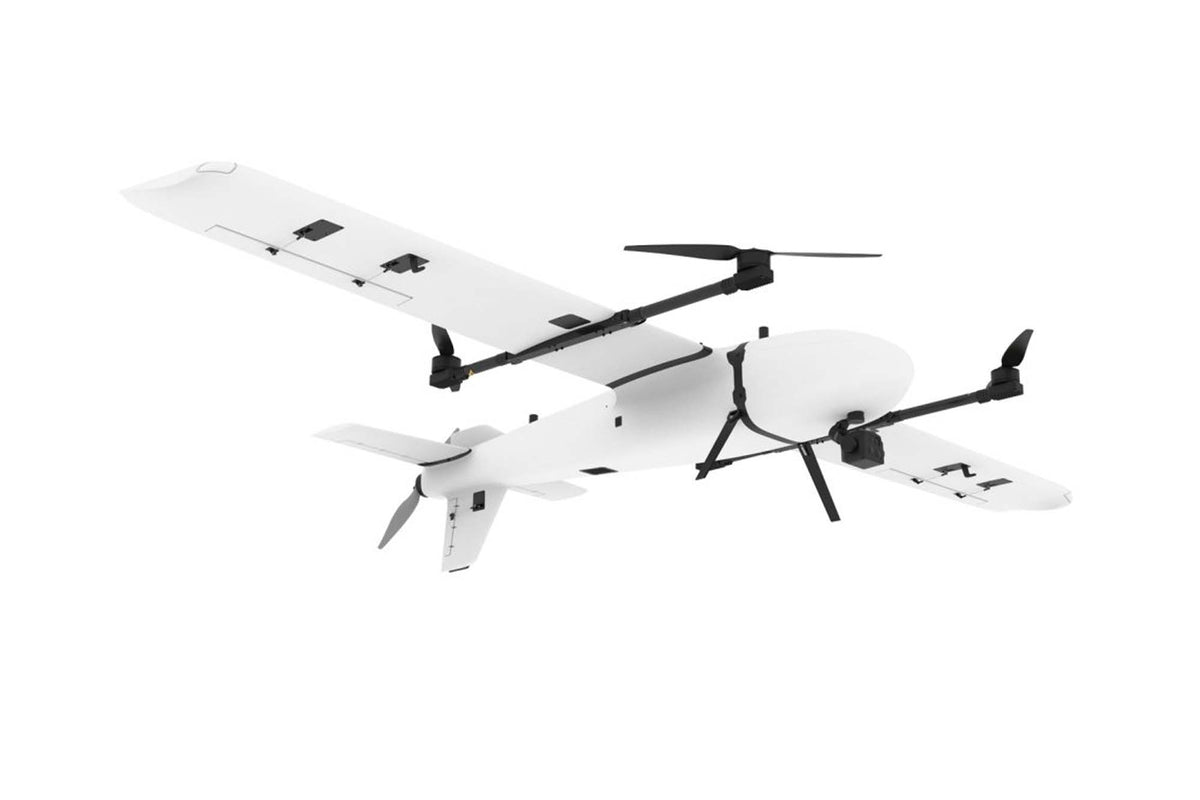

Make Fly EasyMFE- Pioneer 3200mm UAV Fixed Wing VTOL Kit

MFE-Pioneer Fixed Wing VTOL

These are the available packages:

MFE PIONEER - VTOL KIT

This is the kit version with hardware fittings, no electronics.

MFE PIONEER - VTOL PNP

*PNP Kits require full assembly, all parts are supplied separately*

Specifications

• Wingspan - 3.2 meters
• Fuselage Length - 1.68 meters
• Fuselage Height - 0.41meters
• Rotor Motor Distance - 1 meter
• Maximum Takeoff Weight - 24.9kg
• Maximum Payload - Up to 5kg
• Economic Cruise Speed - 22m/s
• Maximum Speed - 35m/s
• Stall Speed - 14m/s
• Service Ceiling - 4000 meters
• Wind Resistance - Level 5
• Wing Area - 100 dm²
• Assembly - Tool-free quick release system

Features

The Makeflyeasy Pioneer supports payloads between 3 to 5 kilograms, making it ideal for carrying:

• LiDAR mapping systems
• High-resolution RGB cameras
• Multispectral sensors
• Thermal imaging payloads

The drone’s balanced structure ensures stable flight even under heavy sensor loads, maintaining consistent data accuracy.

Effecient Power System for Extended Missions

The Pioneer VTOL UAV uses a high-density semi-solid-state battery system in a 12S configuration, delivering reliable energy output with superior efficiency. This allows long flight durations while maintaining strong thrust performance during vertical takeoff and landing.

Quick Assembly and Field Portability

Designed for professional teams operating in remote or changing environments, the Pioneer features:

• Tool-free detachable wings and fuselage
• Reinforced wing beam structure
• Optional transport case for safe mobility
• Durable landing gear for rough terrain

This design significantly reduces setup time and improves operational efficiency.

Applications of the Makeflyeasy Pioneer VTOL Drone

Aerial Surveying and Mapping

Cover large areas quickly while capturing high-resolution data for terrain modeling, urban planning, and construction monitoring.

Infastructure Inspection

Perfect for inspecting pipelines, power lines, bridges, highways, railways, and industrial facilities.

Emergency Response and Search & Rescue

Rapid VTOL deployment combined with long-range coverage makes it ideal for disaster response and situational awareness.

Enviromental Monitoring

Track forestry growth, agriculture health, wildlife activity and ecological changes effeciently.

Why choose the Makeflyeasy Pioneer 3200mm UAV?

• Hybrid VTOL + fixed wing efficiency
• Professional payload capability
• Long flight endurance
• Strong wind resistance
• Fast deployment and transport-friendly design

The Makeflyeasy Pioneer 3200mm VTOL Fixed Wing UAV Drone is a powerful professional aerial platform designed for demanding commercial and industrial missions. Its hybrid flight system, durable construction, high payload support, and long-range efficiency make it one of the most versatile VTOL drones available today.

Whether for mapping, inspection, public safety, or environmental monitoring, the Pioneer delivers exceptional performance, reliability, and operational flexibility.

International Orders

For shipments outside of the UK, we require an email containing your billing and shipping address, along with a contact telephone number. We will then provide you with an official quote, as our website may not always calculate the correct shipping cost. This helps us prevent any delays in processing your order.

Please note that we can only ship this product to certain locations outside the UK.

Please note: We check every box before sending for completeness and damage, inspect package on arrival.

The Ailerons are secured with plastic hinges, this is a great feature. Sometimes the foam is very thin or split along the fold. Ailerons should use the plastic hinges and tape reinforcement.
