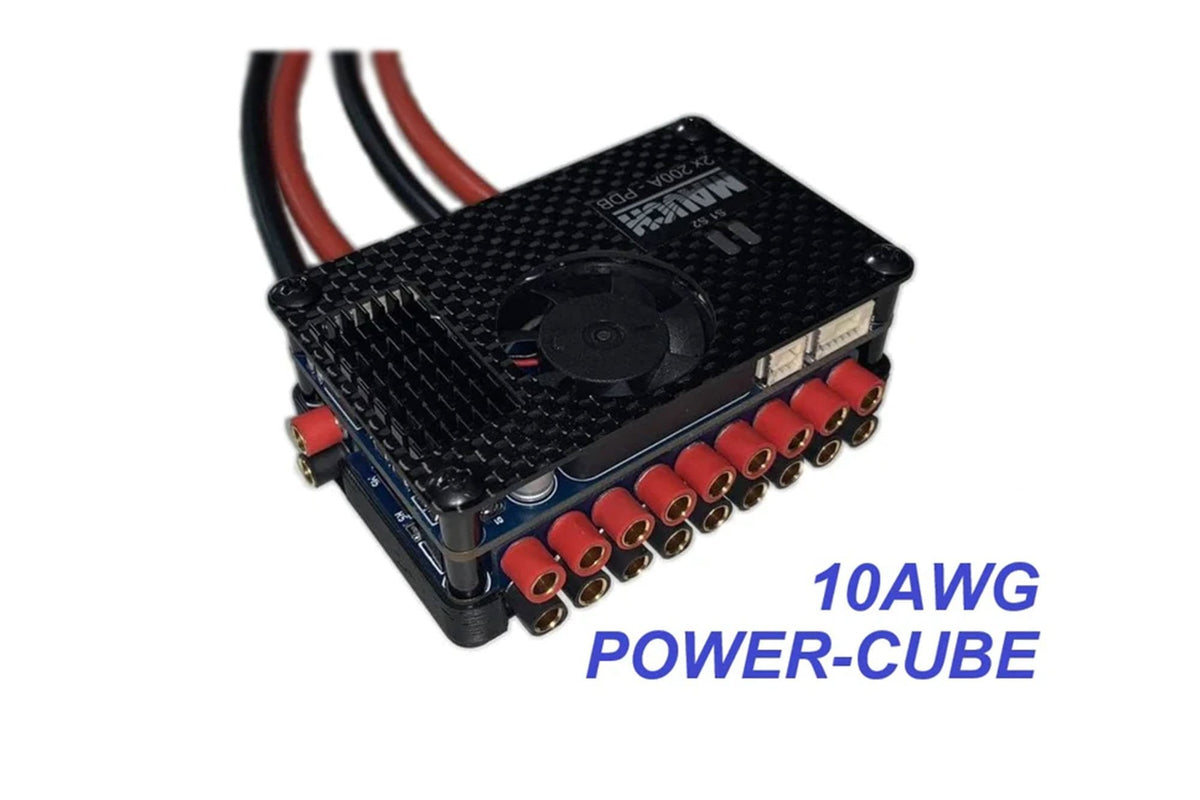

MauchMauch 031 - PC 2x 200A PDB with 400A main switch 8AWG/10AWG

Mauch 031

*Please select version required. Available with 8 AWG or 10 AWG input cables*

All-in-one PDB for Pixhawk 2.1 (The Cube) and any other flight controller via an adapter cable. With an integrated 2x200A hall sensor, Sensor Hub X2, 4-14S HYB-BEC, and most importantly a main power switch with a continuous current of 400A. The outputs are over 3.5mm banana connectors, plus spare BEC connectors after the switch and before the switch.

This design lets you connect the main batteries to heat up the Cube and get GPS lock without powering up all the rest of the equipment. When ready, just press the power switch and fly.

This new PC Series PDB includes two fully redundant BEC’s with POWER1 and POWER2 for the FC. A higher output current of 2x 5A per BEC. Fully redundant power supply for the PDB control circuit... etc.

Less wiring = Cleaner builds

Protect your ESC’s and other equipment due to smooth power-up from GND.

Specifications

• Input 2x 4-14S (max.65V) with transient spikes of up to 85V.
• 2x 200A = 400A (continues) 1,200A @ 25’C for 1sec.
• Hub X2 can be deactivated for single battery usage.
• 2x 5.3V / 5A power supply for Flight Controller
• 2x 20cm 8AWG input cables (red/black)
• Only 75 x 49 x 27mm -> 112g (without cables)
• Recommended maximum AUW of UAV = 50kg

 Package contains

• 1x PDB with soldered-on input wires (2x 20cm 8 OR 10AWG, depends on selection)
• 1x 060: Power-Cube / Pixhawk 2.1 cable (The Cube)
• 1x 061: Power-Cube / Pixhawk 2.1 Backup cable
• 20x 3.5mm bullet connectors (male)
• 2x 26cm Red/Black shrinking tube.
• 2 pairs AMASS / AS150 connector

 REM: Delivery without 059: Power-Switch
