Name: Matek Systems - SERVO PDB, W/ 12A BEC 9-55V TO 5/6/8V
Brand: Matek Systems
SKU: MTS-03-06-SVPDB-12S
Price: 19.90 GBP
Availability: InStock

Matek Systems - SERVO PDB, W/ 12A BEC 9-55V TO 5/6/8V

Product Specifications

Product Details

Matek Systems - SERVO PDB, W/ 12A BEC 9-55V TO 5/6/8V, SVPDB-12S

Package contains:

1 x Matek Systems - SERVO PDB, W/ 12A BEC 9-55V TO 5/6/8V

Specifications

9V to 55V Operating Input Range
Vx for servos, 5V, 6V, 8V Adj. Default is 5V.
Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
Supports continuous output current of up to 12A, peak current of 20A.
Standby current: 5~10mA
No protection for reversed input polarity
Thermal Shutdown
Output Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery
Dropout voltage: 2V (Input>=10V is required for stable 8V output)
Pins distance: 2.54mm
Size & Weight: 50 x 27 x 8mm, 18g
Packing: 1x SVPDB-12S, Dupont 2.54mm pins shipped unsoldered

Applications

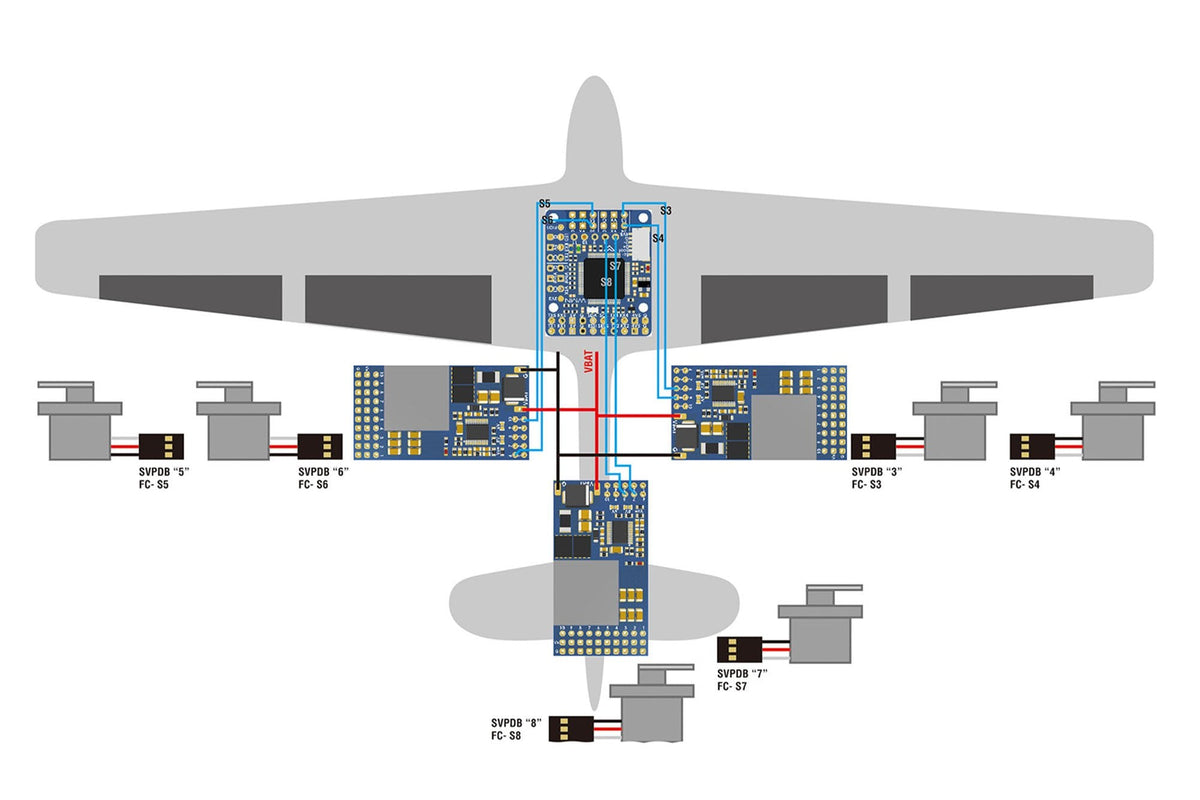

Flight controllers without dedicated BEC for servos
Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane

Product Details

Matek Systems - SERVO PDB, W/ 12A BEC 9-55V TO 5/6/8V, SVPDB-12S

Package contains:

1 x Matek Systems - SERVO PDB, W/ 12A BEC 9-55V TO 5/6/8V

Specifications

9V to 55V Operating Input Range
Vx for servos, 5V, 6V, 8V Adj. Default is 5V.
Synchronous switching step-down (buck) regulator with typical efficiencies of 88% to 96%
Supports continuous output current of up to 12A, peak current of 20A.
Standby current: 5~10mA
No protection for reversed input polarity
Thermal Shutdown
Output Short-circuit tolerant (2 seconds)
Overcurrent protection & self-recovery
Dropout voltage: 2V (Input>=10V is required for stable 8V output)
Pins distance: 2.54mm
Size & Weight: 50 x 27 x 8mm, 18g
Packing: 1x SVPDB-12S, Dupont 2.54mm pins shipped unsoldered

Applications

Flight controllers without dedicated BEC for servos
Reduces circuit loss and voltage drop on servo power wires for big scale RC Airplane
