Name: Matek Systems - Hall Current Sensor 150A
Brand: Matek Systems
SKU: MTS-04-02-HCS-150A
Price: 19.00 GBP
Availability: InStock

Matek Systems - Hall Current Sensor 150A

Product Specifications

Product Details

Specifications

Hall effect current sensor
No voltage drop and heat on current sensor components
Offset and Sensitivity are calibrated in factory
Continuous current rating: 0~150A DC
Sensitivity: 20mV/A, INAV/BF scale = 200, ArduPilot BATT_AMP_PERVLT = 50
VBAT voltage sense: 0~69V, INAV scale = 2100, BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0
Power Consumption: 17mA
Voltage offset error at zero current : +-10mV
Curr output voltage error: 5%
Operating Temperatures: -30~80 °C
23 * 20* 23mm, 7g
step file HCS-150A_step.zip

Soldering pads

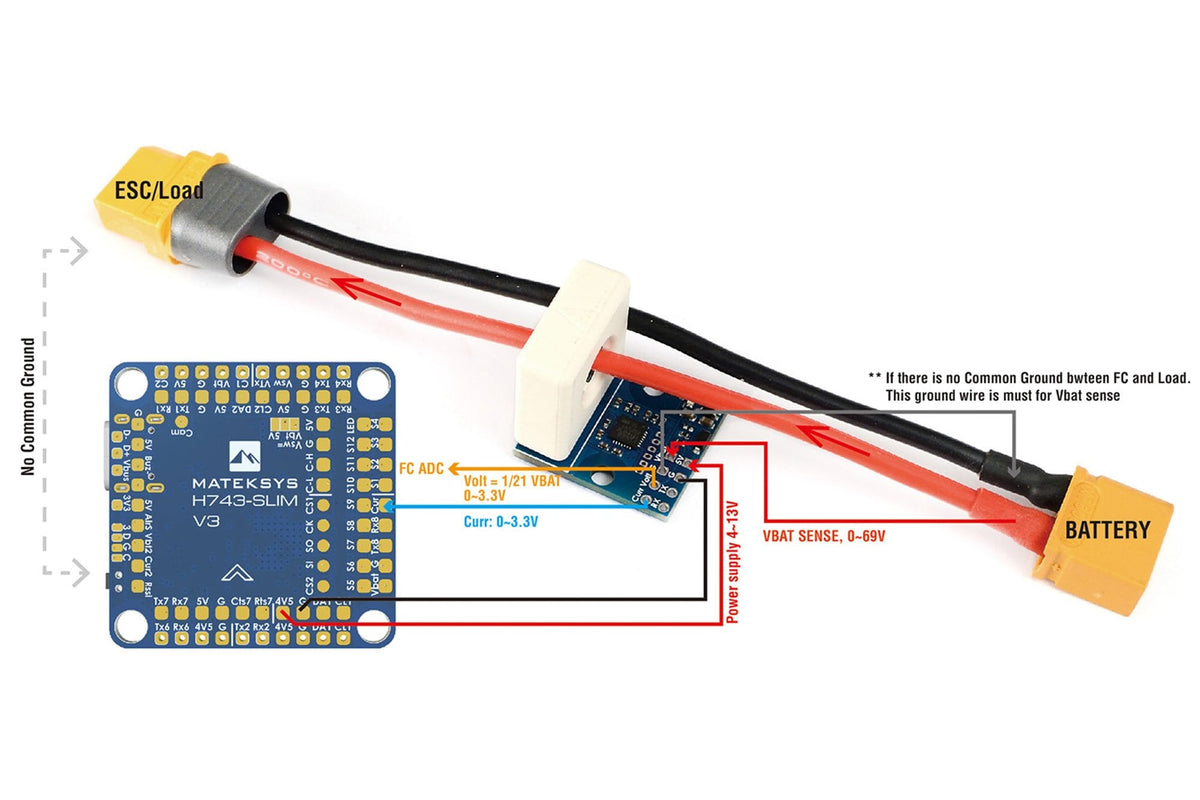

Vbat: for voltage sense, support 0~69V IN
Volt: = 1/21 Vbat, 0~3.3V out

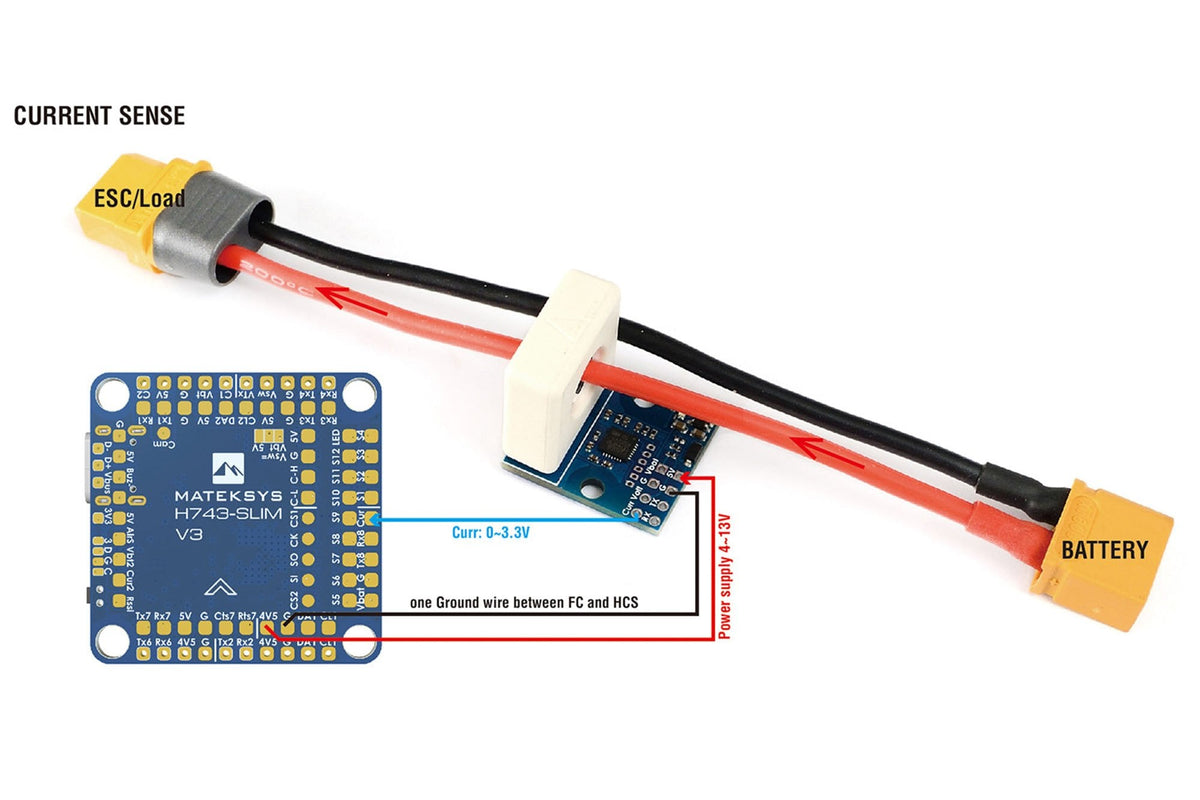

Curr: Current signal, 0~3.3V out
5V: power supply for HCS-150A board, support 4~13V IN, 17mA
G: GND
TX/RX: for firmware update and configure (to be supported)

Tips

mount Hall sensor far from iron and magnetic material

Package contains

1 x Hall Current Sensor 150A

Product Details

Specifications

Hall effect current sensor
No voltage drop and heat on current sensor components
Offset and Sensitivity are calibrated in factory
Continuous current rating: 0~150A DC
Sensitivity: 20mV/A, INAV/BF scale = 200, ArduPilot BATT_AMP_PERVLT = 50
VBAT voltage sense: 0~69V, INAV scale = 2100, BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0
Power Consumption: 17mA
Voltage offset error at zero current : +-10mV
Curr output voltage error: 5%
Operating Temperatures: -30~80 °C
23 * 20* 23mm, 7g
step file HCS-150A_step.zip

Soldering pads

Vbat: for voltage sense, support 0~69V IN
Volt: = 1/21 Vbat, 0~3.3V out
Curr: Current signal, 0~3.3V out
5V: power supply for HCS-150A board, support 4~13V IN, 17mA
G: GND
TX/RX: for firmware update and configure (to be supported)

Tips

mount Hall sensor far from iron and magnetic material

Package contains

1 x Hall Current Sensor 150A
