Product Specifications
Product Details

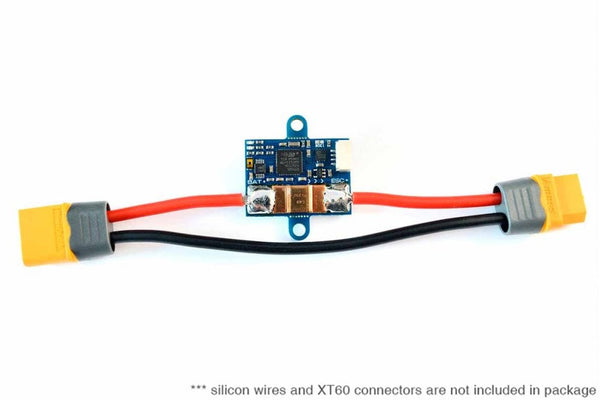

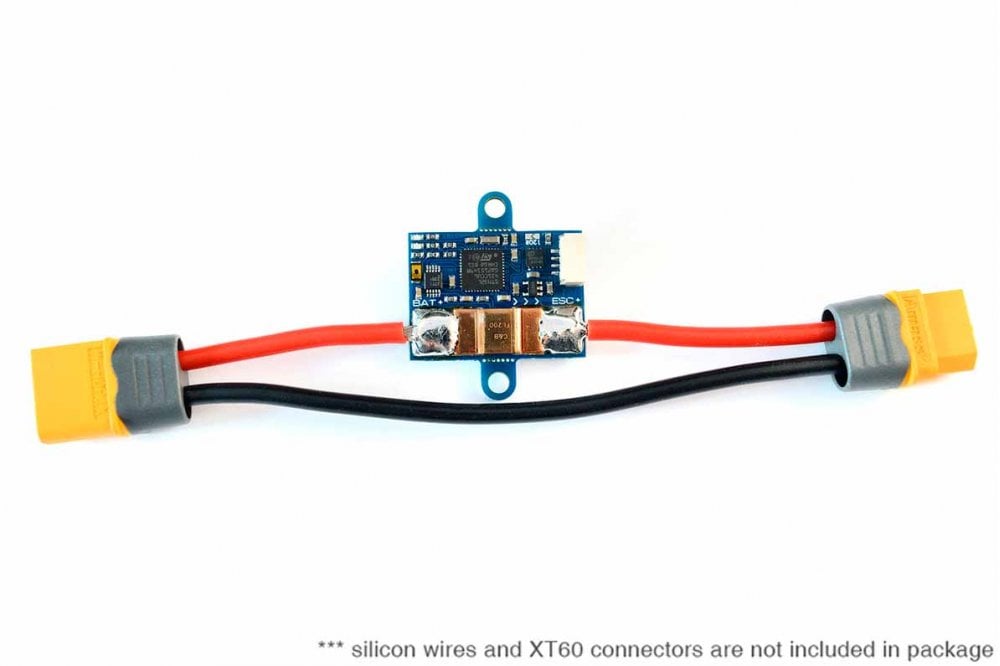

CAN-L4-BM is a ultra-precise digital power monitor based on TI INA239 & ArudPilot AP_Periph firmware.
The resistance of this conductive path is 200 μΩ typical, providing low power loss in the application.
With this device there is no calibration required. A flight controller that support DroneCAN protocol can easily get accurate current & bus voltage readouts via CAN bus.
Specifications
- MCU: STM32L431xC, 256KB Flash
- INA239 85-V, 16-Bit, High-Precision Power monitor IC With SPI Interface
- Battery Voltage sense input: 0~85V
- Current Sense Range: 0~204.8A
- Load current on current sensing resistor: 150A(Continuous), 204.8A(Burst)
- Voltage accuracy: ± 0.1%
- Current accuracy: ± 2%
-
Interface
- CAN, DroneCAN Protocol
- UART2, spare, DFU
- ST debug, SWCLK & SWDIO
- LED
Blue, Fast blinking, Booting
Blue, Slow blinking, working
Red, 3.3V indicator
- Power supply for CAN-L4-BM board : 4.5~5.5V @5V pad/pin
- Power consumption: 10mA
- Operating Temperatures: -40~85 °C
- Physical
Board Size: 30mm*22mm*3mm. 4g
3D file : CAN-L4-BM_STEP.zip
- Firmware
ArduPilot AP_Periph MatekL431-BattMon
Update via DroneCAN GUI Tool
Includes

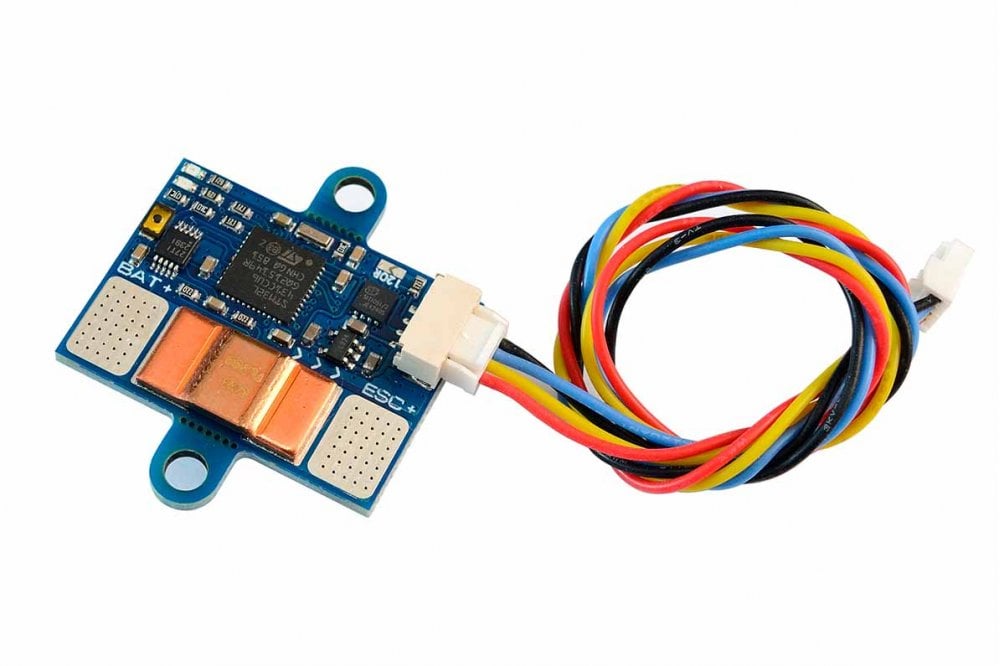

- 1x CAN-L4-BM board
- 1x JST-GH-4P to JST-GH-4P 20cm silicon wire
