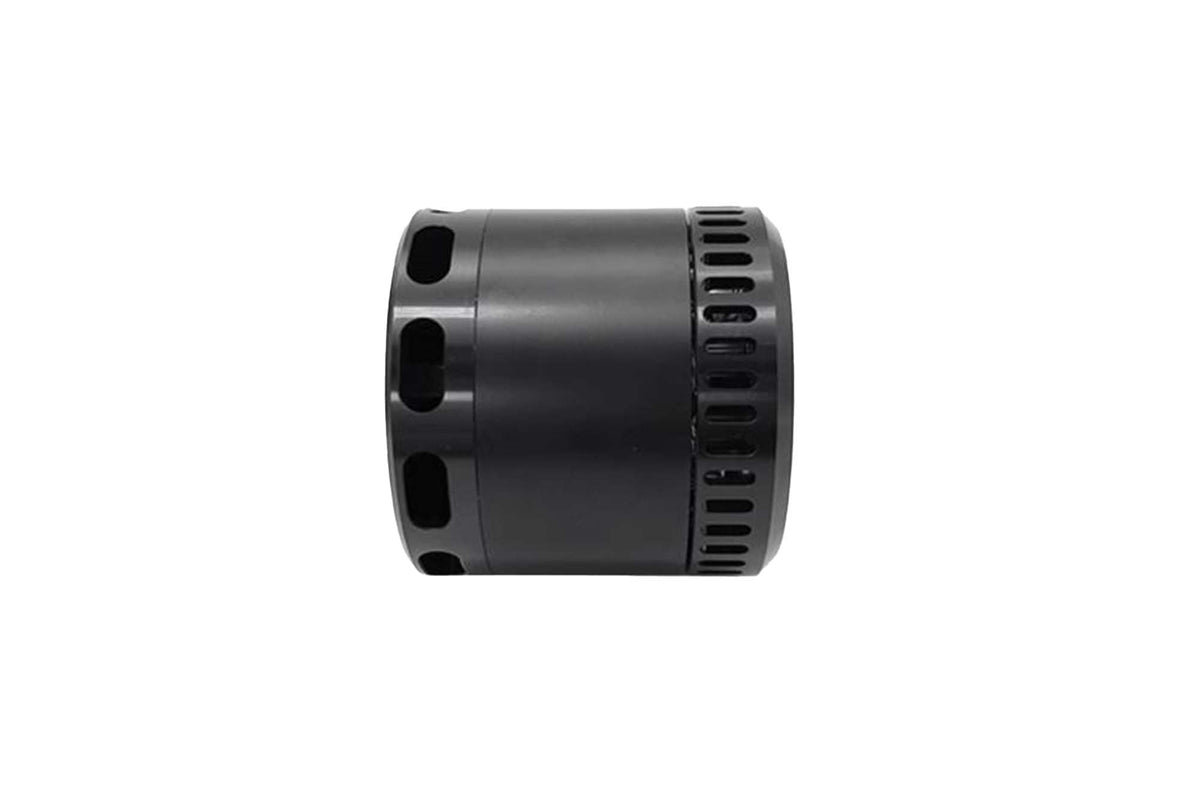

Make Fly EasyMFE Striver Mini - Motor 4120 - KV430

Features:

• Motor Striver mini Front-pull Motor
• Powerful Dynamics · Stable Output
• The 4120 KV430 cruising motor has a
• high power density to ensure continuous
• and stable output.It is matched with the
• APC 1612E propeller and powered by a 6S
• lithium polymer battery.The maximum pulling
• force of a single shaft can reach 5800g.
• *Active Heat Dissipation · Cooling and
• Efficiency Enhancement
• Built-in "Fan" Design in the Rotor.
• Active heat dissipation can be achieved
• through the diversion groove, further
• improving the kinetic energy conversion
• efficiency
• Low Copper Loss · High Power
• Using military-grade high-temperature
• resistant enameled wire to reduce copper
• loss in the motor and minimize heat
• generation.Pure manual winding ensures a
• high slot fill factor, higher power density,
• and stronger power

Specification:

• Motor Model - 4120 KV430
• Slot-level Structure - 12N14P
• Stator Core - Special Surface Anti-rust Treatment
• Motor Size - 50×47.5mm
• Enameled Wire Grade - Resistant to 200°C High Temperature
• Magnet Grade - Resistant to 180°C High Temperature
• Wire Outlet Specification - 12AWG 100mm
• Rotor Dynamic Balance Test - ≤5 Mg
• Wire Coil Withstand Voltage Test - 500V AC
• Propeller Mounting Hole Position - M3Ø124
• Motor Mounting Hole Position - M4Ø84
• Magnet Shape - Arc-shaped
• KV Value - 430
• Rated Voltage: 6S
• No-load Current - 1.5A/10V
• Inter-phase Internal Resistance - 26mΩ
• Maximum Current - 79A/30S
• Maximum Power - 2425W
• Maximum Thrust - 5800g
• ESC Recommendation - 6S 80 - 100A
• Propeller Recommendation - APC 1612E Propeller
• Motor Weight - 307g

Package contains:

• 1x MFE Striver Mini - Motor 4120 - KV430
