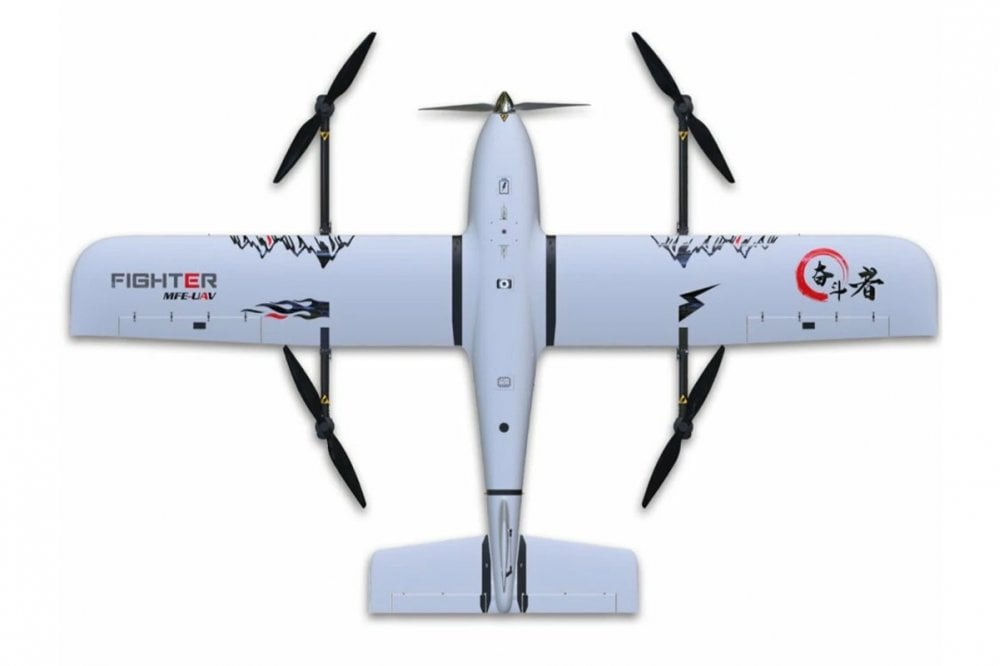

Make Fly EasyMFE- Fighter 2430mm Wingspan, VTOL

MFE- FIGHTER 2400mm, VTOL (With Arms)

These are the available packages:

MFE FIGHTER - VTOL KIT

This is the kit version with hardware fittings, no electronics.

MFE FIGHTER - VTOL PNP

*PNP Kits require full assembly, all parts are supplied separately*

PNP Kit is the same as 'VTOL KIT' but also supplied with the following:

• 1x MFE 5120 S KV190 - Forward Motor
• 1x 12s 60A ESC
• 4x MFE 5015 S - KV220 Lift Motors
• 4x MFE custom 12S 40A ESC to fit in lift motor mounts
• 1x Additional wiring and connector pack
• 2x Pairs of 1862 Propellers
• 1x APC 1912 forward Prop
• 1x 3-14S 10A 5.3V UBEC
• 5x EMAX ES3054

Please note that this PNP kit is one of the configurations available.

The other available PNP configuration could be purchased separately on our website as per the list below:

• 1 x T-Motor AT4130 200KV (Forward motor)
• 1 x T-Motor Flame 60A HV
• 1 x APC 18x12WE Thin Electric Wide Prop
• 4 x T-Motor MN6007ii Custom arm set 160KV (Including ESC)
• 4 x T-Motor G20x6 propeller
• 1 x Hobbywing 10A UBEC HV (3-14S) 6V
• 5 x EMAX ES3054 (30CM+)

Recommended additional parts:

(This is our example of possible build)

• Cube Orange and Here 4
• Power management and monitoring such as Mauch 003 and Power Cube 3
• Herelink
• 2 x Tattu 30C 16000mAh 6S or 2 x ARES 22000mAh

Specifications

• Brand Name: MFE
• Item Name: Fighter
• Material: EPO, EVA, carbon fibre, PC, engineering plastics and etc.
• Wingspan: 2430mm
• Fuselage Length: 1450mm
• Fuselage Height: 180mm
• Wing Area: 72.5dm²
• Suggested Flight Speed: 17~20m/s
• Stalling Speed: 10m/s
• Maximum Payload: 1.5kg
• Payload Cabin Size: 280*160*110mm
• Longest Flight Range: >150km(600g load)
• Max. Take-off Weight: 11.5kg
• Practical Ceiling Height: 4000m
• Wind Resistance: 5
• Take-off and Landing Approach: VTOL
• Dismounting Way: Tool-free
• CG: Under the raised position of fuselage hook and the wing root plastic (same position)

 Features

• Efficient Aerodynamics on the basis of the conventional inverted T layout, the Fighter have optimized the aerodynamic figure and relative positions of the wings, horizontal tail, vertical tail and fuselage.
• Light but Stable.
• The wing and tail adopt a tool free quick-release structure making disassembly quicker.
• IPX3 waterproof level.
• Large fuselage cabin, low resistance.

Manufacturer's Description

The fighter is a 10kg fixed-wing flight platform (hand parachute/VTOL), which is easy to carry, friendly to operate, stable and durable.

The fighter is positioned as a heavy-duty, long-endurance fixed wing, which greatly reduces the difficulty of aerial survey and further liberates productivity which improves the efficiency of aerial survey.

The modular design concept makes the aircraft easy and fast to assemble. The wings, folding arms and tail fins can be easily dismantled, making the aircraft practical and portable and user-friendly.

The open flight control cabin is compatible with Pixhawk flight control and supports mounting of Sony A7R2 4200W pixel full-frame camera /1.5kg lightweight lidar. The maximum support is 12s@22000mah lithium polymer battery, which can achieve ultra-long range and high-quality shooting effect.

Using proper control point cooperatively, the final mapping would satisfy 1:1000 and 1:2000 aerial survey standard, which realized a wide-ranging application such as geography surveys, farmland, forestry land and grassland protection, power line inspection, environment protection, water conservancy etc.

International Orders

For shipments outside of the UK, we require an email containing your billing and shipping address, along with a contact telephone number. We will then provide you with an official quote, as our website may not always calculate the correct shipping cost. This helps us prevent any delays in processing your order.

Please note that we can only ship this product to certain locations outside the UK.

Alternatively, you are welcome to arrange your own shipment after payment has been received.

Dimensions: 126x35x49cm, 10kg.

Please note: We check every box before sending for completeness and damage, inspect package on arrival.

The Ailerons are secured with plastic hinges, this is a great feature. Sometimes the foam is very thin or split along the fold. Ailerons should use the plastic hinges and tape reinforcement.
