Make Fly EasyMFE Believer- KIT

MFE Believer - KIT Version

Description:

• Versatile Flight Platform: Designed for industry-class aerial surveys.

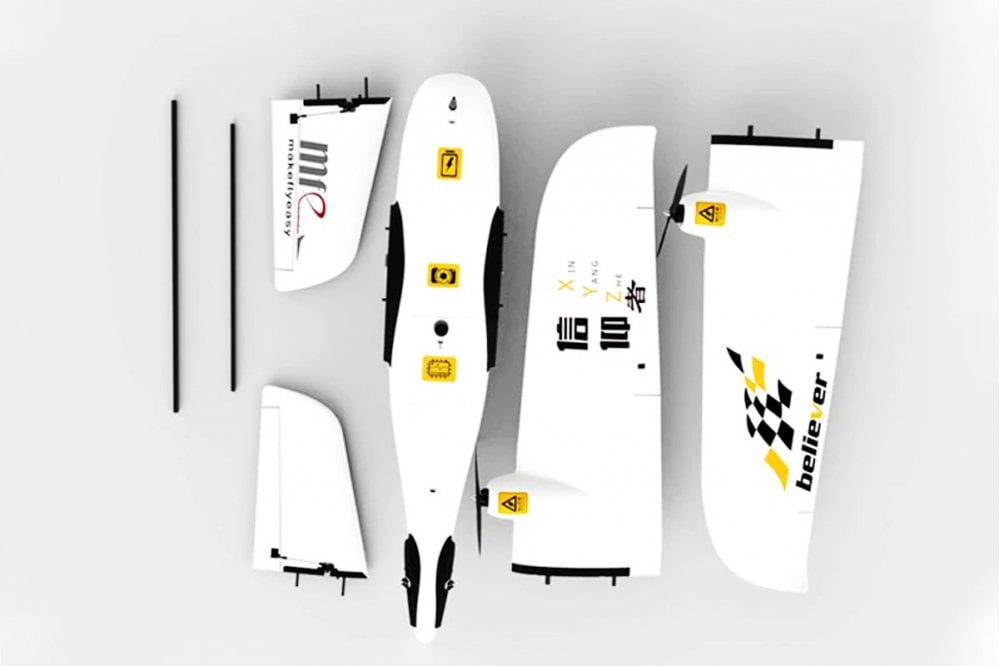

• Modular Design: Easy assembly and quick-detach wings for portability and durability.

• Shock Absorption: Ventral shock absorption enhances portability and user experience.

• High-Resolution Camera: Can carry a 4200W pixel camera for high-quality imaging.

• Extended Flight Time: Accommodates a 6S 22000mAh LiPo battery for long battery life.

• Stable and Safe Performance: Equipped with flight control, telemetry, power, and image systems.

• Wide Applications: Suitable for terrain mapping, agriculture, forestry, power line inspection, environmental protection, and more.

Recommended Additional Items:

• Servos:
• 4x ES3054 Servos
• 1x ES MD08 Servo (Parachute Bay)

• Motors:
• 1x Pair of 3DXR 2820 600kv Motors

• Propellers:
• 2x 3DXR 12x6 Props (T-Motor Hybrid-Tech CW and CCW)

• ESCs:
• 2x 6S ESC (e.g., Hobbywing X-Rotor Pro 40/50 amp)

• Airspeed Sensor:
• 1x DLVR Airspeed

• Flight Control and Telemetry:
• 1x Cube Orange and Here3
• Your chosen control and telemetry system

Manufacturers Specification:

• Fuselage Length: 1070 mm

• Fuselage Height: 185 mm

• Wing Area: 51 dm²

• Wingspan: 1960 mm

• Battery Compartment: 260 x 140 x 105 mm

• Load Compartment: 120 x 150 x 119 mm

• Maximum Take-off Weight: 5.5 kg

• Load Weight: Approx. 670 g (Sony A7RM2)

• Recommended Flight Speed: 20 m/s

• Range: About 90 km (take-off weight about 5 kg, flight altitude 500 m, light wind)

 Features:

• Material: EPO, lightweight and durable.

• Hatch Cabin Design: Convenient and reliable inching design.

• Fuselage Capacity: Bigger and more reasonable.

• ESC Hatch Cover: Removable for easy ESC replacement.

• Aileron Servo: Removable without modifying the servo cable.

• Bottom Buffer Layer: Reduces landing impact, protects fuselage and camera.

• Ergonomic Rear Fuselage: Easier lifting and more stable throwing.

• Tilt Photography Support: Meets 1:1000 and 1:1200 aerial survey standards.

• Landing Options: Supports hand throwing and parachute landing.

PNP Version Includes

• All electronic gears for PNP are packed in the box; the end user needs to assemble them.

Installation Attention:

• High Current Connector Welding: Ensure correct welding line sequence to avoid burning ESC and servo.

• Servo Recommendation: Use Emax ES3154 digital servo or similar for easy installation and quick release of the vertical stabilizer.

Flying Attention:

• Avoid Stalling: Do not fly or swerve at 10 m/s.

• Pre-flight Check: Ensure motor and propeller are correctly installed and secure, and all connections are reliable.
