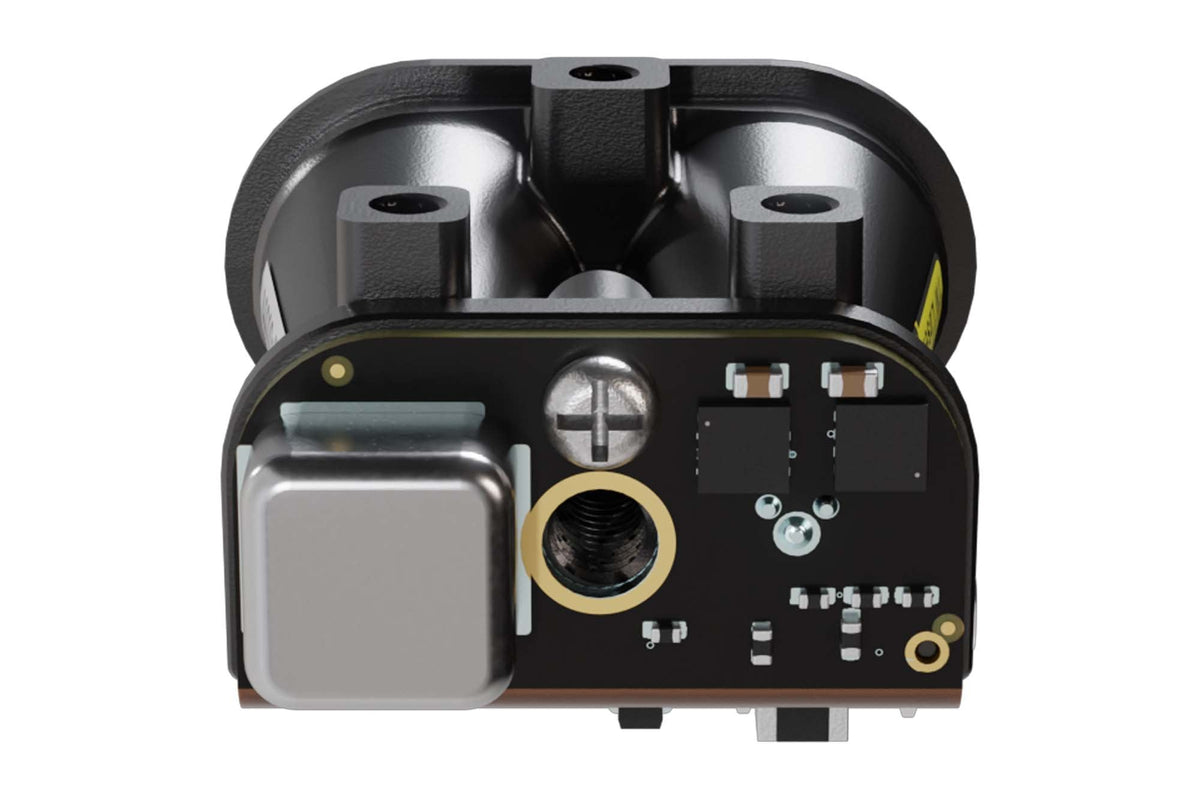

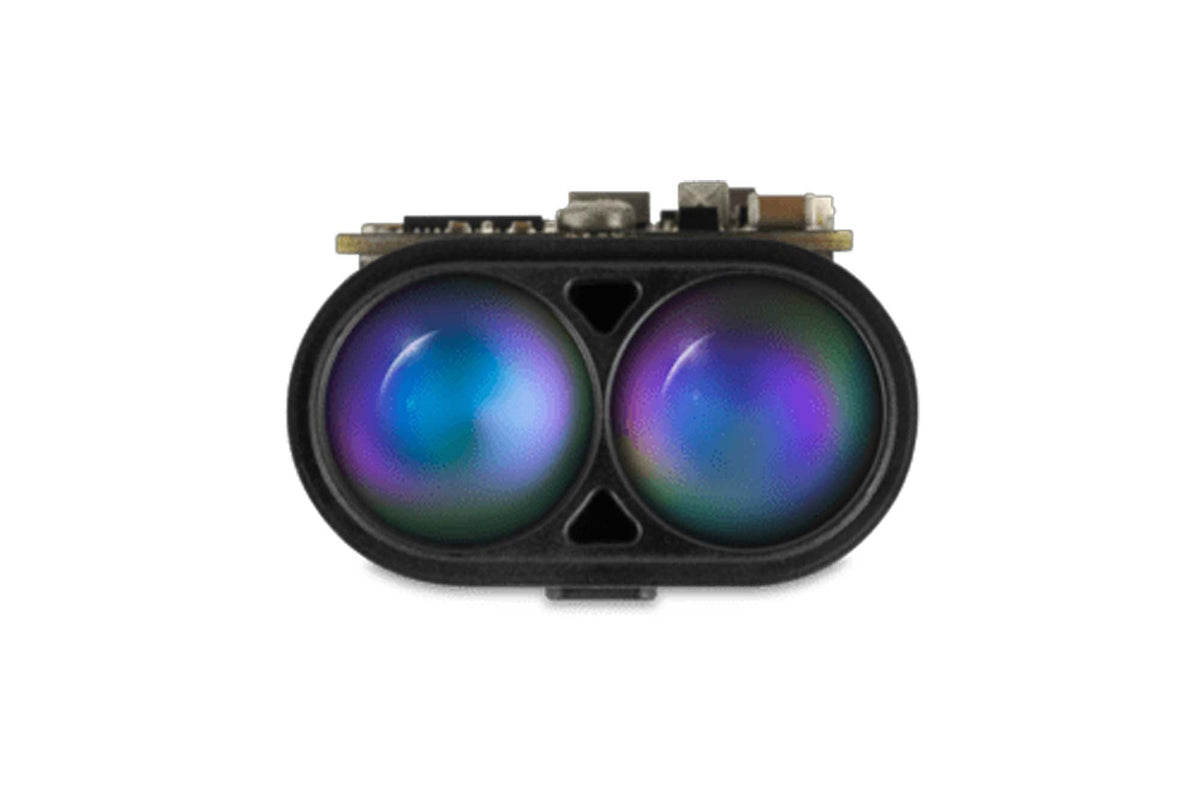

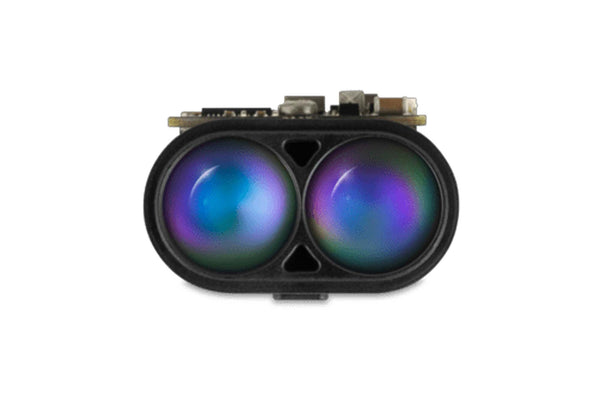

LightwareLightWare GRF-500 (500m) Laser Rangefinder

LightWare LiDAR GRF-500 Laser Rangefinder is a compact, ultralight 500m/1640ft laser rangefinder optimized for low power consumption and easy integration with EO/IR gimbals and ranging measuring systems. The LightWare LiDAR GRF-500 utilizes the time-of-flight principle to measure distance to objects. The system emits a rapid succession of laser pulses that reflect off the targeted object until the receiver reaches the designated lasing time. GRF-500 utilizes 905nm laser technology, ensuring optimized performance while meeting class 1M eye safety standards.

Features:

• Compact and ultralight 500 meter / 1640 ft laser rangefinder
• Optimized for low power consumption
• Easily integrates with EO/IR gimbals and ranging measuring systems
• Utilizes time-of-flight principle to measure distance to objects
• 905nm laser technology
• Meets class 1M eye safety standard
• LiDAR type - Single Beam
• Wavelength - 905nm
• Range - 0.2m to 500m / 0.6 to 1640ft
• Update rate - 0.5 to 10 readings per second
• Signal processing - 1 to 5 distance outputs / first and last
• Weight - 10.7g / 0.377oz
• Size - 32mm x 34mm x 21mm / 1.3 x 1.4 x 0.8 inches
• Interfaces - USB, Serial UART and 12C (3.3 V TTL, 5V tolerant)
• Integration - Arduino, Raspberry Pi and LW Studio (PX4 and Ardupilot to follow)

Specification:

• Performance
  • 0.2m to 500m/0.6ft to 1640ft range (at 5Hz update rate, 40% albedo, 23km visibility, 4m x 4m target size)
  • 0.5x to 10x readings per second (customizable to suit application)
  • 10cm/3.93” resolution
  • ±50cm/±19.6” accuracy (1 sigma)
  • <1% false alarm rate
  • 20m target discrimination on same type targets
  • Maximum of 5x targets
• Connections
  • 4.5V to 5.5V power supply voltage
  • 120mA typical power supply current, 250mA surge at startup
  • Serial UART and I2C outputs and interfaces (3.3V TTL, 5V tolerant)
• Form factor

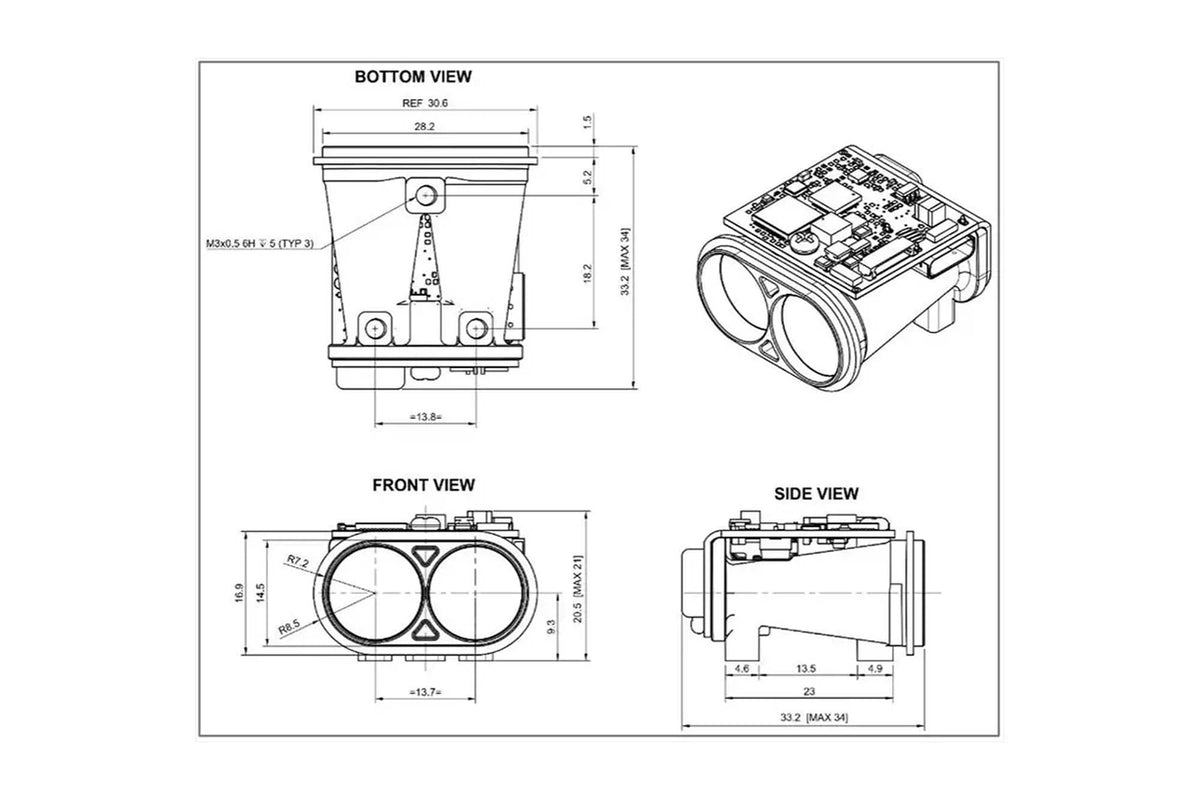

  • 32mm x 34mm x 21mm (1.3" x 1.4" x 0.8") dimensions
  • 10.7g/0.377oz weight (excluding cables)
• Environmental
• -20°C to 60°C operating temperature range
• IP67 front face enclosure rating
• Optical

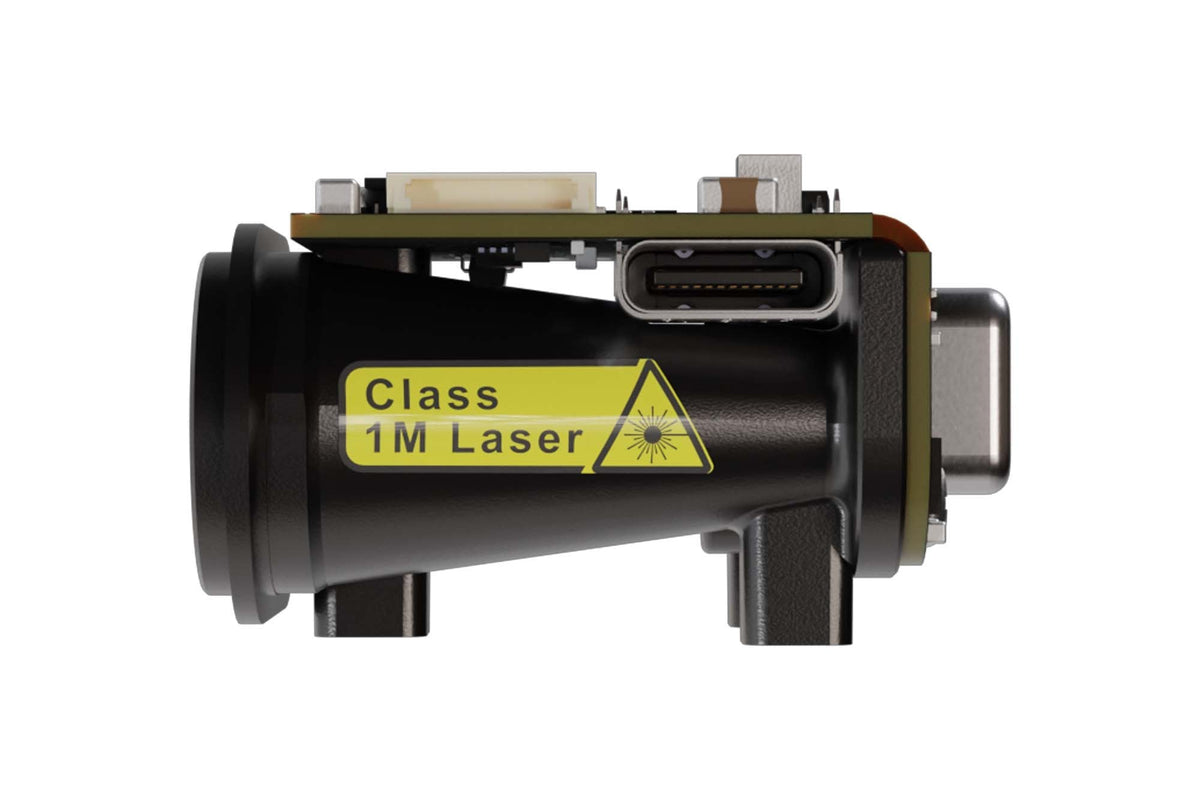

  • Class 1M laser safety
  • 12.7mm/0.5" optical aperture
  • <0.5° beam divergence
  • ±1.5° mechanical boresight with respect to the mechanical interface
  • Approvals
    • FDA Accession: 2422320-000 (2024/12)
    • NDAA Section 848 compliant
    • Blue UAS ready
    • ROHS3 and REACH compliant
    • CE (designed for, scheduled for testing)
• Default settings
  • Baud rate 115200, 1x start bit, 1x stop bit, no parity serial port settings
  • 0x66 (Hex), 102 (Dec) I2C address
  • 5x readings per second update rate

Package contains:

• 1x Lightware GRF-500 Laser Rangefinder
