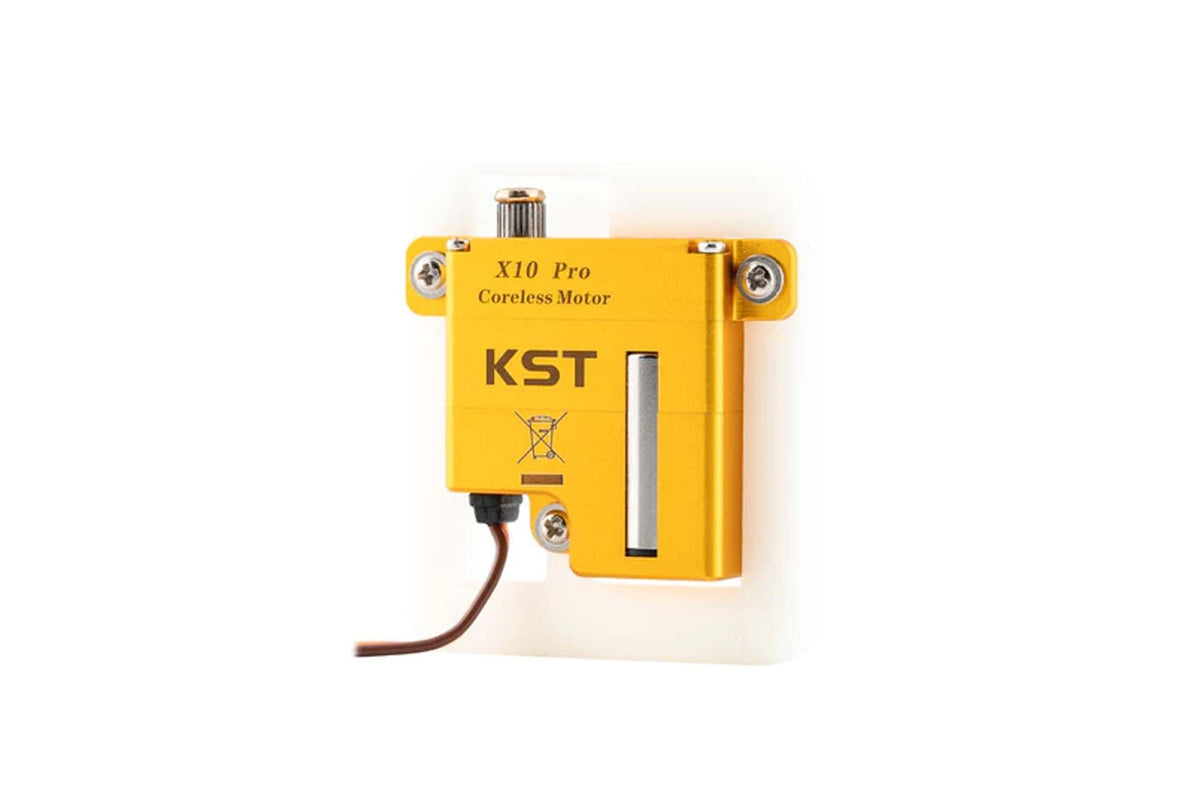

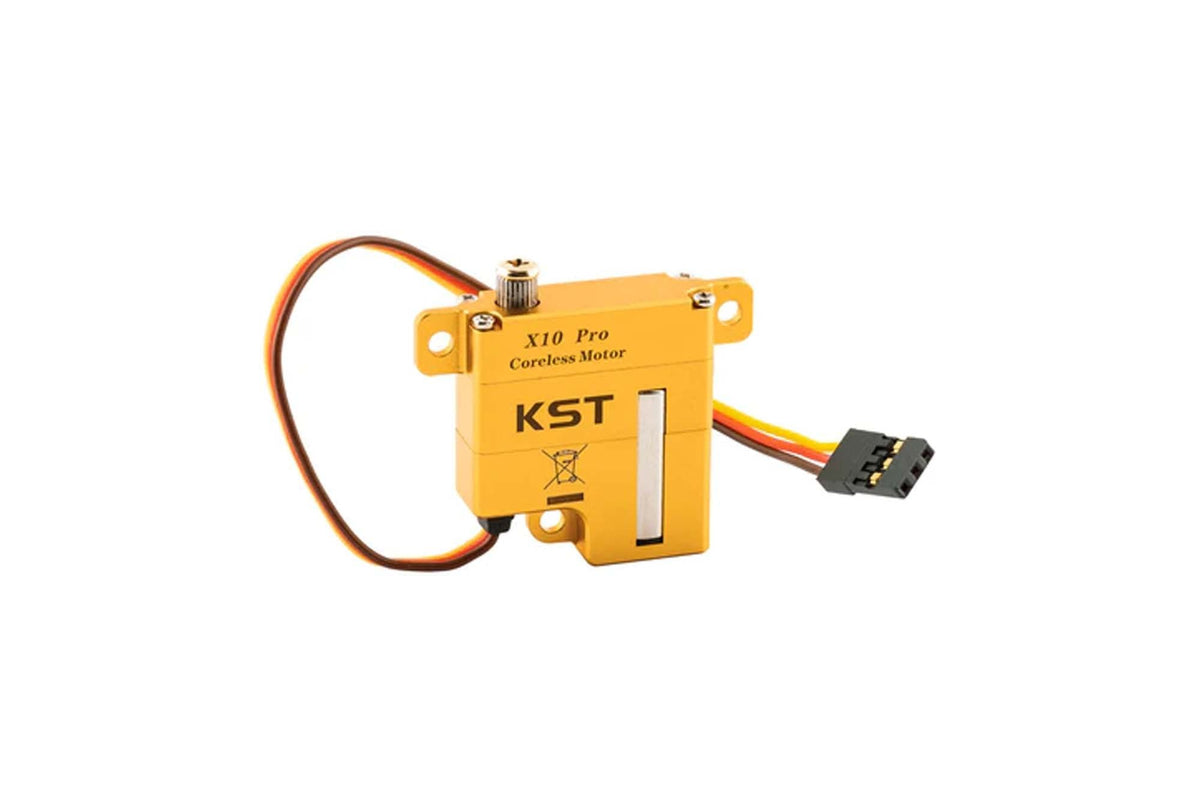

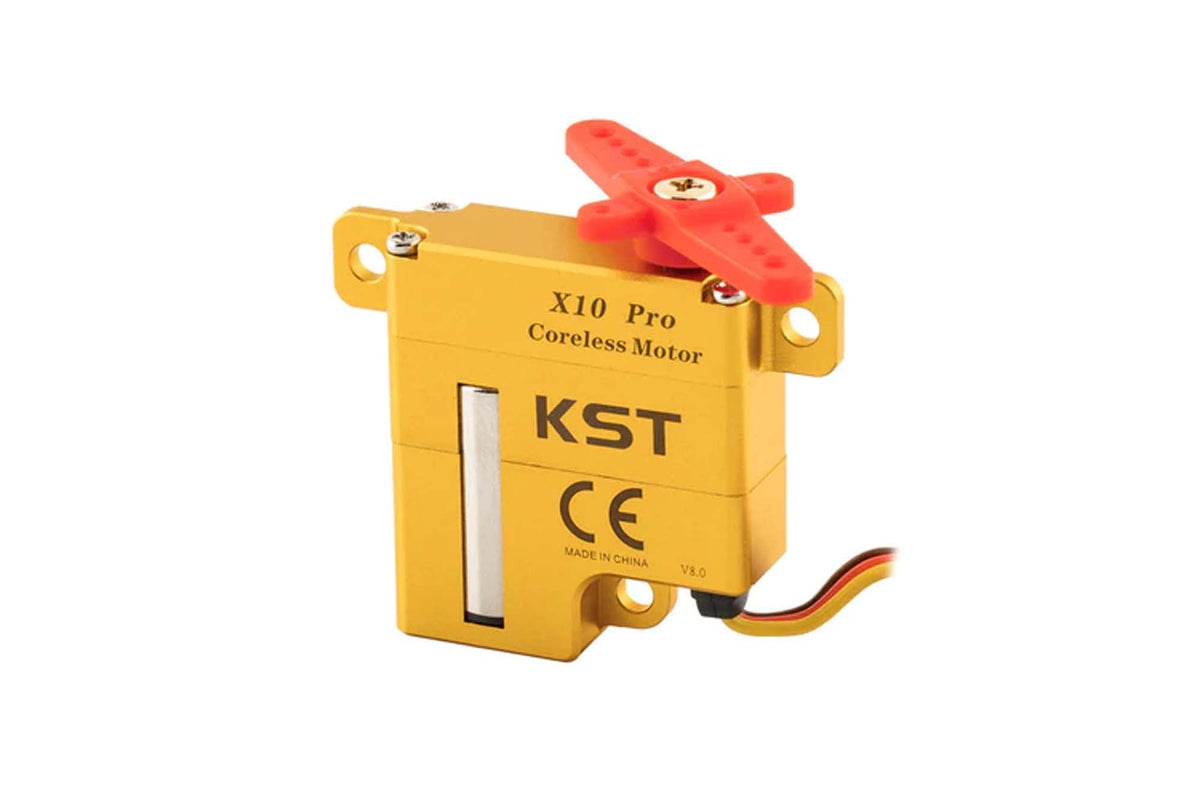

Name: KST- X10 Pro-A Digital Metal Gear Servo 11.5Kgf.cm
Brand: KST
SKU: KST-02-08-X10-Pro-A
Price: 54.99 GBP
Availability: InStock

KST- X10 Pro-A Digital Metal Gear Servo 11.5Kgf.cm

Product Specifications

Product Details

Introducing the new KST X10 Pro servo, designed to take your competition gliders and large-scale gliders to new heights.

Compared to its predecessor, the X10 Pro surpasses expectations with its compact size, yet boasts an impressive 11.5kgf.cm high torque and a blazing fast 0.10sec speed. Built with hardened steel gears, it ensures durability and precision, making it reliable for demanding flights.

Customize your experience with the programmable features of the X10 Pro servo, tailoring it to your specific needs. Elevate your flight experience and conquer the skies with the KST X10 Pro servo, your ultimate choice for gliding excellence.

Product Details

Introducing the new KST X10 Pro servo, designed to take your competition gliders and large-scale gliders to new heights.

Compared to its predecessor, the X10 Pro surpasses expectations with its compact size, yet boasts an impressive 11.5kgf.cm high torque and a blazing fast 0.10sec speed. Built with hardened steel gears, it ensures durability and precision, making it reliable for demanding flights.

Customize your experience with the programmable features of the X10 Pro servo, tailoring it to your specific needs. Elevate your flight experience and conquer the skies with the KST X10 Pro servo, your ultimate choice for gliding excellence.

Specification:

Item: X10 Pro Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque: 6.5Kgf.cm@4.8V, 8.5Kgf.cm@6.0V, 10.5Kgf.cm@7.4V, 11.5Kgf.cm@8.4V
Speed: 0.16sec/60°@4.8V, 0.14sec/60°@6.0V, 0.12sec/60°@7.4V, 0.10sec/60°@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±60°=120° Total
Temperature Range: -10℃.......+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Hardened Steel
Position Sensor: Potentiometer
Case Dimensions: 30mm*10mm* 33.5mm±0.2mm
Weight: 25g±10%

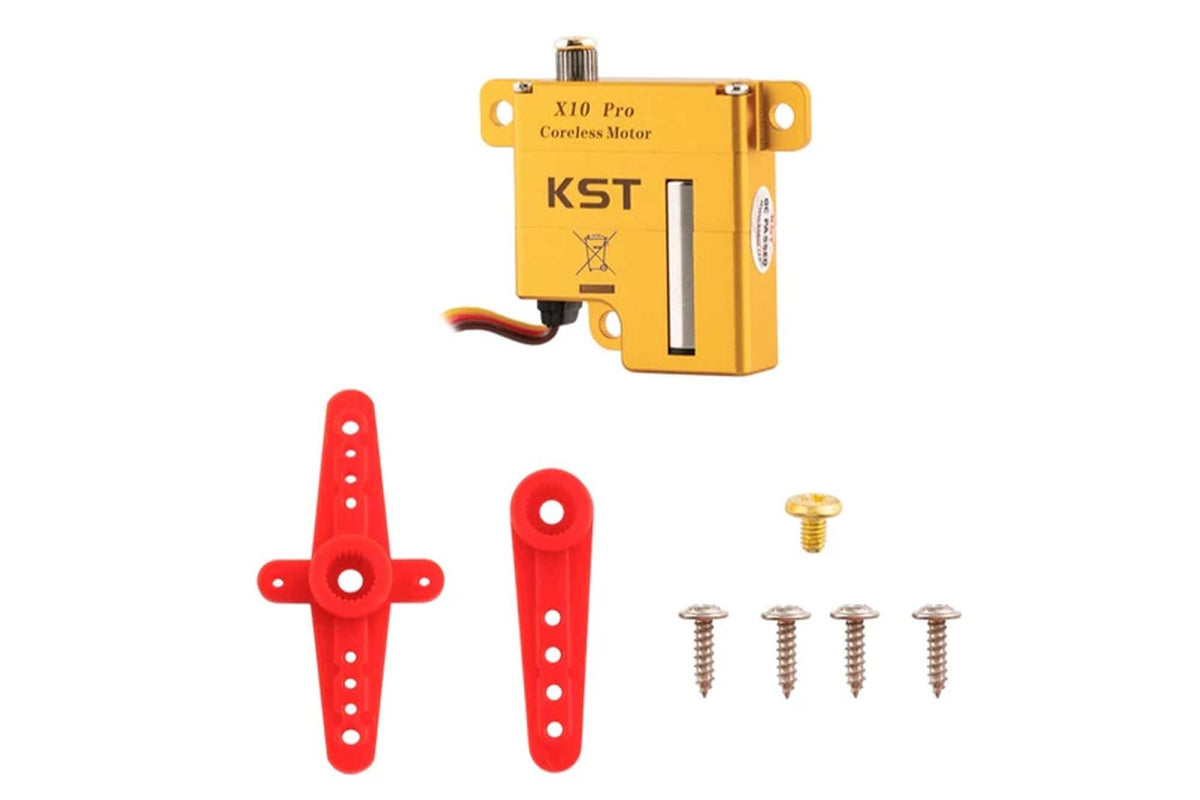

Package Contains:

1x X10 Pro Standard Servo
1x Servo Horn Screw
2x Plastic Servo Horn
4x Mounting Screw
