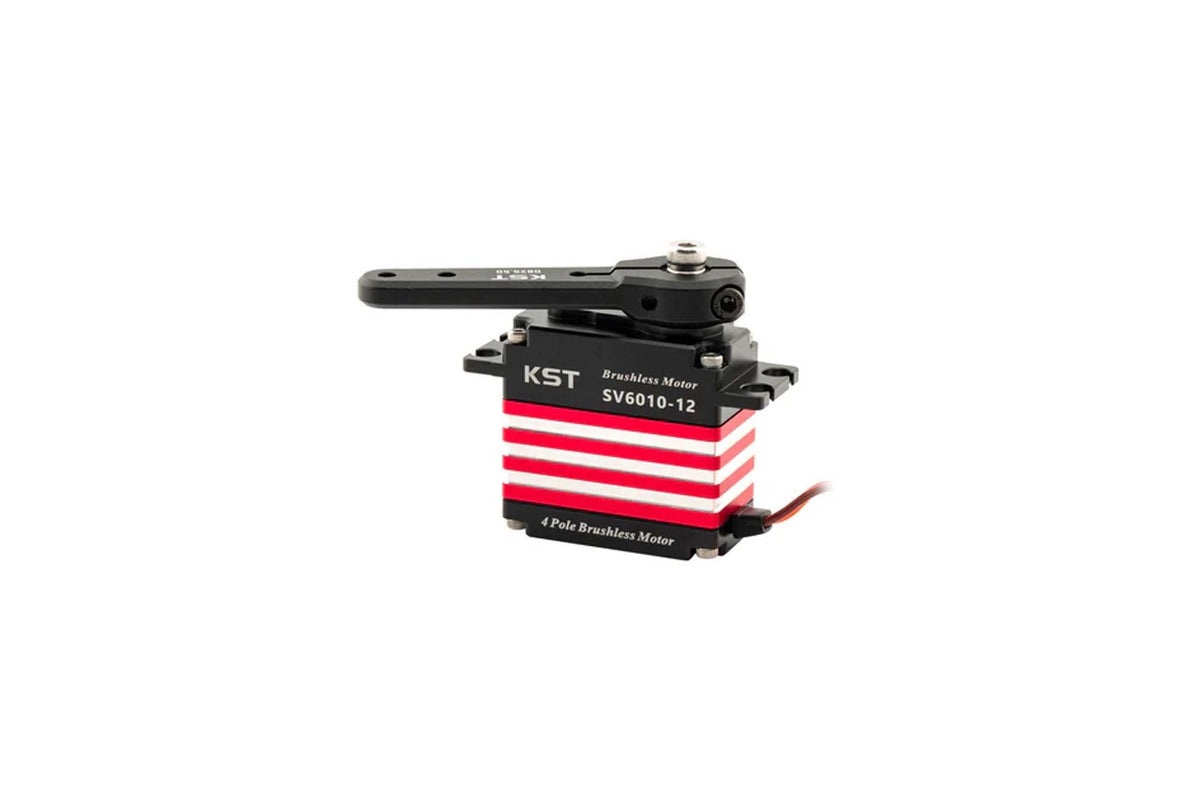

KSTKST - SV6010-12 HV Brushless Metal Gear Servo

The SV6010-12 is a high-quality standard-sized HV brushless servo built to withstand heavy use and provide an impressive 70Kgf.cm of torque at 13V with a rapid speed of 0.09sec/60°. The SV6010-12 HV brushless servo also features an oversized 8mm spline design for the most secure servo horn mounting in the standard servo category. The SV6010-12 provides unparalleled power, precision, and rugged construction,  perfect for large-scale RC cars and planes.
Designed to operate with either 12V (DC) or up to 3S LiPo battery direct drive, the SV6010-12 is reliable and steady in any situation. With contactless magnetic sensors, also known as  Hall effect sensors, the SV6010-12 improves accuracy, repeatability, and reliability.

Features:

• Rated DC 12V High Voltage or Up to 3S LiPo Battery Direct Drive
• Support 8-13V High Voltage
• Ultra High Torque & Excellent Speed
• Programmable
• 8mm Spline Design
• Dual Ball Bearings
• Brushless DC Motor
• Aluminium Servo Horn
• Ideal for large-scale RC Cars & RC Planes

Specification:

• Item: SV6010-12 Servo
• Rated Voltage: DC12V
• Voltage Range: DC8.0V-13.0V
• Torque: 50Kgf.cm@8.4V / 60Kgf.cm@12V / 70Kgf.cm@13V
• Speed: 0.13sec/60°@8.4V / 0.10sec/60°@12V / 0.09sec/60°@13V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±100° =200° Total
• Temperature Range: -10℃.......+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminium Alloy
• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Contactless
• Ball Bearing: 2BB

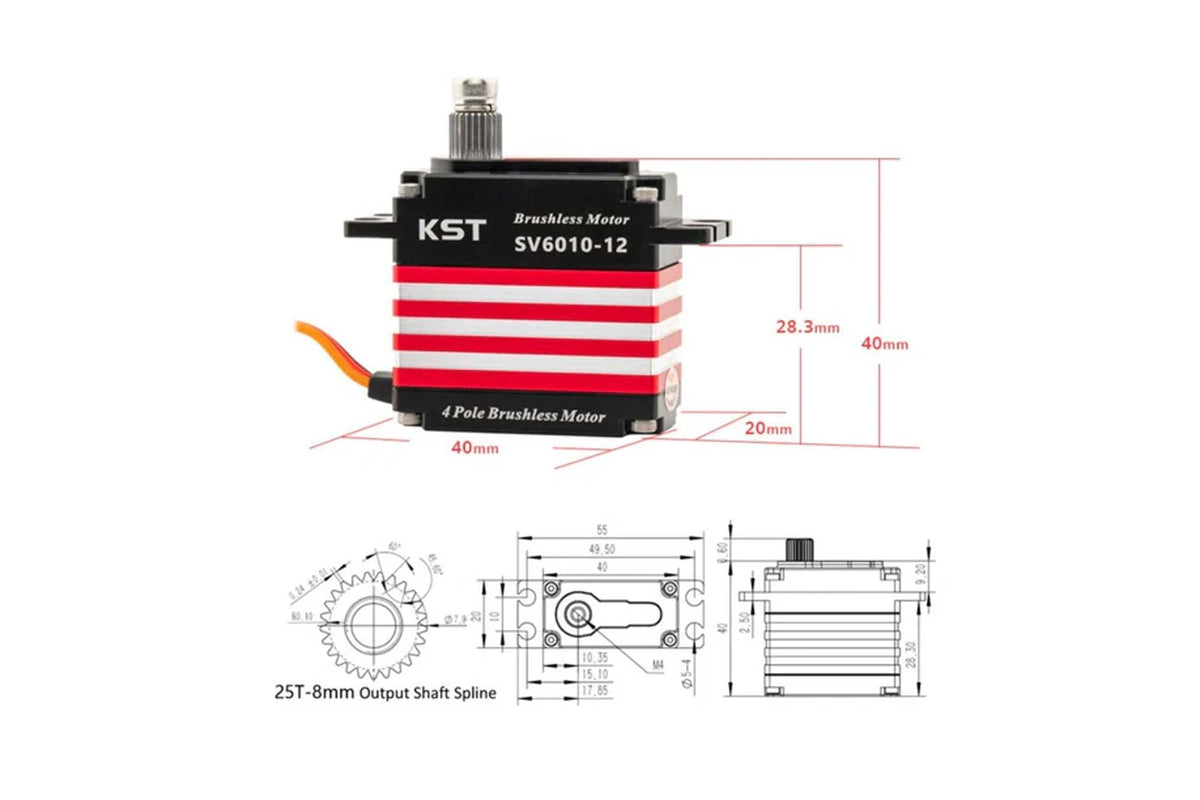

• Case Dimensions: 40*20*40mm±0.2mm
• Weight: 75g±10%

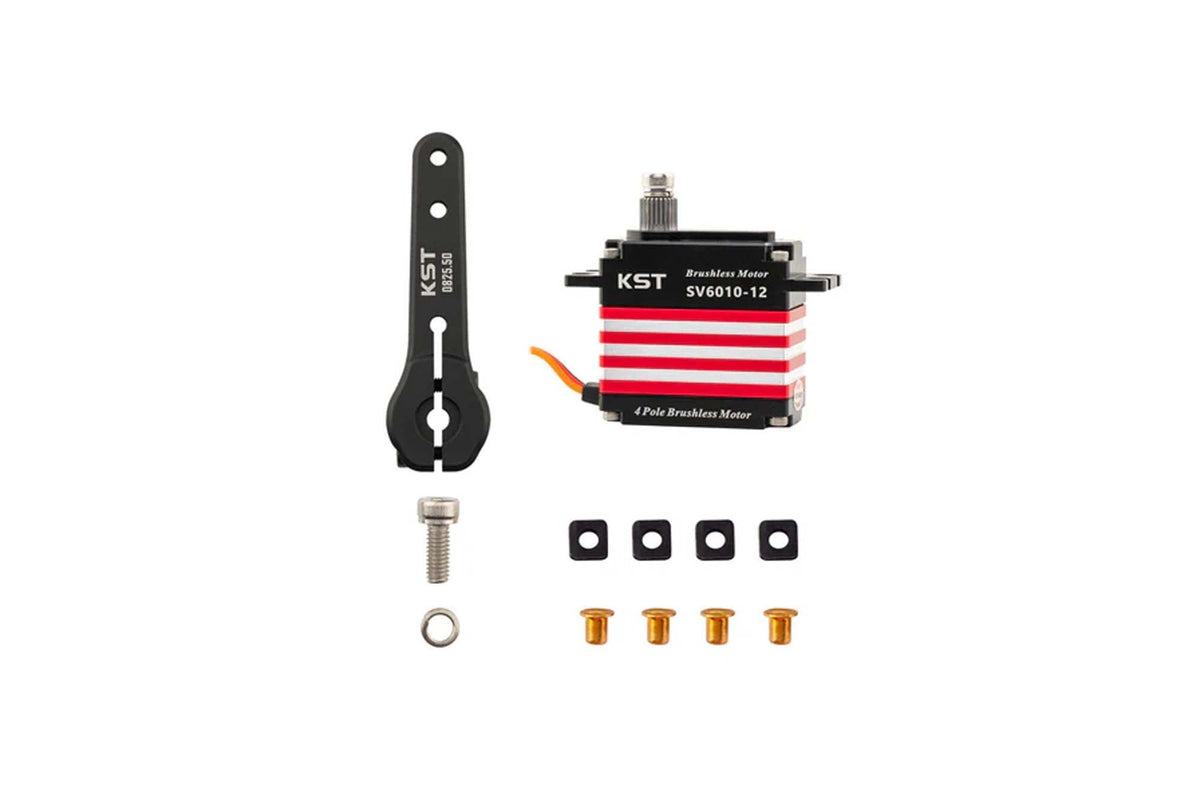

Package contains:

• 1x SV6010-12 Servo
• 1x CNC Servo Horn  (0825.50)
• 1x Servo Horn Screw
• 1x Spring Washer
• 4x Rubber Grommet
• 4x Eyelet
