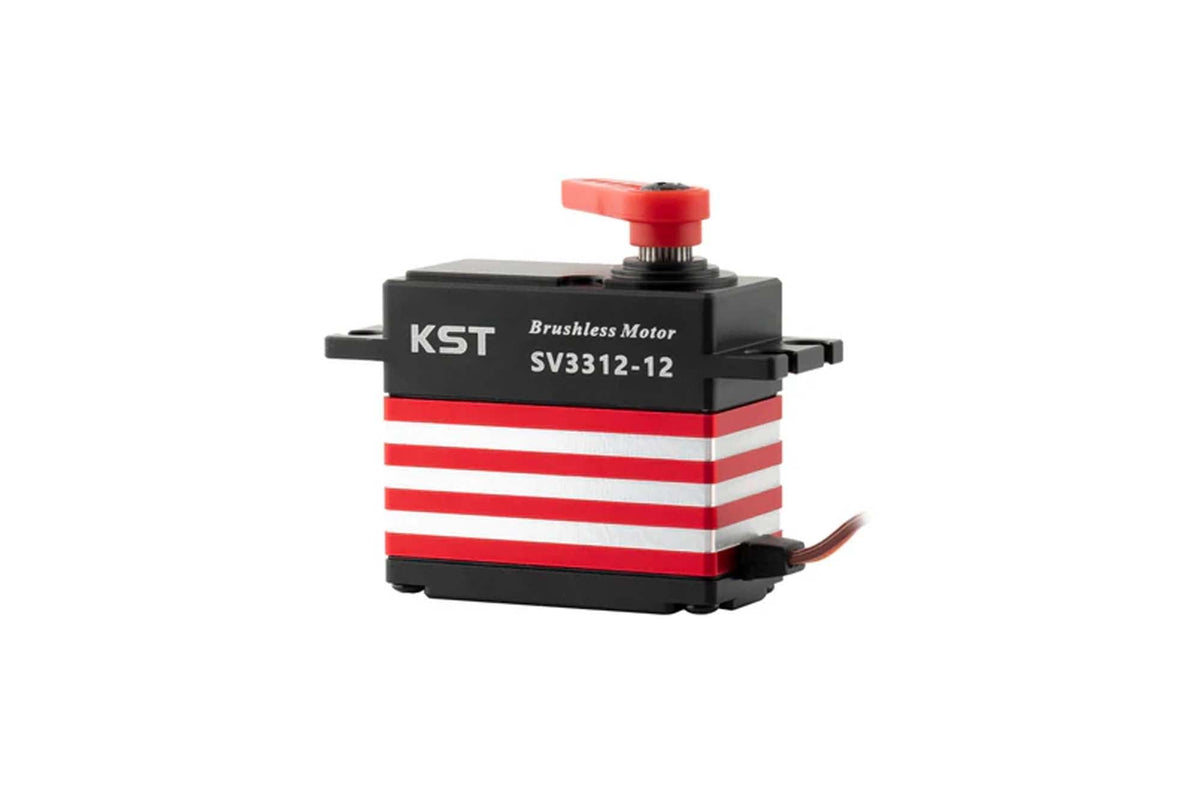

KSTKST - SV3312-12 HV Brushless Metal Gear Servo

Introducing the SV3312-12 HV brushless servo, an outstanding option for 700-800 class RC helicopters and large scale RC planes. These servos deliver exceptional power, providing an impressive 38Kgf.cm of torque at 13V, while maintaining a rapid 0.10sec/60° speed.

Designed to operate with either 12V (DC) or up to 3s LiPo battery direct drive, these servos ensure reliable and steady performance in any situation. With dual ball bearings, our servos have a rock-solid gear train, ensuring pinpoint-accurate operation. This high-voltage servo is built to last, offering unparalleled power, precision, and rugged construction.

Features:

• DC12V High Voltage
• Support 8-13V High Voltage or 2-3S LiPo Battery Direct Drive
• Ultra High Torque & Excellent Speed
• Programmable
• Dual Ball Bearings
• Brushless DC Motor
• Ideal for 700-800 Class RC Helis & Large Scale RC Planes

Specification:

• Item: SV3312-12 Servo
• Rated Voltage: DC12V
• Voltage Range: DC8.0V-13.0V
• Torque: 28Kgf.cm@8.4V / 33Kgf.cm@12V / 38Kgf.cm@13V
• Speed: 0.16sec/60°@8.4V / 0.12sec/60°@12V / 0.10sec/60°@13V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±60° =120° Total
• Temperature Range: -20℃.......+65℃
• Soft Start: Programmable
• Programmable: Yes
• Case Material: Aluminium Alloy
• Motor Type: Brushless DC Motor
• Gear Set Material: Hardened Steel
• Position Sensor: Potentiometer
• Ball Bearing: 2BB

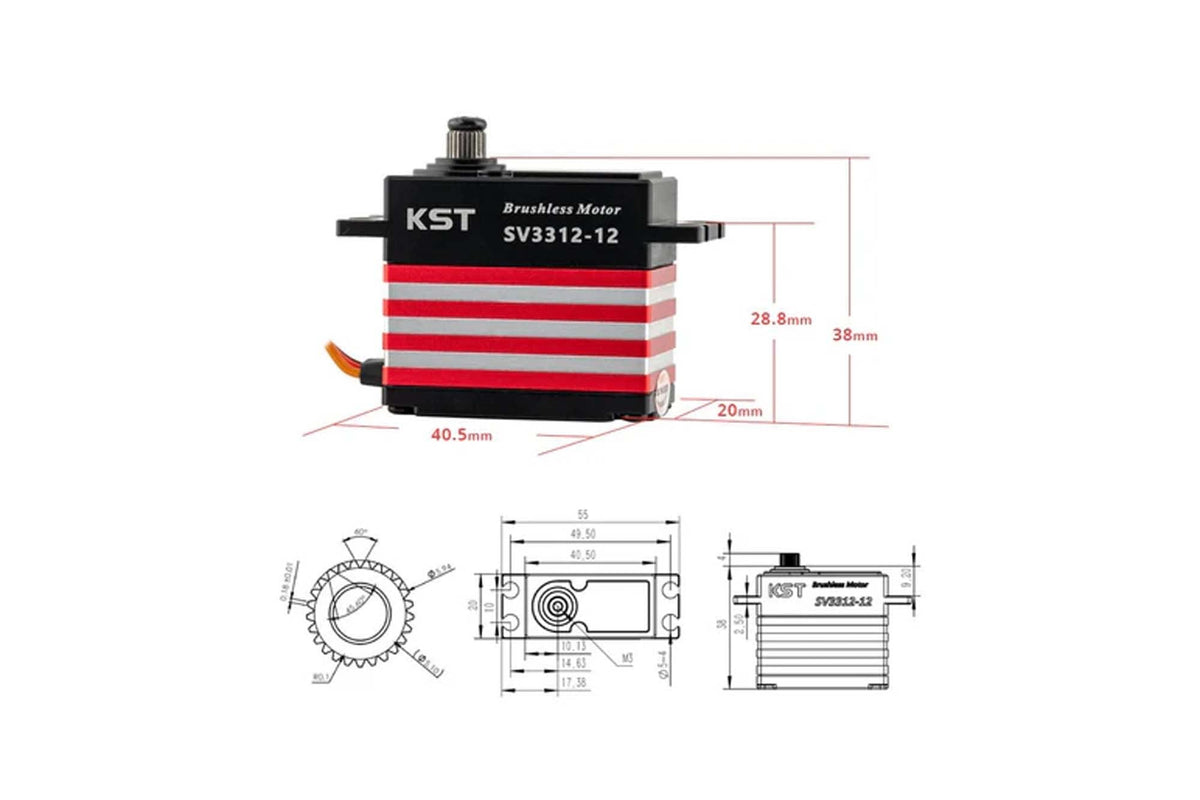

• Case Dimensions: 40.5mm*20mm*38mm ±0.2mm
• Weight: 70g±10%

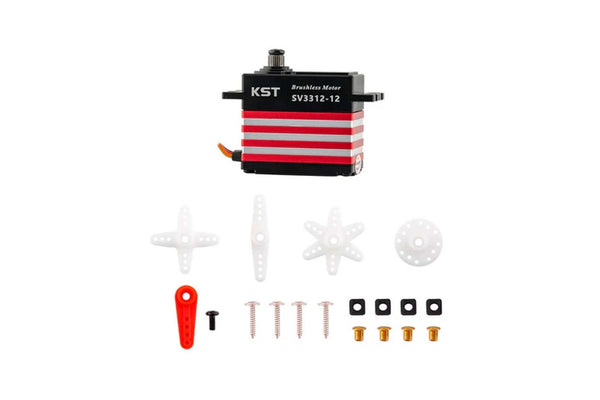

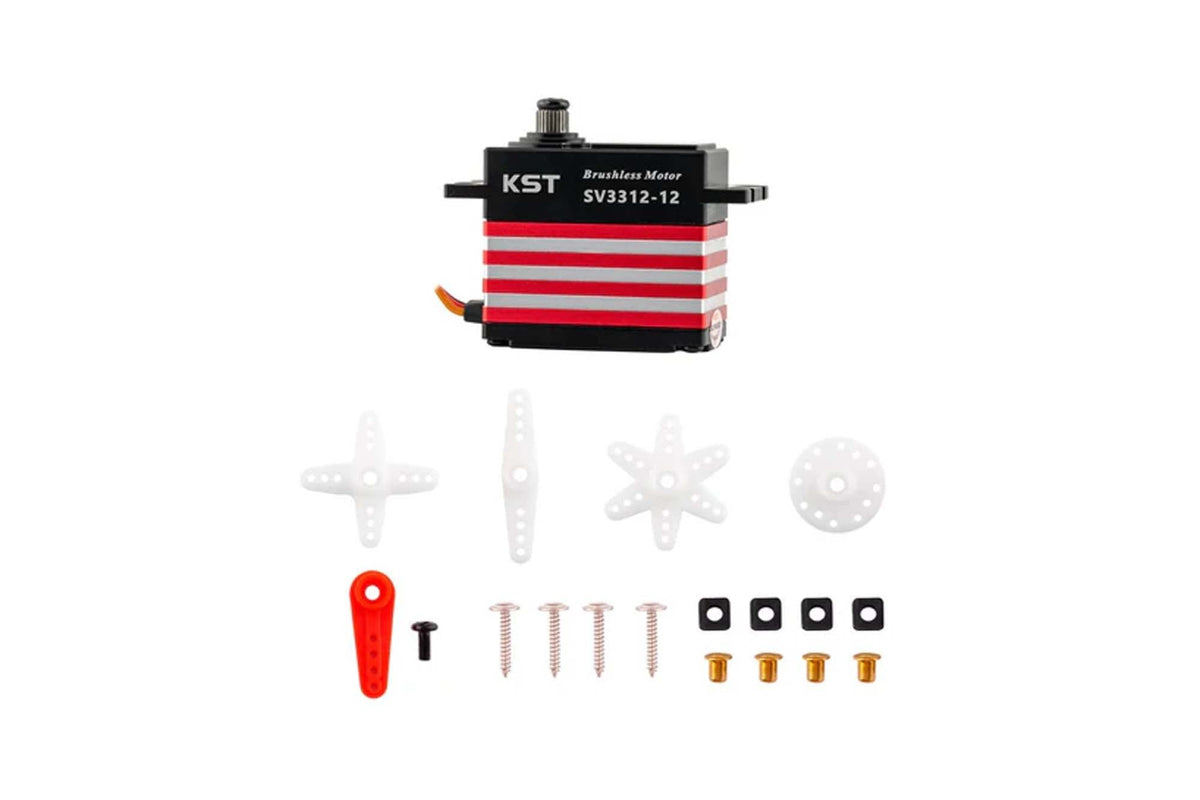

Package contains:

• 1x SV3312-12 Servo
• 5x Plastic Servo Horn
• 1x Servo Horn Screw
• 4x Rubber Grommet
• 4x Eyelet
• 4x Mounting Screw
