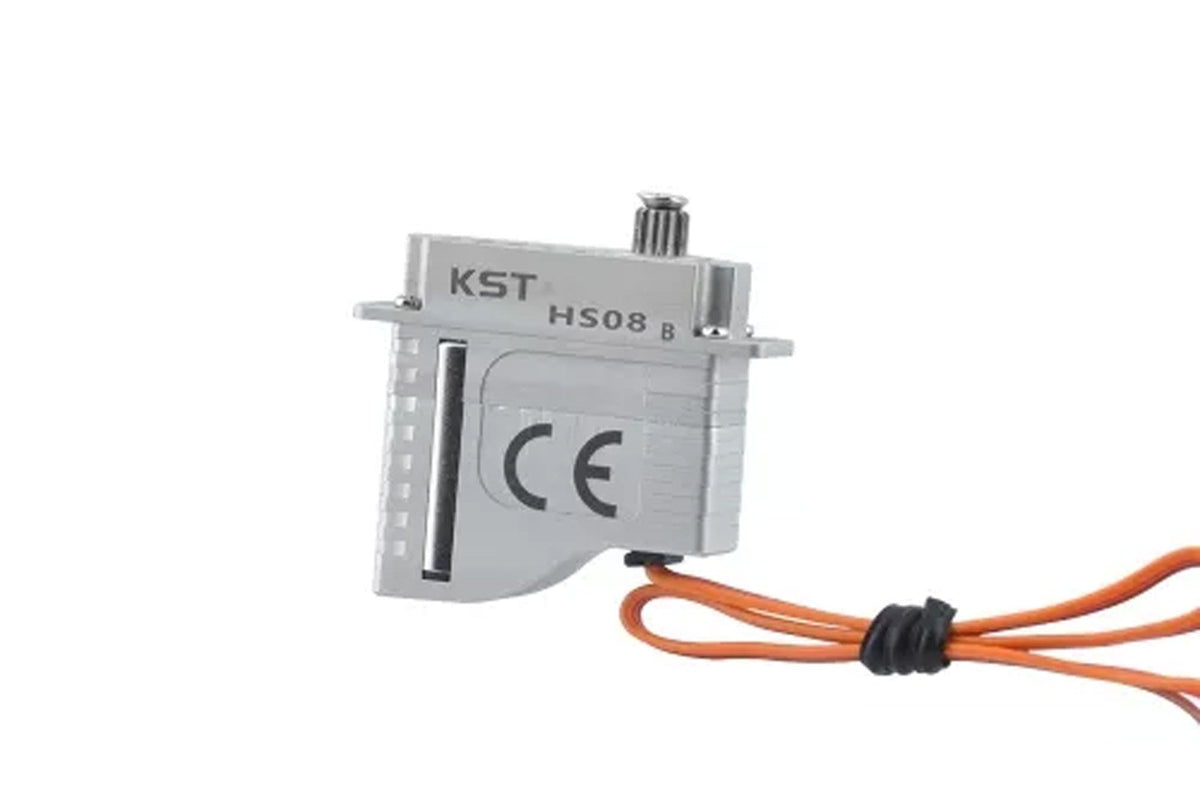

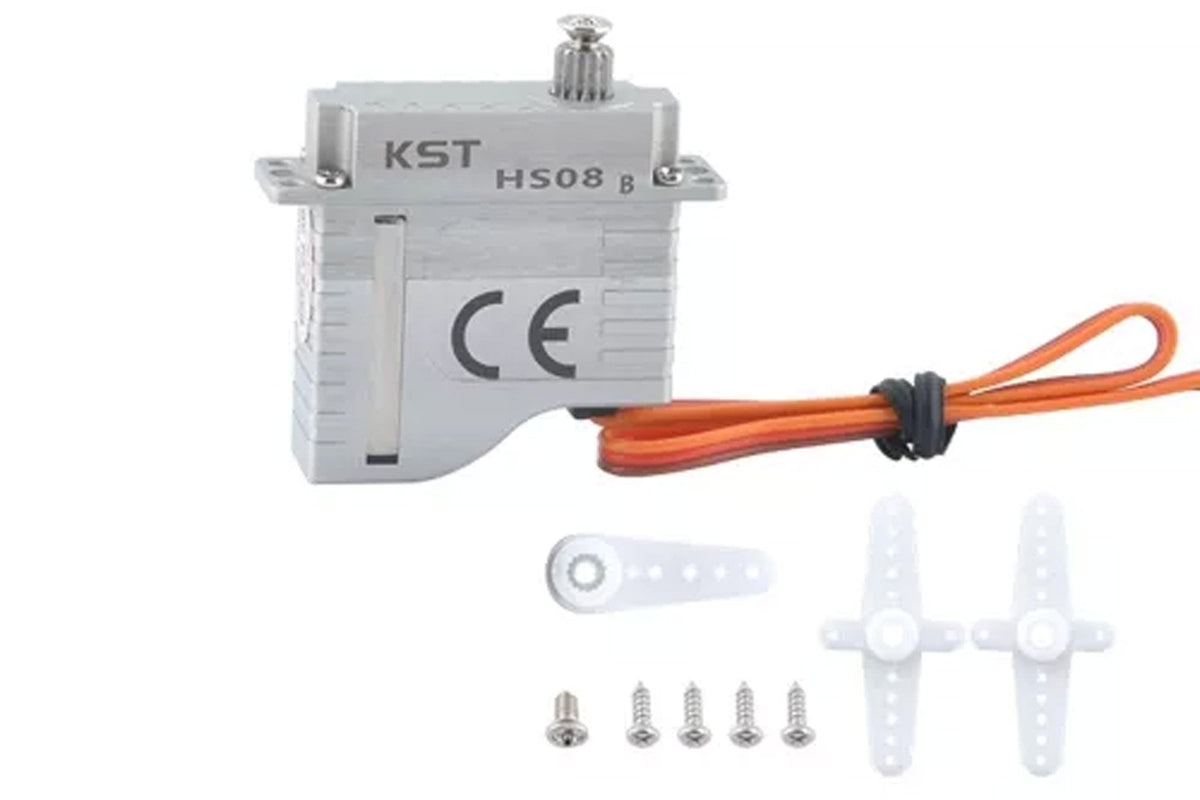

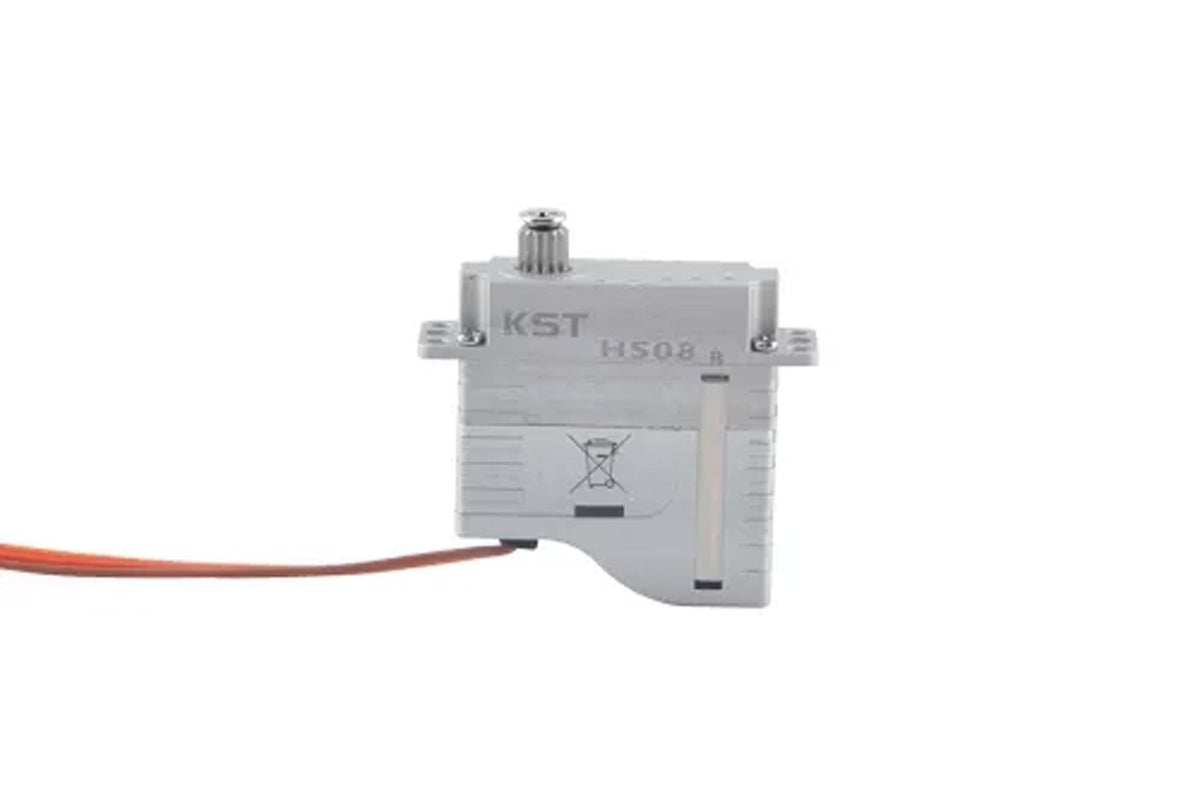

KSTKST HS08-B HV 5.2KG Servo

KST Servos are renowned for Quality at realistic prices.

From Hobby helicopters and gliders to Industrial and UAV applications KST servos have earnt a reputation for performance even under the most demanding conditions. Whether you need to win your next competition event, power a mission critical UAV or operate industrial grade machinery or robotics KST has a solution for you.

 KST delivers once again with the HS08 series competition servos for glider pilots and soaring enthusiasts who demand the best! The all new HS08 are almost as compact as the much loved X08 series and offer power and performance levels to rival the popular X10 Mini servos. Featuring a slim 8mm wide casing crafted from 7075 Alloy not only do these servos look fantastic but they also offer the competition winning performance you would expect from KST.

 The HS08 series are available in 2 mounting tab configurations to make installation a breeze for your models and are perfect for both wing and fuselage mounting requirements. With a hardened steel drive train and a coreless powerplant capable of HV input the HS08 will deliver the power and reliability you need to win!

Specification

• Operating Voltage:DC3.8V-8.4V

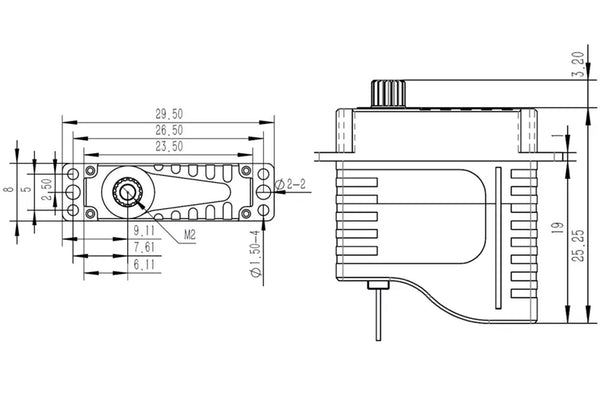

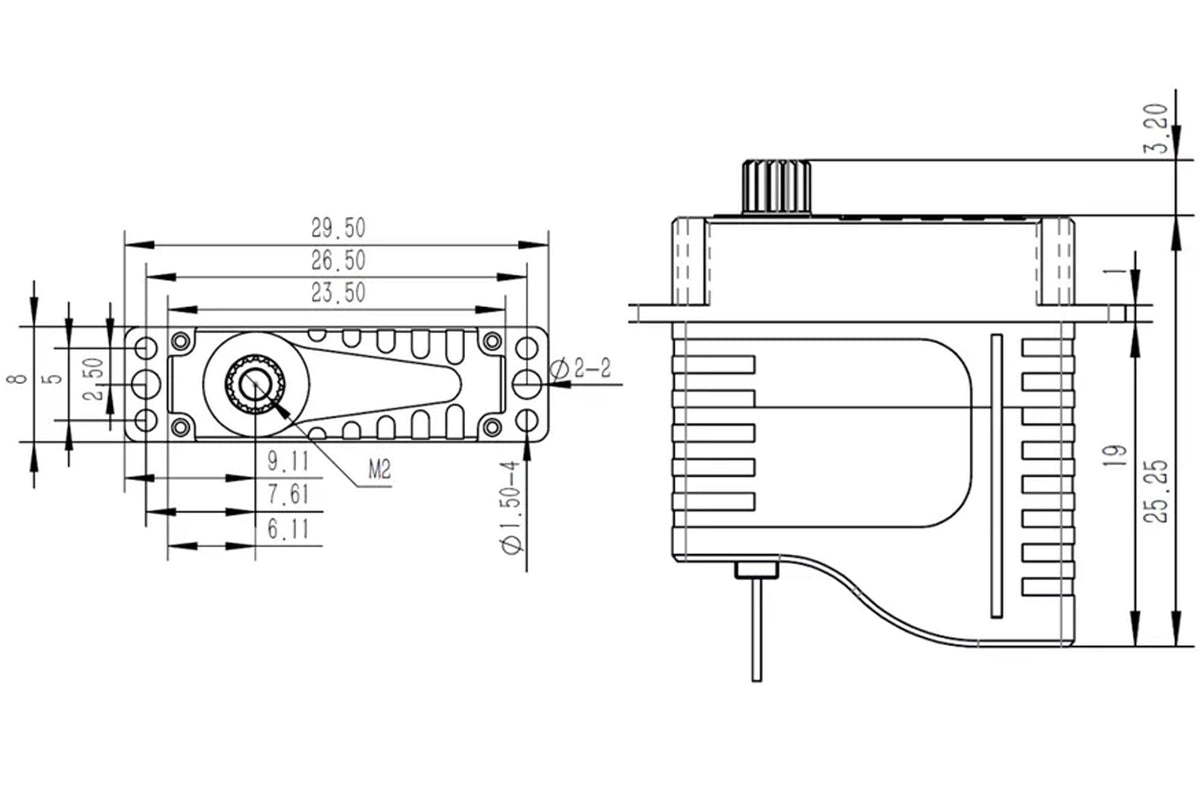

• Size: 23.5mm*8mm*25.25mm
• Torque: 2.8Kg.cm@3.8V 4.5Kg.cm@6.0V 5.2KG@7.4v
• Speed: 0.21sec/60°@3.8V 0.13sec/60°@6.0V 0.11sec/60°@7.4V
• Weight: 11g
• Stall Current: 0.68A
• Rated Current: 0.25A
• Rated Speed: 0.20sec/60°@6.0V
• Default Travel Angle: ±60° = 120° total travel
• Operating Temperature Range: -20°C......+65°C
• Working Frequency: 1520us/333Hz,  1000us-2000us
• Motor: Coreless motor
• Ball Bearing: 2BB
