KSTKST - DS113MG Servo

The new DS113MG V6.0 digital servo power with powerful torque and amazing speed in compact and lightweight design, make it excellent for small-size electric RC plane and glider fuselage. DS113MG V6.0 servo can boast a brilliant 3.5kgf.cm torque and and super fast 0.09sec/60° speed at 8.4V with great precision and reliability.

Weighing only 12g makes DS113MG V6.0 a great servo for small-size electric RC plane and glider fuselage use. The DS113MG V6.0 servo is designed for use with a 2S LiFe or 2S LiPo battery and it can run directly from a 2S LiPo without needing a regulator. Additionally, the newly added program feature can improve your flight experience to the next level. The DS113MG V6.0 is the high voltage replacement of the original DS113MG servo.

Specification:

• Item: DS113MG V6.0 Digital Metal Gear Servo
• Rated Voltage: DC6.0V
• Voltage Range: DC4.8V-8.4V
• Torque: 2.0Kgf.cm@4.8V / 2.5Kgf.cm@6.0V / 3.0Kgf.cm@7.4V / 3.5Kgf.cm@8.4V
• Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.10sec/60°@7.4V / 0.09sec/60°@8.4V
• Stalling Current: 1.00A@4.8V / 1.20A@6.0V / 1.40A@7.4V / 1.60A@8.4V
• Working Frequency: 1520μs/333Hz
• Default Travel Angle: ±50°=100° Total
• Temperature Range: -10℃.......+65℃
• Soft Start: Programmable
• Programmable: Yes
• Motor Type: Core Motor
• Case Material: Plastic
• Gear Set Material: Metal Gear
• Position Sensor: Potentiometer
• Ball Bearing: 1BB

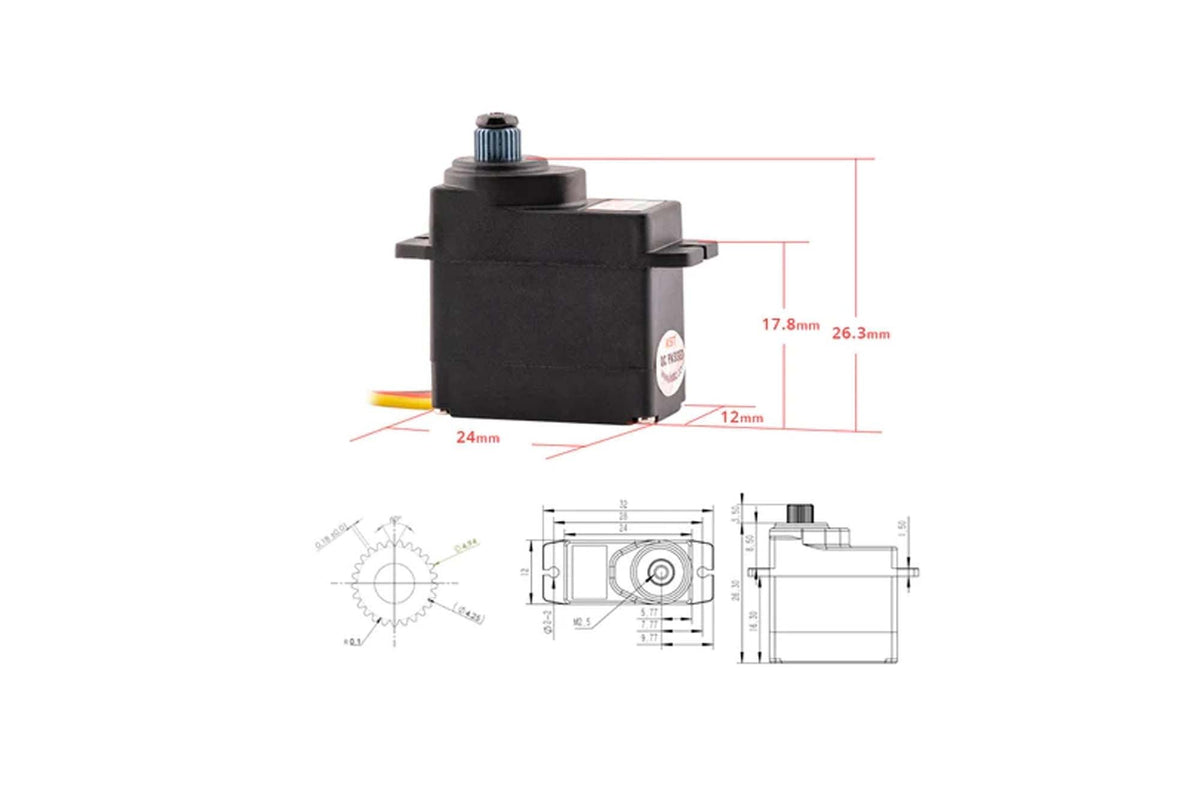

• Case Dimensions: 24mm*12mm* 26.3mm±0.2m
• Weight: 12g±10%

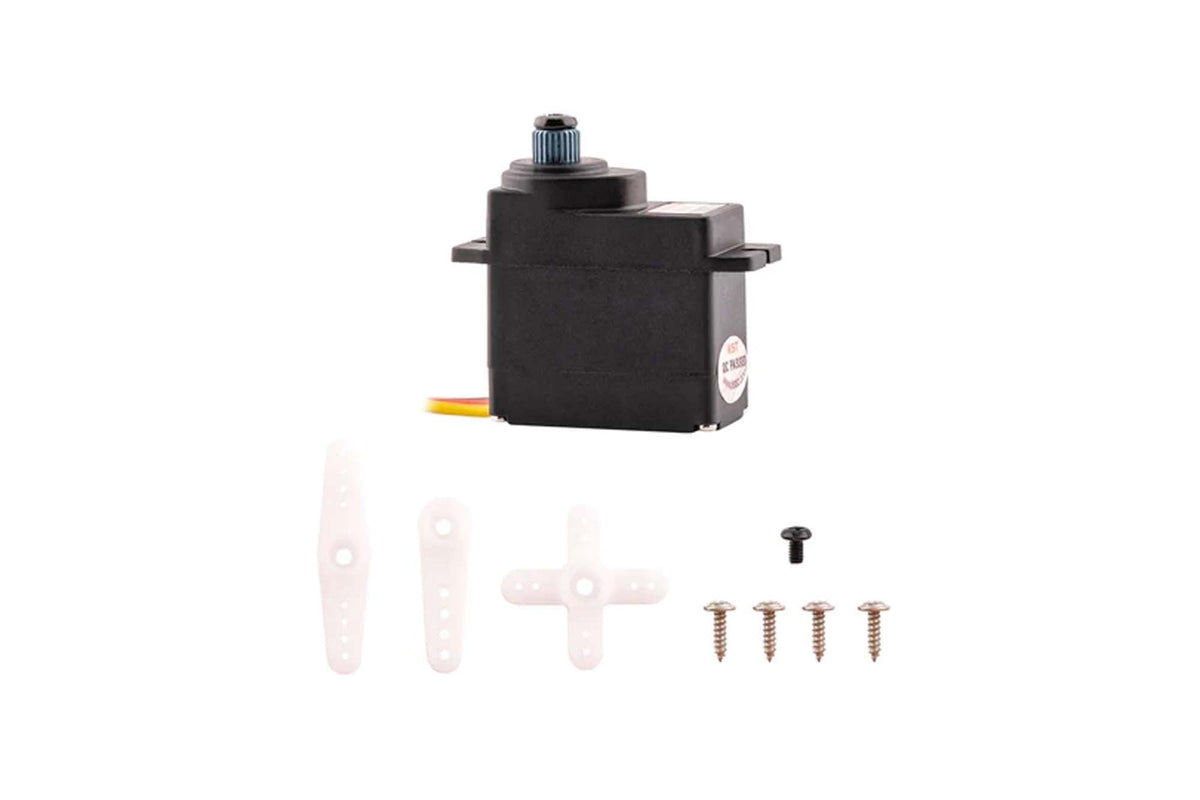

Package Contains:

• 1x DS113MG V6.0 Micro Servo
• 3x Plastic Servo Horn
• 1x Servo Horn Screw
• 4x Mounting Screw
