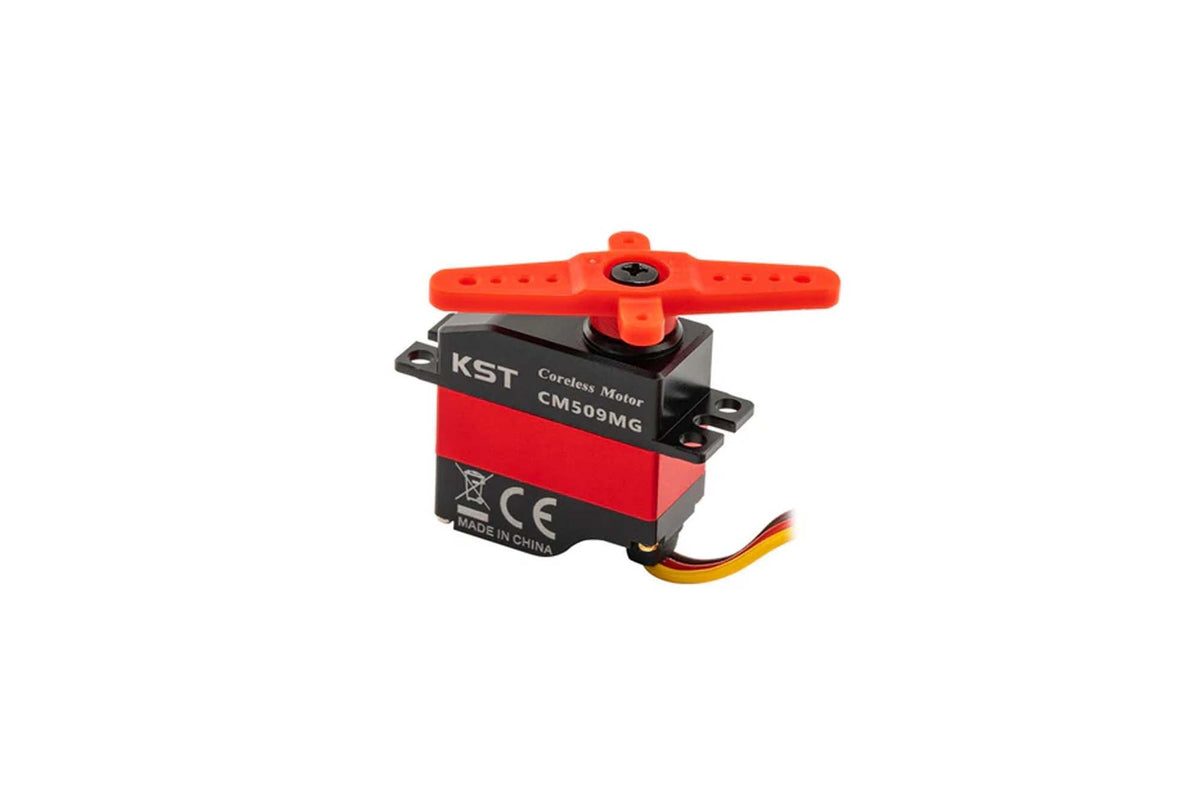

KST - CM509MG Micro Coreless Metal Gear Servo

Product Specifications

Product Details

The CM509MG micro coreless servo with fast response and high torque is perfect for small-scale RC planes and cars. It features an ultra-fast 0.08sec/60° response speed and an amazing 6.0Kgf.cm of torque. The micro-size design makes it perfect for any small-scale RC model. The CM509MG also supports programming, making it one of the most advanced servos of its kind.

Features:

High Torque & Amazing Speed
Compact and Lightweight Design
Programmable
Dual Ball Bearings
Coreless DC Motor
Ideal for Small Scale RC Planes & Cars

Specification:

Item: CM509MG Micro Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque: 3.6Kgf.cm@4.8V / 4.8Kgf.cm@6.0V / 5.5Kgf.cm@7.4V / 6.0Kgf.cm@8.4V
Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.09sec/60°@7.4V / 0.08sec/60°@8.4V
Stalling Current: 0.95A@4.8V / 1.15A@6.0V / 1.35A@7.4V / 1.60A@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10℃.......+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Coreless Motor
Gear Set Material: Metal Gear
Position Sensor: Potentiometer
Ball Bearing: 2BB

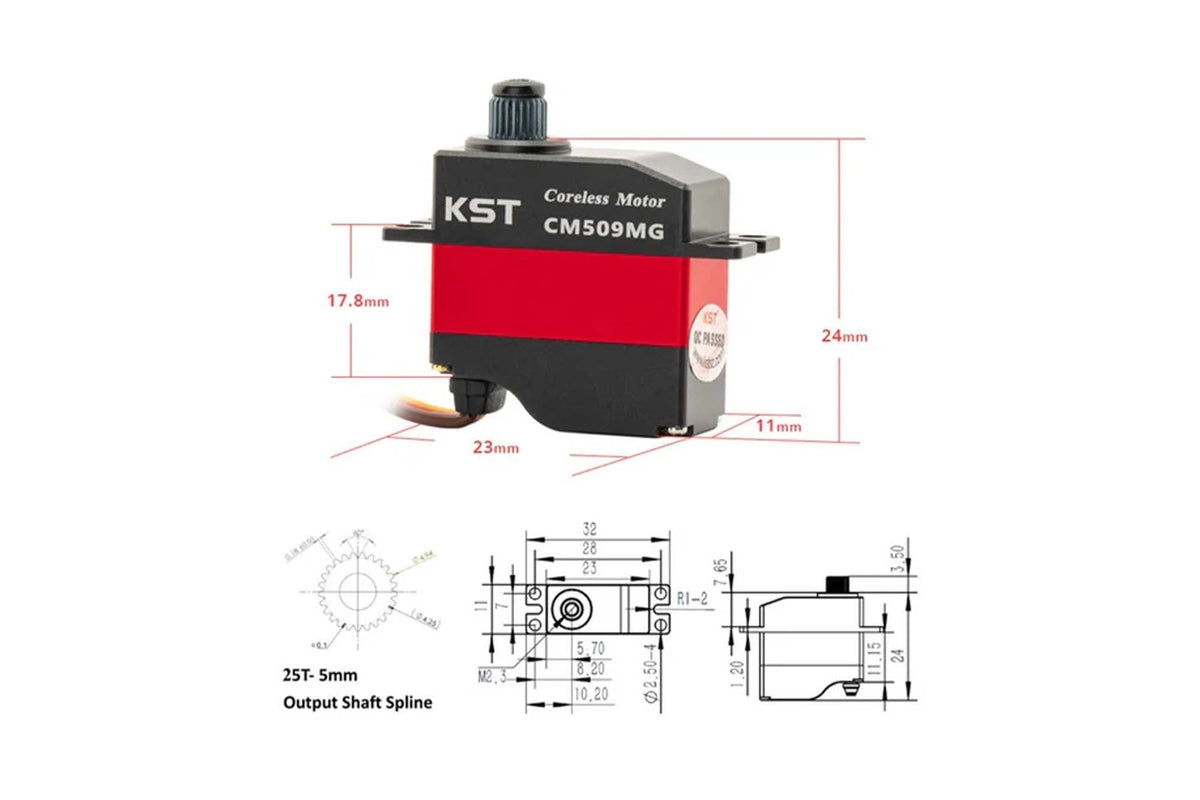

Case Dimensions: 23mm*11mm*24mm ±0.2mm
Weight: 15g±10%

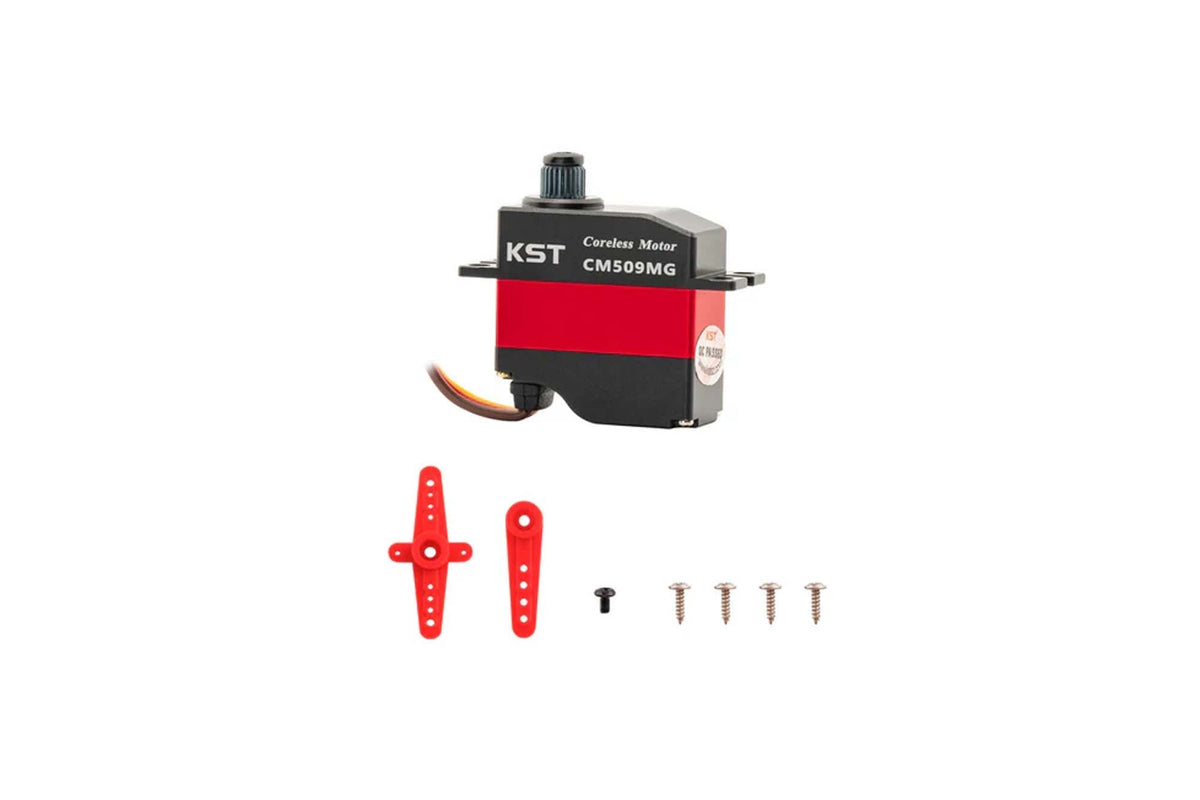

Package contains:

1x CM509MG Micro Servo
2x Plastic Servo Horn
1x Servo Horn Screw
4x Mounting Screw

Product Details

The CM509MG micro coreless servo with fast response and high torque is perfect for small-scale RC planes and cars. It features an ultra-fast 0.08sec/60° response speed and an amazing 6.0Kgf.cm of torque. The micro-size design makes it perfect for any small-scale RC model. The CM509MG also supports programming, making it one of the most advanced servos of its kind.

Features:

High Torque & Amazing Speed
Compact and Lightweight Design
Programmable
Dual Ball Bearings
Coreless DC Motor
Ideal for Small Scale RC Planes & Cars

Specification:

Item: CM509MG Micro Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque: 3.6Kgf.cm@4.8V / 4.8Kgf.cm@6.0V / 5.5Kgf.cm@7.4V / 6.0Kgf.cm@8.4V
Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.09sec/60°@7.4V / 0.08sec/60°@8.4V
Stalling Current: 0.95A@4.8V / 1.15A@6.0V / 1.35A@7.4V / 1.60A@8.4V
Working Frequency: 1520μs/333Hz
Default Travel Angle: ±50° =100° Total
Temperature Range: -10℃.......+65℃
Soft Start: Programmable
Programmable: Yes
Case Material: Aluminium Alloy
Motor Type: Coreless Motor
Gear Set Material: Metal Gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Case Dimensions: 23mm*11mm*24mm ±0.2mm
Weight: 15g±10%

Package contains:

1x CM509MG Micro Servo
2x Plastic Servo Horn
1x Servo Horn Screw
4x Mounting Screw
