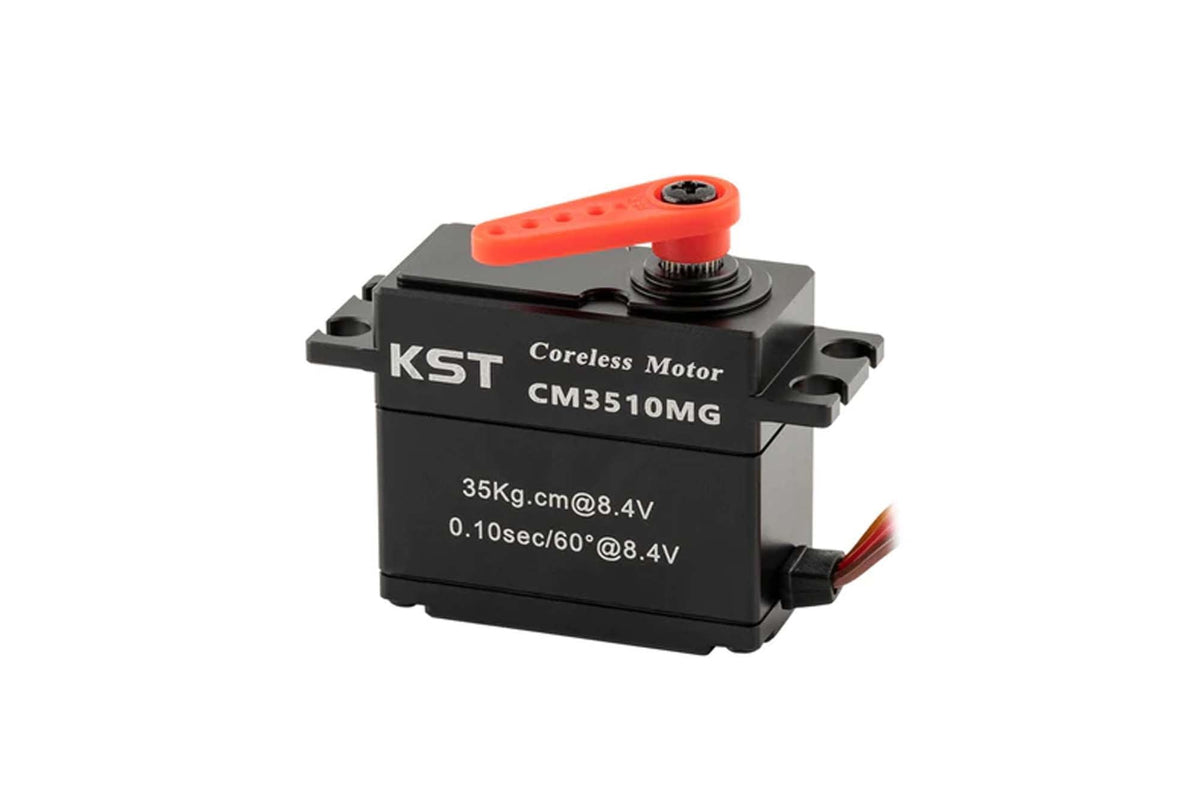

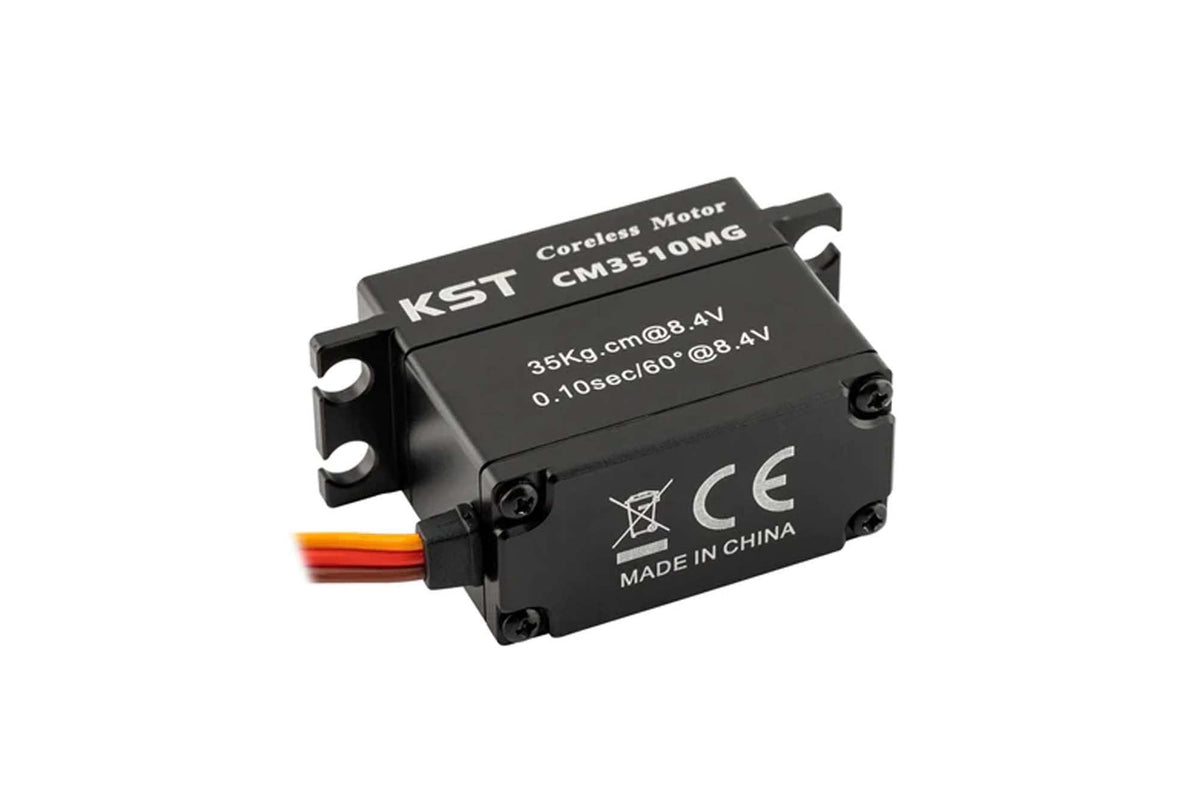

CM3510MG coreless servo with fast response and high efficiency is perfect for 1/10 Scale RC Rock Crawlers and 1/7th to 1/8th RC Monster Trucks & Buggies. Featuring an ultra-high 35Kgfcm of torque along with an excellent speed of 0.10sec/60°.
- The CM3510MG is also IP65 waterproof making it ideal for tough conditions.
- CM3510MG is one of the most high quality servos on the market today for these applications.
Specification:
- Item: CM3510MG Servo
- Rated Voltage: DC7.4V
- Voltage Range: DC4.8V-8.4V
- Torque: 20Kgf.cm@4.8V / 25Kgf.cm@6.0V / 30Kgf.cm@7.4V / 35Kgf.cm@8.4V
- Speed: 0.20sec/60°@4.8V / 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.10sec/60°@8.4V
- Stalling Current: 2.10A@4.8V / 2.90A@6.0V / 3.30A@7.4V / 3.65A@8.4V
- Working Frequency: 1520μs/333Hz
- Default Travel Angle: ±50° =100° Total
- Temperature Range: -10℃……+65℃
- Soft Start: Yes
- Programmable: Yes
- Case Material: Aluminum Alloy
- Motor Type: Coreless DC Motor
- Gear Set Material: Metal gear
- Position Sensor: Potentiometer
- Ball Bearing: 2BB
- Waterproof: IP65

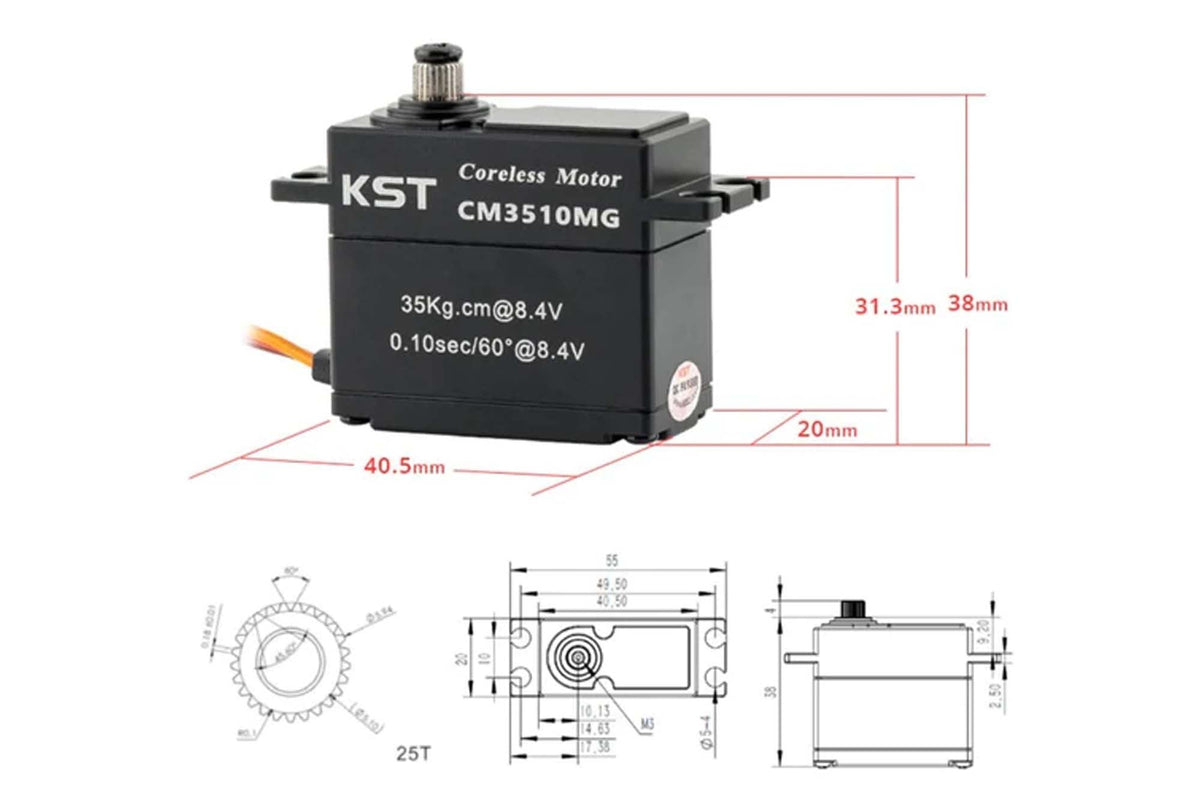

- Case Dimensions: 40.5mm*20mm*38mm±0.2mm
- Weight: 70g±10%
Package Contains:
1x CM3510MG Servo
3x Plastic Servo Horn
1x Servo Horn Screw
4x Grommet
4x Eyelet
5x Mounting Screw
