Name: JX PDI-1109MG 9g Metal Gear Digital Servo
Brand: JX Servo
SKU: JX-01-01-PDI-1109-MG
Price: 6.90 GBP
Availability: InStock

JX PDI-1109MG 9g Metal Gear Digital Servo

Product Specifications

Product Details

Light weight and high torque: small size and 9g light weight, but the torque could be 2.5kg during 6V input voltage.
High Speed: 0.12sec/60° during 4.8V voltage and 0.10 sec/60° during 6V input voltage,
Suitable for many rc models: such as rc robot, 1/18 1/24 RC car, airplane, fixed-wing and so on.
The package includes 4 different arms to fulfill your need.

Product Details

Light weight and high torque: small size and 9g light weight, but the torque could be 2.5kg during 6V input voltage.
High Speed: 0.12sec/60° during 4.8V voltage and 0.10 sec/60° during 6V input voltage,
Suitable for many rc models: such as rc robot, 1/18 1/24 RC car, airplane, fixed-wing and so on.
The package includes 4 different arms to fulfill your need.

Specifications:

Brand: JX
Model: PDI-1109MG
Dead band: 1μs
Working frequency: 1520μs / 330hz
Motor: High quality core motor
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.12sec/60°
Operating Speed (6V): 0.10 sec/60°
Stall Torque (4.8V): 2.2kg.cm
Stall Torque (6V): 2.5kg.cm

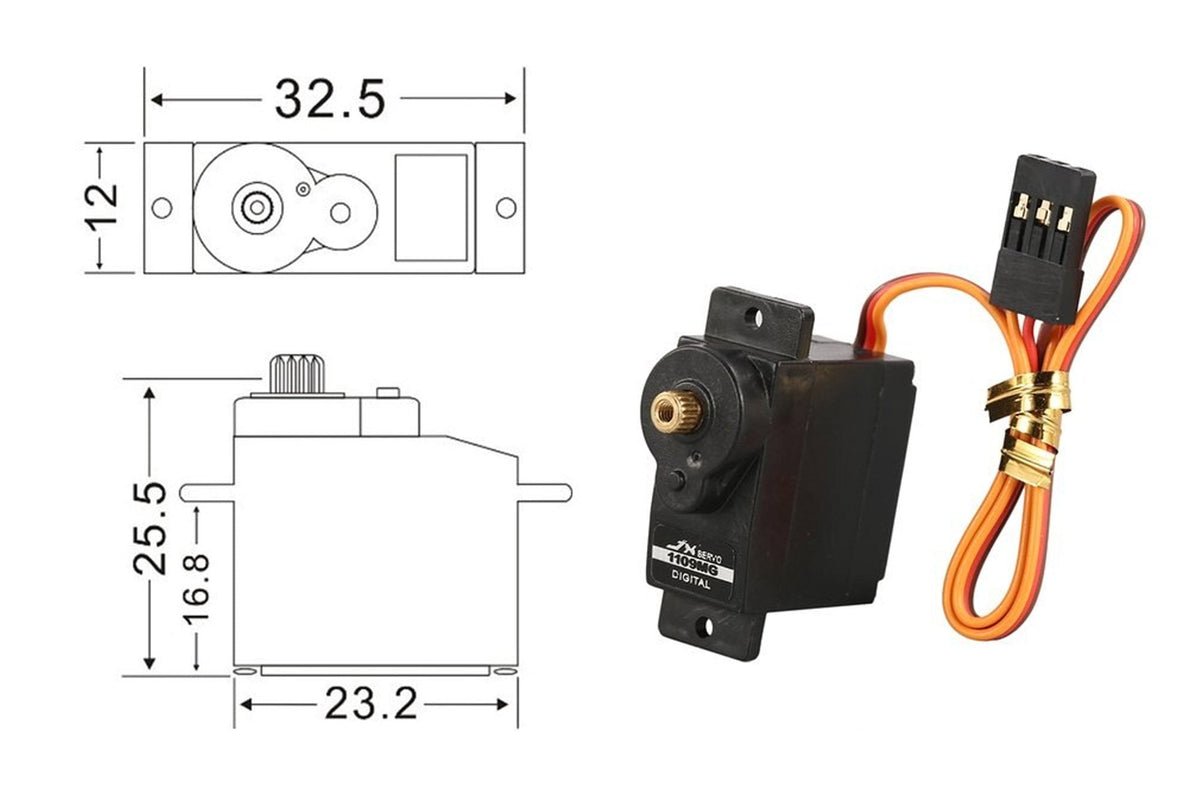

Dimensions: 23.2x12.0x25.5mm
Weight: 10.0g (0.35oz)
Connector Wire Length: JR 180mm

Package information:
Package size: 4.2 * 4.2 * 3.0cm / 1.6 * 1.6 * 1.2in
Package weight: 17g / 0.62oz

Package list:
1 * JX PDI-1109MG Servo
1 * Spare Parts Set
