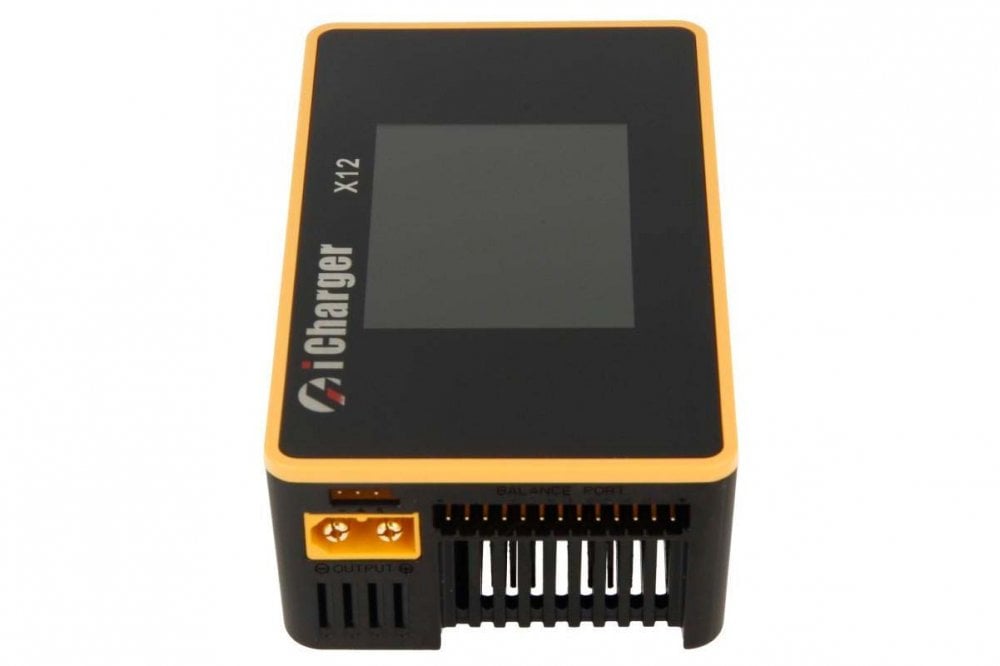

Junsi iChargerJunsi - iCharger x12 1100W/30A Lipo 12S Charger

Junsi iCharger X12 uses advanced Synchronous buck-boost DC/DC converter technology with high power, high current and high-performance power conversion circuit. The maximum charge power capacity is up to 1100W, the maximum charge/discharge current of a channel is up to 30A.

X12 Supports 12s LiPo, Lilo, LiFe, LiHV, LTO and NiZn batteries, with maximum 2A balance current, and adopts a unique balance calculation of internal resistance correction.

Supports 1-32s NiMH/NiCd batteries and 1-20s Pb batteries.

With digital-power mode for great protection (over-current protection, over-voltage protection, input under-voltage protection, input undercurrent protection, and etc.)

Intelligent fan control. Sensing internal temperature via the internal temperature sensor, to thereby control the fan speed.

Internal temperature protection. When the internal temperature exceeds the Power Reduce temperature, the output power is automatically reduced; and the charger will shut down when temperature exceeds the Shut-down temperature.

This charger can save 32 parameters sets and support the data import/export to SD card.

A 2.4" IPS LCD screen provides rich information including current, voltage, power, capacity, internal resistance, control status, time-consuming and temperature, etc.

Multi-discharge features: self-discharge, regenerative to input discharge, and lithium battery extra expanding discharge.

Supports measurement for internal resistance of battery offline and online. Can measure not only the internal resistance of the entire battery pack, but also measure the internal resistance of each cell within the lithium battery.

X12 has protection for reversed polarity (input or output), input voltage/current, battery temperature, charging
capacity, overrun time and maximum power etc.

Specification:

• Dimension: 112×64×37 ±0.5mm
• Net weight: 230g
• Device display: 2.4 "IPS LCD (320×240)
• Input voltage range: 11—53VDC
• Max. input power current: ﹤35A
• Max. charge/discharge/DC power current: 30A
• Max. output voltage/current for digital power supply 50V/30A
• Maximum charge power capacity: 1100W
• Maximum discharge power capacity: 50W/1100W (regenerative)
• Max. balancing current/cells: ﹥2A/12S
• Maximum extended discharge power: 1500W @50V/30A

Package contains:

• 1x x12 iCharger
