Product Specifications
Product Details
F4 MCU @150Mhz / Metal-Cased MOSFET / PWM output: 16k ~96k PWM / 4~6S / AM32_Firmware

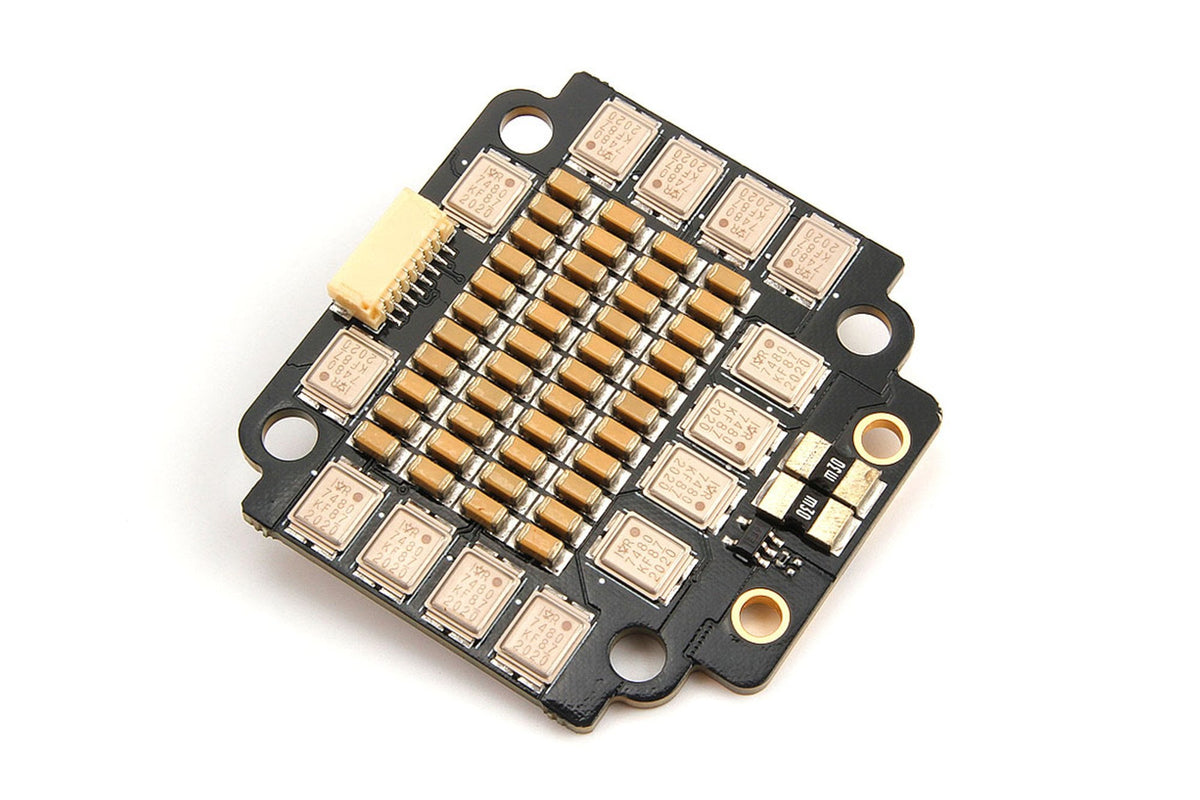

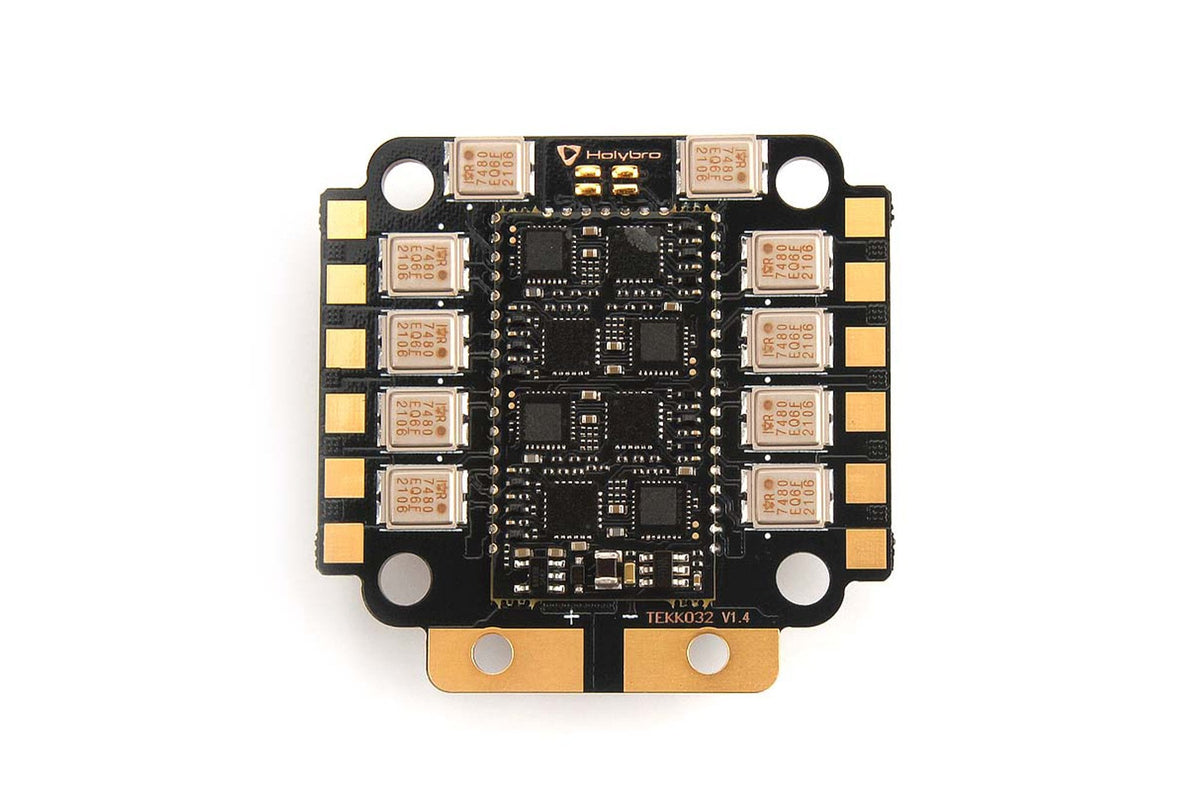

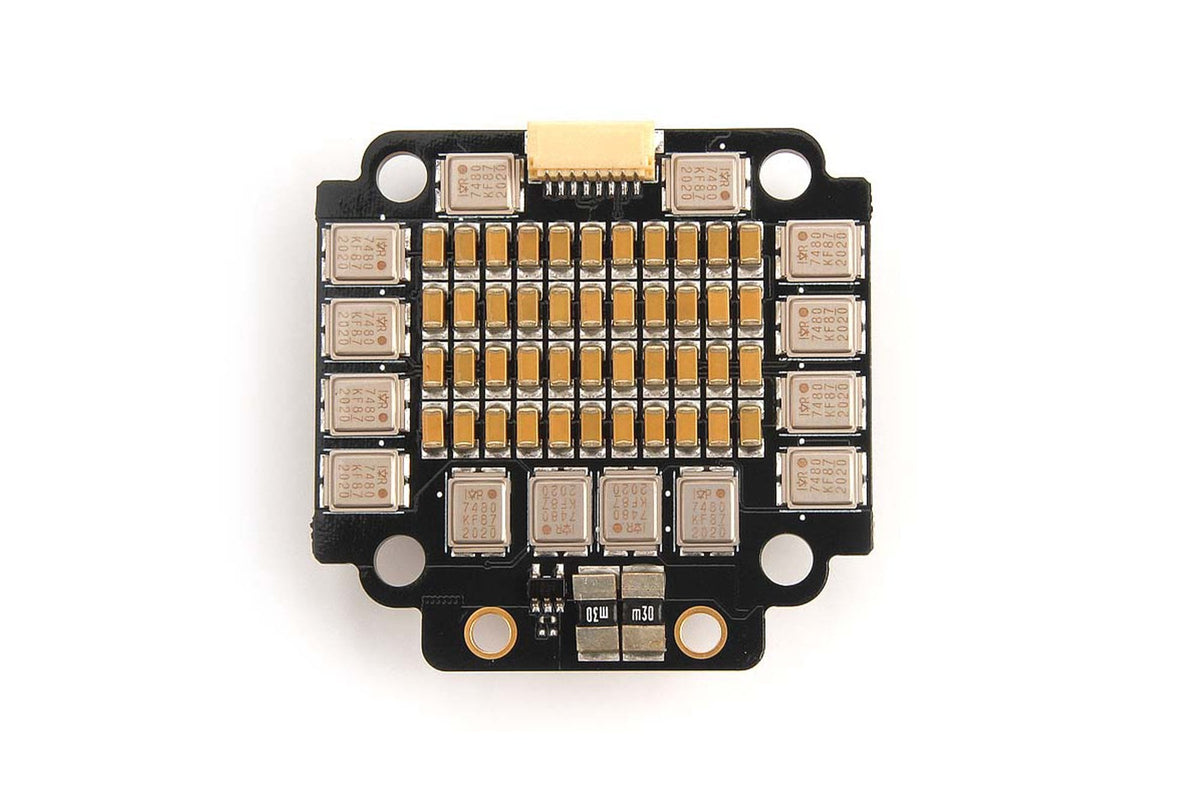

The all new Tekko32 Metal is the first 4in1 ESC in the market to adapt the fast F4 MCU. Powerful & reliable metal-cased MOSFET 4in1 ESC with smooth control and quick response.
Features:
- New & faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
- PWM Frequency: 16k to 96k
- Metal-cased MOSFET for excellent heat dissipation
- Massive on-board capacitance for noise filtering at 2068uf
- 3 oz copper PCB design to allow bigger current and better heat dissipation
- Separate drive & control circuit, this broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
Specification:
- Continuous Current: 65A x4
- Burst Current: 75A x4
- Supports 4-6S battery
- Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
- ESC telemetry Supported
- Onboard analog current sensor
- No output BEC
- AM32 firmware (target: AM32_TEKKO32_4IN1_F421)
- 1000uf 35v capacitor included (highly recommended for 6s setup)
- Amperage meter scale ratio: 180
- Dimensions: 43 x 44mm / Weight: 15.8g
- Mounting holes: M4 30.5x30.5mm (M3 grommets included)

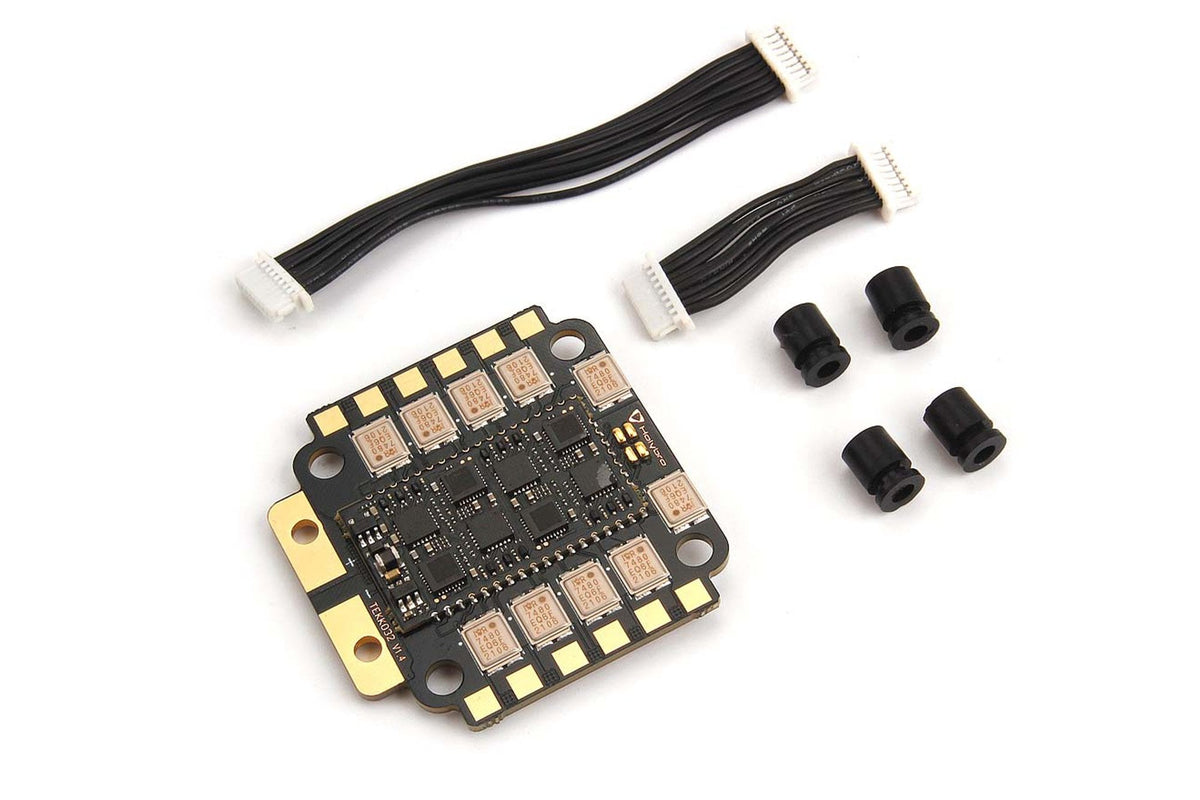

Package contains:
- 1x Tekko32 F4 Metal 4in1 65A ESC
- 4x M3 Anti-Vibration Silicone Grommet Insert
- 1x Electrolytic capacitor: 1000uF 35v
- 1x 8pin to 8pin 1mm pitch 65mm cable
- 1x 8pin to 8pin 1mm pitch 25mm cable
