Name: Holybro - Tekko32 F4 45A ESC
Brand: Holybro
SKU: HLB-00029-024
Price: 17.99 GBP
Availability: OutOfStock

Out of Stock

Product Specifications

Product Details

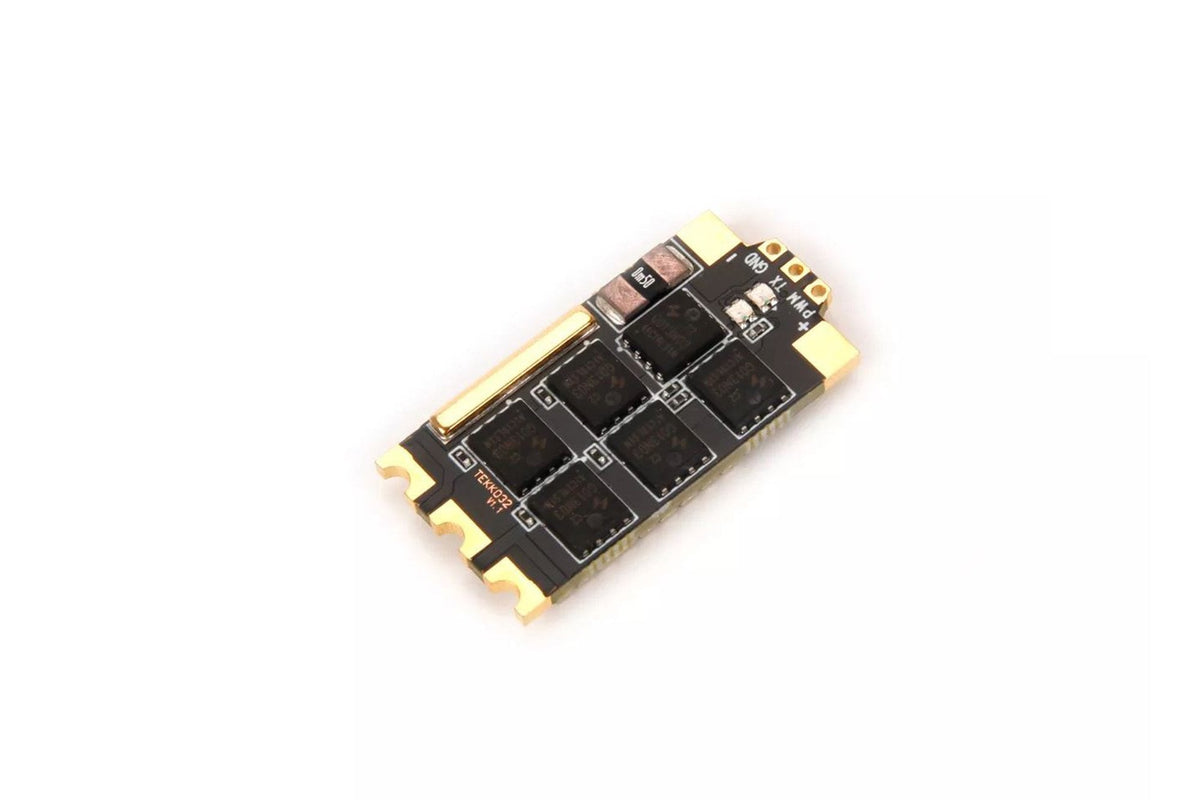

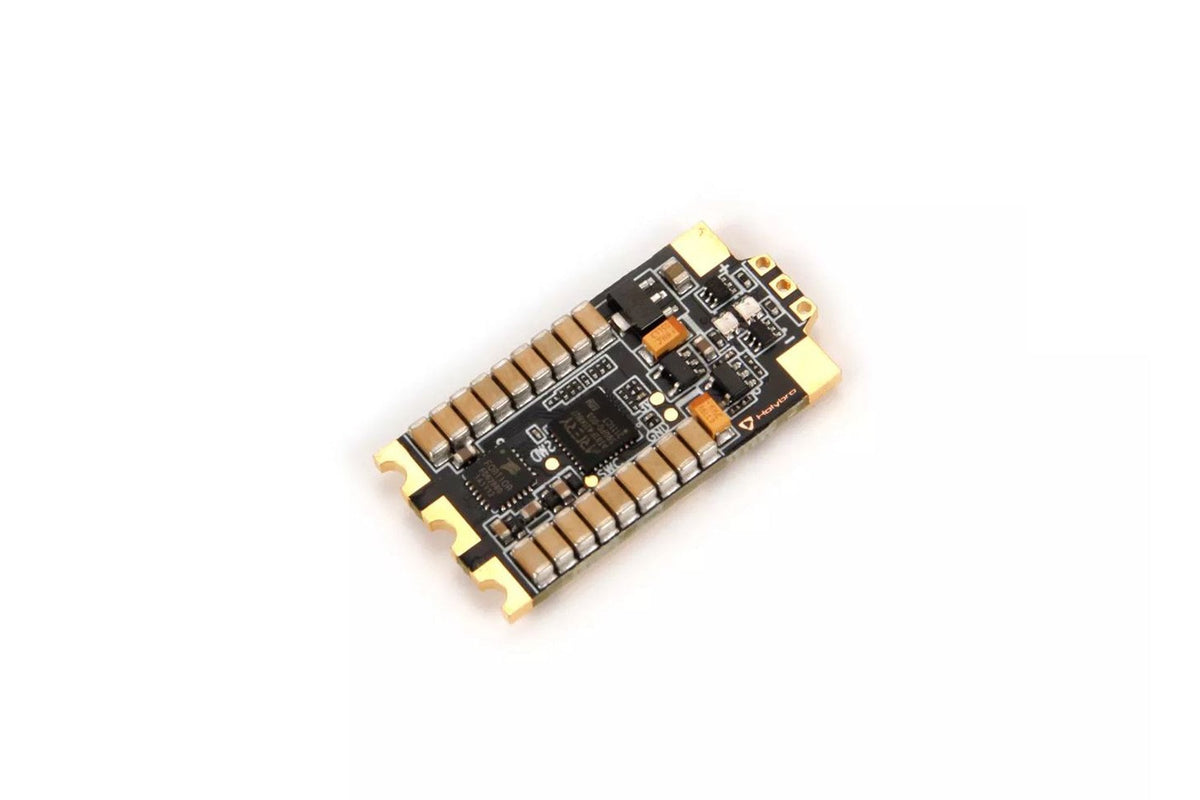

Tekko32 F4 45A ESC

Tekko32 F4 45A ESC is the latest BLHeli32 ESC from HolyBro. The Tekko32 ESC runs in conjunction with an ARM 32bit compatible F4 MCU. It can run input signals with lower latency, at faster rates, smooths out the RPM band, is capable of both voltage and current monitoring and limiting, as well as offering customization of the brake on stop force. The Tekko32 ESC has a lot of room to grow and wide compatibility range with future products.

Features

F4 MCU with BLHELI32 firmware Dshot1200 up to 32kHz
PWM up to 48k
Small size & low weight
Auto Timing Feature
On-Board RGB LED
Build in Current sensor
Smooth Response

Specifications

2-6s LIPO input
Ext. cap recommended for 6s (330uf 35v for 6s usage.)
45A designed
Size: 17.3*34.3*4.5mm

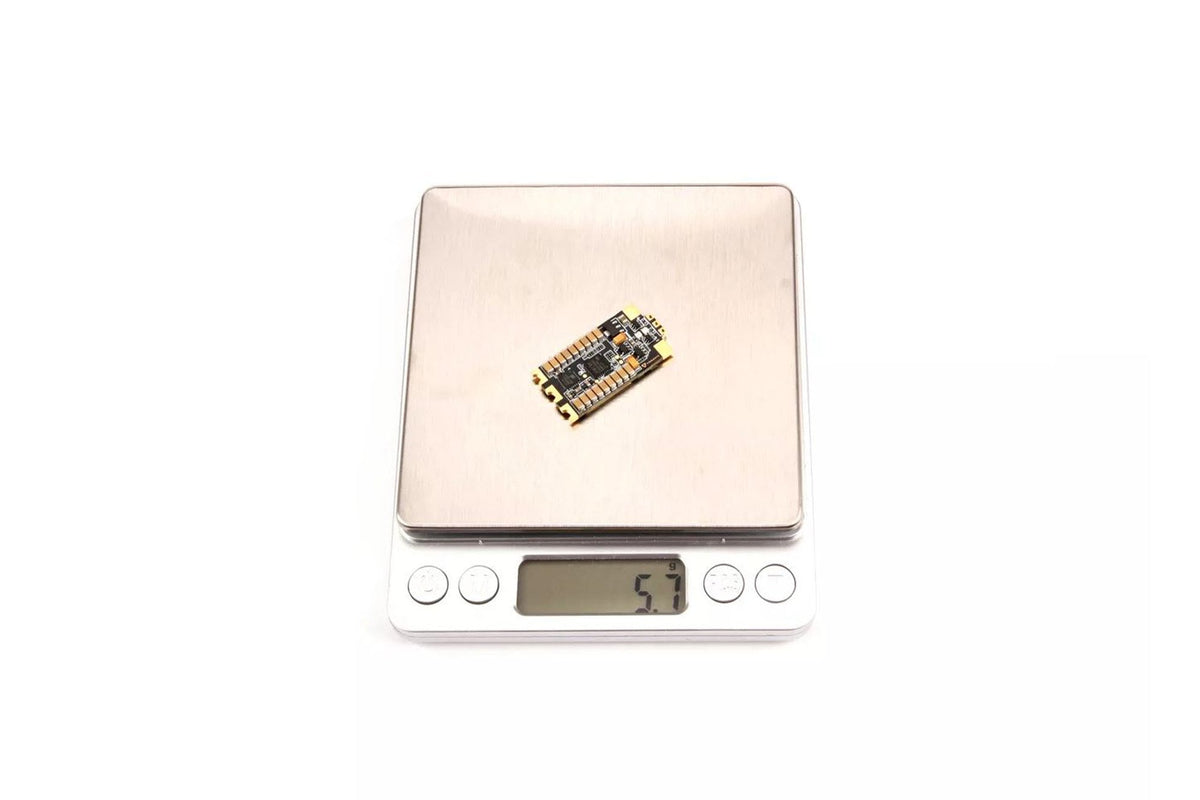

Weight: 5.8g

Dimensions

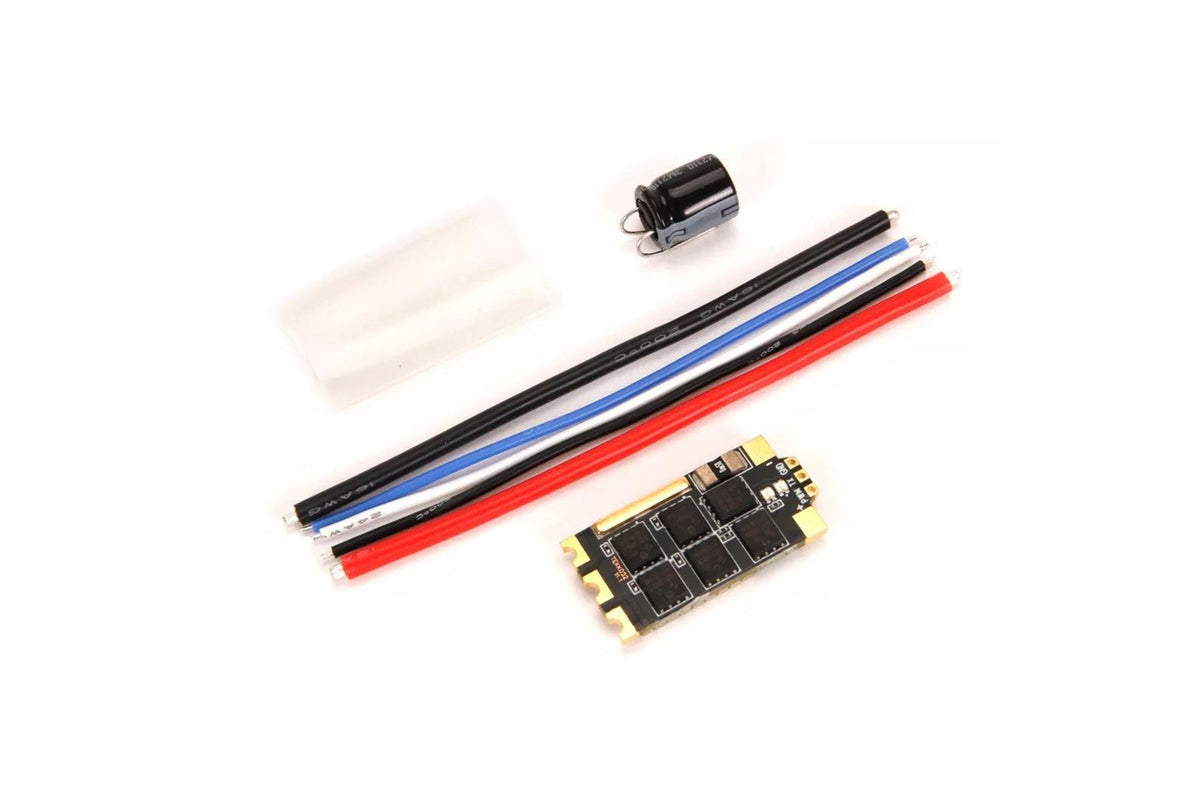

Package includes:

1 x Tekko32 F4 45A ESC
1 x Electrolytic capacito: 330uF 35v
1 x 24AWG 100mm Black wire
1 x 24AWG 100mm White wire
1 x 24AWG 100mm Blue wire
1 x 16AWG 100mm Red wire
1 x 16AWG 100mm Black wire

Product Details

Tekko32 F4 45A ESC

Tekko32 F4 45A ESC is the latest BLHeli32 ESC from HolyBro. The Tekko32 ESC runs in conjunction with an ARM 32bit compatible F4 MCU. It can run input signals with lower latency, at faster rates, smooths out the RPM band, is capable of both voltage and current monitoring and limiting, as well as offering customization of the brake on stop force. The Tekko32 ESC has a lot of room to grow and wide compatibility range with future products.

Features

F4 MCU with BLHELI32 firmware Dshot1200 up to 32kHz
PWM up to 48k
Small size & low weight
Auto Timing Feature
On-Board RGB LED
Build in Current sensor
Smooth Response

Specifications

2-6s LIPO input
Ext. cap recommended for 6s (330uf 35v for 6s usage.)
45A designed
Size: 17.3*34.3*4.5mm
Weight: 5.8g

Dimensions

Package includes:

1 x Tekko32 F4 45A ESC
1 x Electrolytic capacito: 330uF 35v
1 x 24AWG 100mm Black wire
1 x 24AWG 100mm White wire
1 x 24AWG 100mm Blue wire
1 x 16AWG 100mm Red wire
1 x 16AWG 100mm Black wire
