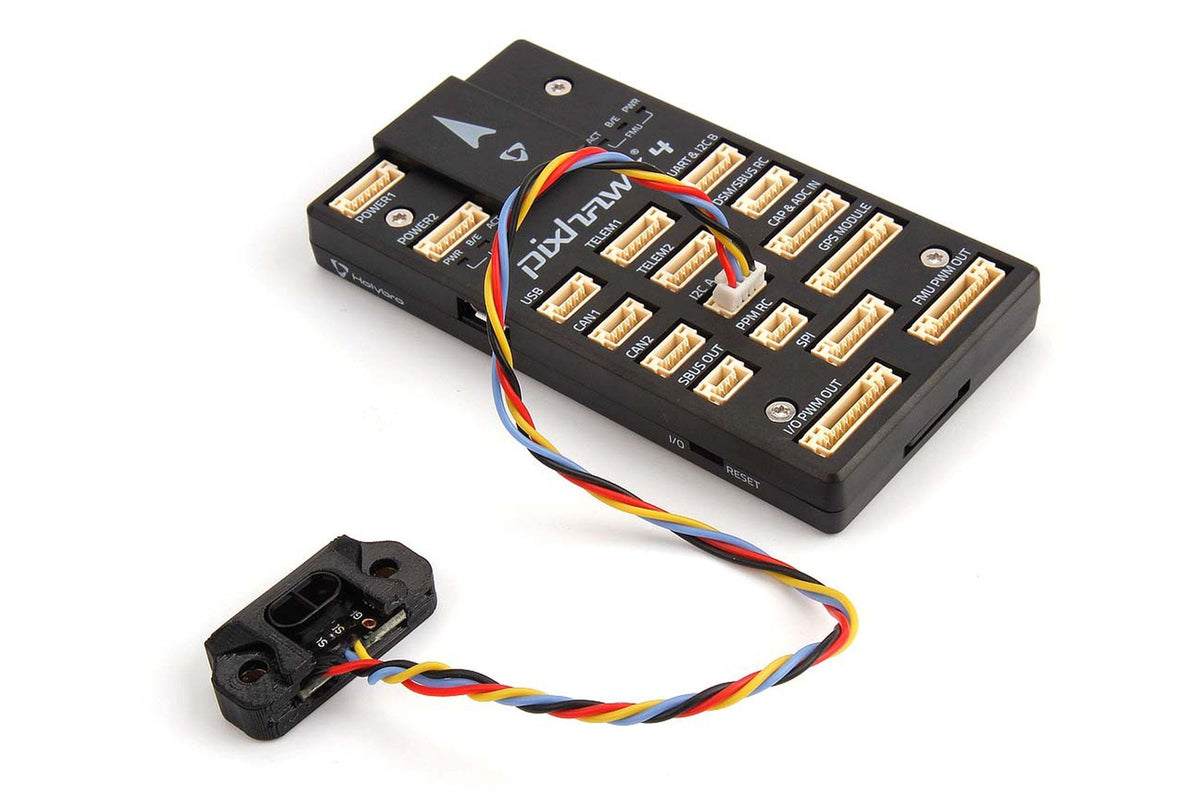

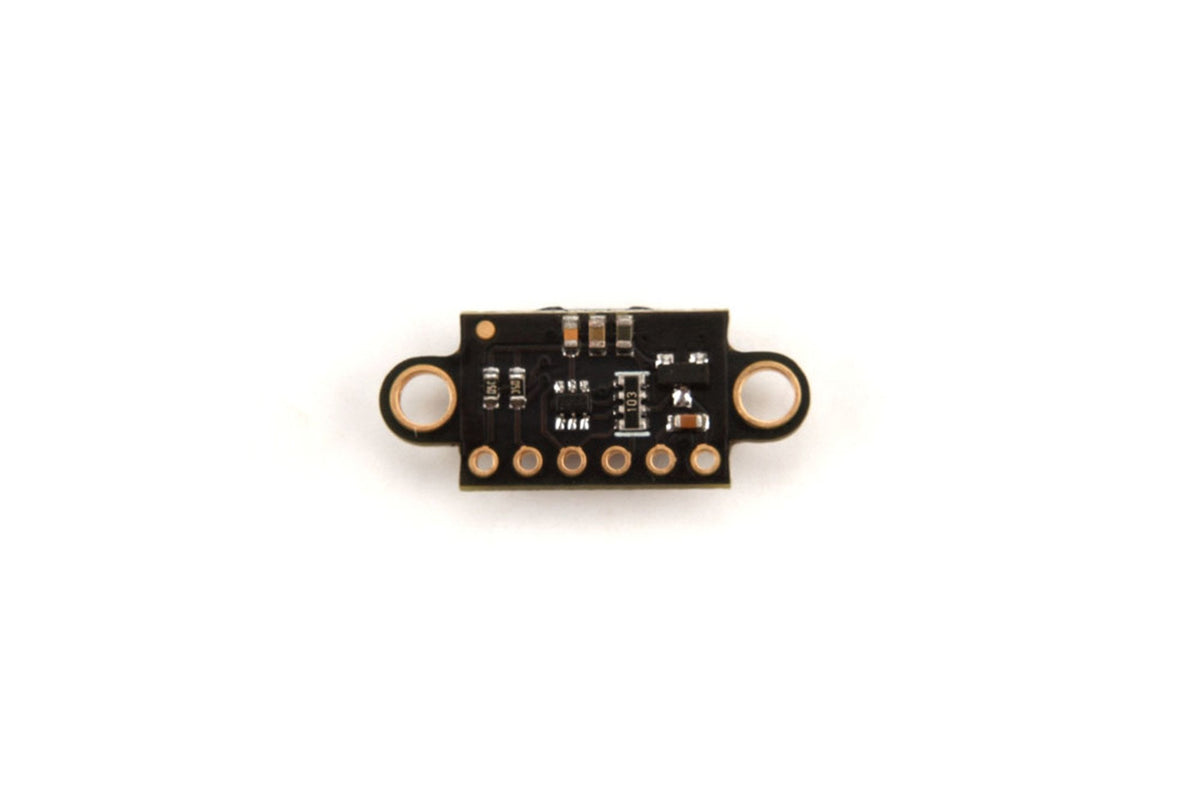

Holybro ST VL53L1X Lidar Range Sensor
The VL53L1X is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense™ product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz.
Features
- Fully integrated miniature module
- -Emitter: 940 nm invisible laser (Class1)
- -SPAD (single photon avalanche diode) receiving array with integrated lens
- -Low-power microcontroller running advanced digital firmware
- Pin-to-pin compatible with the VL53L0X FlightSense™ ranging sensor
- Fast and accurate long distance ranging
- -Up to 400 cm distance measurement
- -Up to 50 Hz ranging frequency
- Typical full field-of-view (FoV): 27 °
- Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced
- Programmable ROI position on the receiving array, providing multizone operation control from the host
- Easy integration
- – Single reflowable component
- – Can be hidden behind many cover window materials
- – Software driver and code examples for turnkey ranging
- – Single power supply (2v8)
- – I²C interface (up to 400 kHz)
- – Shutdown and interrupt pins
Specifications
Working voltage：3.3-5v
Communication interface：I2C
Dimensions：25x10.7x3.2mm
Weight：2.4g

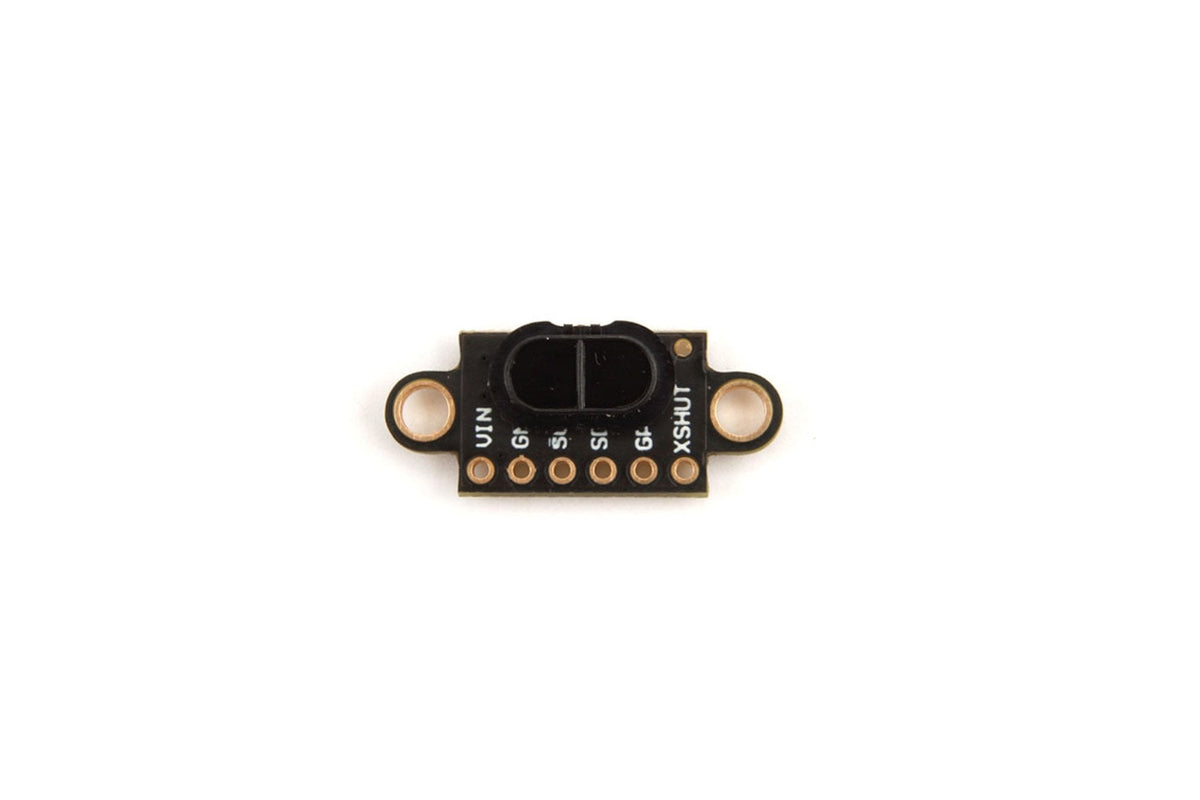

Pin Outs

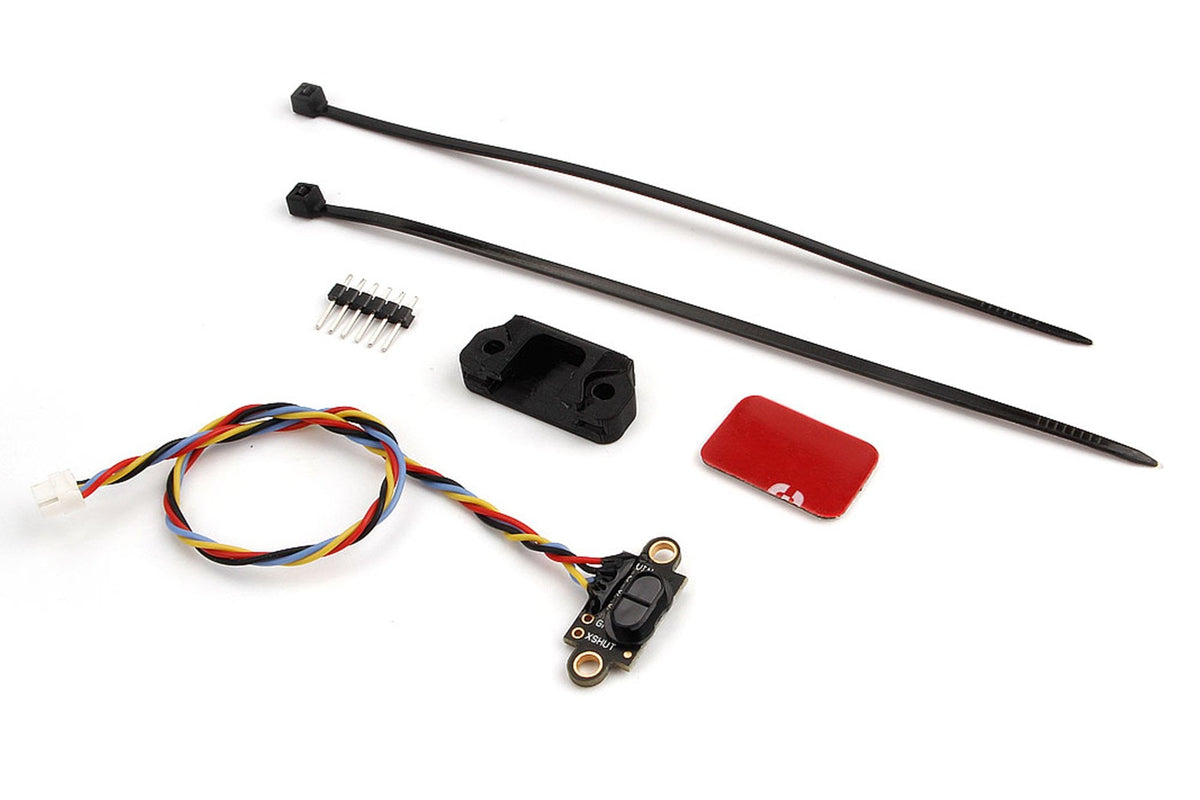

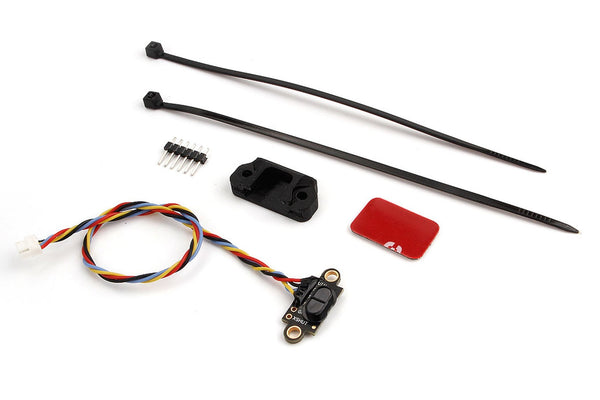

Package includes
1x VL53L1X
1x GH4P 200mm Cable(installed)

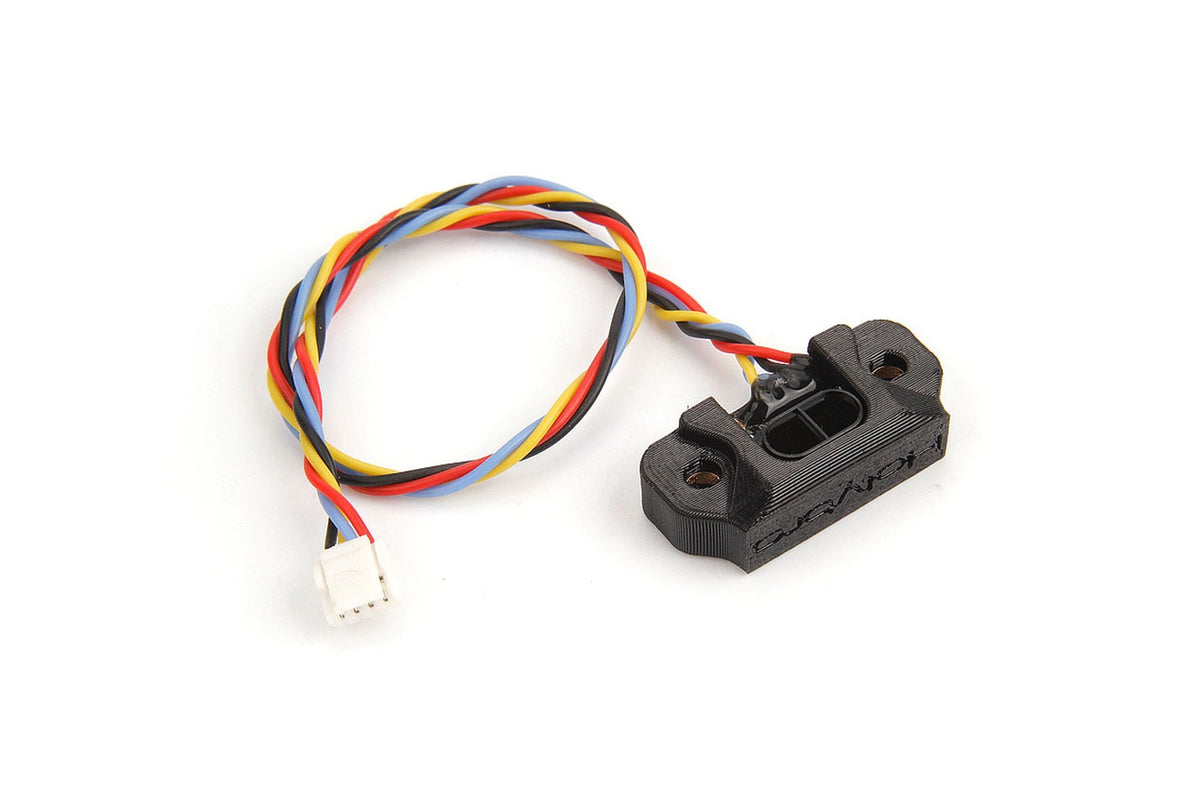

1x TPU Protective Case Shell
