Product Specifications
Product Details
Feature:
- Supports 2-14S & 200A Cont, 400A Burst
- DroneCAN Communication Protocol
- Small & Compact Design
- Two 5V Output with Independent BEC IC and Circuitry

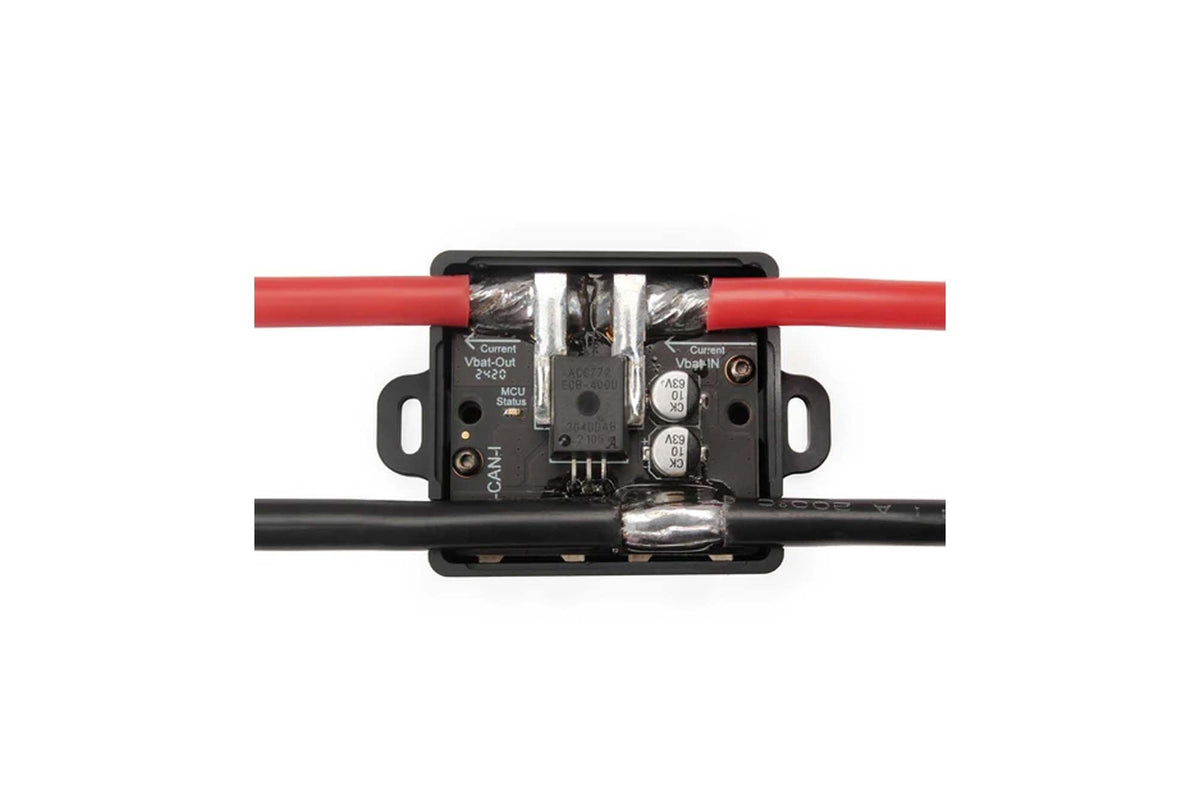

- Separated Sensor and BEC Board to Minimize Electrical Noise Interference
- Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
- High Accuracy Temperature Sensor for Temperature Monitor
-
High-Efficiency Aluminum Heat Dissipation Shell
Specifications:
- Processor：STM32F405RG 168MHz 1024KB Flash 196KB RAM
- Voltage input: 7~60.9V (2S~14S)
- Continuous current:200A
-
Burst currentMax current sensing: 376A
- 400A @ 25℃ 1 sec
- 1000A @ 25℃ < 1 sec
- Voltage accuracy: ±0.1V
- Current accuracy: ±5%
- Temperature accuracy:±1℃
- Power port output: 5.3V/3A each port
- Protocol: DroneCAN
- Operating temperature :-25℃~105℃
- Firmware upgrade: Support
- Calibration: Support
Package contains:

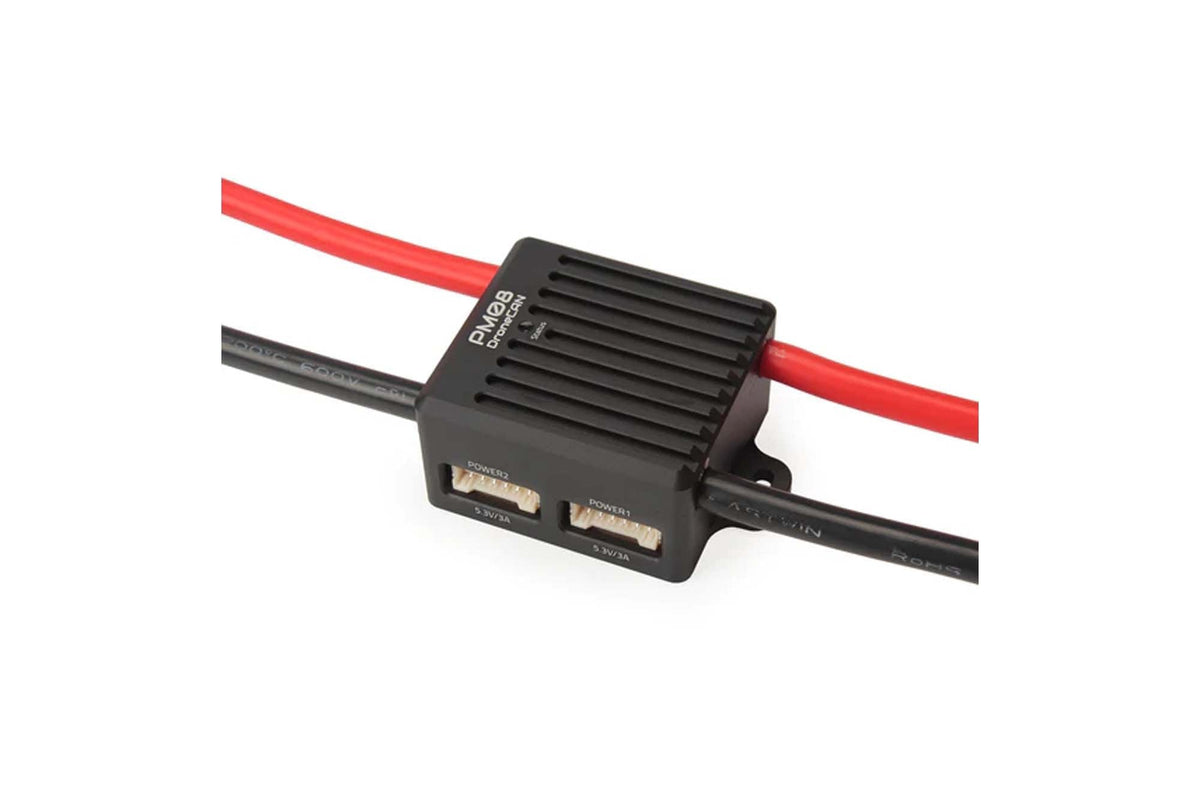

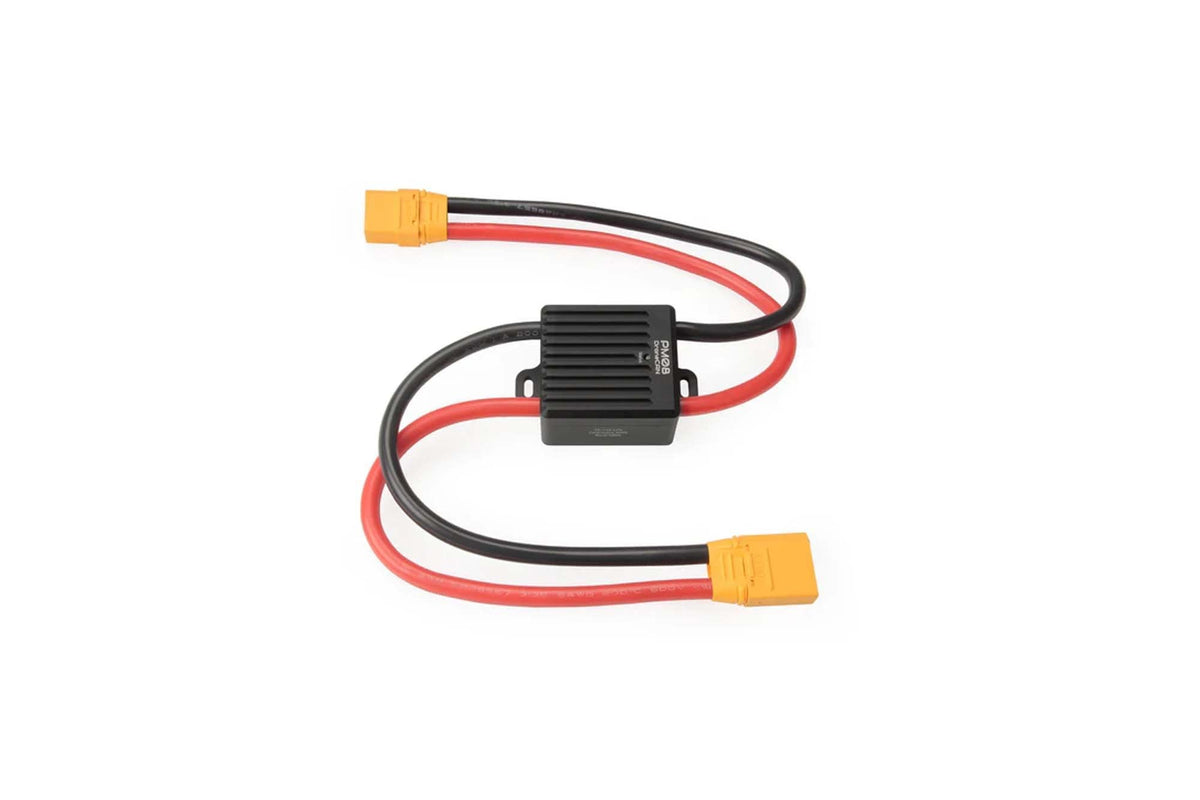

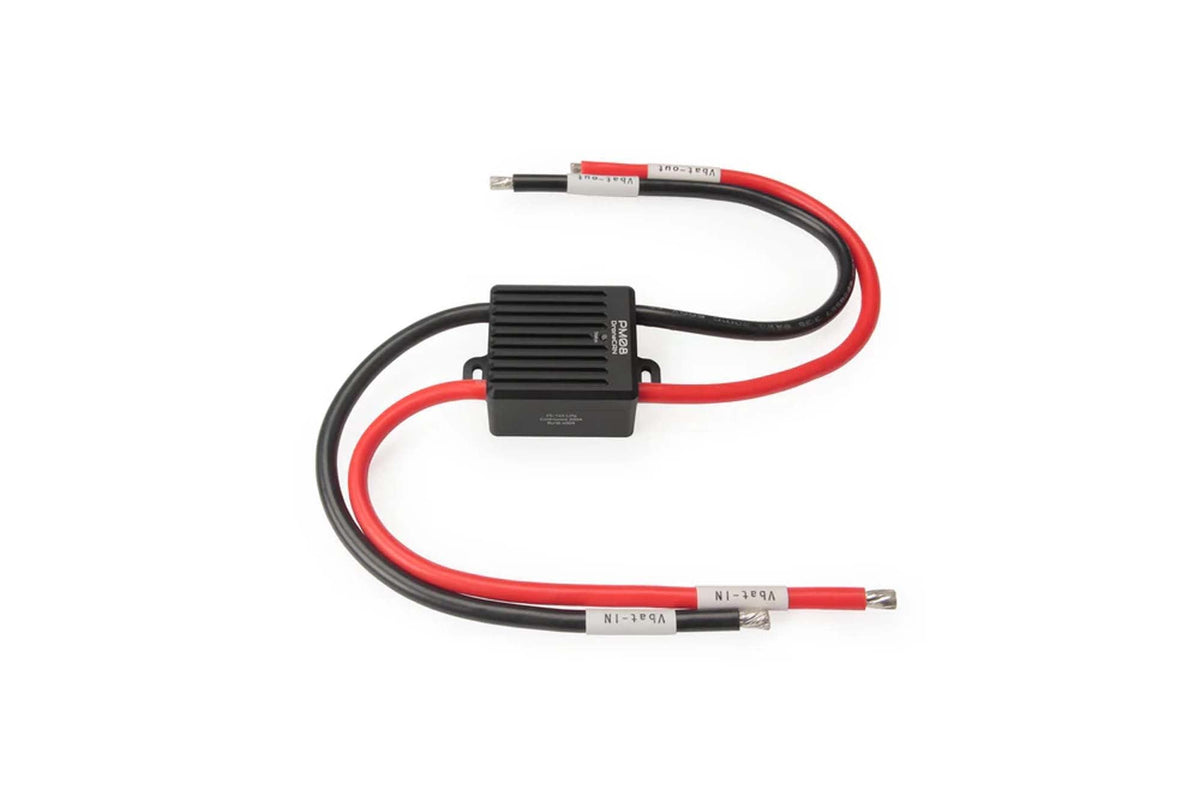

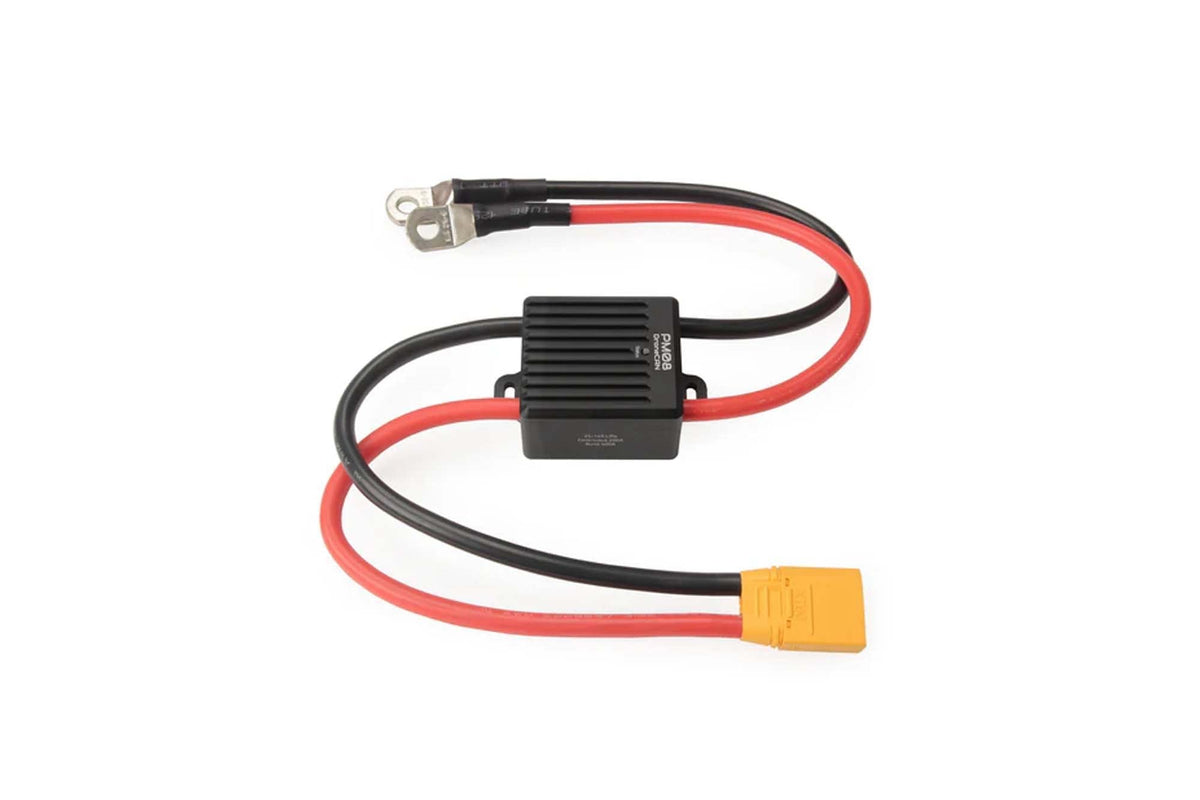

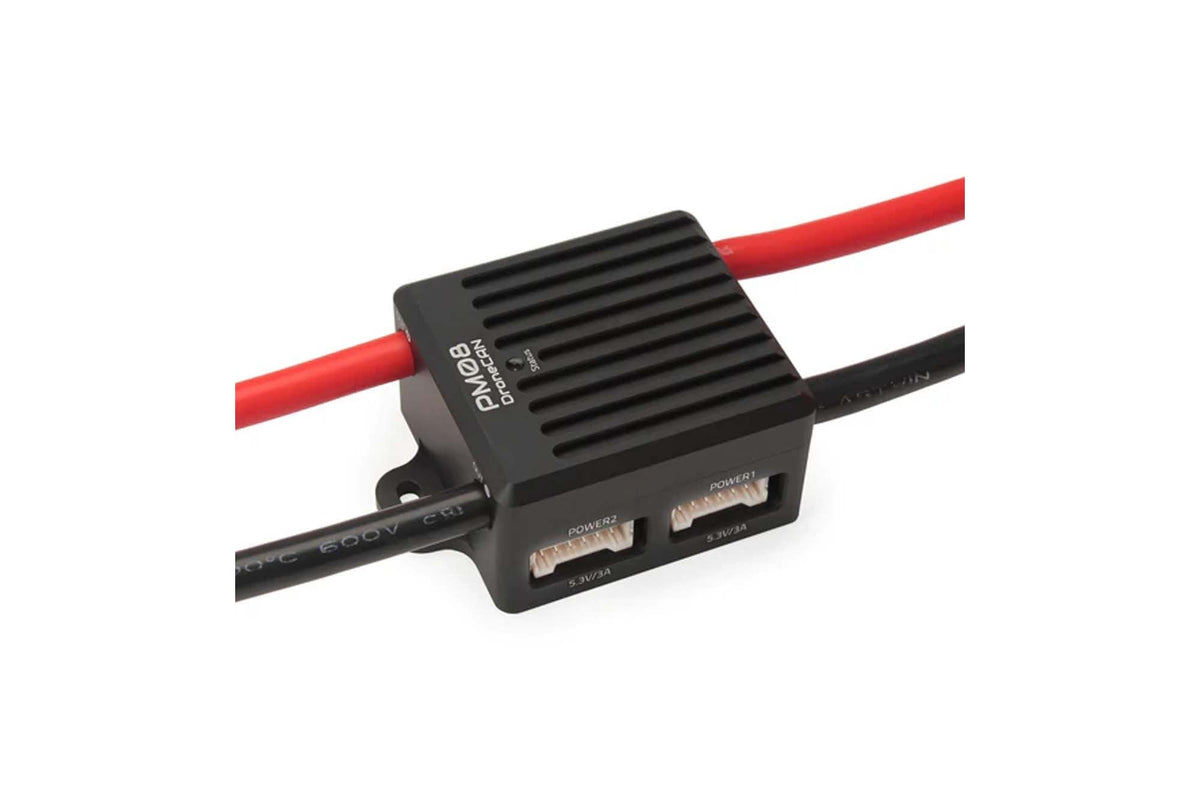

- 1x PM08 CAN Power Module 14S 200A either XT90 Connectors / Tinned Wires / XT90 & Ring Terminal (Pick from drop down options)
