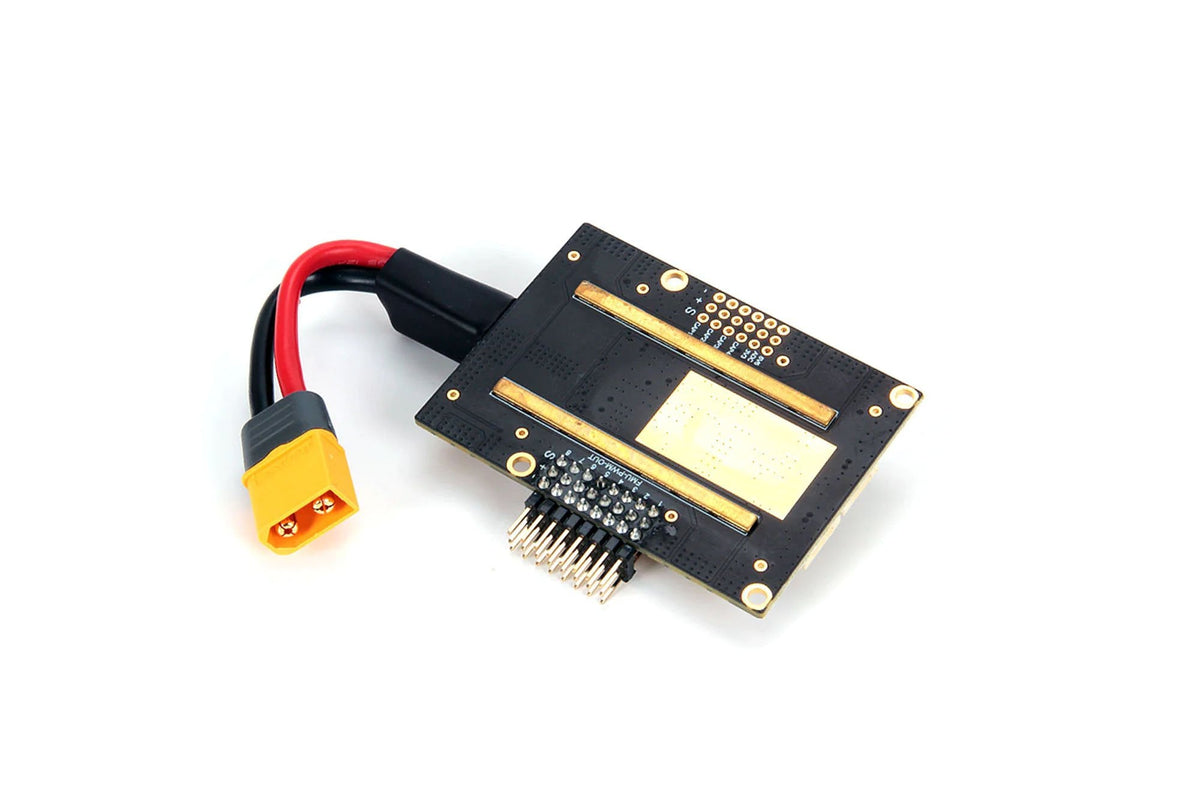

This PM07 Power Module supplies clean 5.2V to flight controller from the battery and provides current consumption and battery voltage measurements via analog signal through a 6 Pin JST-GH cable, along with integrated esc power & signal distribution for up to 8 ESCs. It is designed specifically for flight controller that do not have built-in servo header pins like the Pixhawk 6C & Pixhawk 4. It comes with pre-soldered wires, capacitor, and XT60 connector. It has two power output port with independent  BEC and circuitry.

Specifications：

• Input voltage: 2S-14S
• PCB Cont. Current Rating: 90A
• PCB Burst Current Rating: 140A (
• Output: DC 5.2V & 3A Max
• Voltage Divider: 18.182
• Amperes per Volt: 36.364

Note:

• The XT60 Plug and 12AWG wire that are pre-soldered on the board is rating for 30A continuous current and 60A burst current (< 60 Seconds). If a higher current is being used, the plug type and wire size should be changed accordingly. You can refer to this chart for reference.
• This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X & 6X (Requires a digital PM like PM02D).

Mechanical Specification:

• Dimensions:68*50*10 mm
• Mounting Holes:45*45mm
• Weight: 43.8g

Package Include：

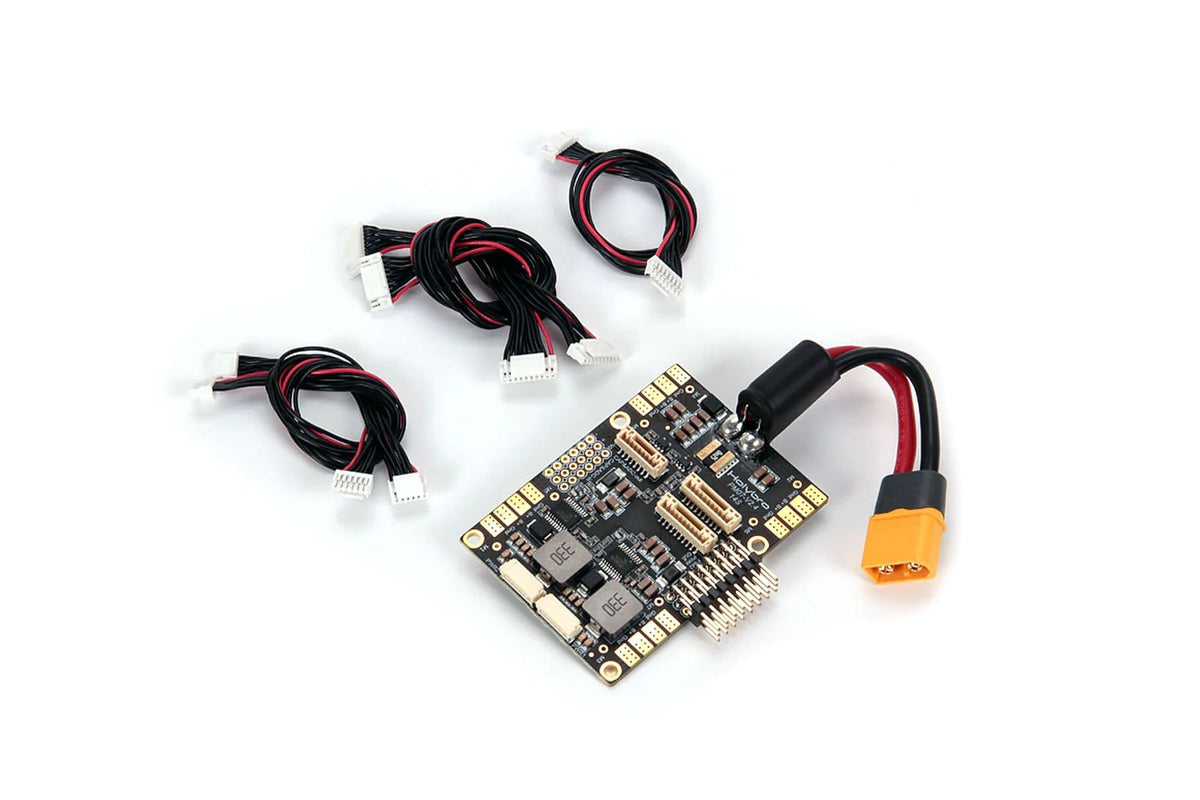

• 1x   PM07 board
• 1x   80mm XT60 connector wire (installed)
• 1x   Electrolytic capacito: 220uF 63V (installed)
• 2x   JST GH 10P Cable
• 1x   JST GH 8P Cable
• 2x   JST GH 6P Cable
