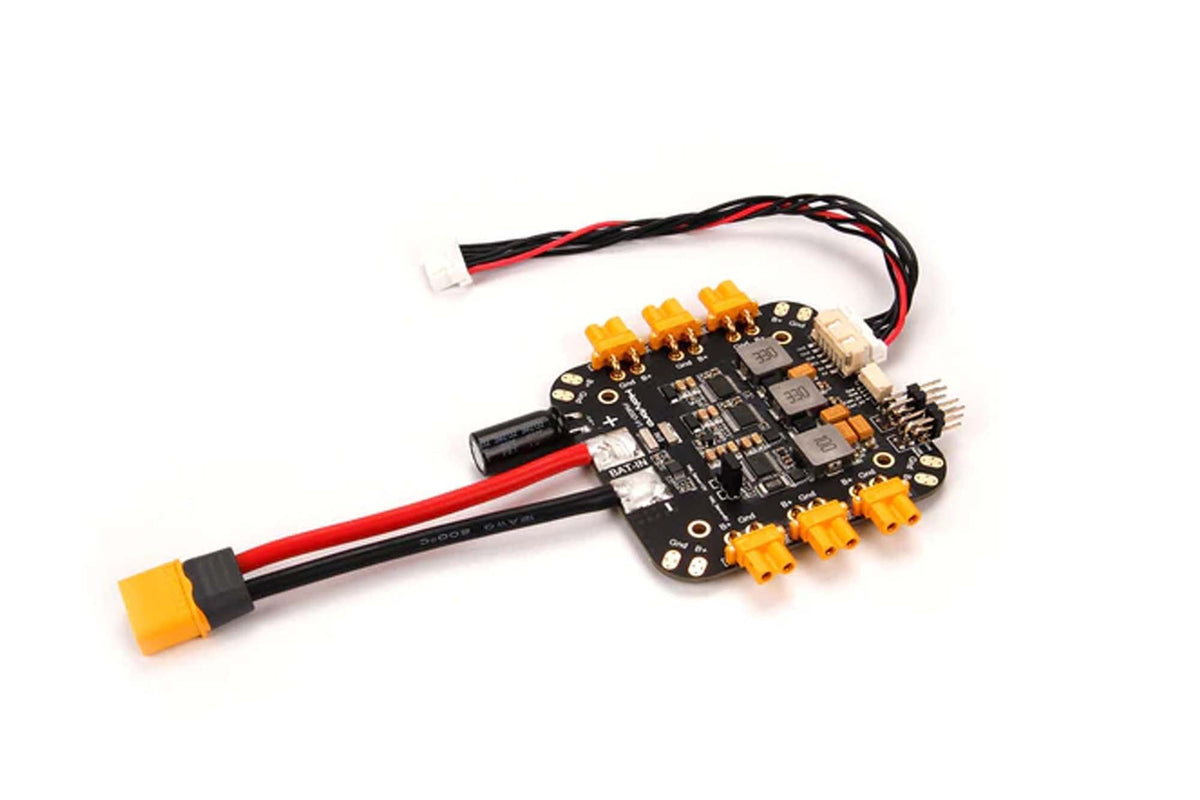

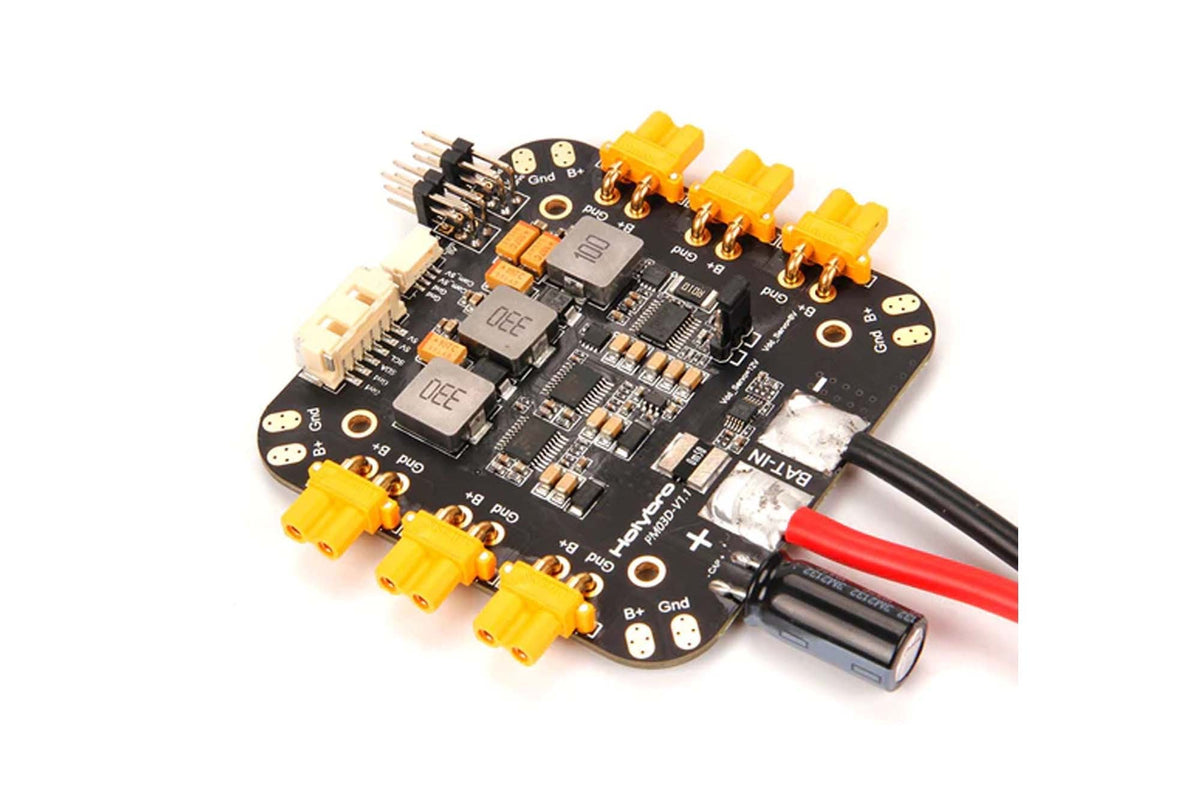

Holybro - PM03D - Power Module (without XT30 Pre-Soldered)
PM03D provides regulated power supply as well as current consumption and battery voltage measurements via I2C digital protocol all through a 6pin 2.00mm CLIK-Mate cable. Compatible to flight controller that uses I2C power monitor such as the Pixhawk 5X and up.
It is design for multi-rotor like the X500 V2. It has both XT-30 & XT-60 connectors preinstalled for motor ESCs and Battery, as well as two 5V BEC and a selectable 8V/12V output different kinds of peripheral devices.
Features:
- Plug & play, no additional setup required for QGroundcontrol & Mission Planner
- XT-30 connectors and solder pads for easy motor ESC connection
- Onboard voltage regulators: two 5.2V & one selectable 8V/12V
- 5V/A ports for powering companion computer or peripheral device
- Selectable 8V or 12V triple row pin header for powering peripheral device
Technical Specification:
- Maximum input voltage: 6S battery
- Rated current: 60A
- Max current: 120A (
- Max current sensing: 164A
-
Connections:
XT-60 for battery
XT-30 for motor & peripheral device (battery voltage)
Solder pads in each corner (battery voltage)
CLIK-Mate 2.0mm for flight controller (5.2V/3A standalone BEC)
JST GH 4pin (5.2V/3A, BEC shared with 5.2V triple row pin header)
2x Triple row pin header (5.2V/3A, BEC shared with JST GH 4pin)
2x Triple row pin header (8V or 12V selectable by moving header jumper, 3A)
- Dimension: 84x78x12mm (excluding wires)
- Mounting: 45x45mm
- Weight: 59g
The XT60 plug and 12AWG wire that PM03D comes with is rated for 30A continuous current and 60A instantaneous current (

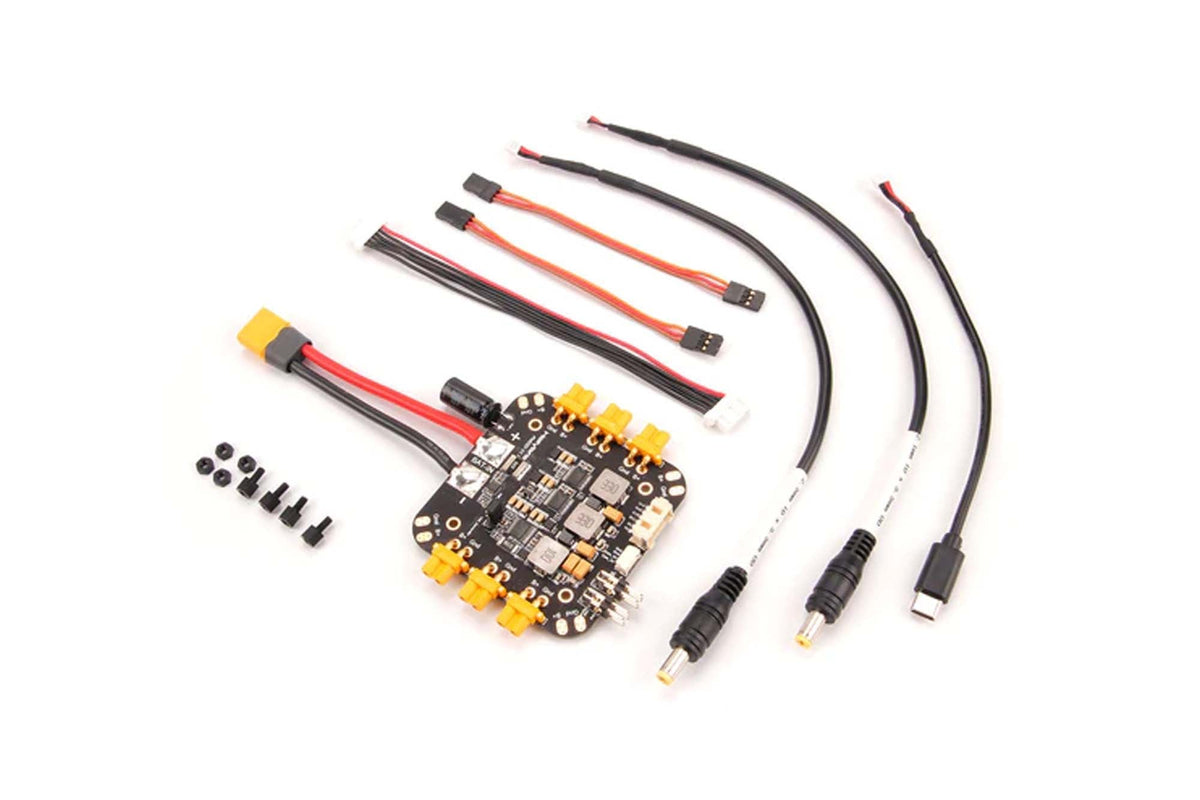

Package contains:
- 1x PM06 board
- 1x 80mm XT60 connector wire (pre-soldered)
- 1x Electrolytic capacitor: 220uF 63V (pre-soldered)
- 1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)
- 4pin JST GH to USB Type C
- 4pin JST GH to barrel plug (2.1*5.5mm)
- 4pin JST GH to barrel plug (2.5*5.5mm)
- 4pin Pin Dupont Cable (2pc)
- Nylon standoffs & nuts
